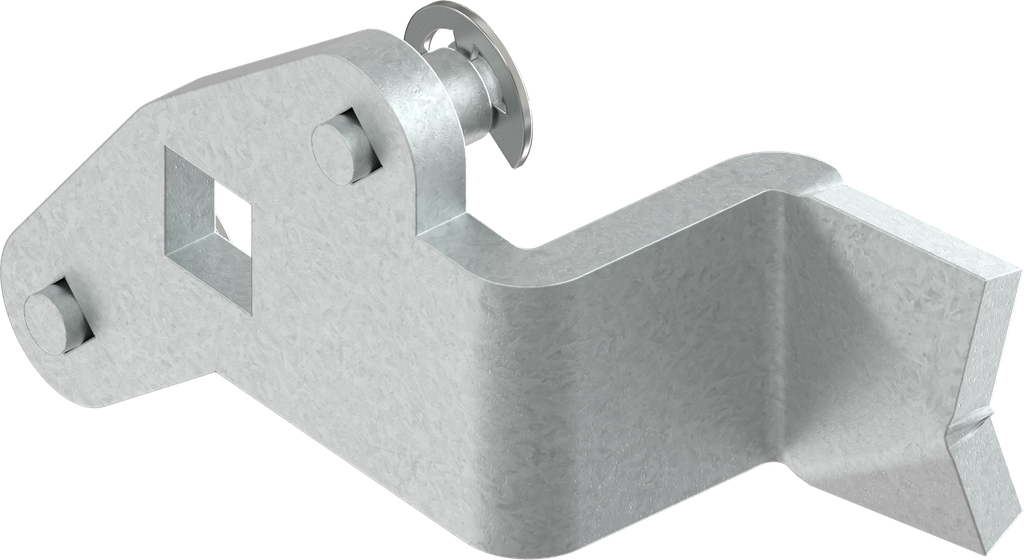

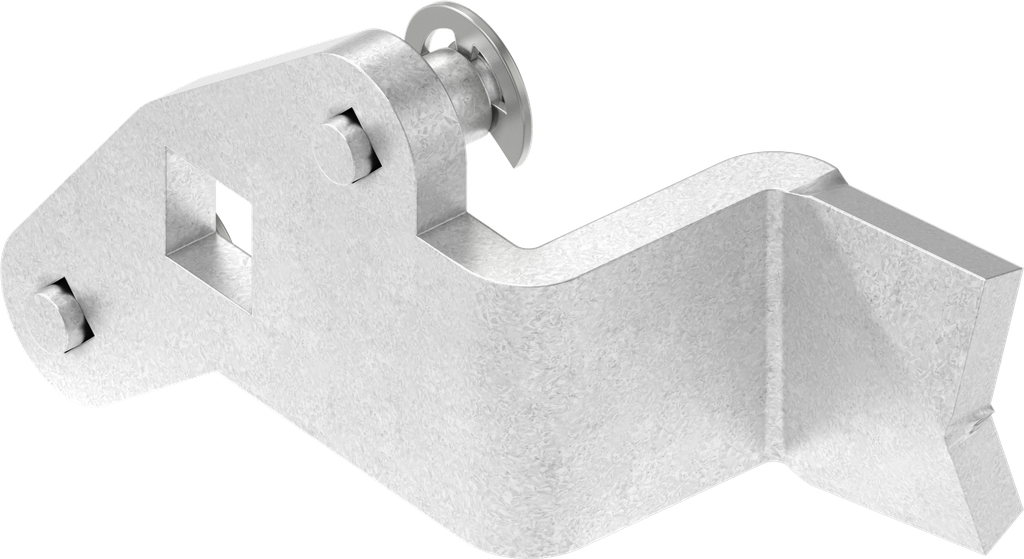

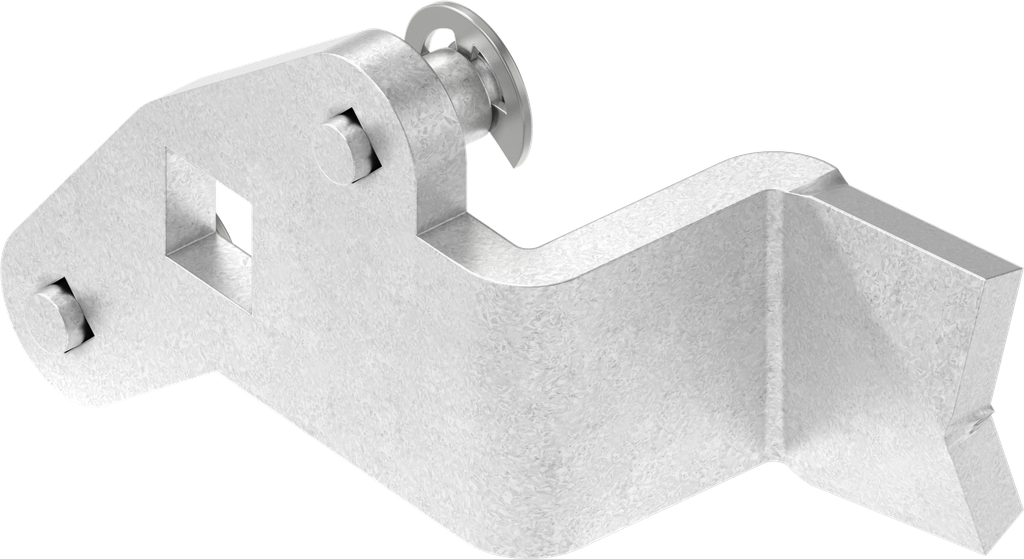

3-Point cam, left version, Steel zinc-plated; 1000-U662-38

https://www.emka.com/products/1000-u662-38 https://www.emka.com/web/image/product.template/60233/image_1920?unique=0463bdd

Offset h = 20 mm


    This combination does not exist.

    Inside the sealing


    Product information:

    The ramp increases the compression distance by 4 mm.

    Internal Reference: 1000-U662-38
    Product Type: Cam
    Program: 1000
    Catalog sheet: 3YC-140
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing

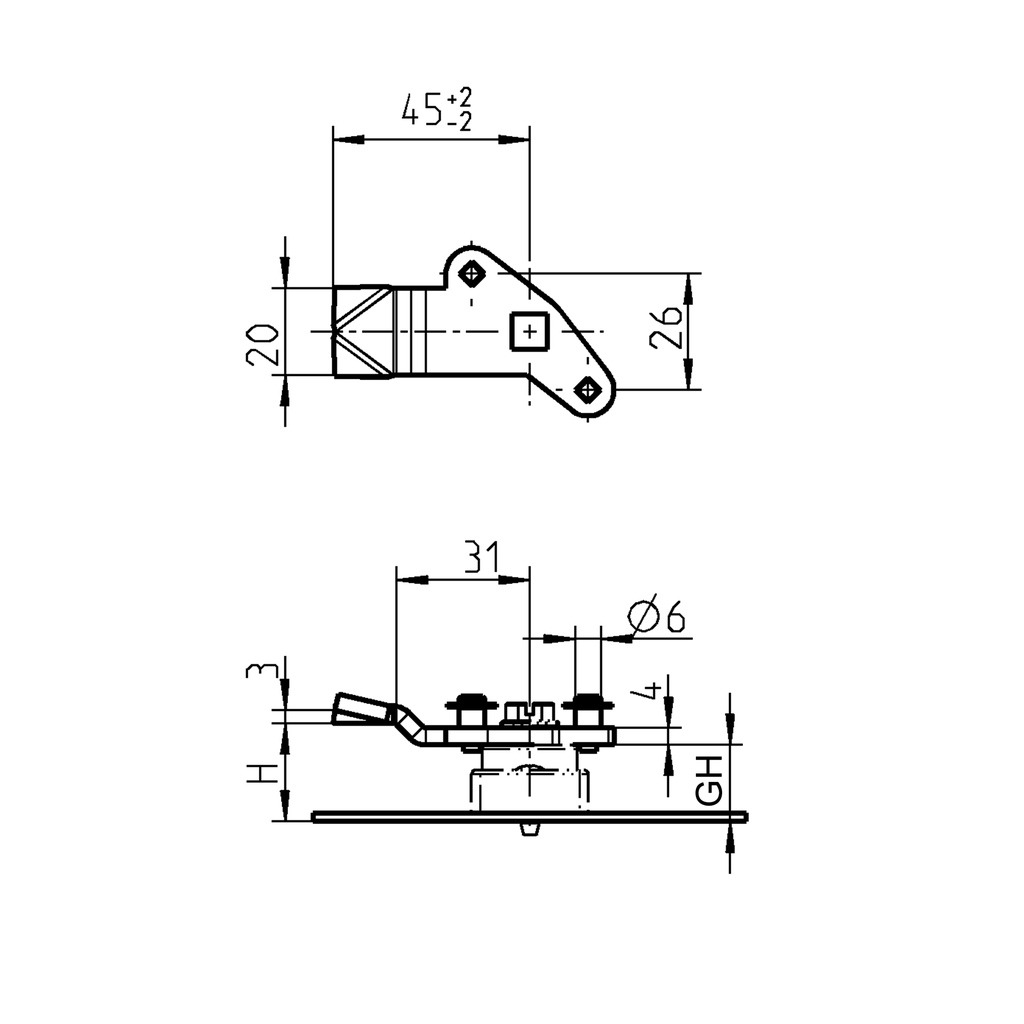

    Stroke of the drive: Stroke 26 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 20 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products

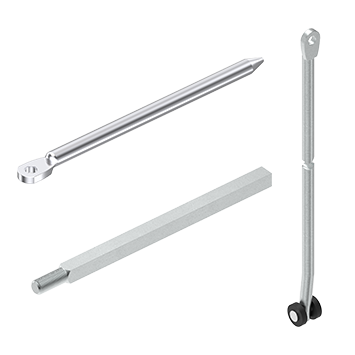

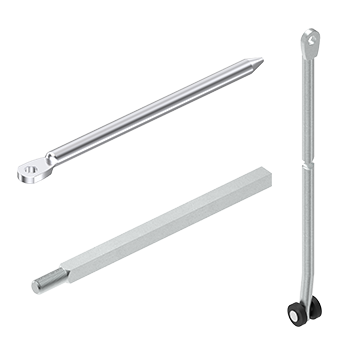

    Rod
    Ramp
    Adapter for round rod
    Bearing bush

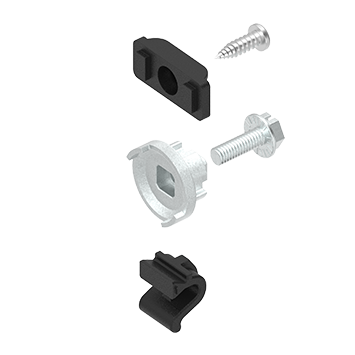

    Fixing material for swinghandle
