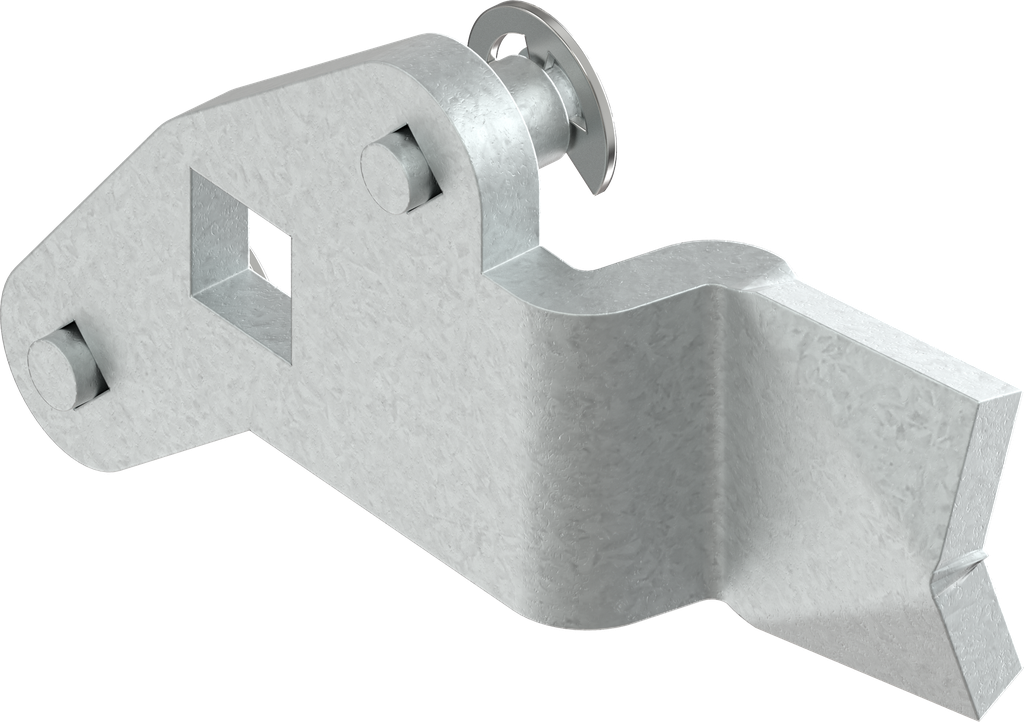

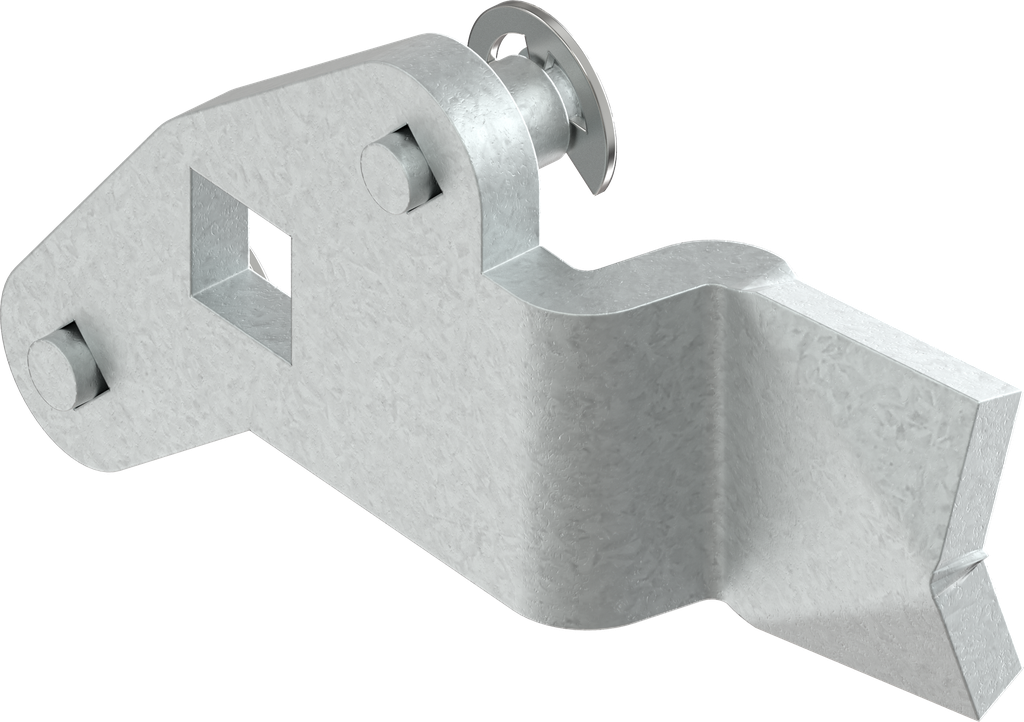

3-Point cam, left version, Steel zinc-plated; 1000-U662-27

https://www.emka.com/products/1000-u662-27 https://www.emka.com/web/image/product.template/76547/image_1920?unique=21068c8

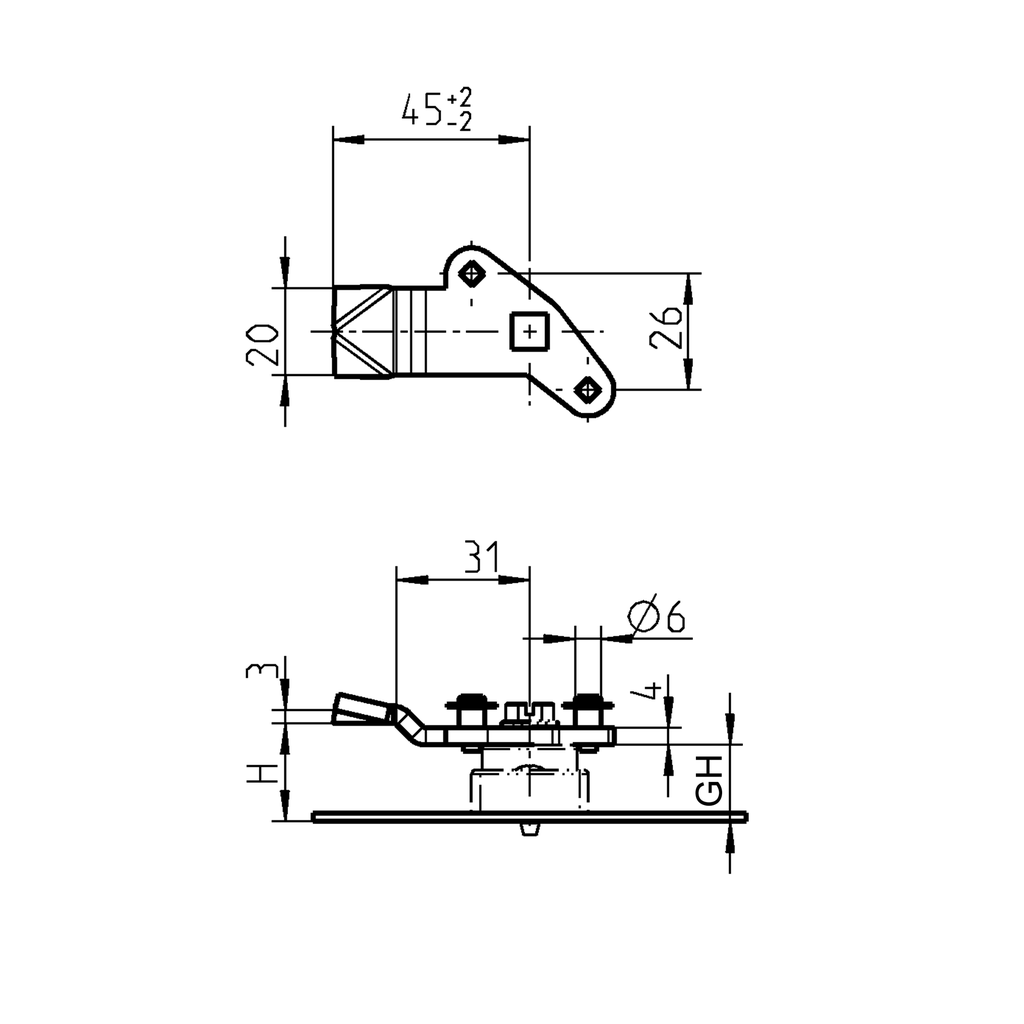

Offset h = 9 mm

This product has no valid combination.



Product information:

The ramp increases the compression distance by 4 mm.

Internal Reference: 1000-U662-27
Product Type: Cam
Program: 1000
Catalog sheet: 3YC-140
Material of the module : Steel
Surface of the module: zinc-plated
Number of Possible Locking Points: 3 point
Mounting Positions : Inside the sealing
Stroke of the drive: Stroke 26 mm
Compression Value : 3 mm
Offset: positive
offset of cam: 9 mm
Dimension L: 45 mm
Spoon: Yes
Dimension t: 4 mm
No Specifications
View All Products

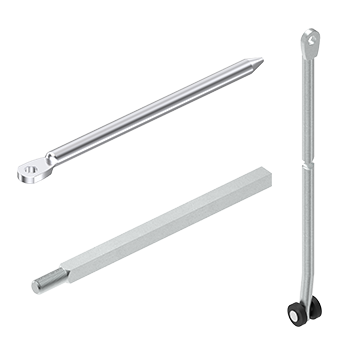

Rod
Ramp
Adapter for round rod

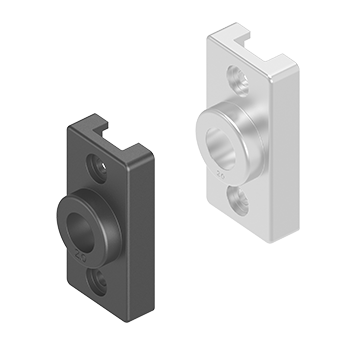

Bearing bush
Fixing material for swinghandle
Adapter
Here you can find the product data sheets and CAD files of this product
