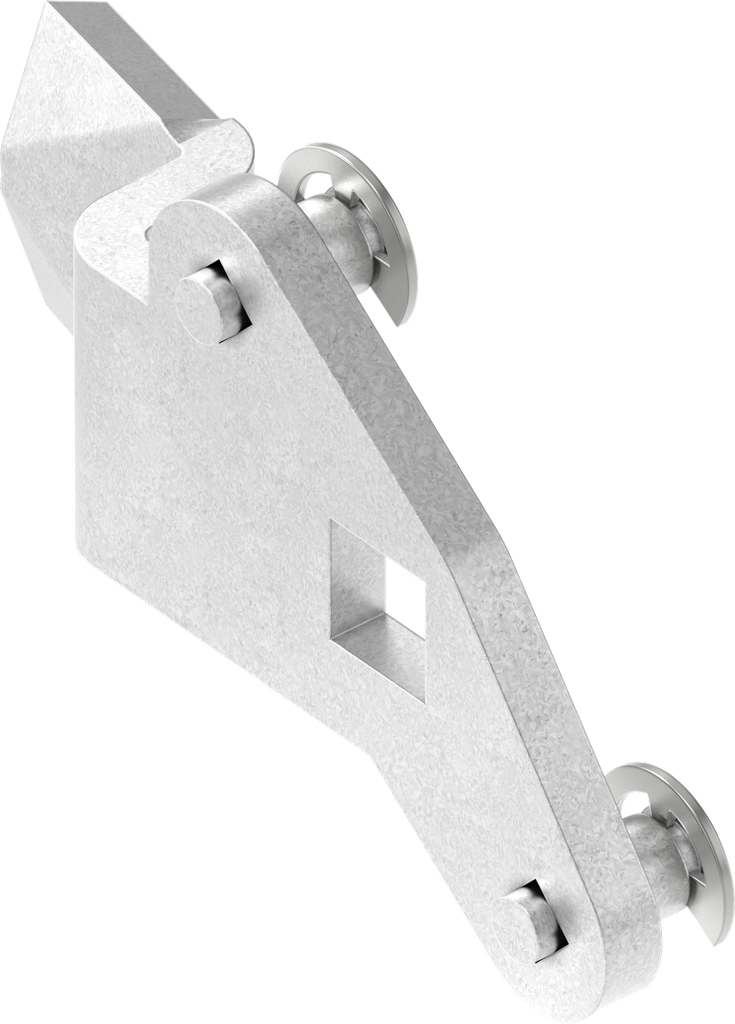

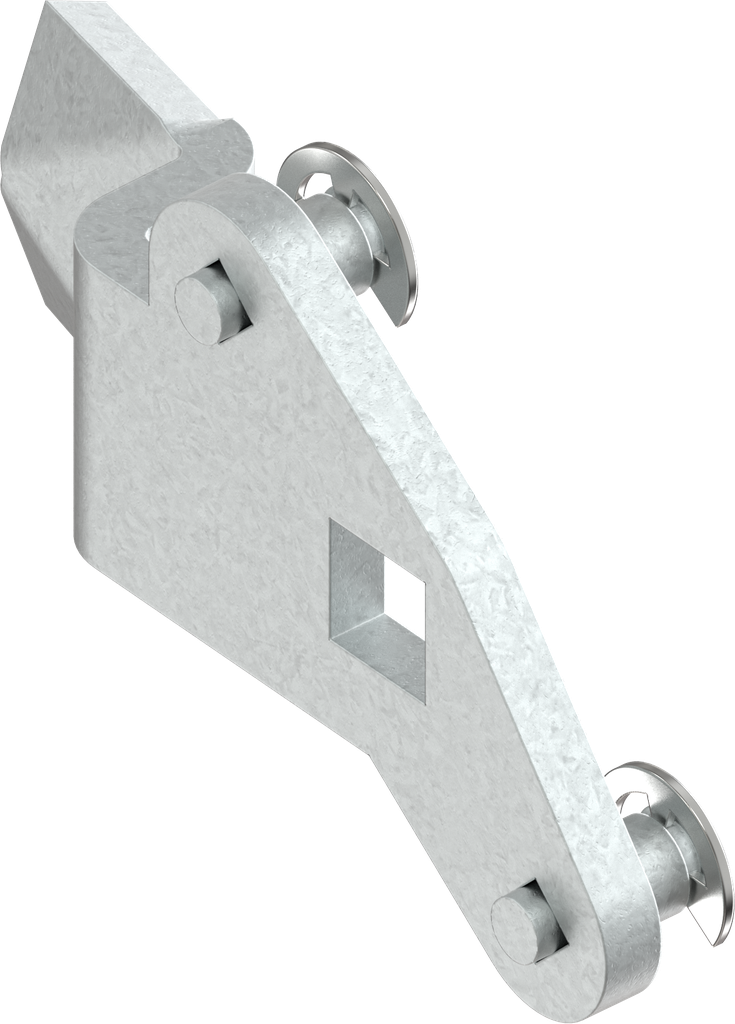

3-Point cam, right version, Steel zinc-plated; 1000-U661-29

https://www.emka.com/products/1000-u661-29 https://www.emka.com/web/image/product.template/205759/image_1920?unique=f86255a

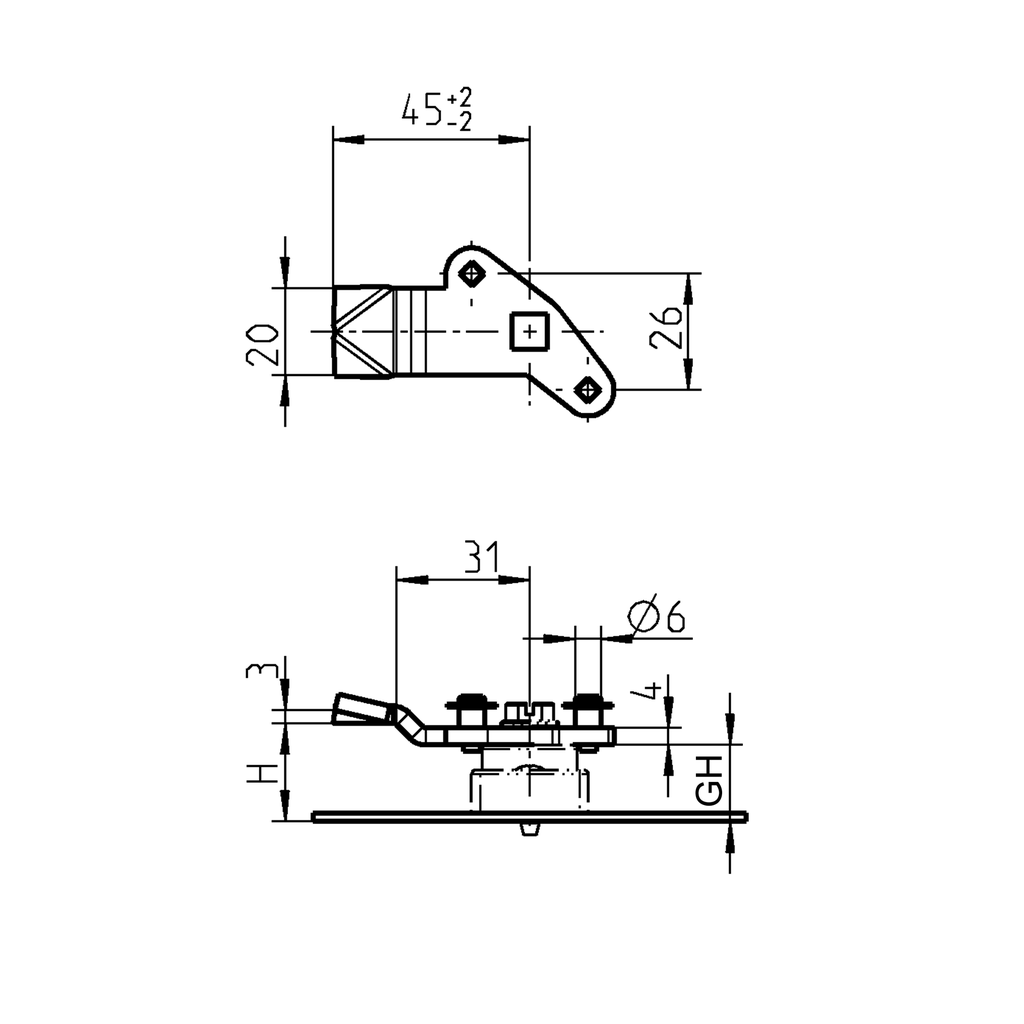

Offset h = 11 mm

    This combination does not exist.

    Inside the sealing
    Contact Us

    Product information:

    The ramp increases the compression distance by 4 mm.
    Internal Reference: 1000-U661-29
    Product Type: Cam
    Program: 1000
    Catalog sheet: 3YC-140
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 26 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 11 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Rod
    Ramp

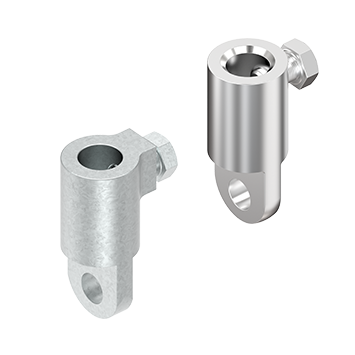

    Adapter for round rod
    Bearing bush
    Fixing material for swinghandle

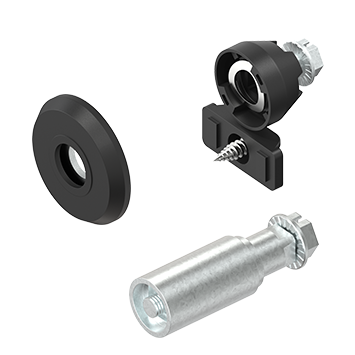

    Adapter
