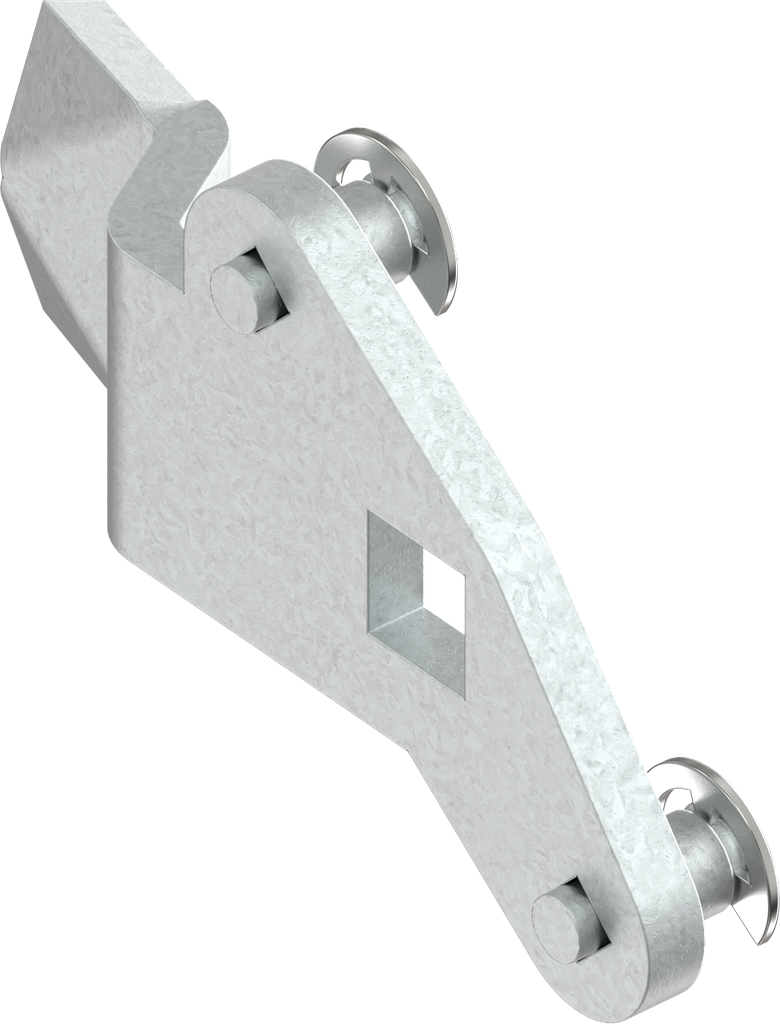

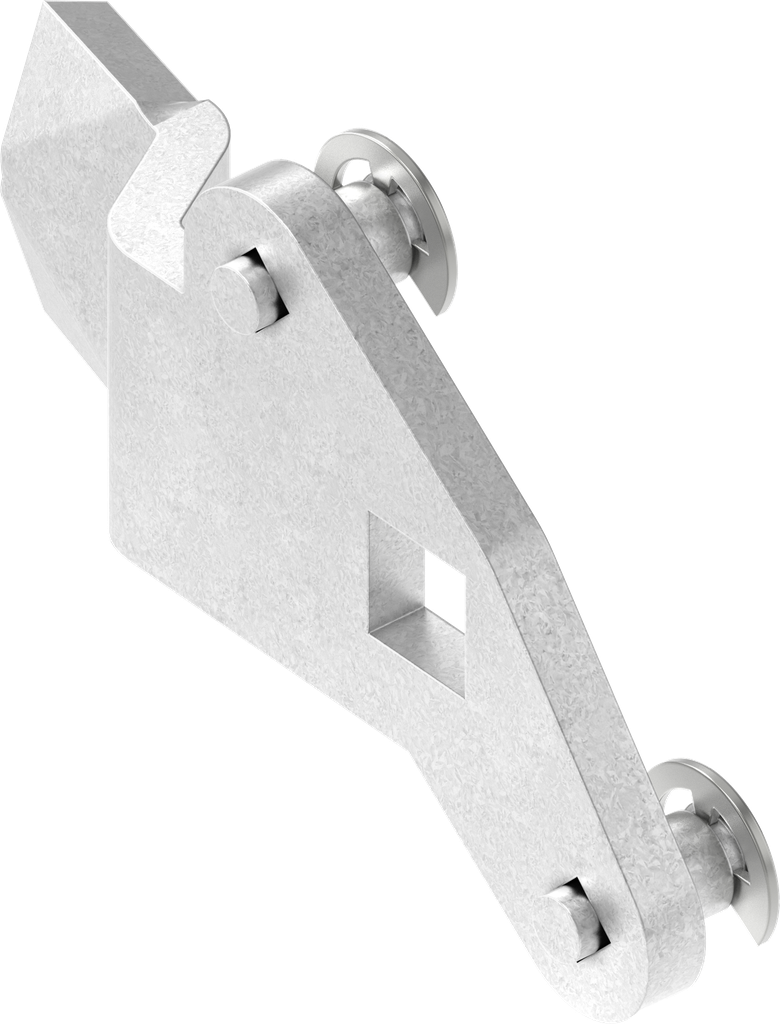

3-Point cam, right version, Steel zinc-plated
3-Point cam, right version, Steel zinc-plated
Product information:
The ramp increases the compression distance by 4 mm.
Internal Reference:
1000-U661-27
Product Type:
Cam
Program:
1000
Catalog sheet:
3YC-140
Material of the module :
Steel
Surface of the module:
zinc-plated
Number of Possible Locking Points:
3 point
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 26 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
9 mm

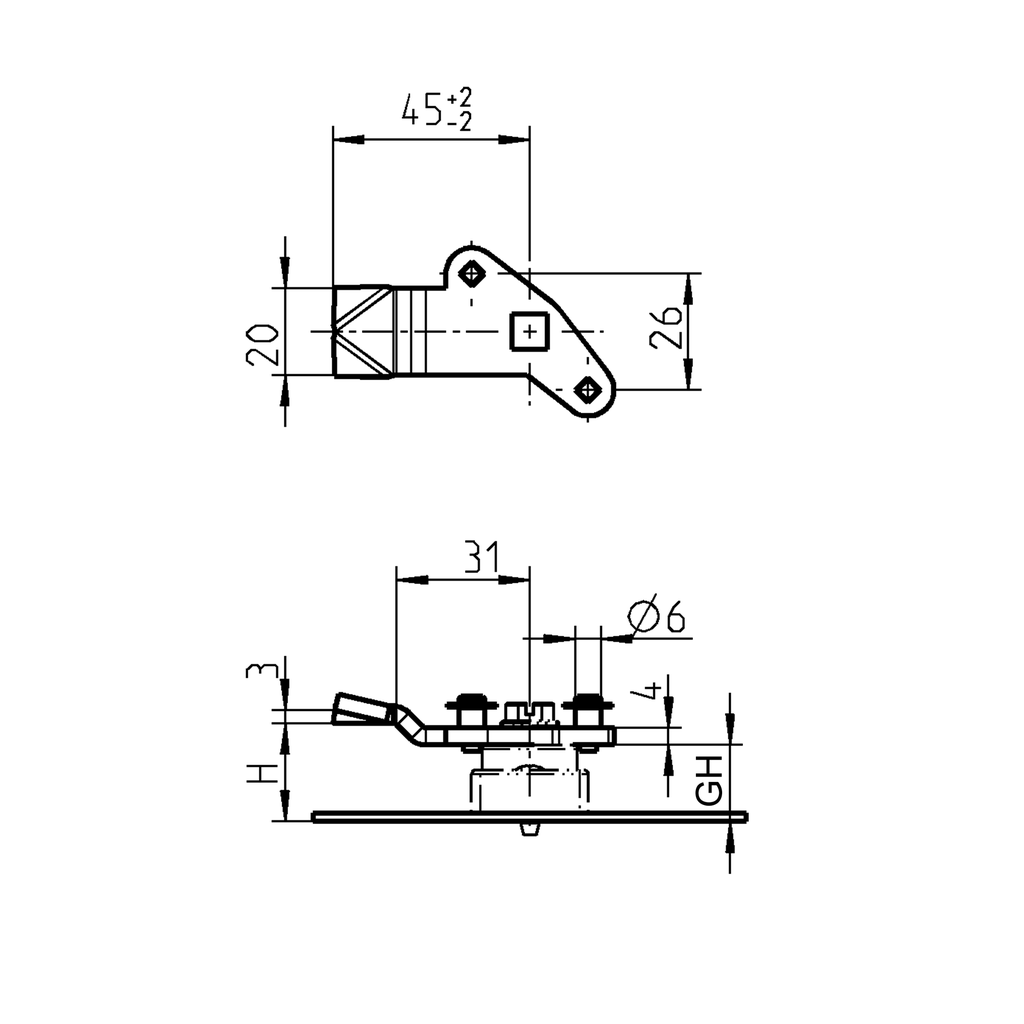

Dimension L:
45 mm
Spoon:
Yes
Dimension t:
4 mm
No Specifications
