L-handle quarter turn, non-keyed, Zinc die chrome-plated
Housing, Zinc die chrome-plated
3-point cam, Steel zinc-plated; 1000-U64
Offset h = -10 mm
No stock item, please ask for availability
Internal Reference:
1000-U64
Barcode:
1000-U00064-0000000
Product Type:
Cam
Program:
1000
Catalog sheet:
1C-120
Material of the module :
Steel
Surface of the module:
zinc-plated
Number of Possible Locking Points:
3 point
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 26 mm
Compression Value :
3 mm
Offset:
negative
offset of cam:
-10 mm

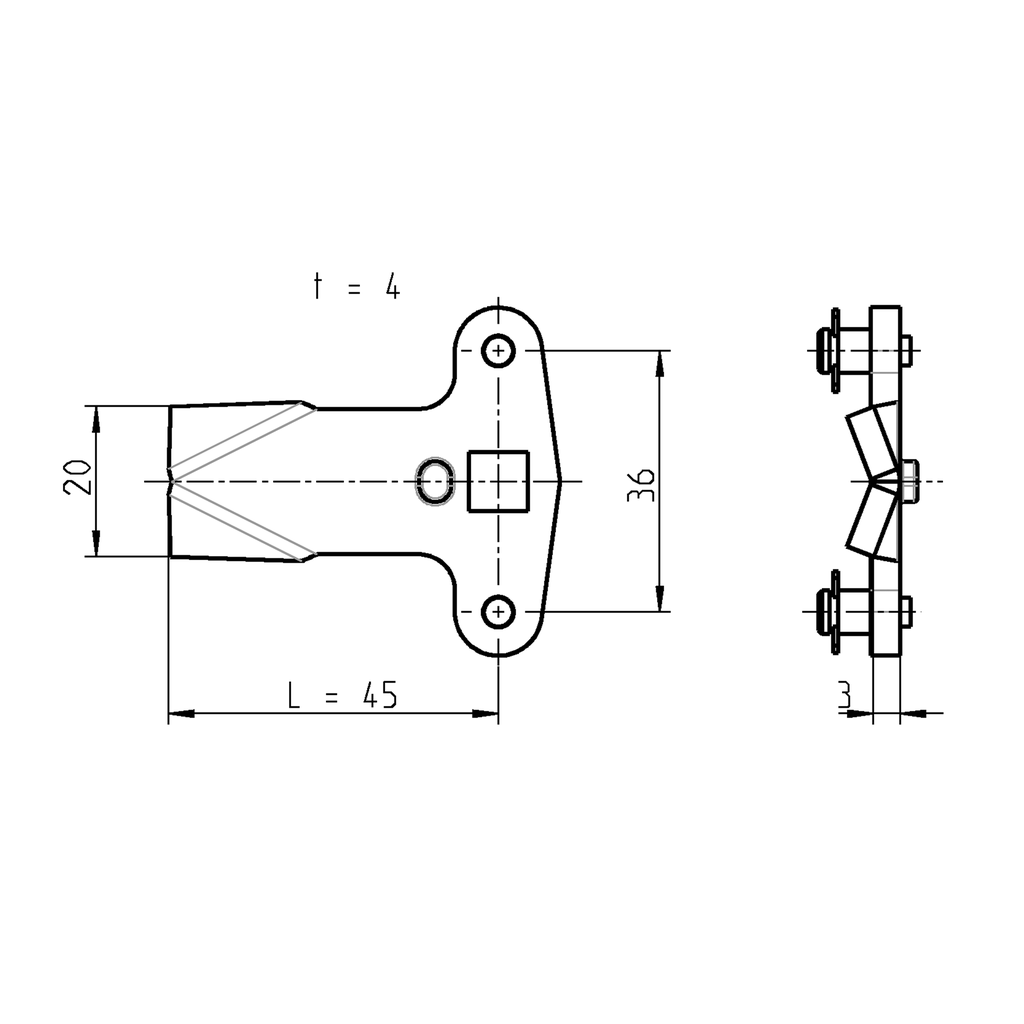

Dimension L:
45 mm
Spoon:
Yes
Dimension t:
4 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
