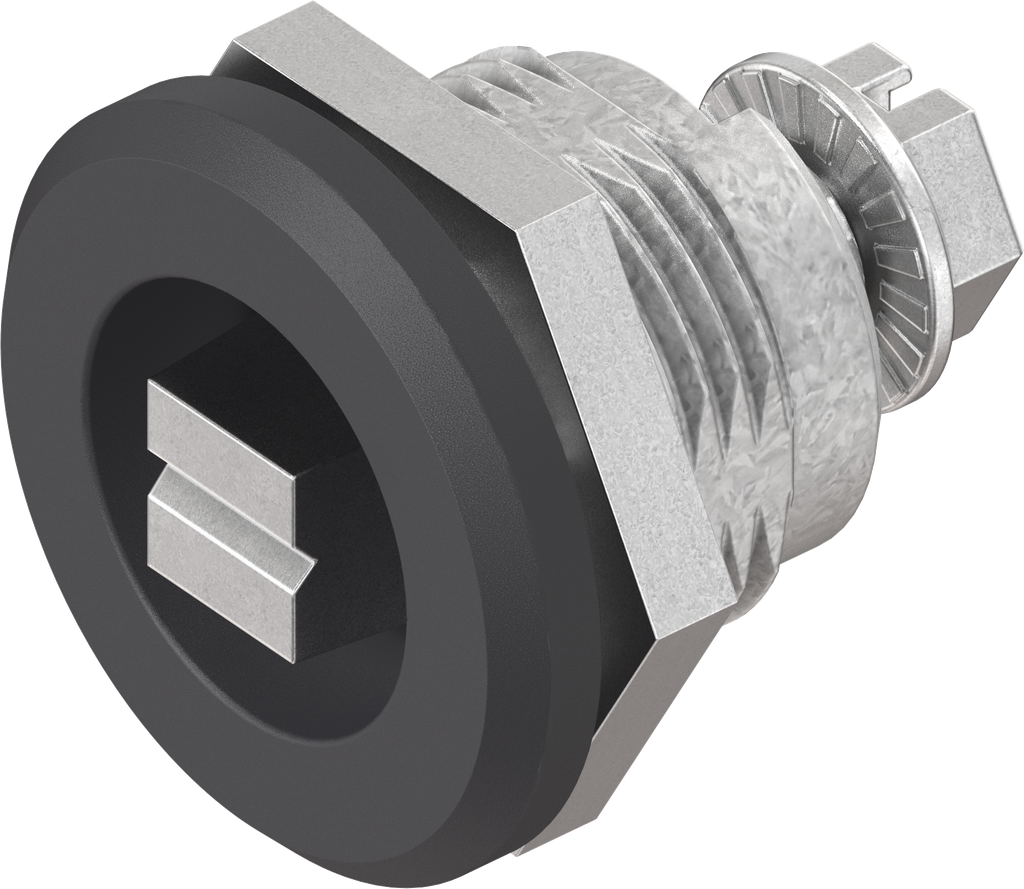

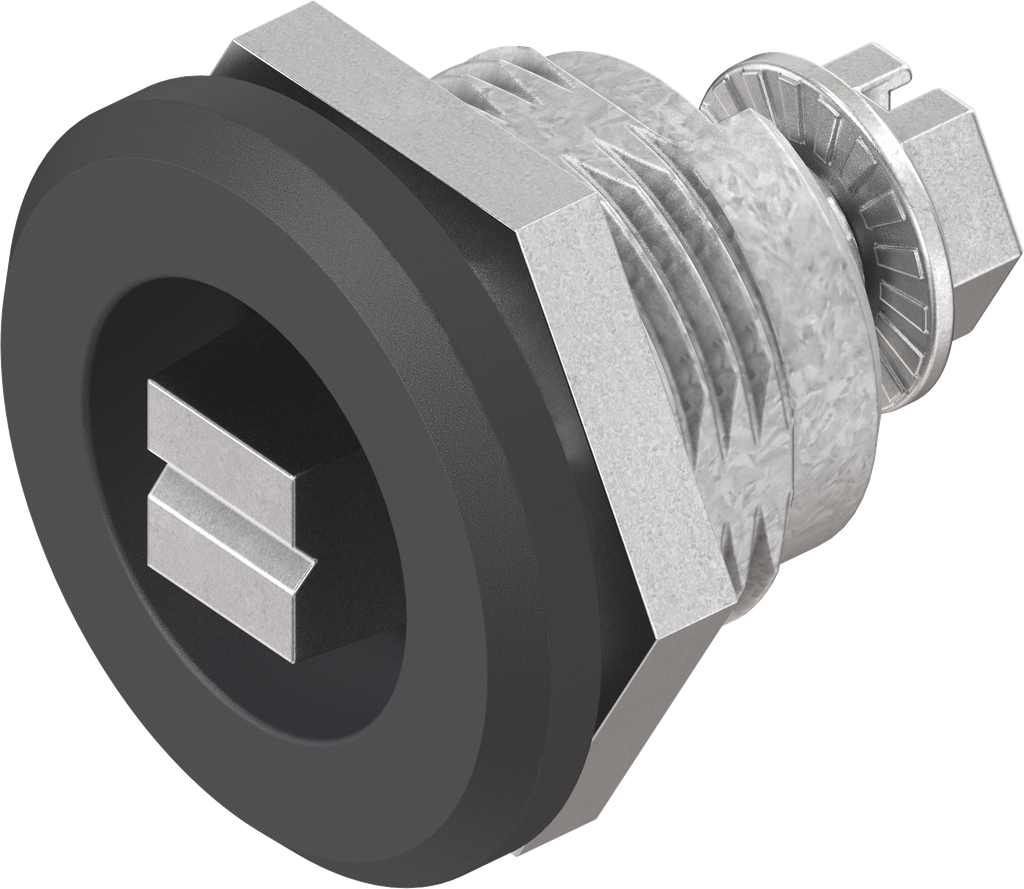

Quarter turn railway version, Zinc die and steel black powder-coated and zinc-plated; 1000-U432

https://www.emka.com/products/1000-u432 https://www.emka.com/web/image/product.template/60132/image_1920?unique=9039203

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1000-U432
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-860
    Material of the module : Zinc die and steel
    Surface of the module: black powder-coated and zinc-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with V-slot, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 30 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    O-ring and flat seal
    Dust cap - Finger pull
    Assembly
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-860
    Product data sheet
    CAD file | 1000-U432_igs
    CAD file | 1000-U432_stp
