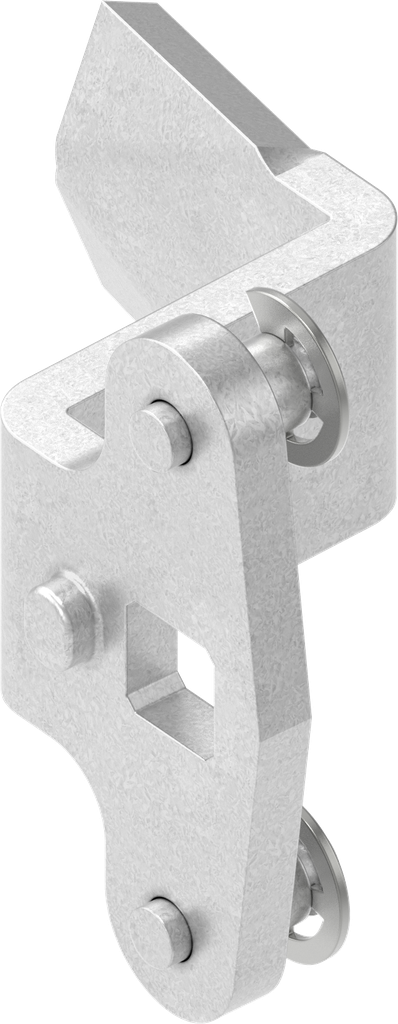

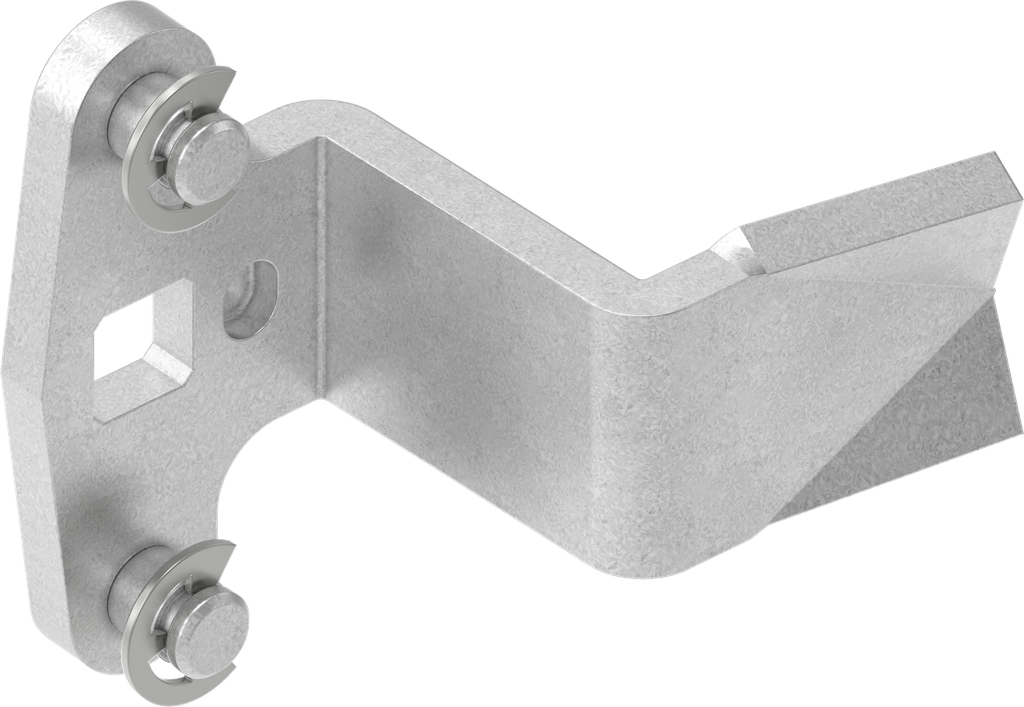

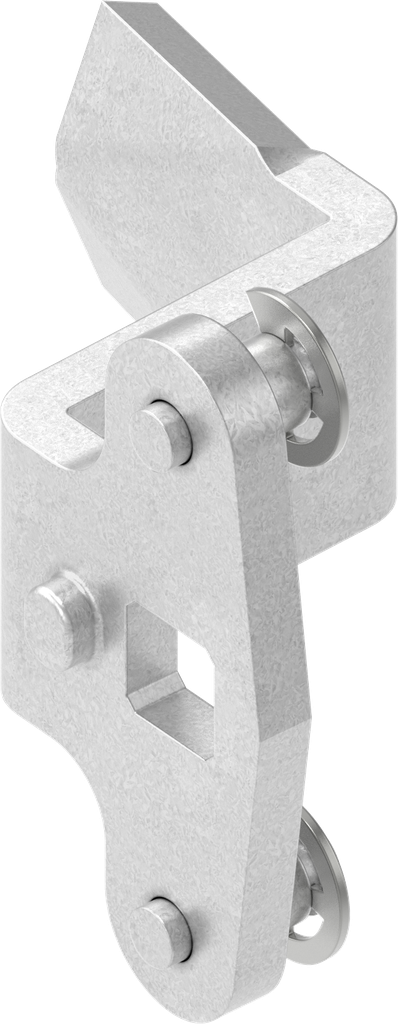

3-point cam, Steel zinc-plated; 1000-U43

https://www.emka.com/products/1000-u43 https://www.emka.com/web/image/product.template/59918/image_1920?unique=ff77bc0

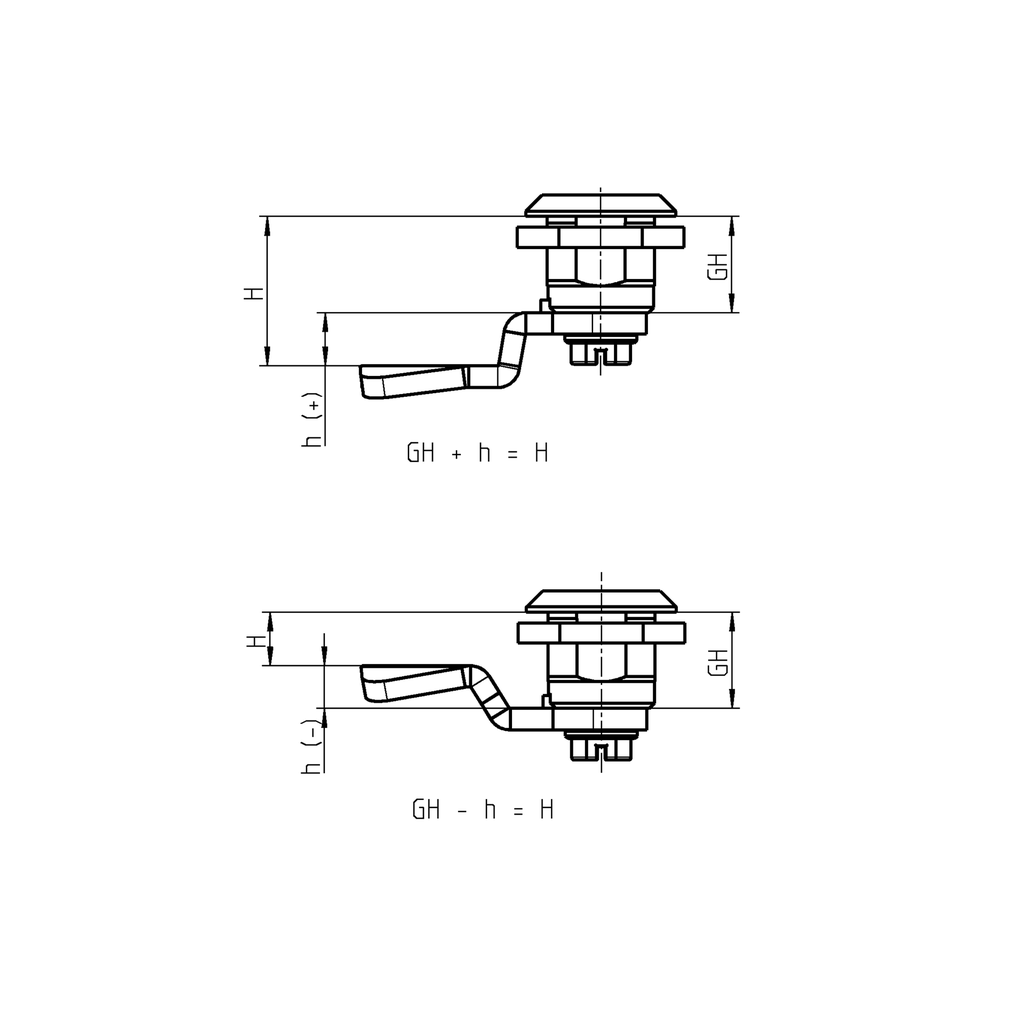

Offset h = 29 mm

This product has no valid combination.

Internal Reference: 1000-U43
Product Type: Cam
Program: 1000
Catalog sheet: 3YB-440
Material of the module : Steel
Surface of the module: zinc-plated
Number of Possible Locking Points: 3 point
Mounting Positions : Inside the sealing
Stroke of the drive: Stroke 18 mm
Compression Value : 3 mm
Offset: positive
offset of cam: 29 mm

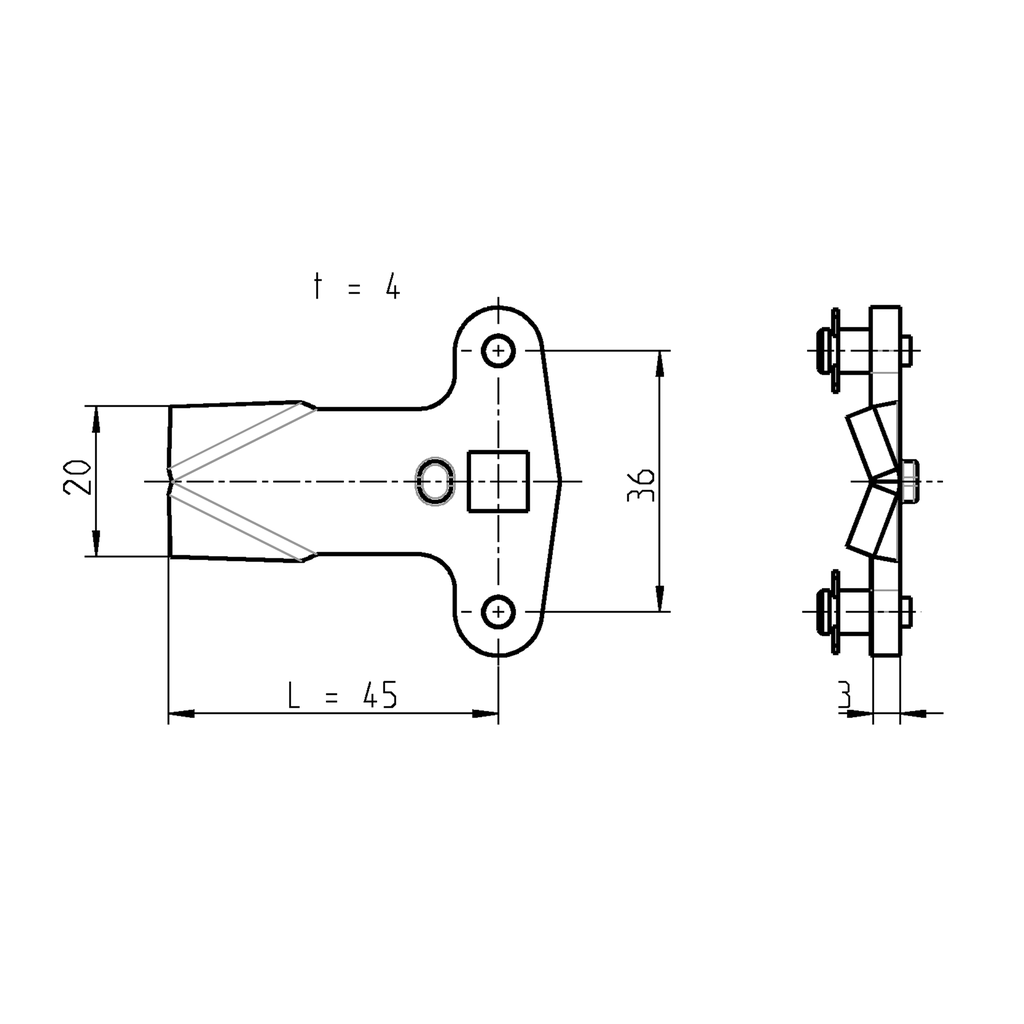

Dimension L: 45 mm
Spoon: Yes
Dimension t: 4 mm
No Specifications
