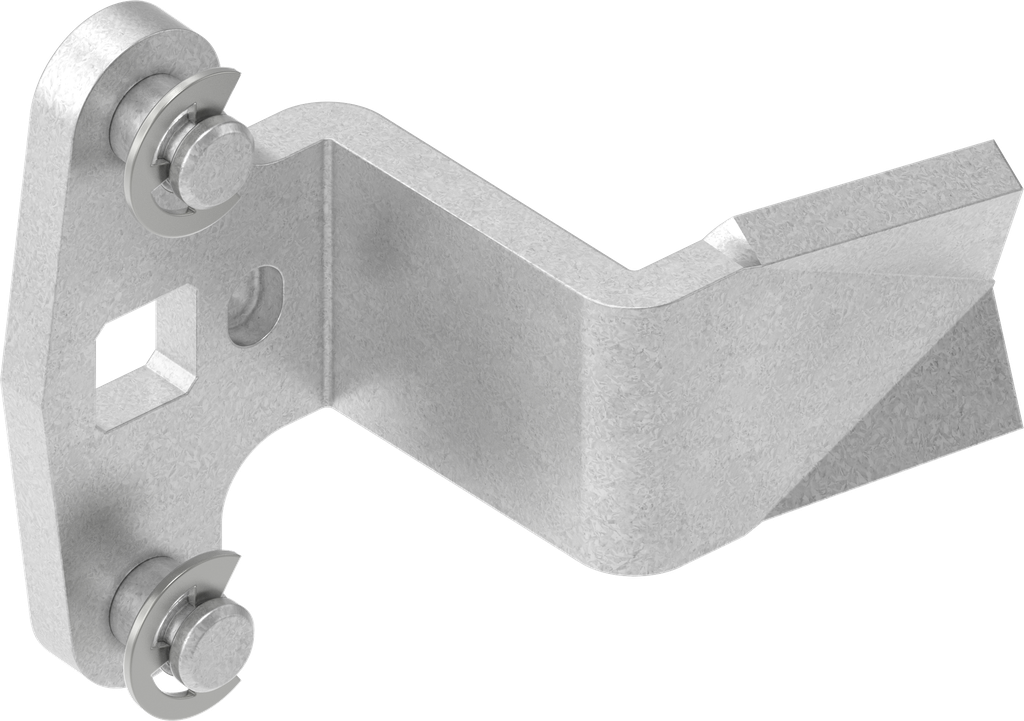

3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated

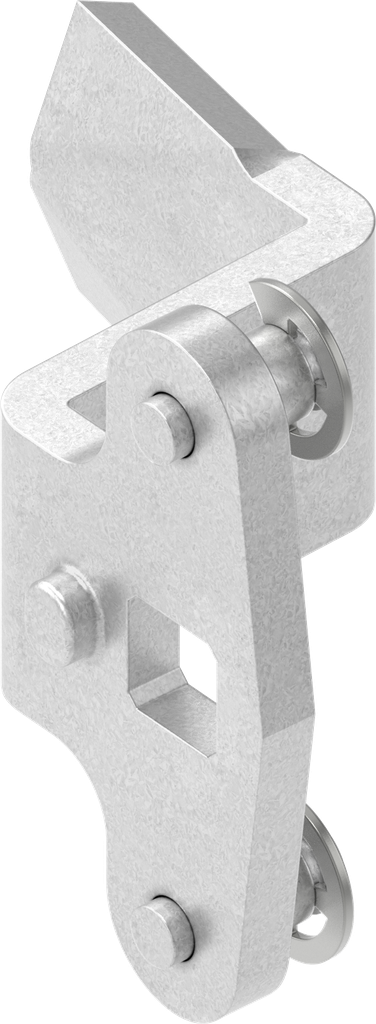

3-point cam, Steel zinc-plated; 1000-U42
Offset h = 27 mm
No stock item, please ask for availability
Internal Reference:
1000-U42
Barcode:
1000-U00042-0000000
Product Type:
Cam
Program:
1000
Catalog sheet:
3YB-440
Material of the module :
Steel
Surface of the module:
zinc-plated
Number of Possible Locking Points:
3 point
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 18 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
27 mm

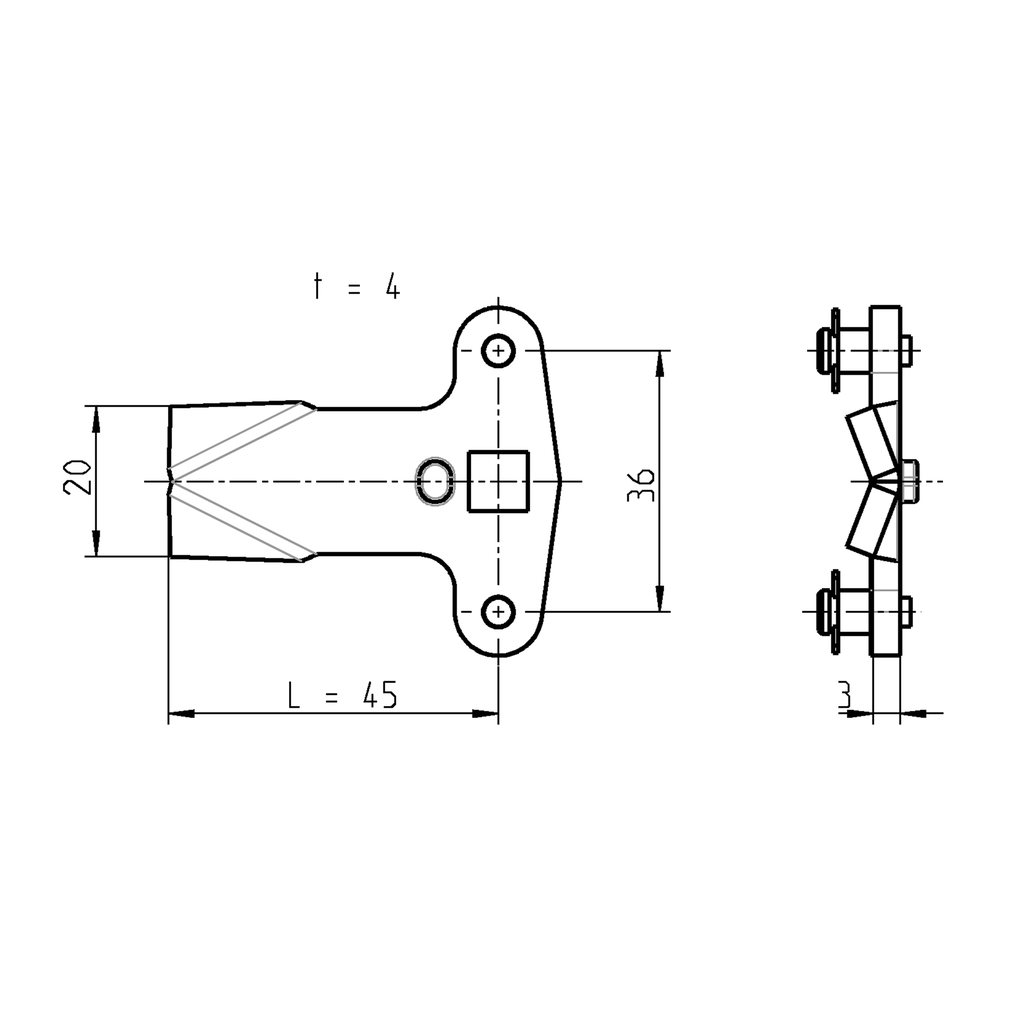

Dimension L:
45 mm
Spoon:
Yes
Dimension t:
4 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
