3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated
3-point cam, Steel zinc-plated

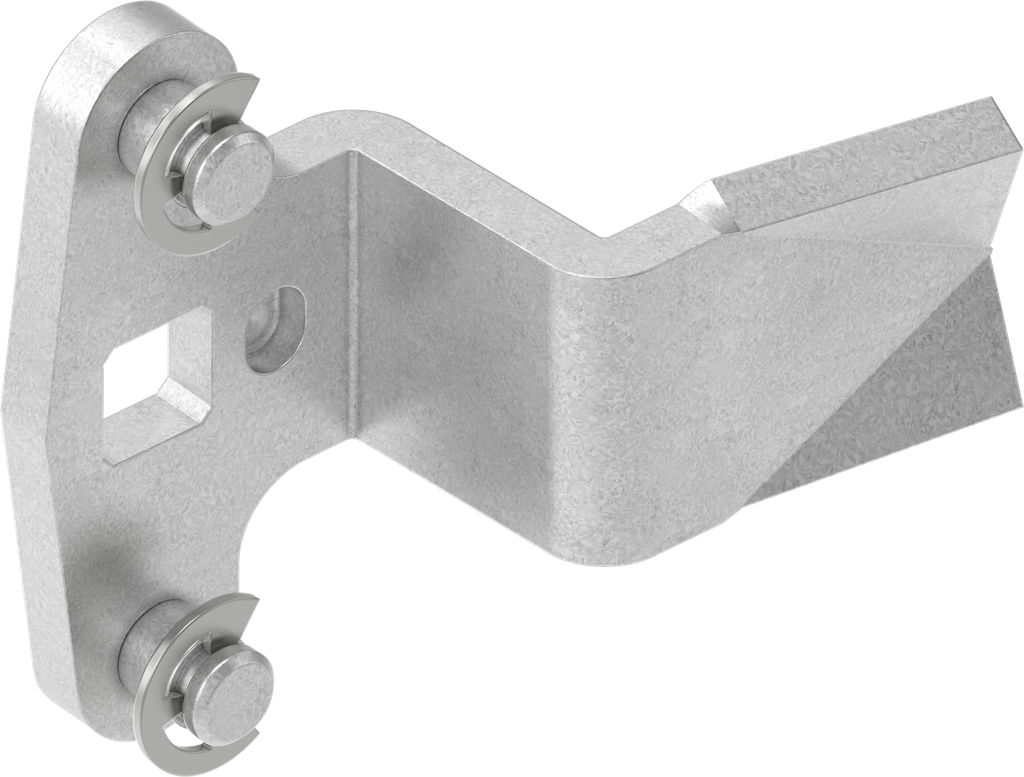

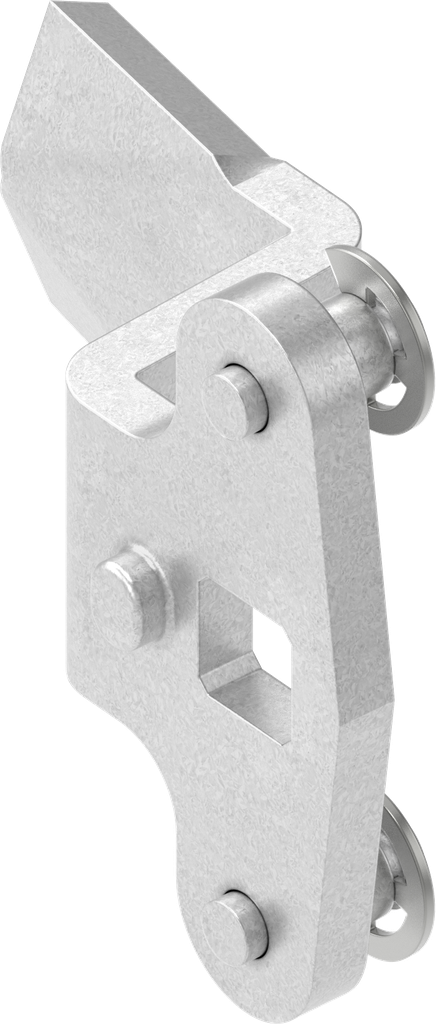

3-point cam, Steel zinc-plated; 1000-U38

https://www.emka.com/products/1000-u38 https://www.emka.com/web/image/product.template/59915/image_1920?unique=ee14698

Offset h = 20 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-U38
    Product Type: Cam
    Program: 1000
    Catalog sheet: 3YB-440
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 20 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
