3-Point cam, Steel zinc-plated
3-Point cam, Steel zinc-plated
3-Point cam, Steel zinc-plated
3-Point cam, Steel zinc-plated

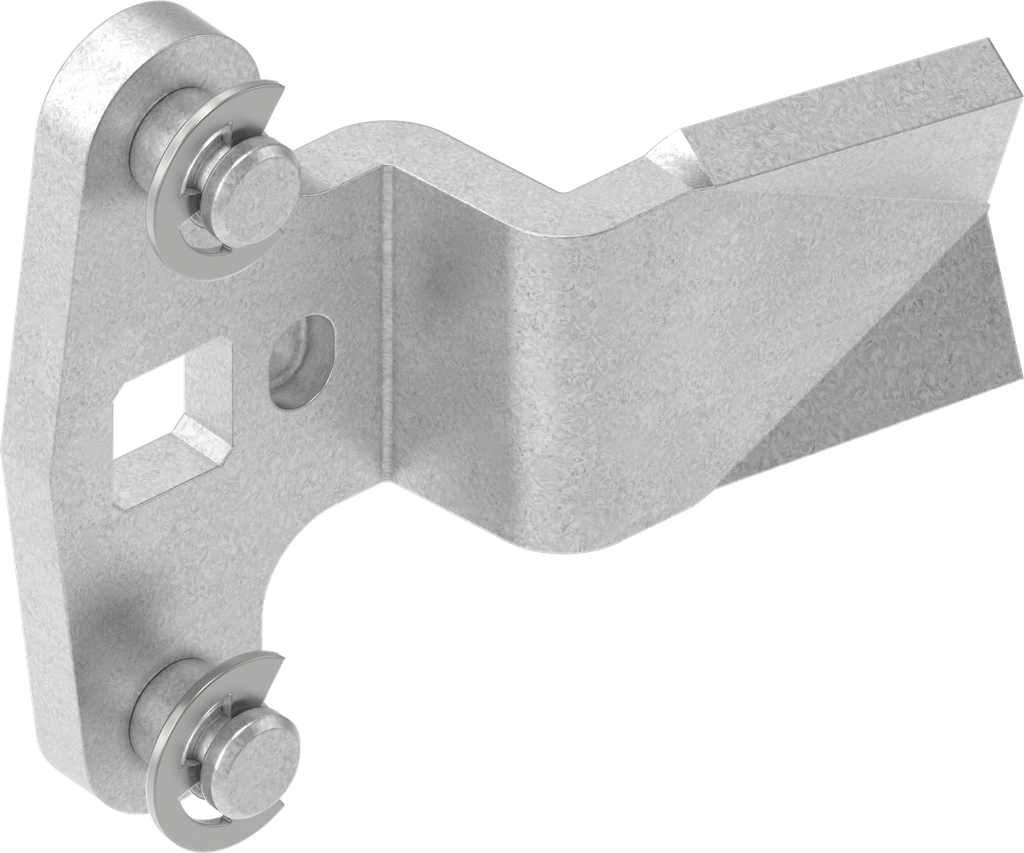

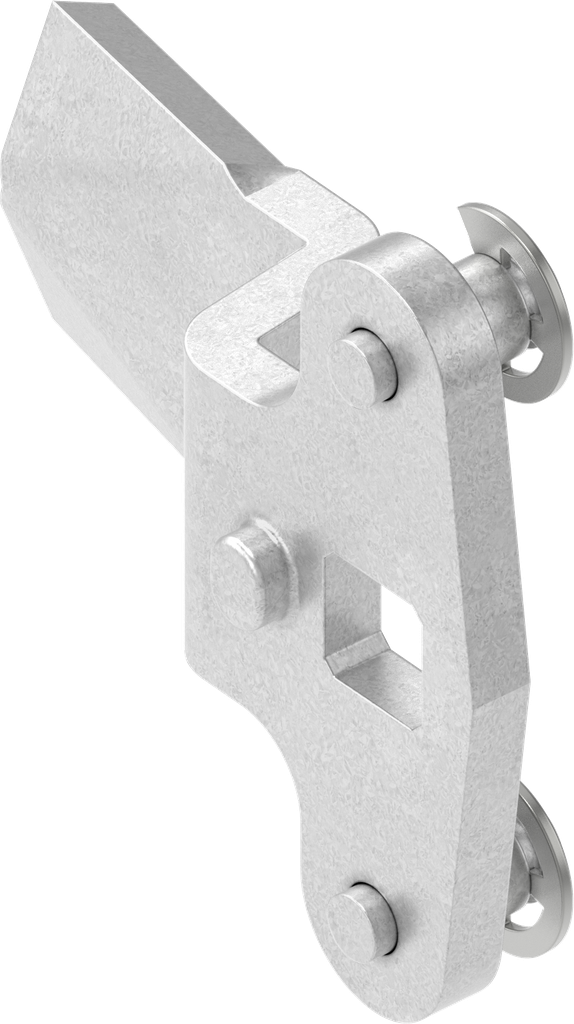

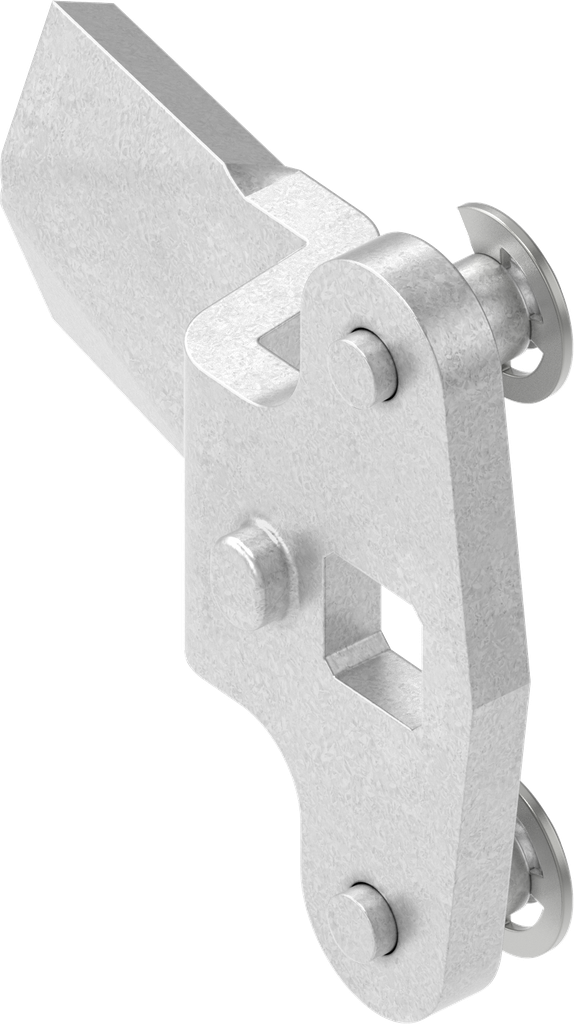

3-Point cam, Steel zinc-plated; 1000-U33

https://www.emka.com/products/1000-u33 https://www.emka.com/web/image/product.template/59910/image_1920?unique=1cd64e1

Offset h = 12 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-U33
    Product Type: Cam
    Program: 1000
    Catalog sheet: 3YB-440
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive

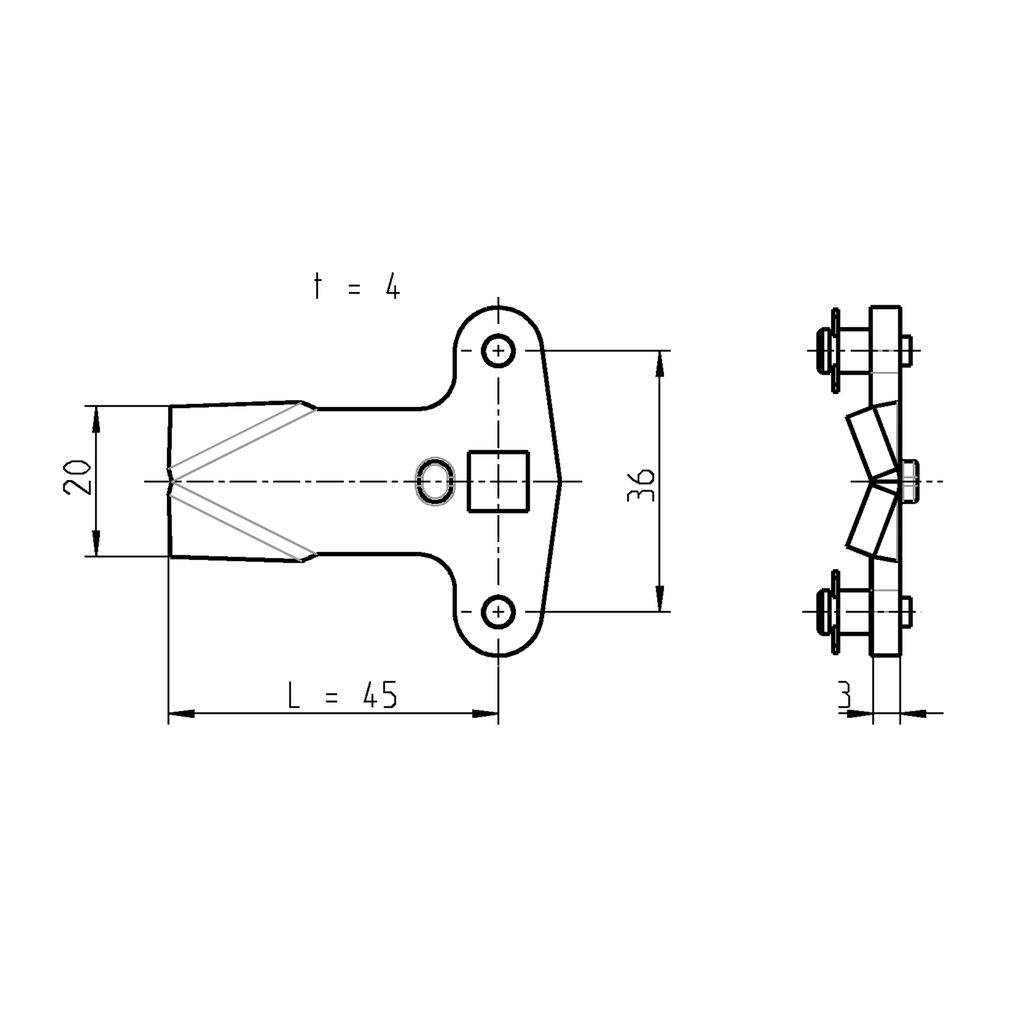

    offset of cam: 12 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Rod
    Ramp
    Quarter turn
    Adapter for round rod
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-120
    Product data sheet
    CAD file | 1000-U33_igs
    CAD file | 1000-U33_stp
