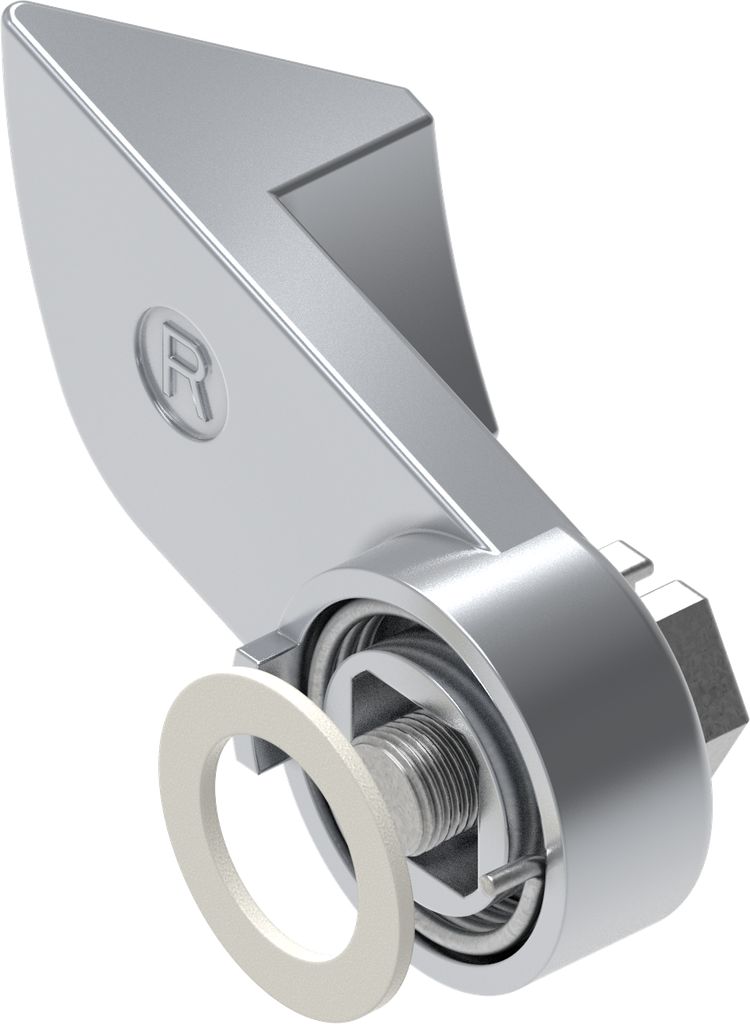

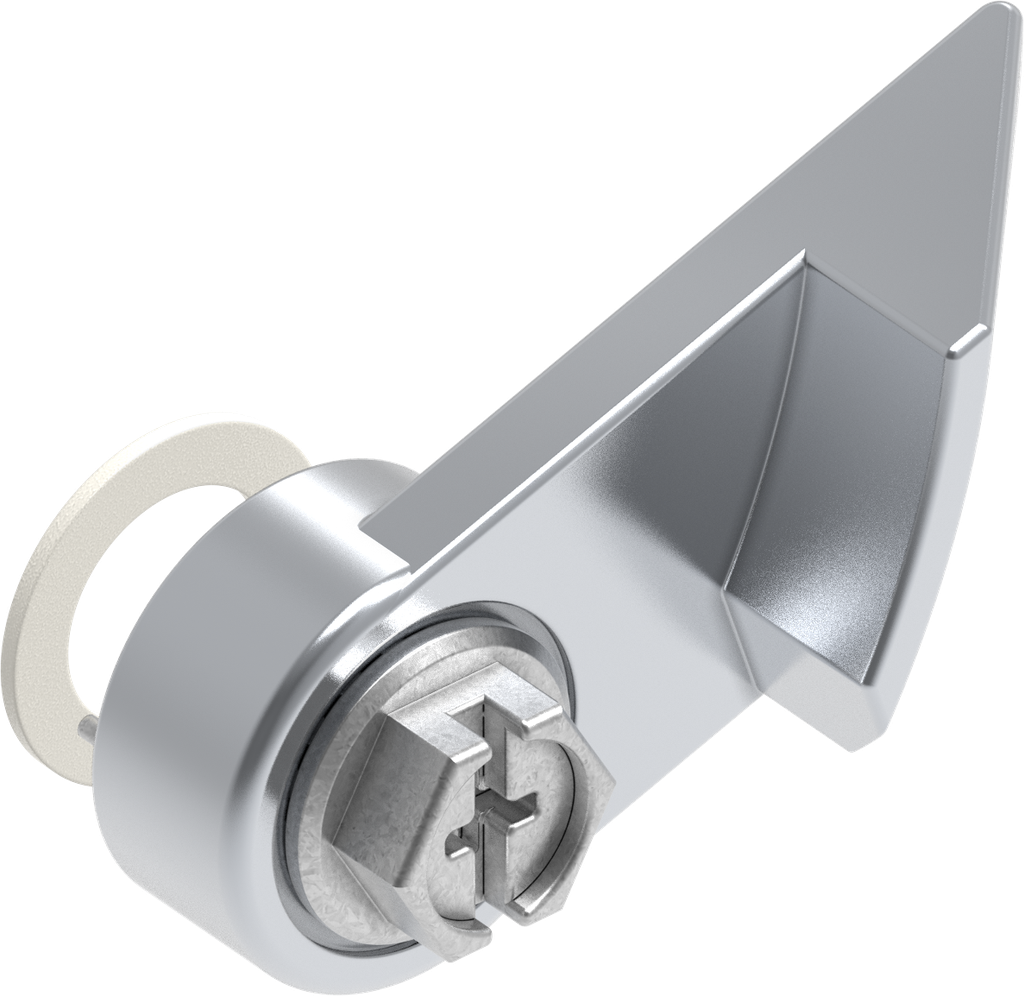

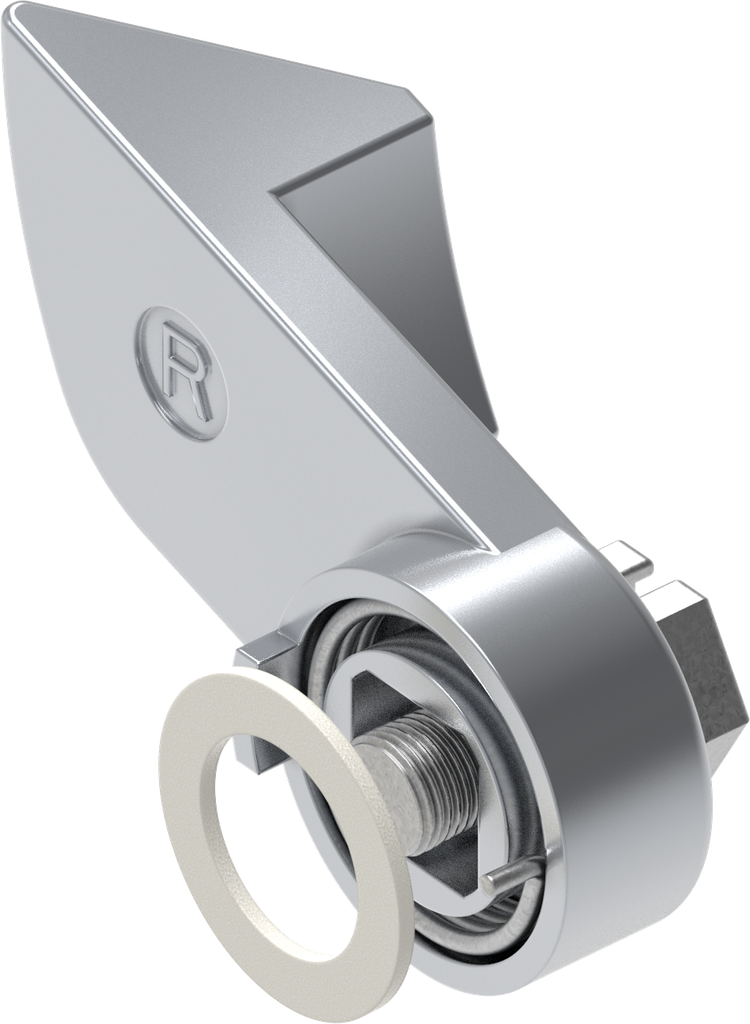

Slam cam, right version, Zinc die chrome-plated; 1000-U235-N

https://www.emka.com/products/1000-u235-n https://www.emka.com/web/image/product.template/60041/image_1920?unique=8e3ff5f

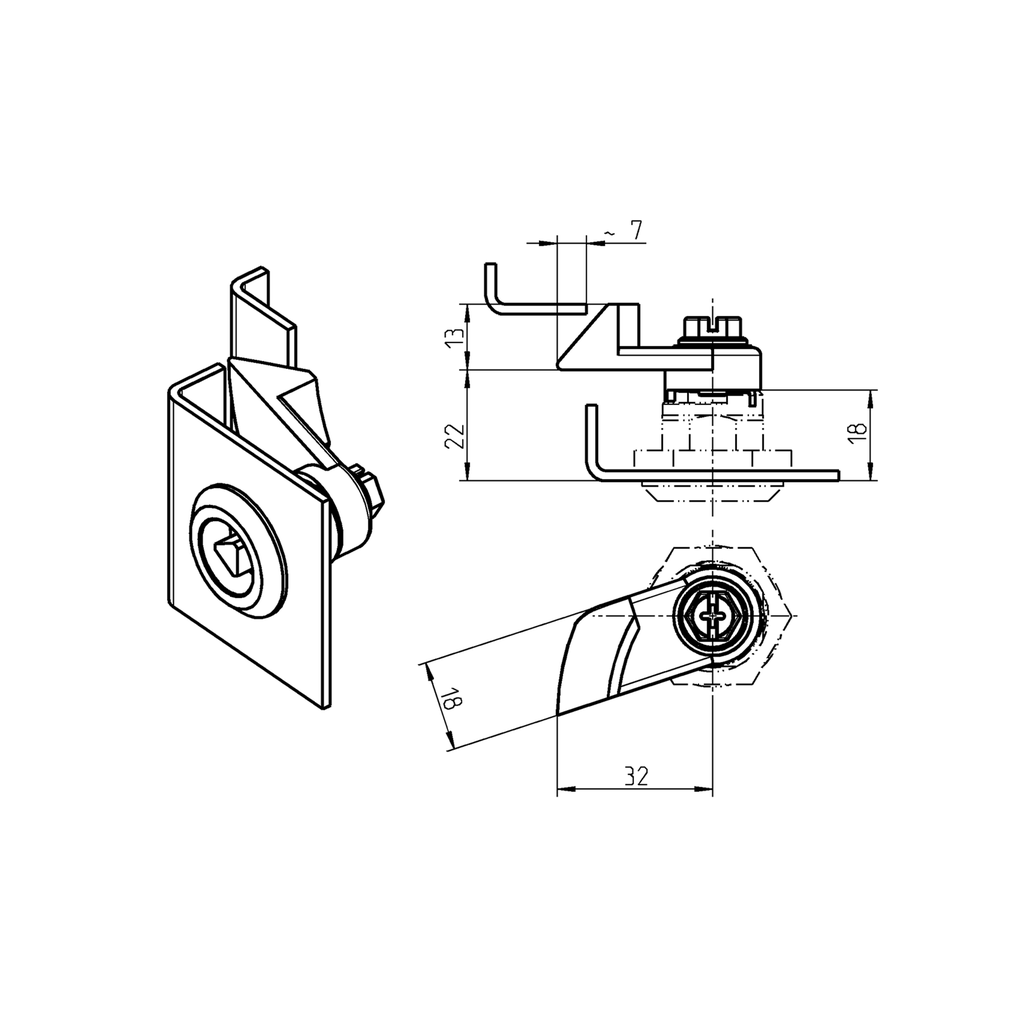

Offset h = 4 mm


    This combination does not exist.

    Inside the sealing Right


    Product Benefits:

    Spring-loaded with slam effect

    Product information:

    Protection types IP 54 to IP 69K are not possible with this slam cam!

    The slam cam is designed for quarter turns with GH = 18 mm.

    Assembly instruction:

    The spring washer delivered with the insert has to be replaced by the enclosed spacer ring.

    Internal Reference: 1000-U235-N
    Product Type: Cam
    Program: 1000
    Catalog sheet: 1C-180
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Slam cam: Yes
    Offset: positive
    offset of cam: 4 mm
    Dimension L: 32 mm
    Door Version : Right
    No Specifications
    View All Products
    Housing
    Assembly

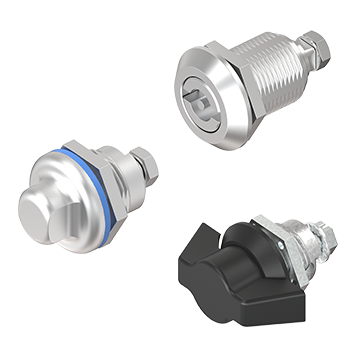

    Quarter turn
