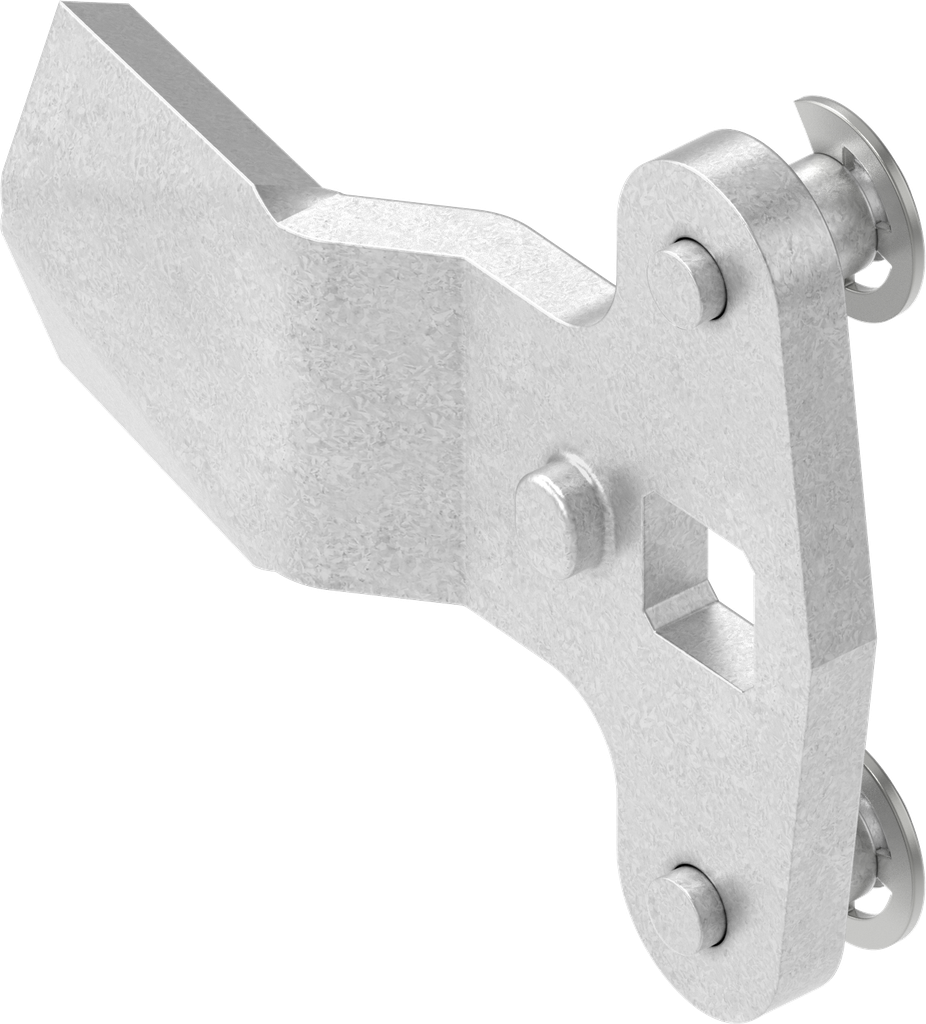

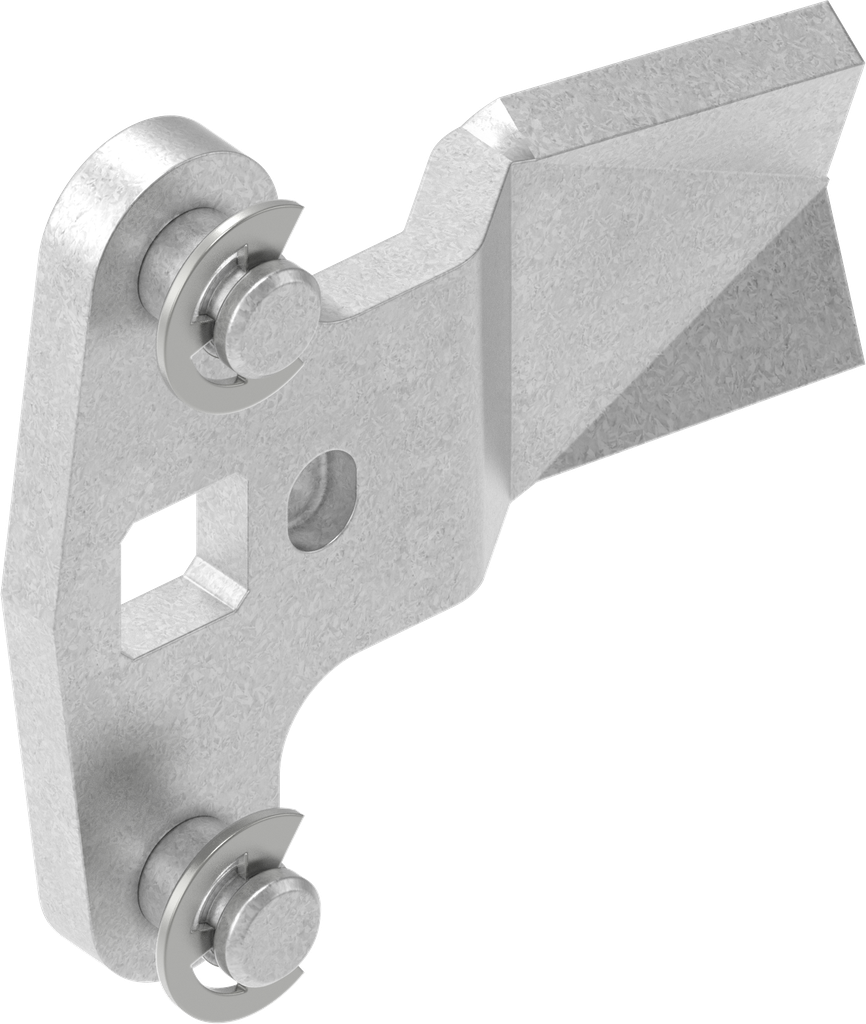

3-Point cam, Steel zinc-plated; 1000-U23

https://www.emka.com/products/1000-u23 https://www.emka.com/web/image/product.template/205330/image_1920?unique=21068c8

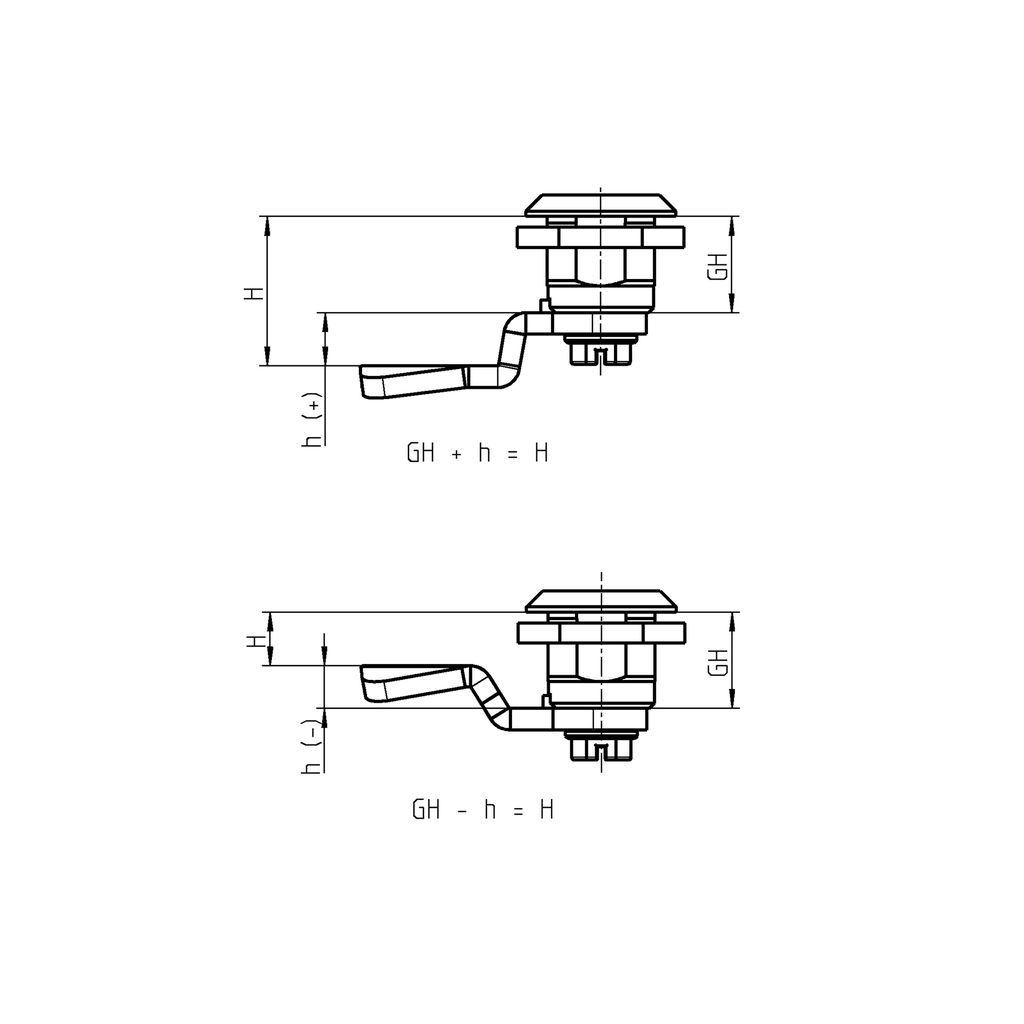

Offset h = -5 mm

This product has no valid combination.

Internal Reference: 1000-U23
Product Type: Cam
Program: 1000
Catalog sheet: 1C-120
Material of the module : Steel
Surface of the module: zinc-plated
Number of Possible Locking Points: 3 point
Mounting Positions : Inside the sealing
Stroke of the drive: Stroke 18 mm
Compression Value : 3 mm
Offset: negative
offset of cam: -5 mm

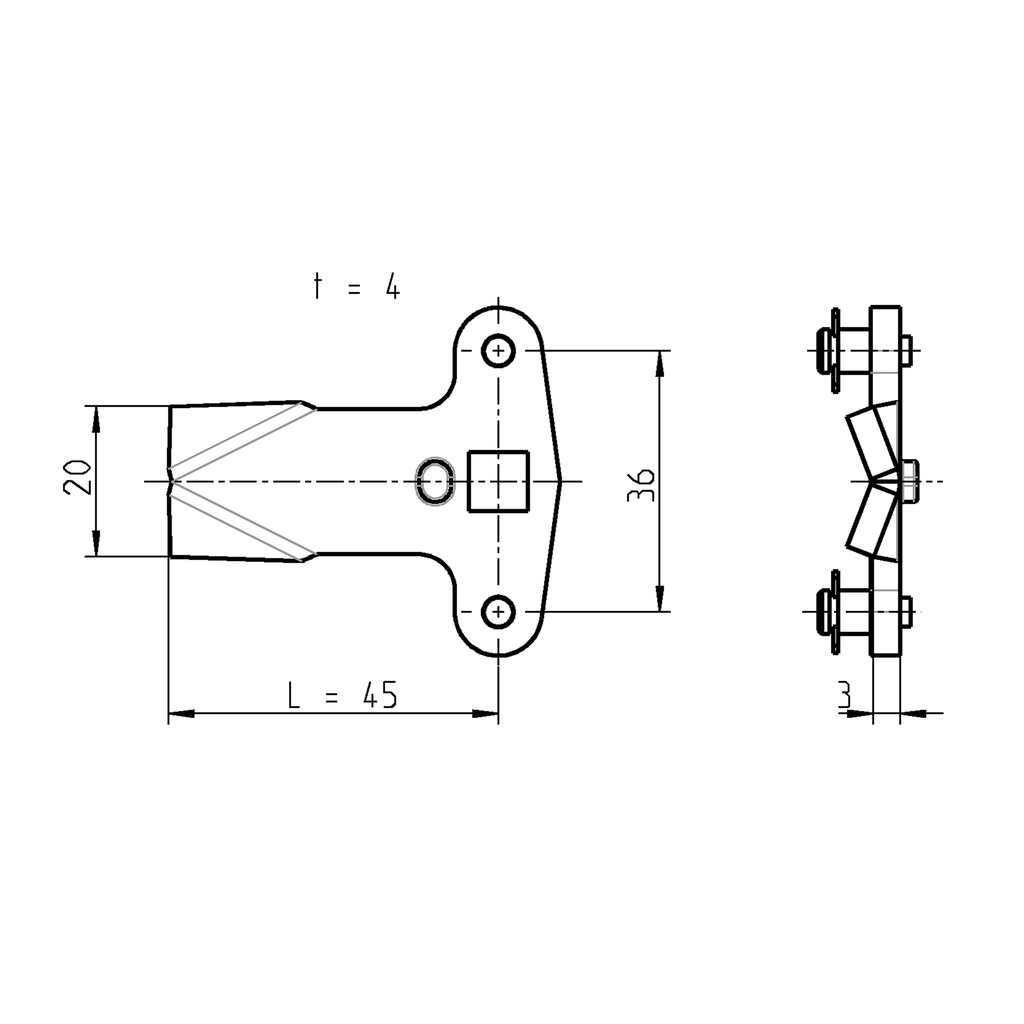

Dimension L: 45 mm
Spoon: Yes
Dimension t: 4 mm
No Specifications
View All Products
Housing
Rod
Ramp
Quarter turn
Adapter for round rod
Here you can find the product data sheets and CAD files of this product
