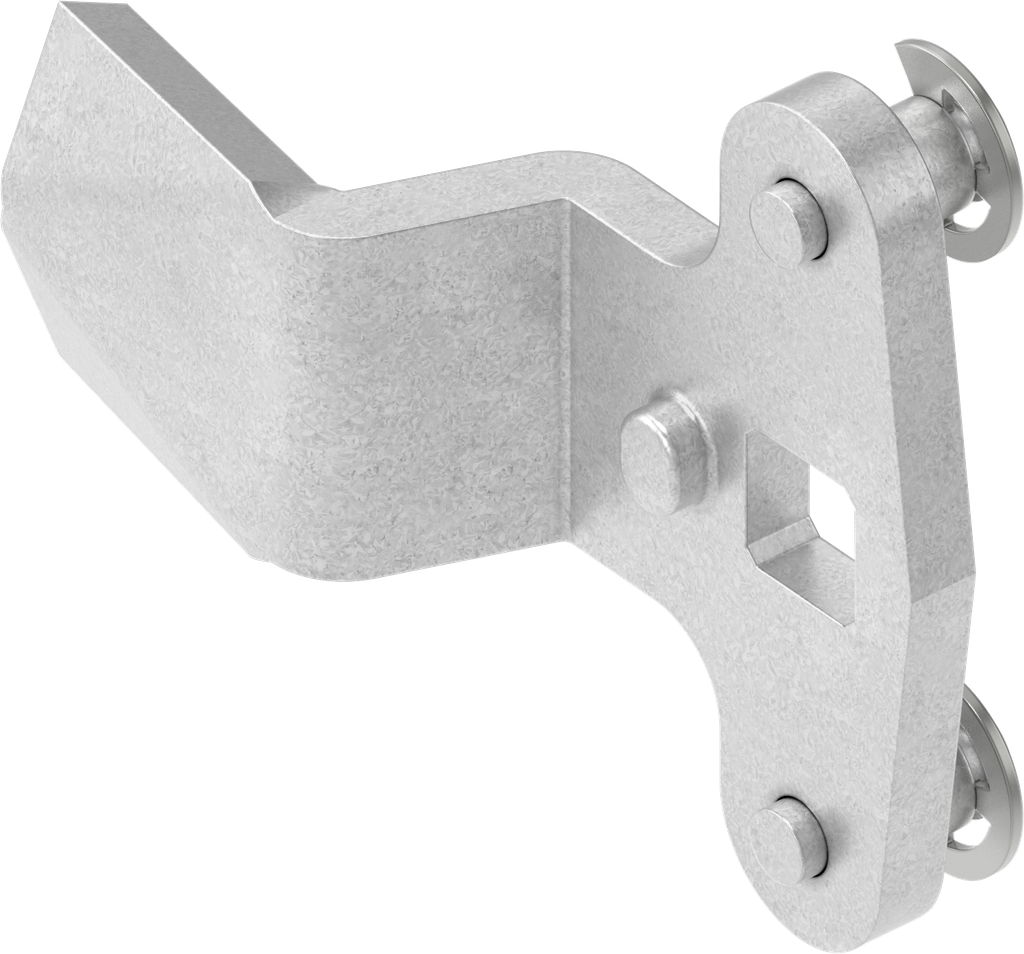

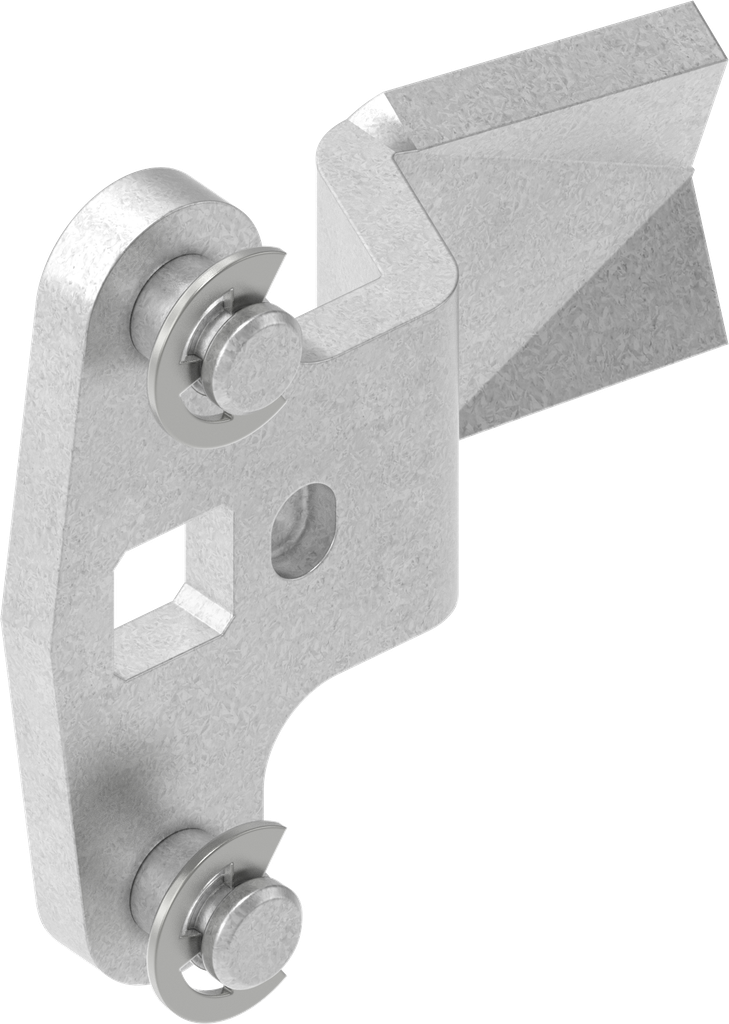

3-Point cam, Steel zinc-plated; 1000-U21

https://www.emka.com/products/1000-u21 https://www.emka.com/web/image/product.template/59899/image_1920?unique=f685c8e

Offset h = -12 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-U21
    Product Type: Cam
    Program: 1000
    Catalog sheet: 1C-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -12 mm

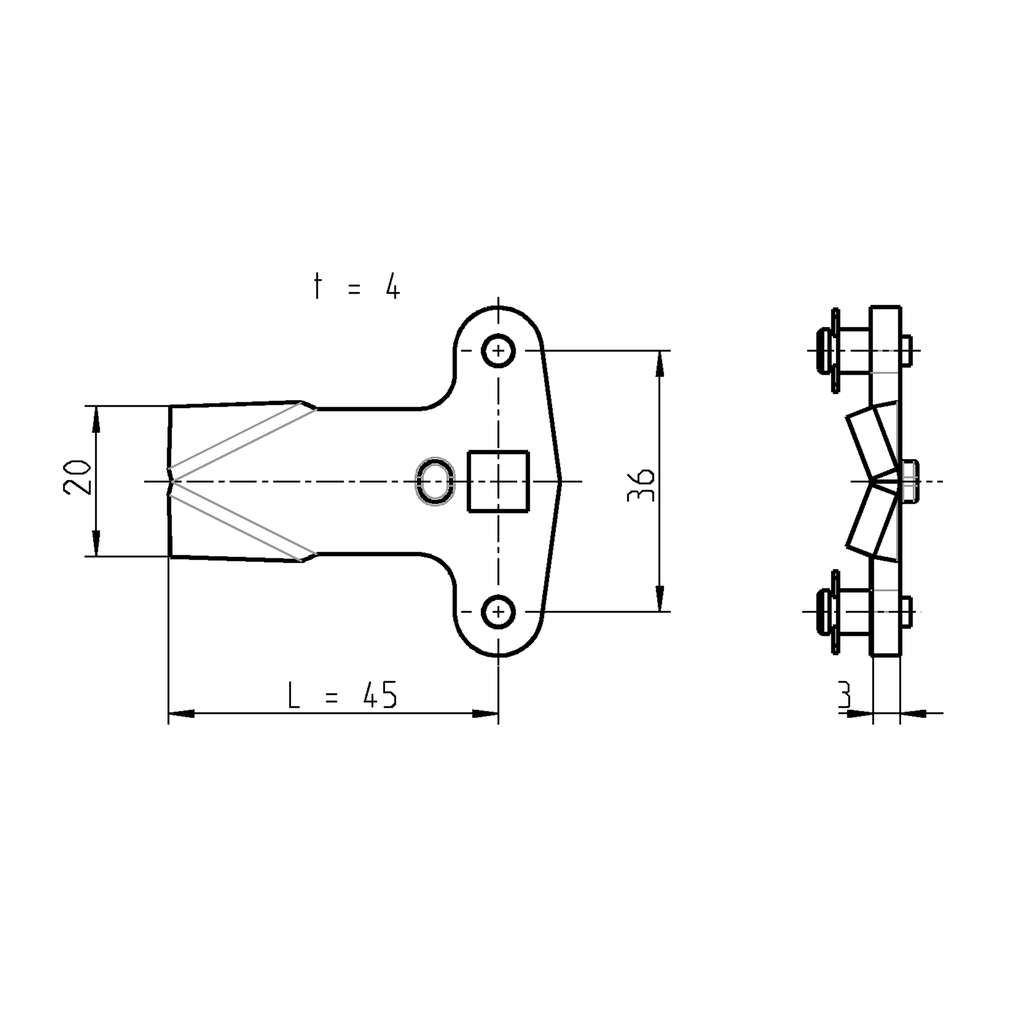

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Rod
    Ramp
    Quarter turn
    Adapter for round rod
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-120
    Product data sheet
    CAD file | 1000-U21_igs
    CAD file | 1000-U21_stp
