Order / Calculation example:
Order no. for a round rod with eye and a length of 1034 mm = 1000-U144-L 1034
Internal Reference:
1000-U144-14
Product Type:
Rod
Program:
1000
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Number of Possible Locking Points:
2 points, 3 point
Mounting Positions :
Inside the sealing
Dimension L up to:
1050 mm
Dimension L from:
1001 mm
Length(L-dimension):
1001 - 1050 mm
Round bar inside the seal:

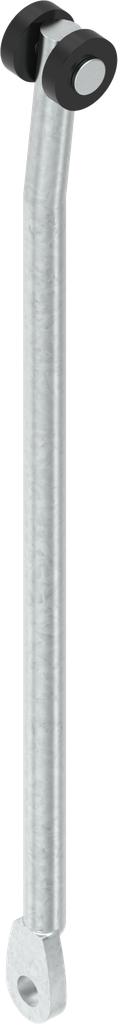

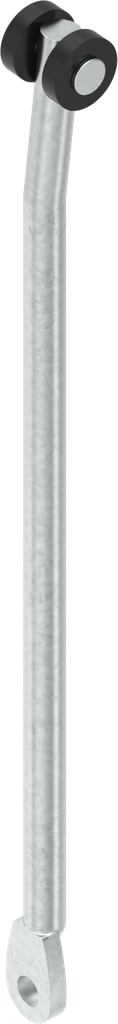

Round rod with shoe and eye for cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
