T-handle quarter turn, keyed different, Zinc die chrome-plated
Round rod L = 451 - 500 mm, Steel zinc-plated
Order / Calculation example:
Order no. for a round rod with eye and a length of 1034 mm = 1000-U144
Internal Reference:
1000-U144-02
Product Type:
Rod
Program:
1000
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Number of Possible Locking Points:
2 points, 3 point
Mounting Positions :
Inside the sealing
Dimension L up to:
450 mm
Dimension L, Variable:
Yes
Dimension L from:
401 mm
Length(L-dimension):
401 - 450 mm
Round bar inside the seal:

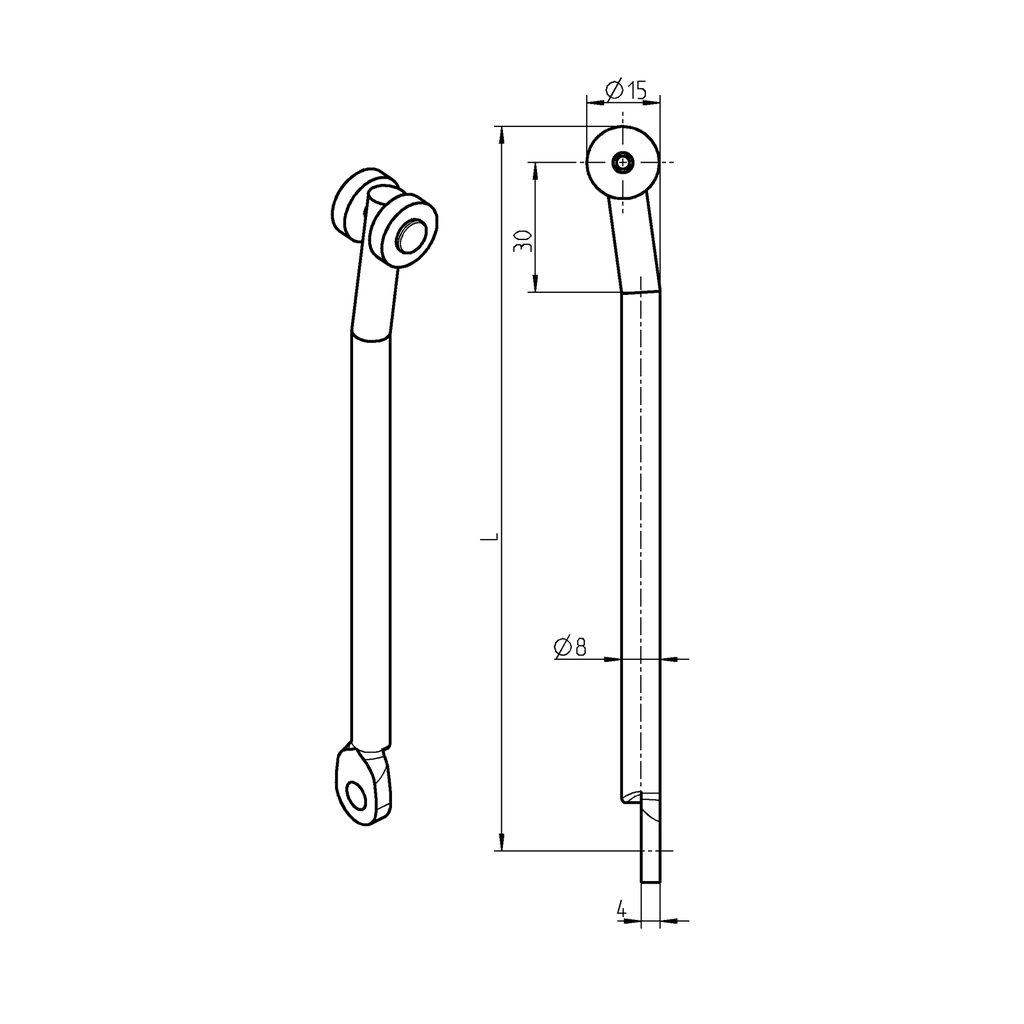

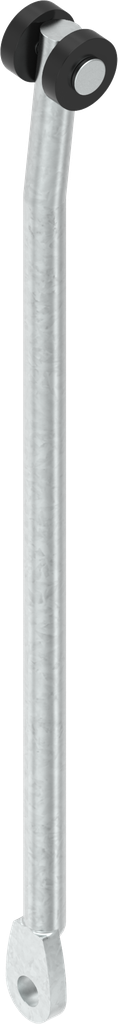

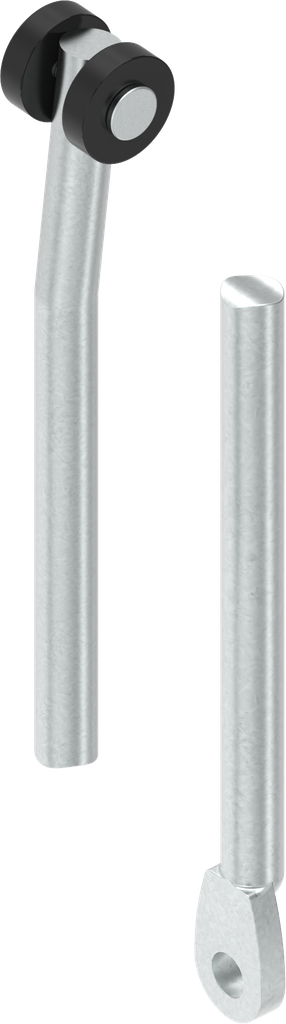

Round rod with shoe and eye for cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
