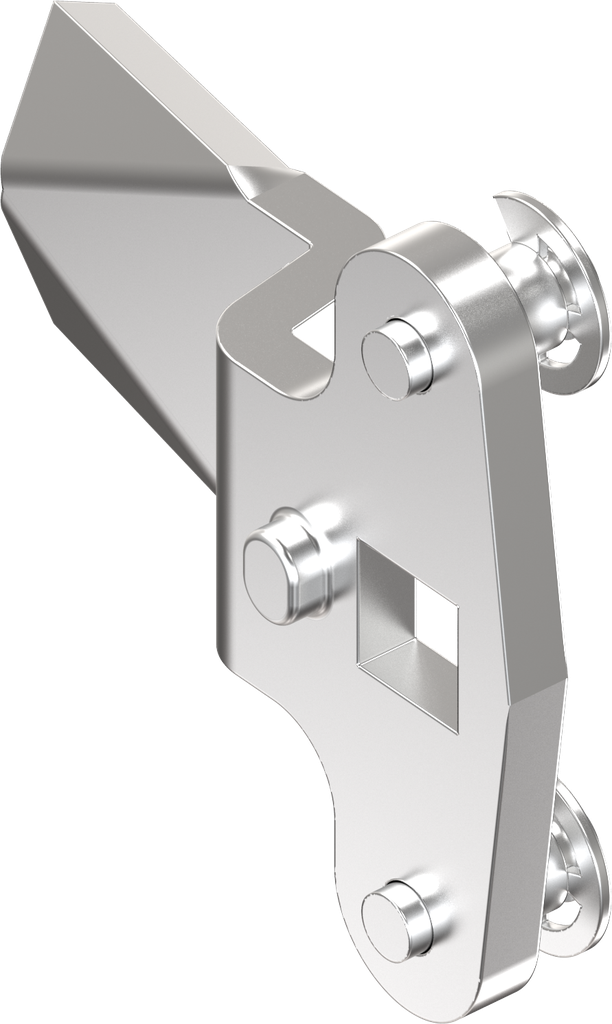

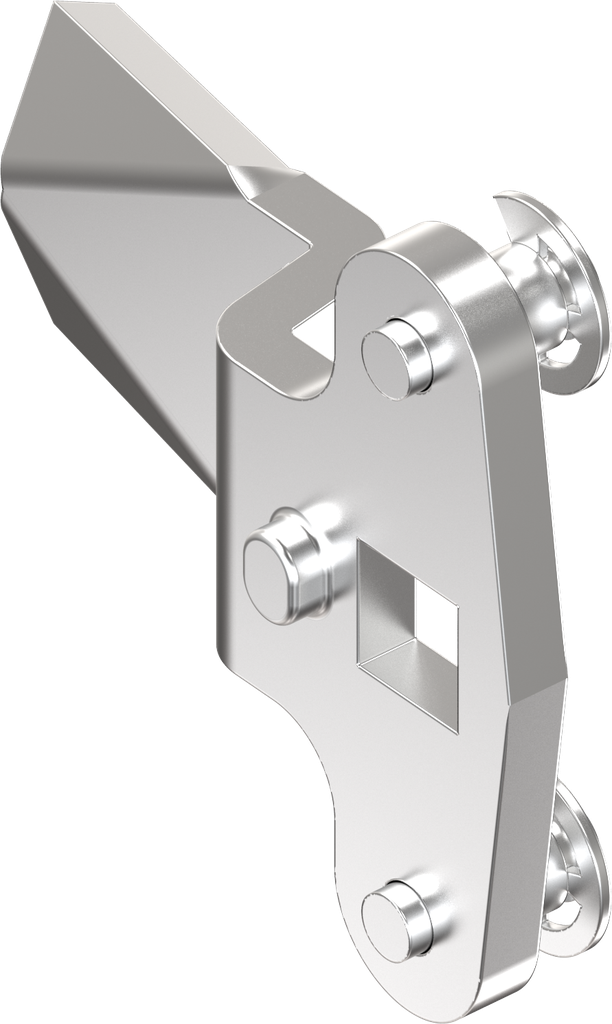

3-point cam, Stainless steel AISI 304; 1000-U140

https://www.emka.com/products/1000-u140 https://www.emka.com/web/image/product.template/59974/image_1920?unique=54e3871

Offset h = 10 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-U140
    Product Type: Cam
    Program: 1000
    Catalog sheet: 1C-120
    Material of the module : Stainless steel AISI 304
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 10 mm

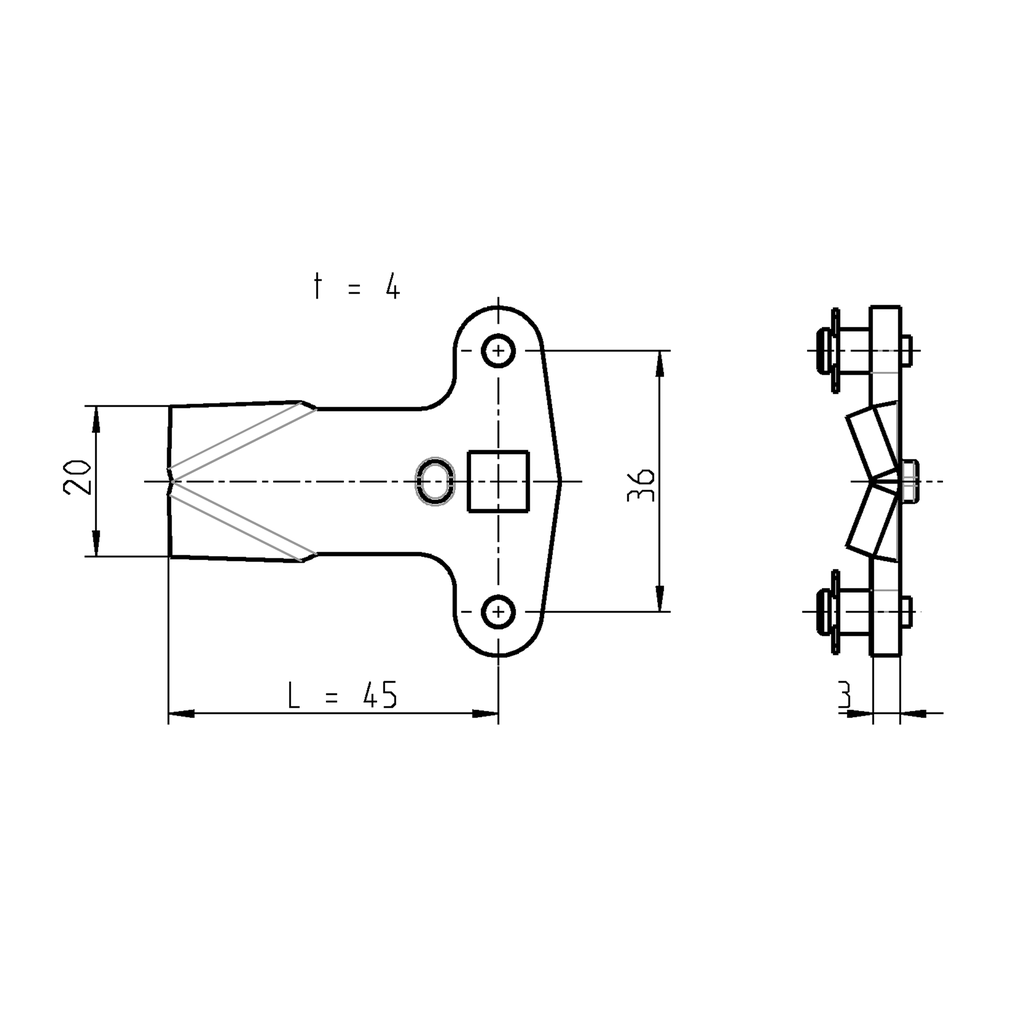

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing

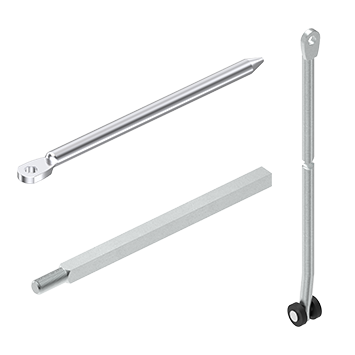

    Rod
    Ramp

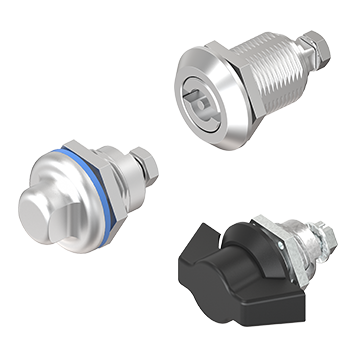

    Quarter turn
    Adapter for round rod
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-120
    Product data sheet
    CAD file | 1000-U140_igs
    CAD file | 1000-U140_stp
