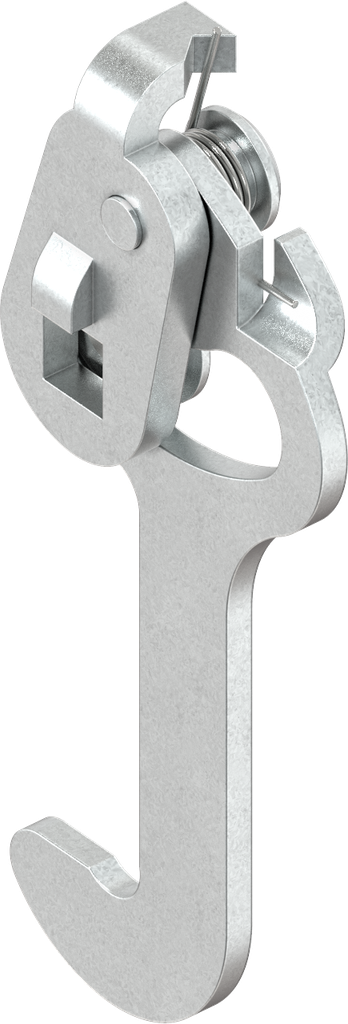

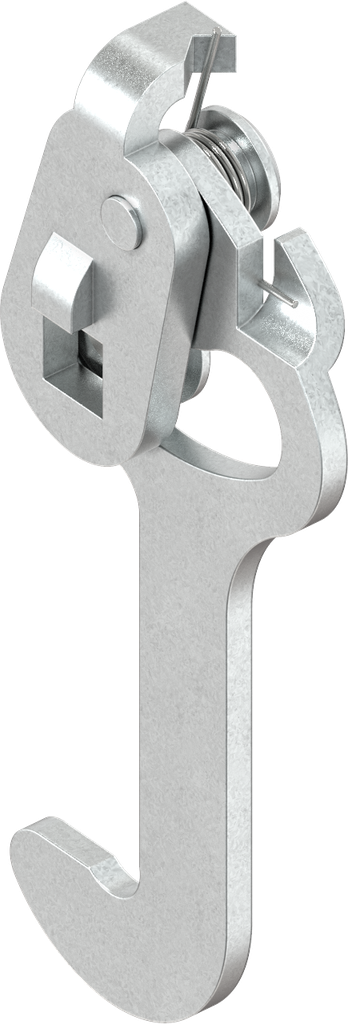

Hook lever lock, Steel zinc-plated; 1000-U12

https://www.emka.com/products/1000-u12 https://www.emka.com/web/image/product.template/59889/image_1920?unique=581c7fa

    This combination does not exist.

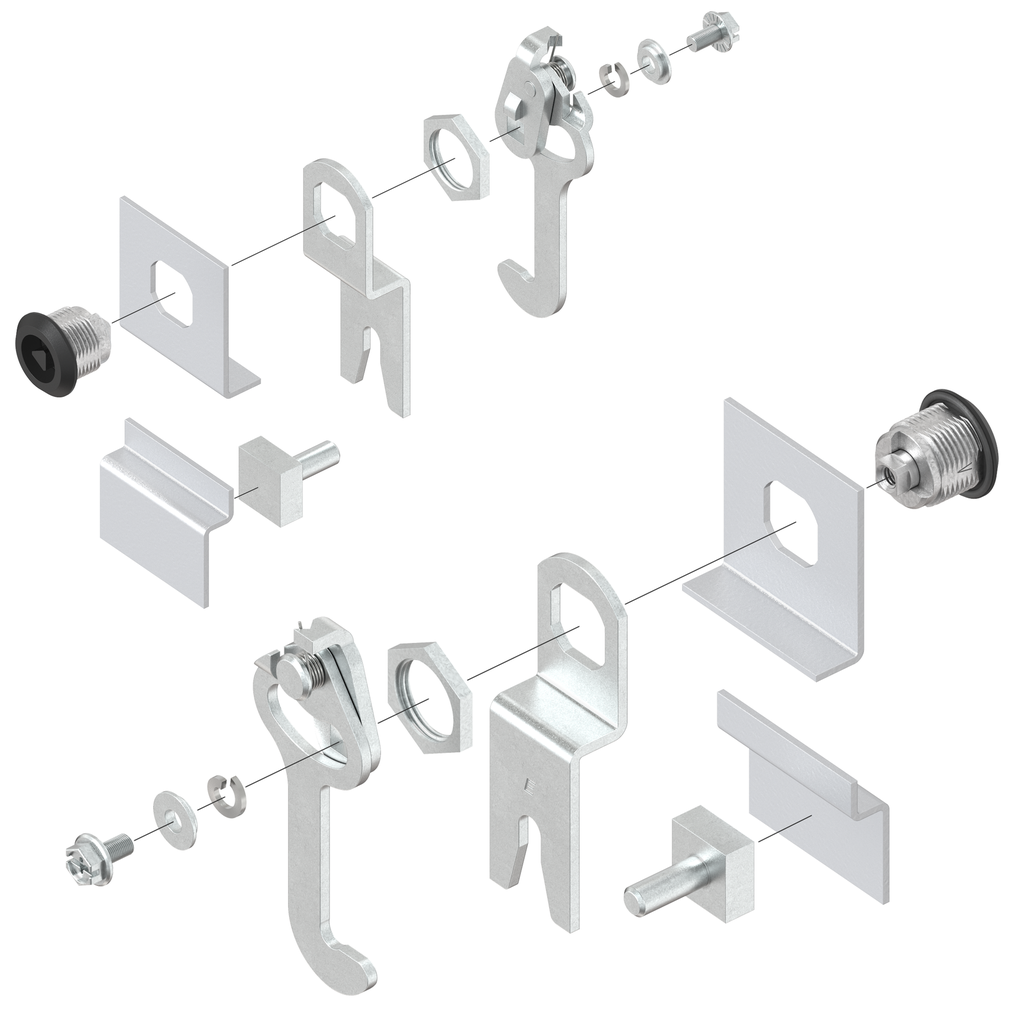

    Inside the sealing Left Right
    Contact Us

    Product information:

    Hook lever lock with 90° turn, turn and pull movement to the cam.


    Note:
    Drawing and dimensions refer to quarter turns with GH = 18 mm.
    The screw lengths must be checked for quarter turns with a housing length > 18 mm

    Akeneo Note:

    Hook stroke 5 mm
    Internal Reference: 1000-U12
    Product Type: Cam
    Program: 1000
    Catalog sheet: 1C-180
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Hook lever: Yes
    Compression Value : 5 mm
    Door Version : Left,Right
    No Specifications
    View All Products
    Housing
    Quarter turn accessories
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-180
    Product data sheet
    CAD file | 1000-U12_igs
    CAD file | 1000-U12_stp
