Compression latch triangular 7 with marking, left version, Stainless steel AISI 316
Compression latch with tube and marking, right version, Stainless steel AISI 316

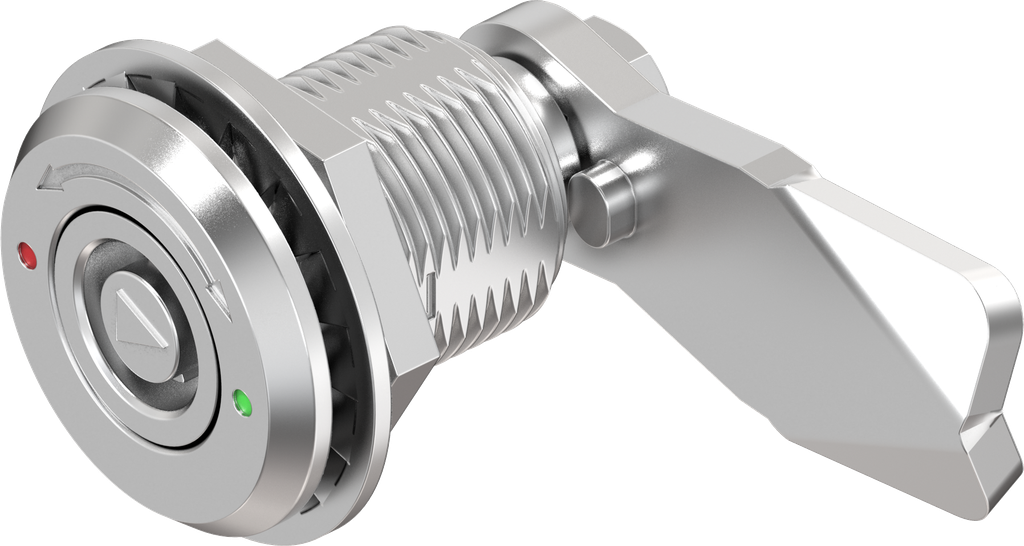

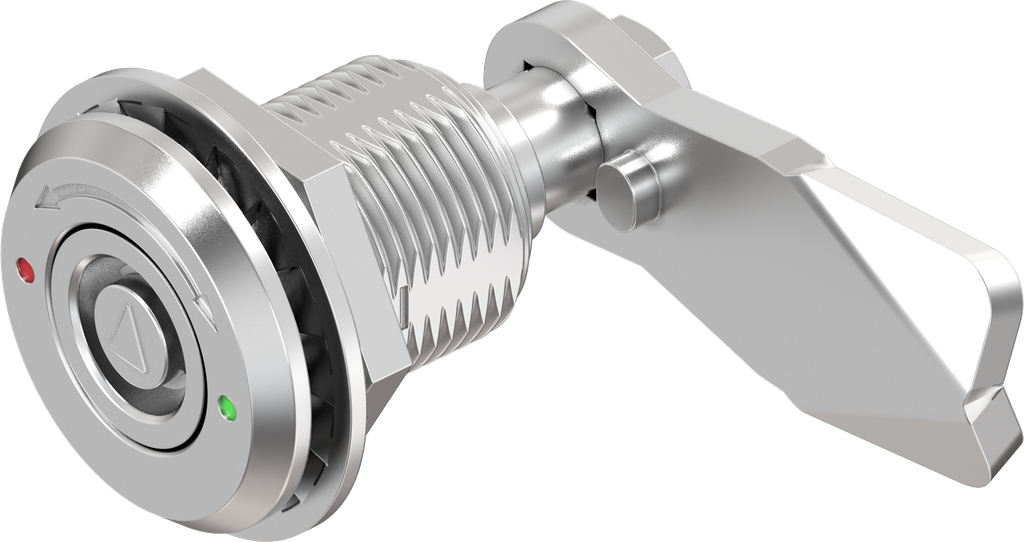

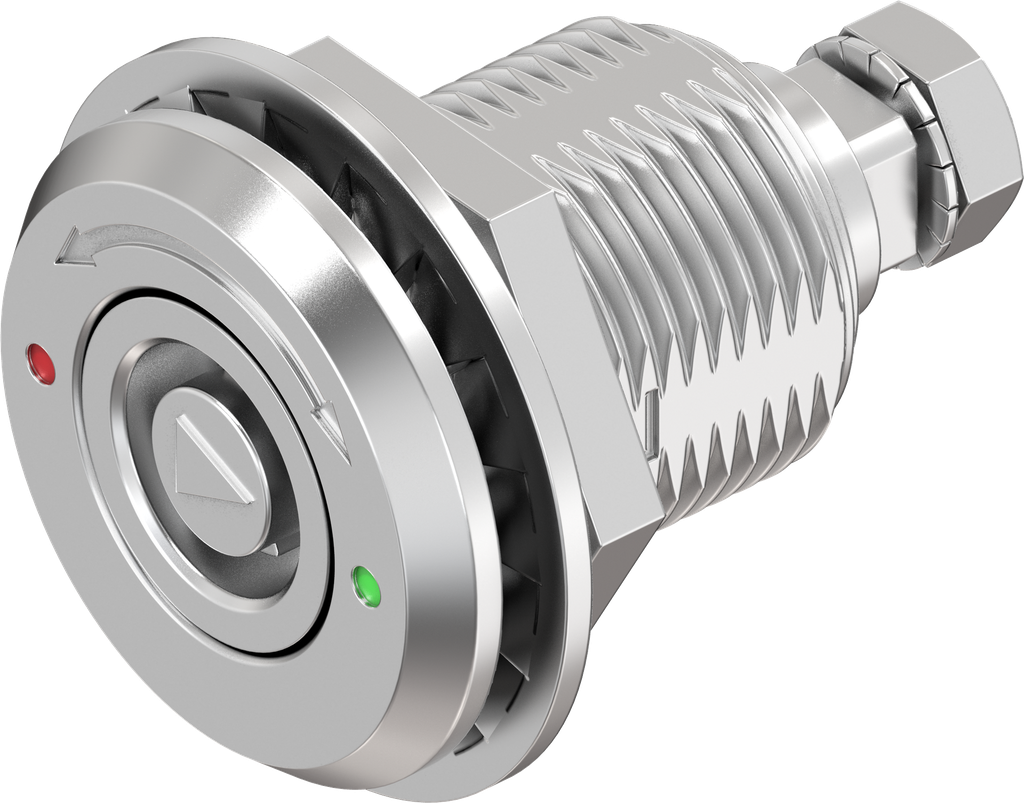

Compression latch with tube and marking, left version, Stainless steel AISI 316; 1000-SU948-LI
with stainless steel nut
This product has no valid combination.
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-SU948-LI
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Tube with marking
Mounting Positions :
Inside the sealing
Grounding possible:
Yes

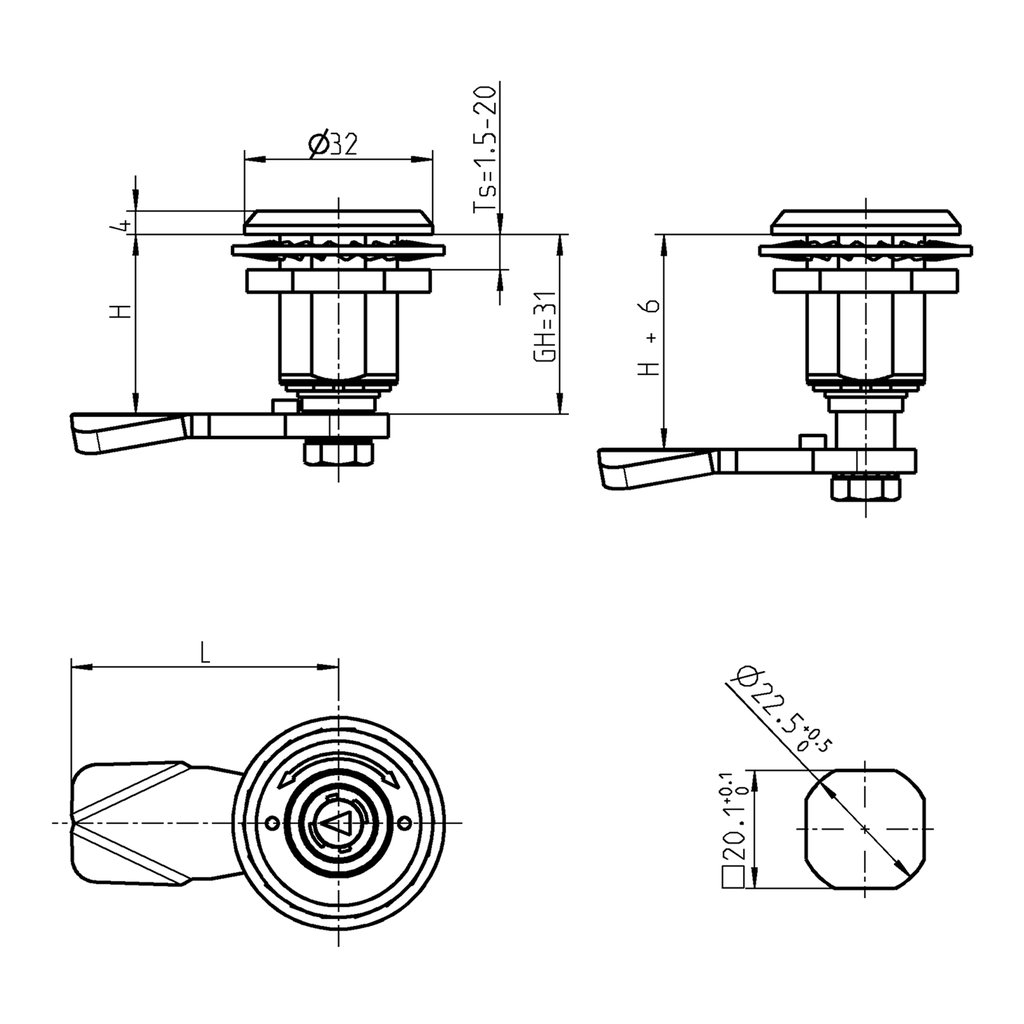

Housing Head Shape:
Round
Housing Head Size:
32 x 4 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
