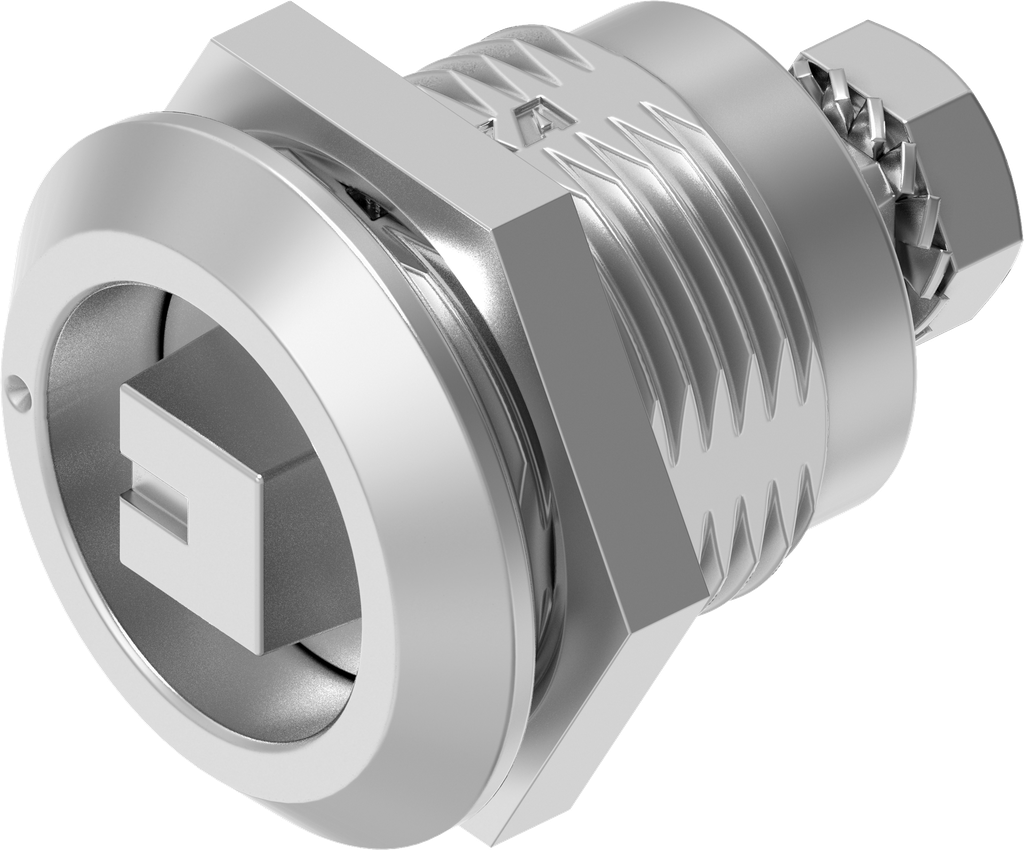

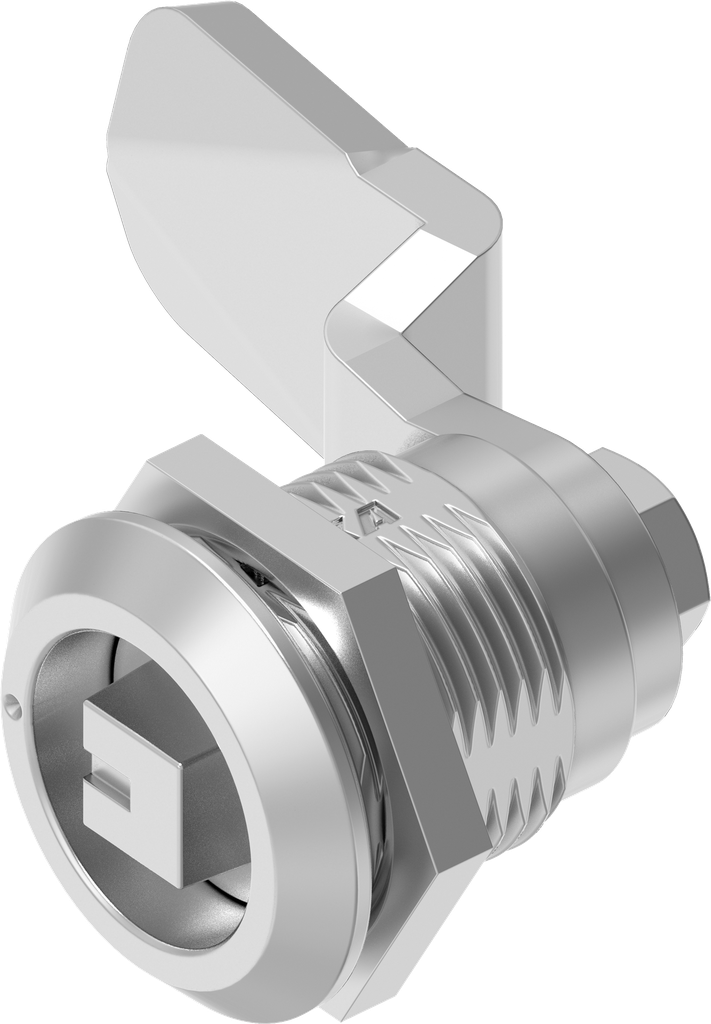

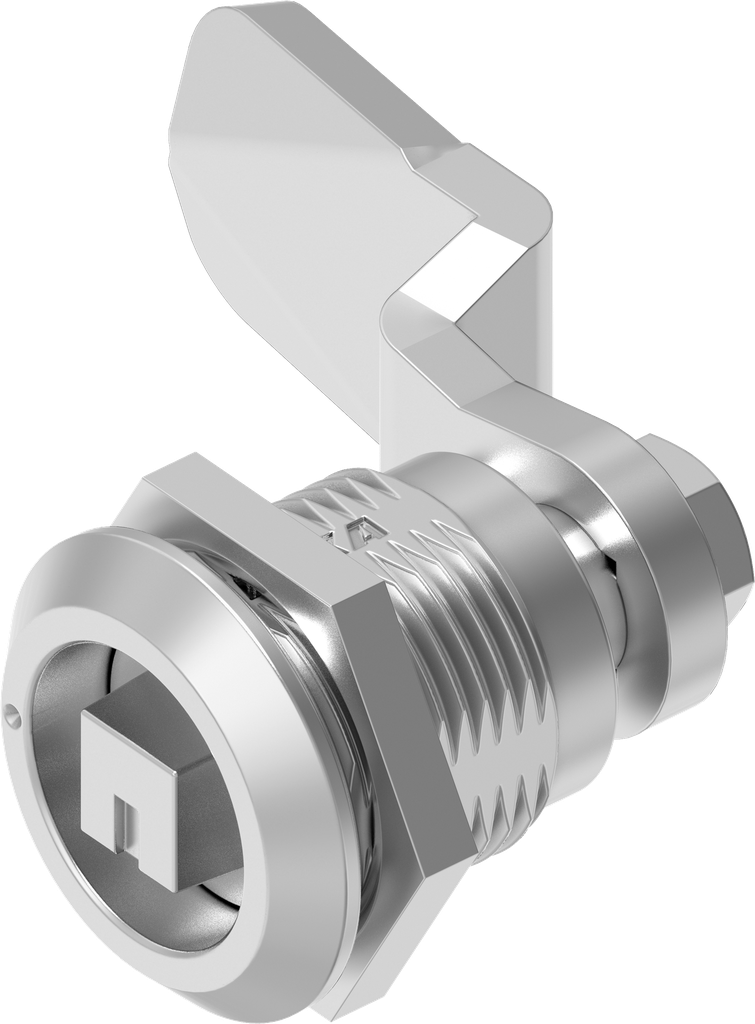

Compression latch square 8 railway version, Stainless steel AISI 316; 1000-SU751-01
with stainless steel nut
Product information:
The compression latch is of a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-SU751-01
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 8 with marking, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
28 x 4 mm
Foamed gasket:
Yes
GH Mass:
22 mm
Compression Value :
4.5 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
12 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
