Quarter turn version railway in conformity with RIC, Stainless steel AISI 303
Quarter turn version railway in conformity with RIC, Stainless steel AISI 303

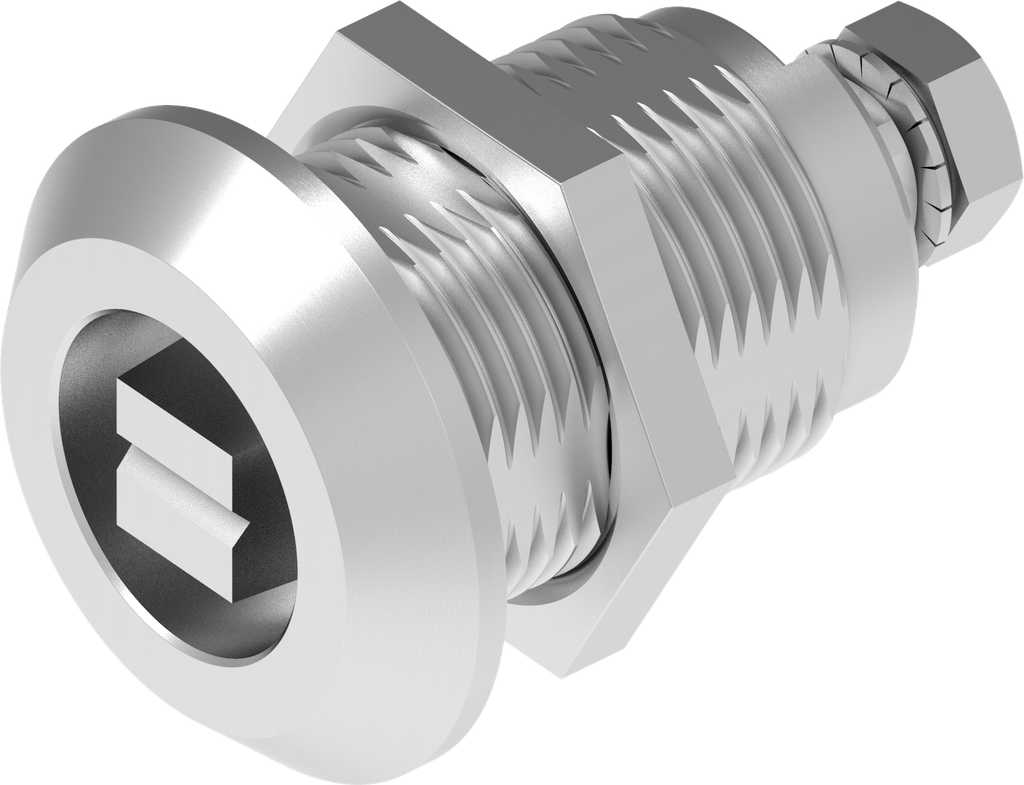

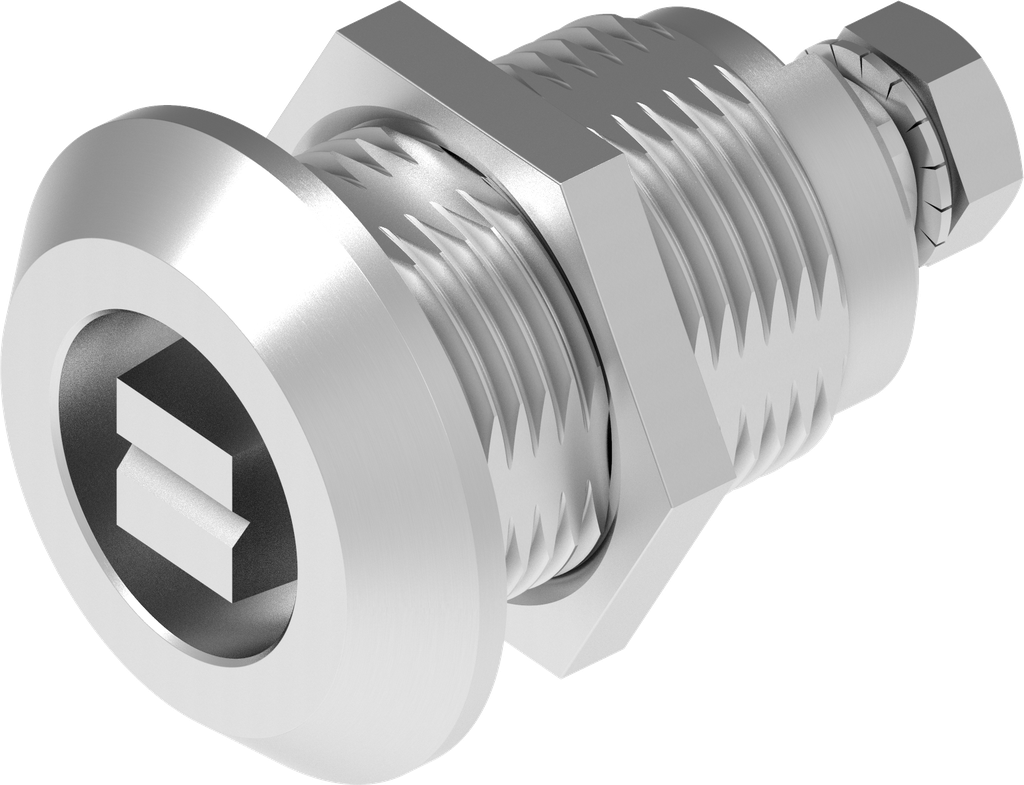

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303; 1000-SU543-PF

https://www.emka.com/products/1000-su543-pf https://www.emka.com/web/image/product.template/204509/image_1920?unique=53d741a

with stainless steel nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1000-SU543-PF
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with V-slot, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 30 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
