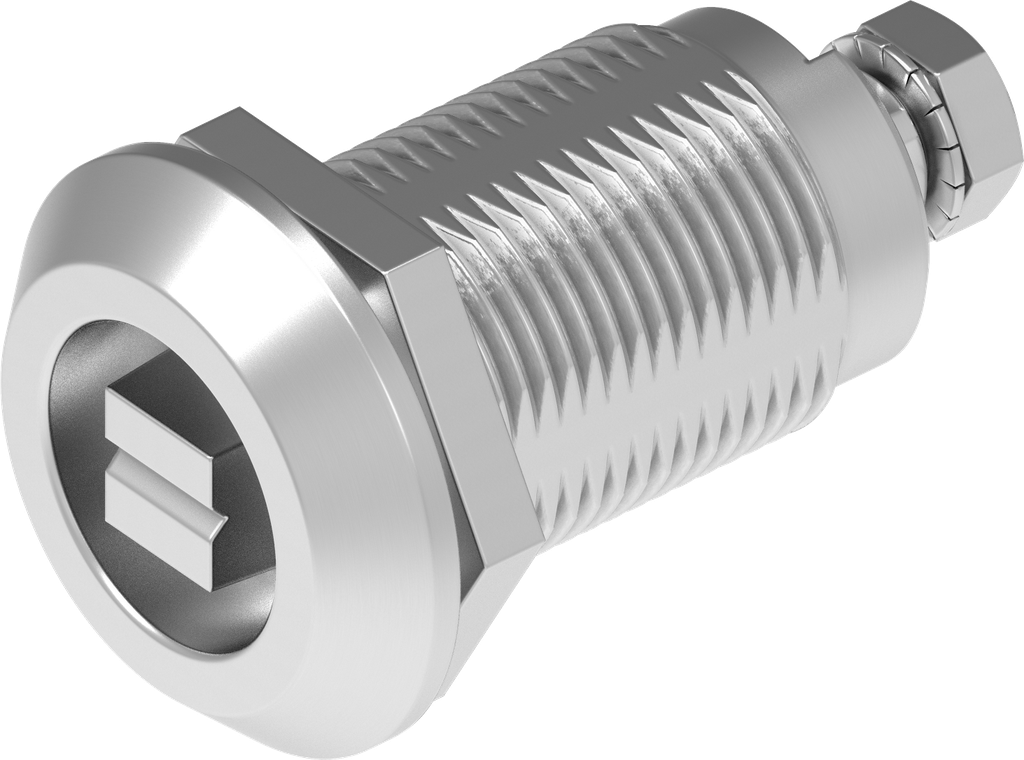

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303

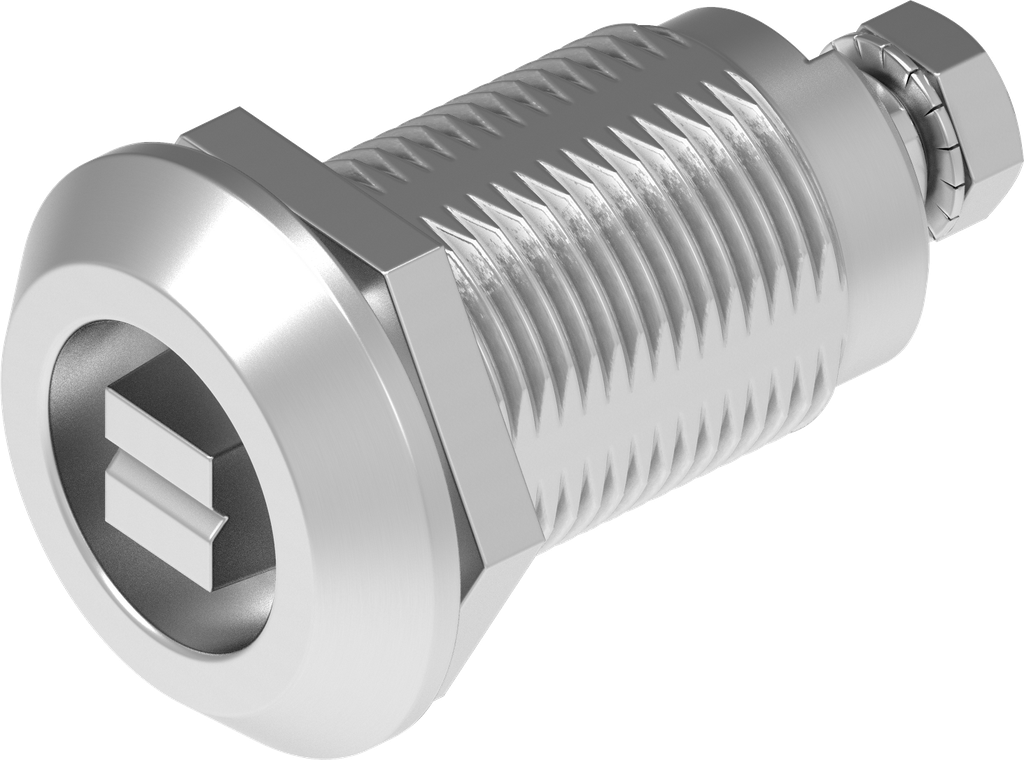

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303
Quarter turn version railway with marking for outside the seal, Stainless steel AISI 303
Quarter turn version railway with marking for outside the seal, Stainless steel AISI 303

Quarter turn version railway in conformity with RIC, Stainless steel AISI 303; 1000-SU543-01PF

https://www.emka.com/products/1000-su543-01pf https://www.emka.com/web/image/product.template/204510/image_1920?unique=2f18f92

with stainless steel nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1000-SU543-01PF
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with V-slot, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 36 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 26 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
