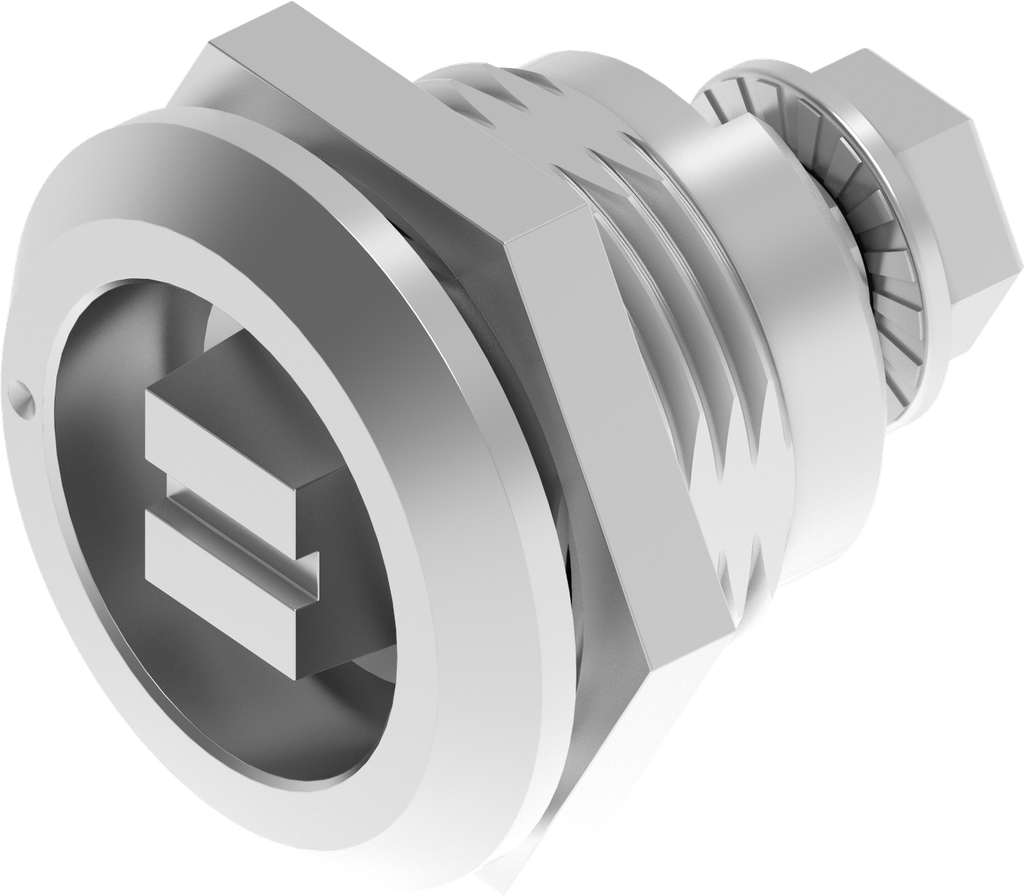

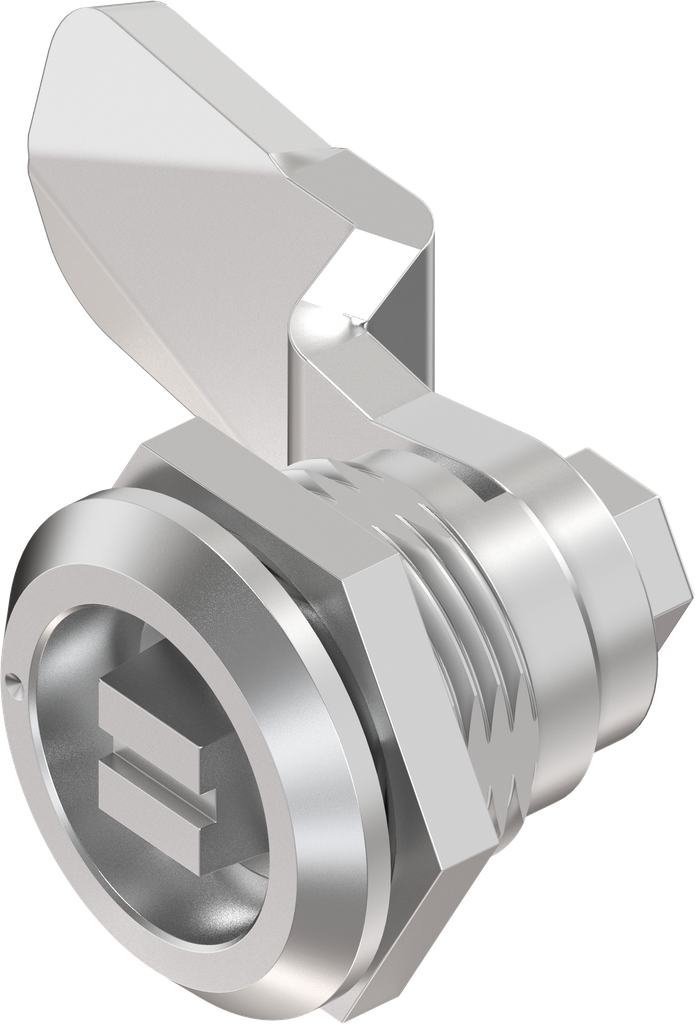

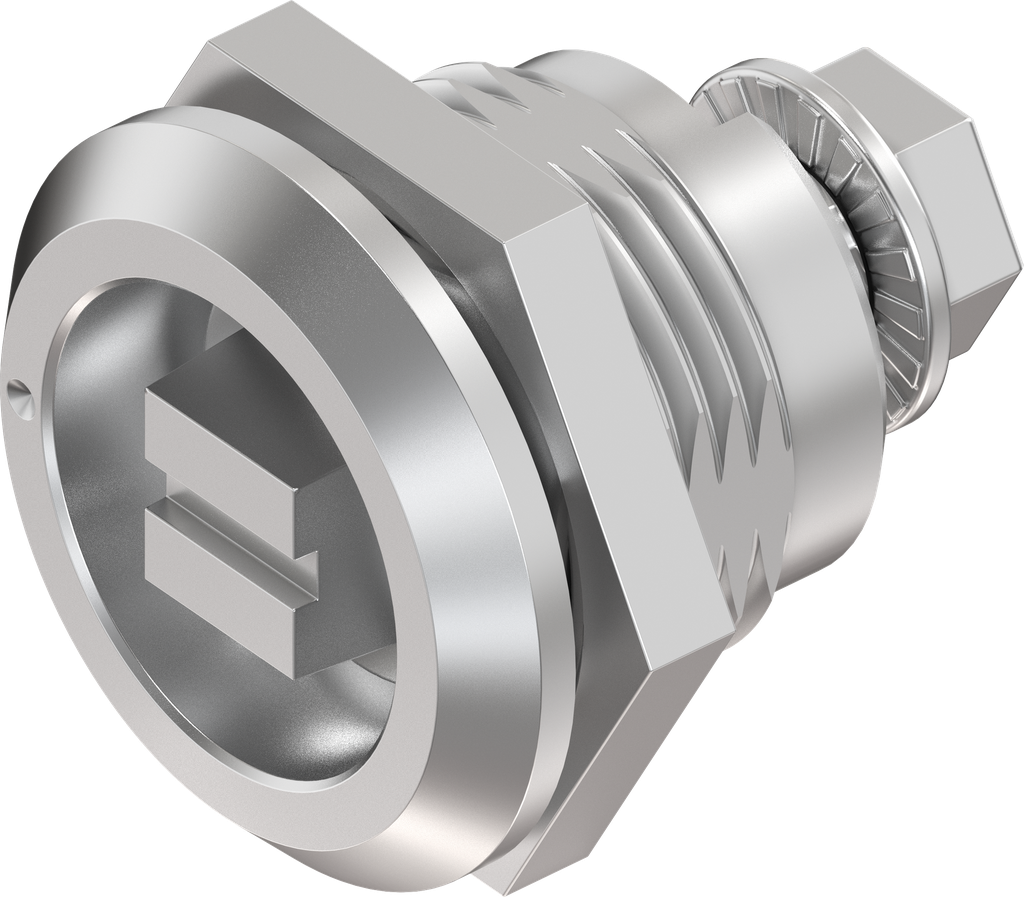

Quarter turn railway version with marking, Stainless steel AISI 303; 1000-SU209-RE

https://www.emka.com/products/1000-su209-re https://www.emka.com/web/image/product.template/203919/image_1920?unique=9e4c0a8

with stainless steel nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-2 class E20 (fire protection) Right
    Contact Us
    Internal Reference: 1000-SU209-RE
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with slot 1 x 2, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

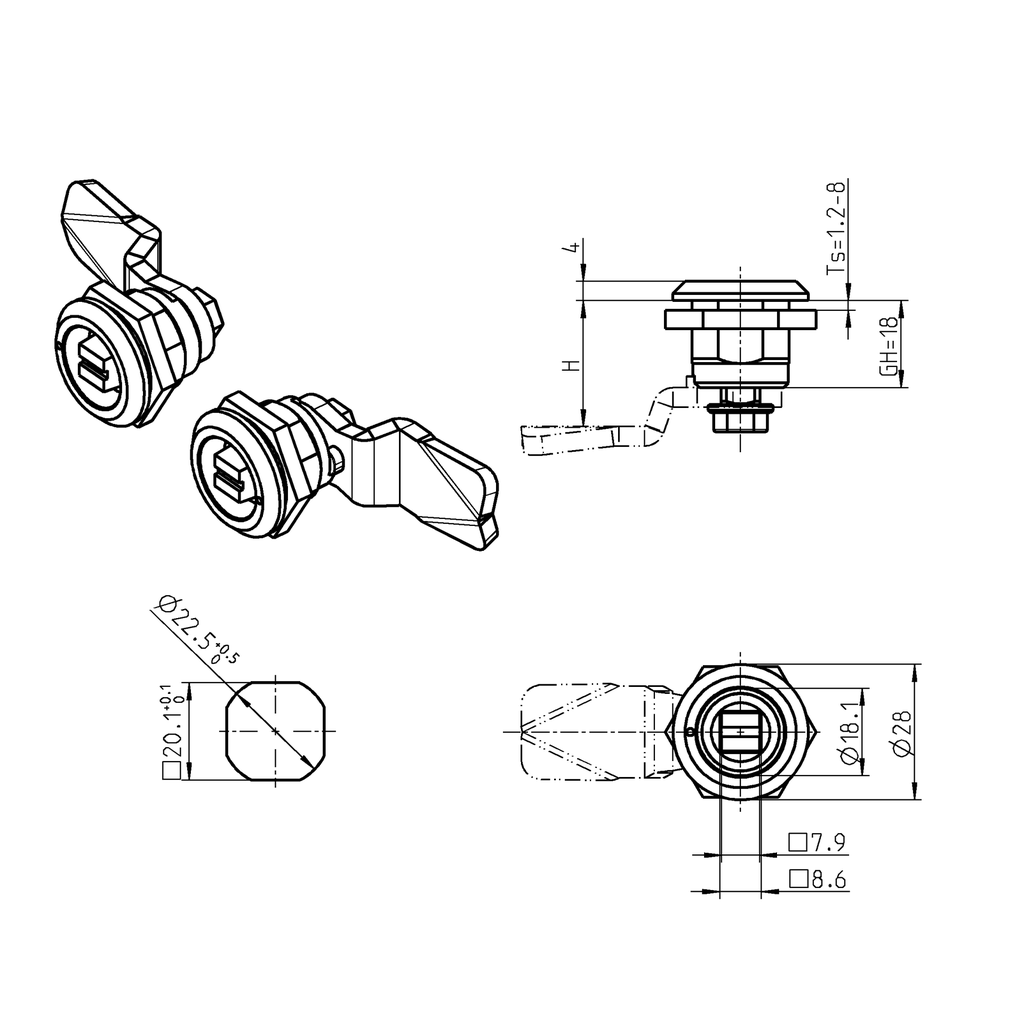

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    O-ring and flat seal
    Dust cap - Finger pull
    Assembly
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
