Quarter turn triangular 8 with marking, Stainless steel AISI 303
Quarter turn triangular 8 with marking, Stainless steel AISI 303
Quarter turn railway version with marking, Stainless steel AISI 303
Quarter turn railway version with marking, Stainless steel AISI 303

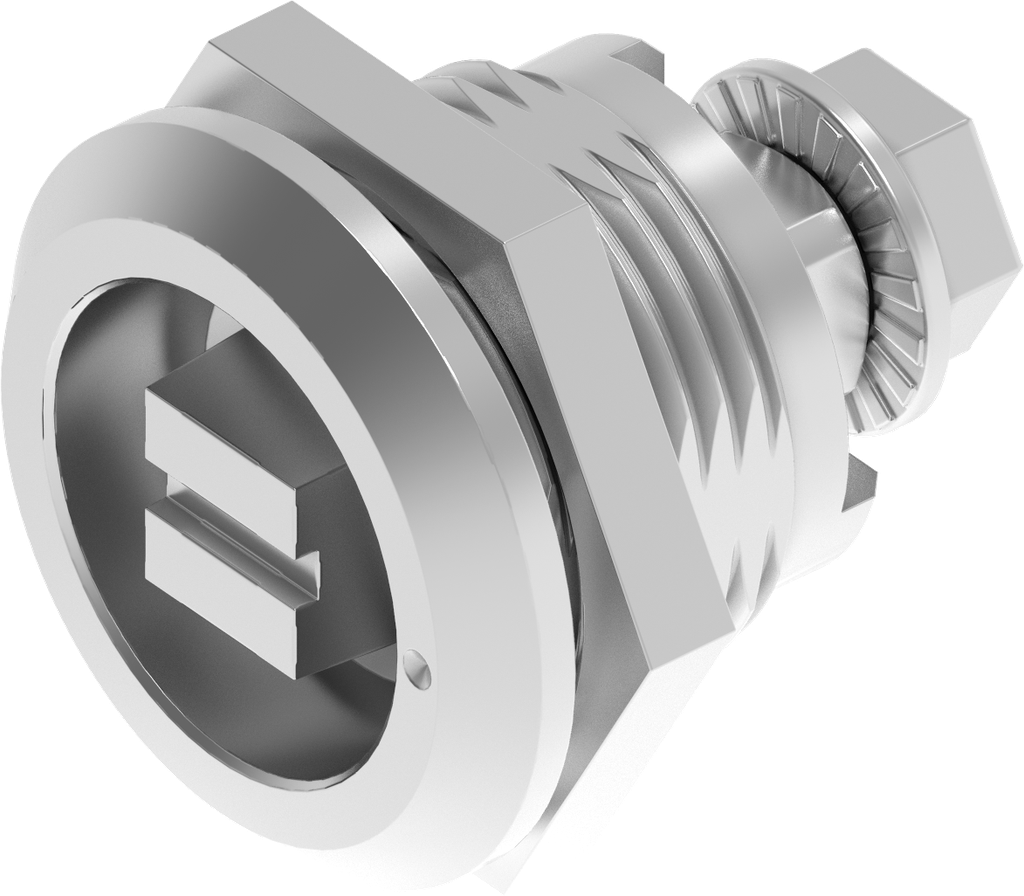

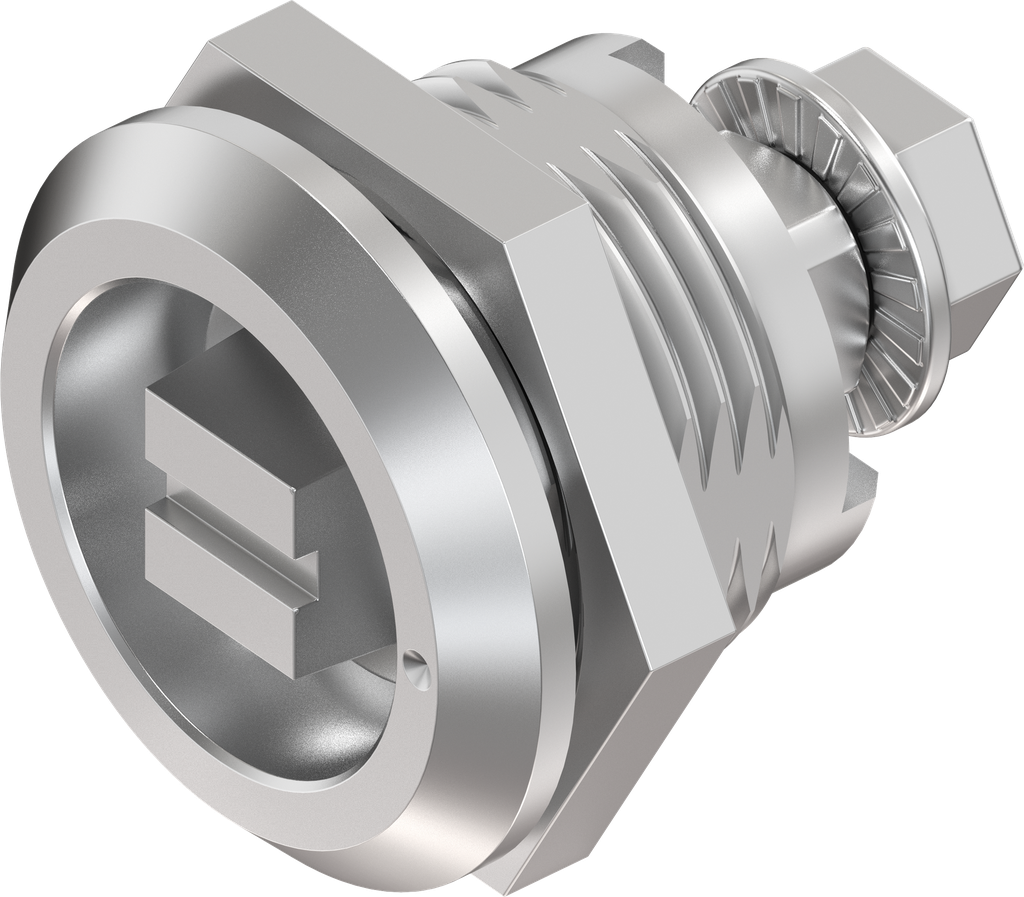

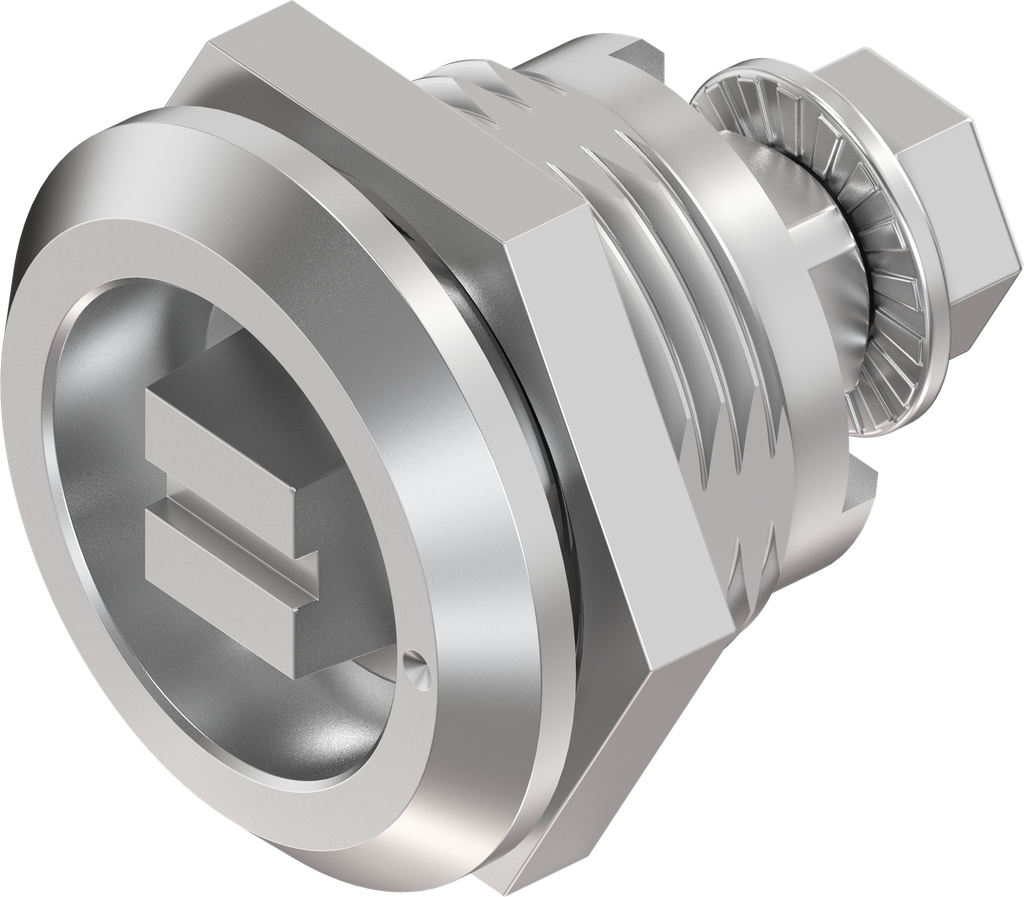

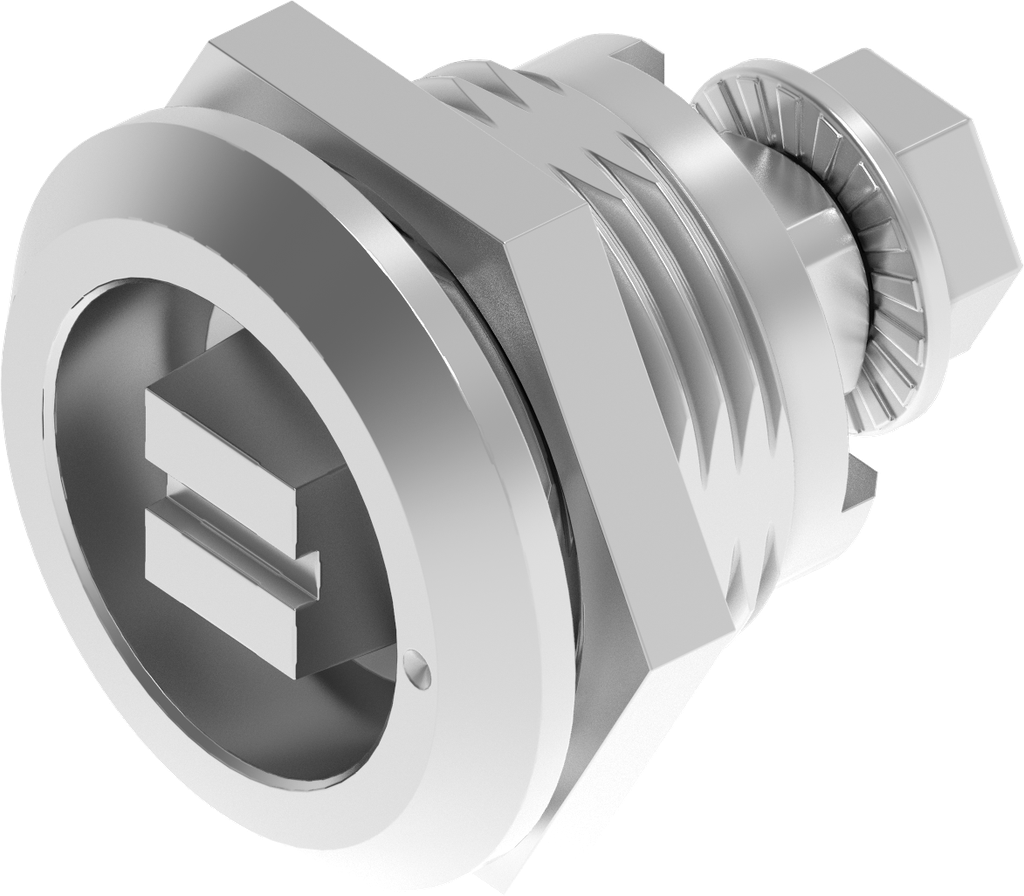

Quarter turn railway version with marking, Stainless steel AISI 303; 1000-SU209-LI

https://www.emka.com/products/1000-su209-li https://www.emka.com/web/image/product.template/203918/image_1920?unique=2d5516c

with stainless steel nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 DIN EN 45545-2 class E20 (fire protection) Left
    Contact Us
    Internal Reference: 1000-SU209-LI
    Product Type: Quarter turn
    Program: 1000
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 9 with marking, railway version
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

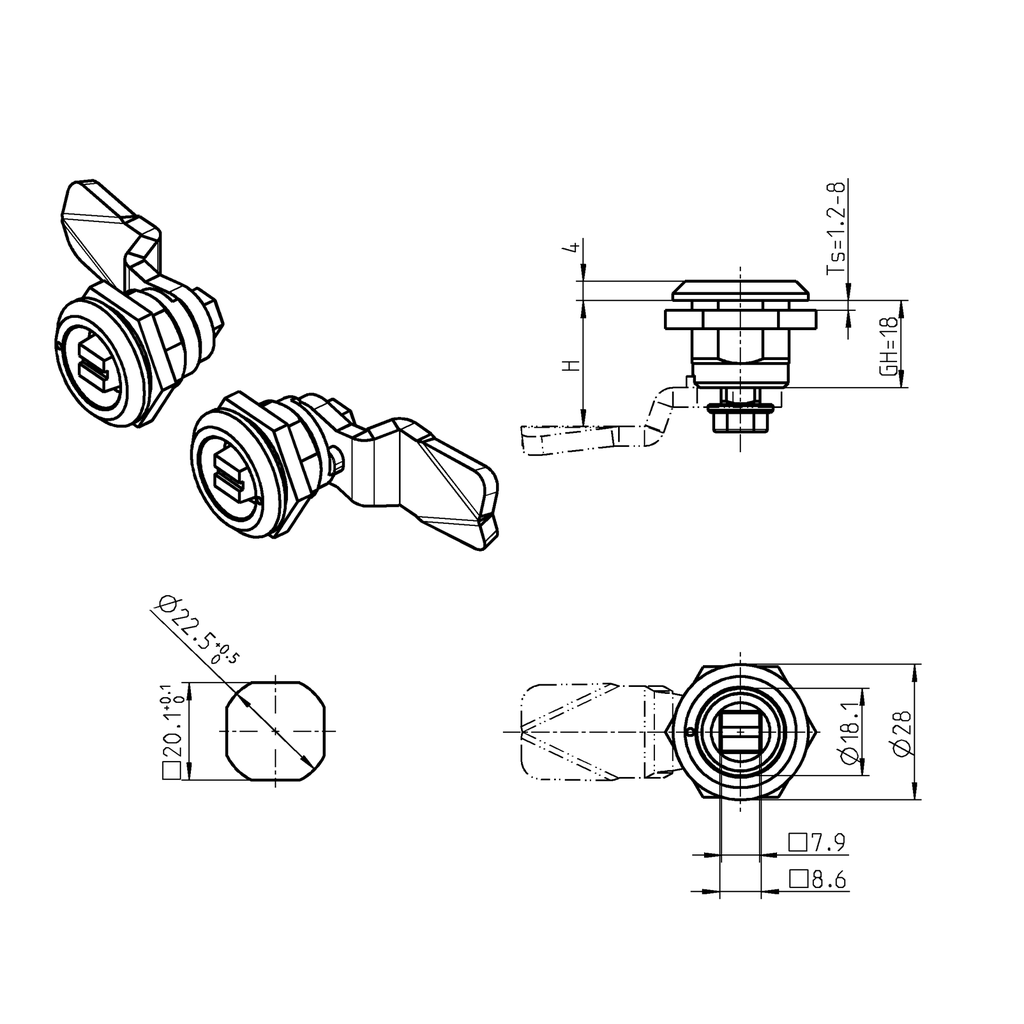

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left

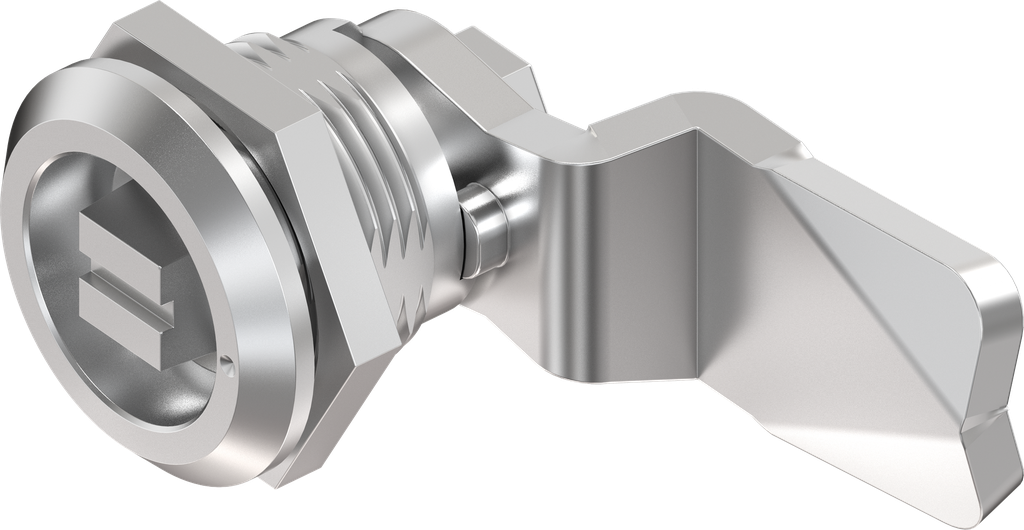

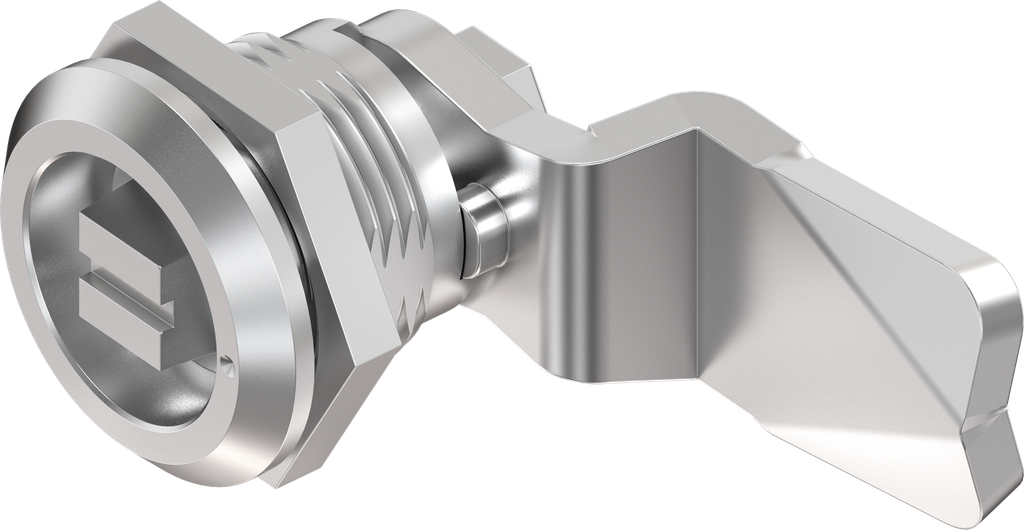

    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    O-ring and flat seal
    Dust cap - Finger pull
    Assembly
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
