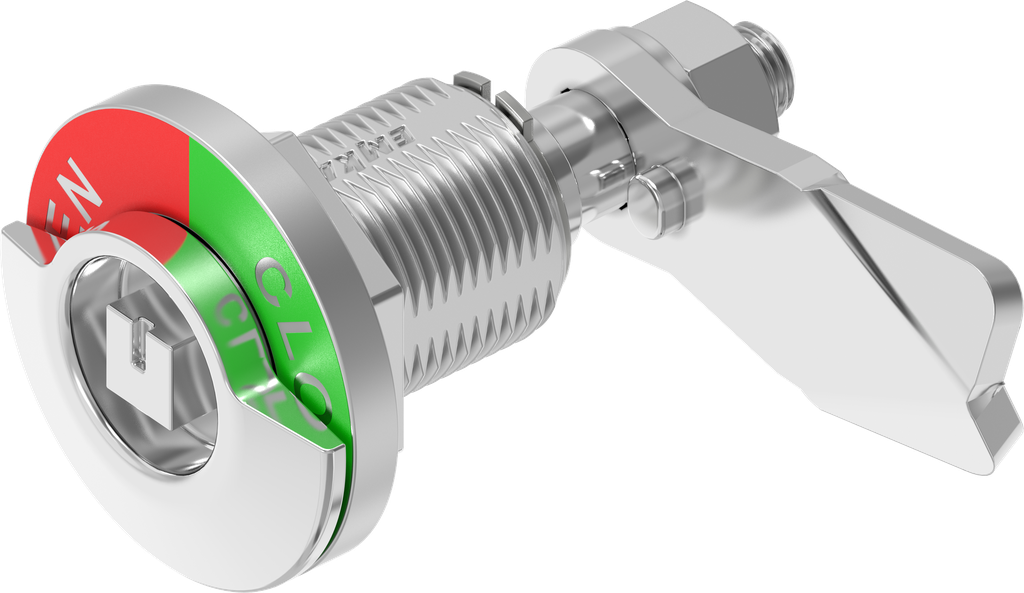

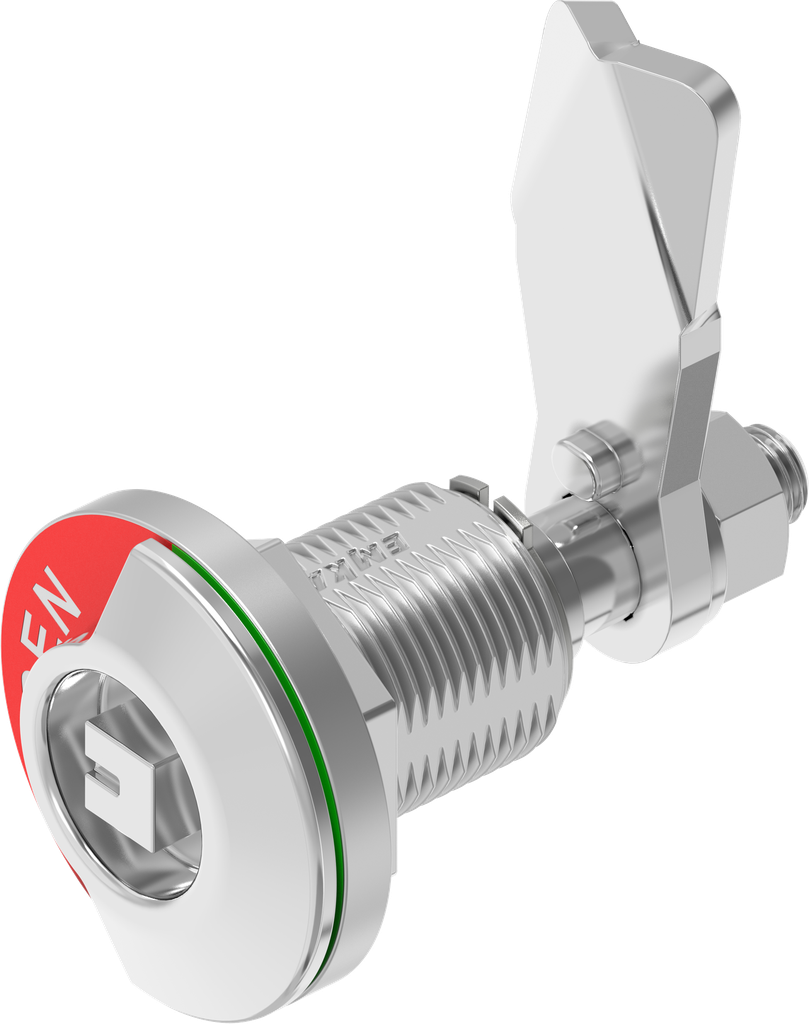

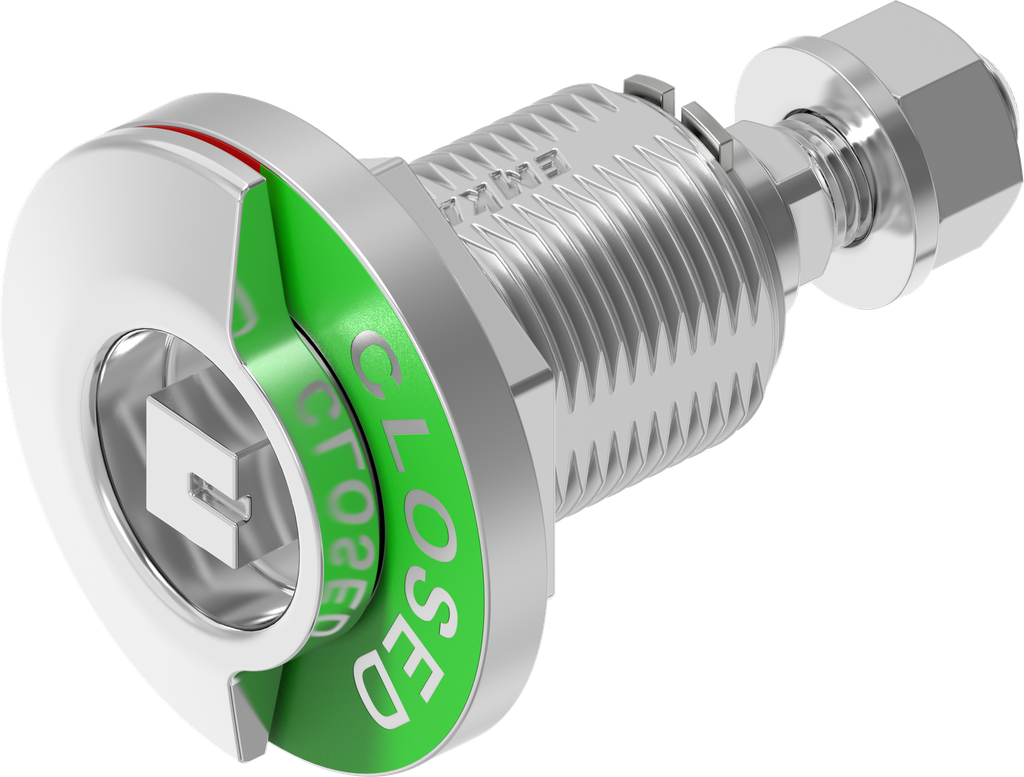

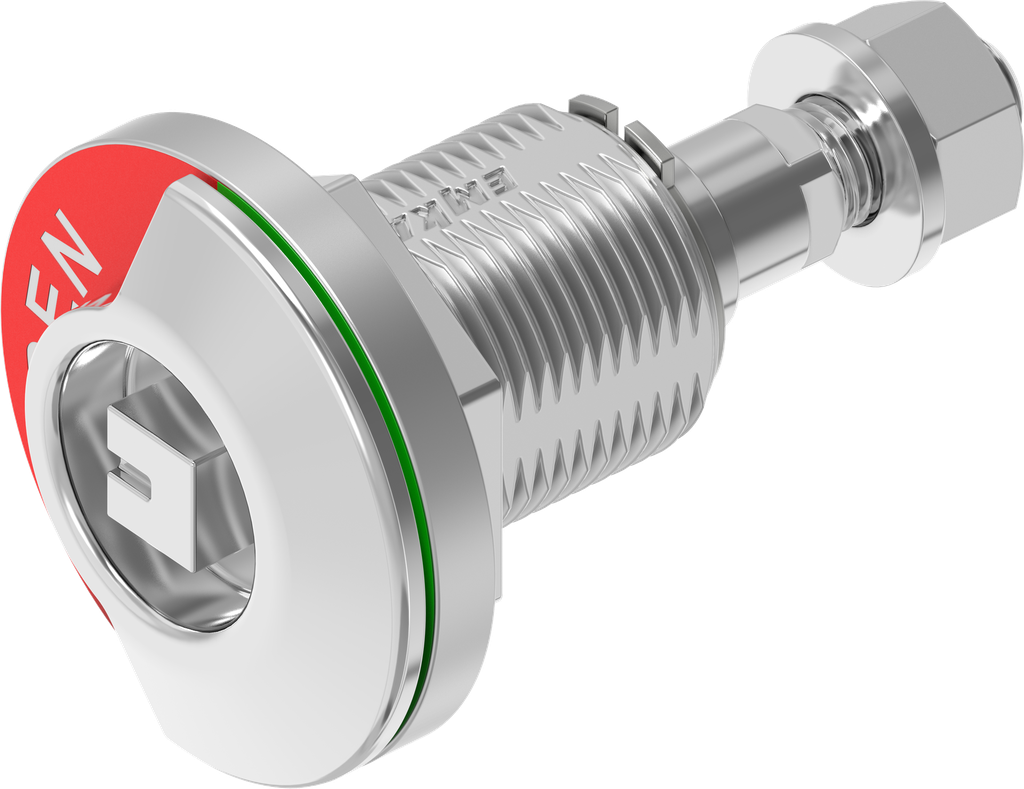

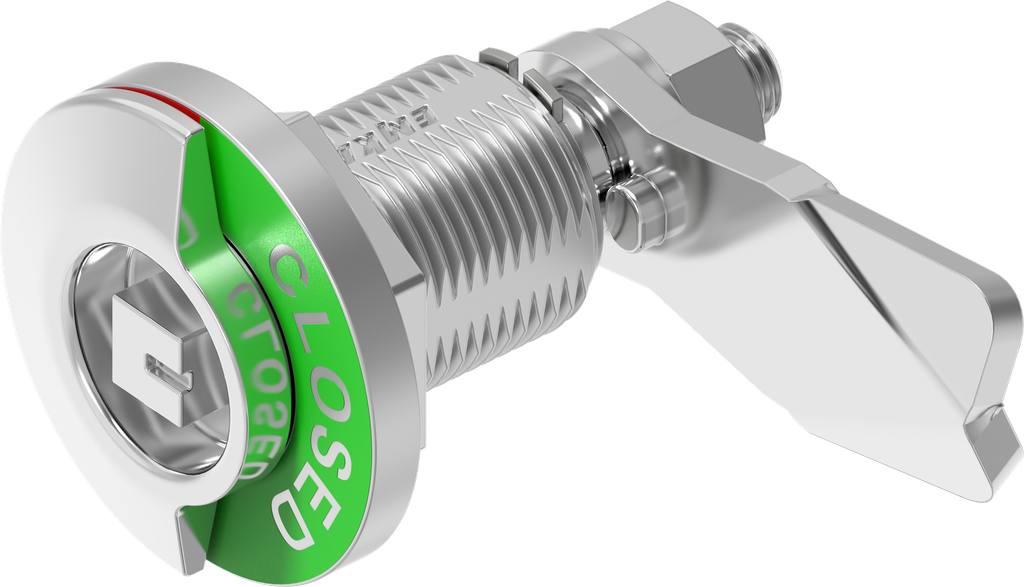

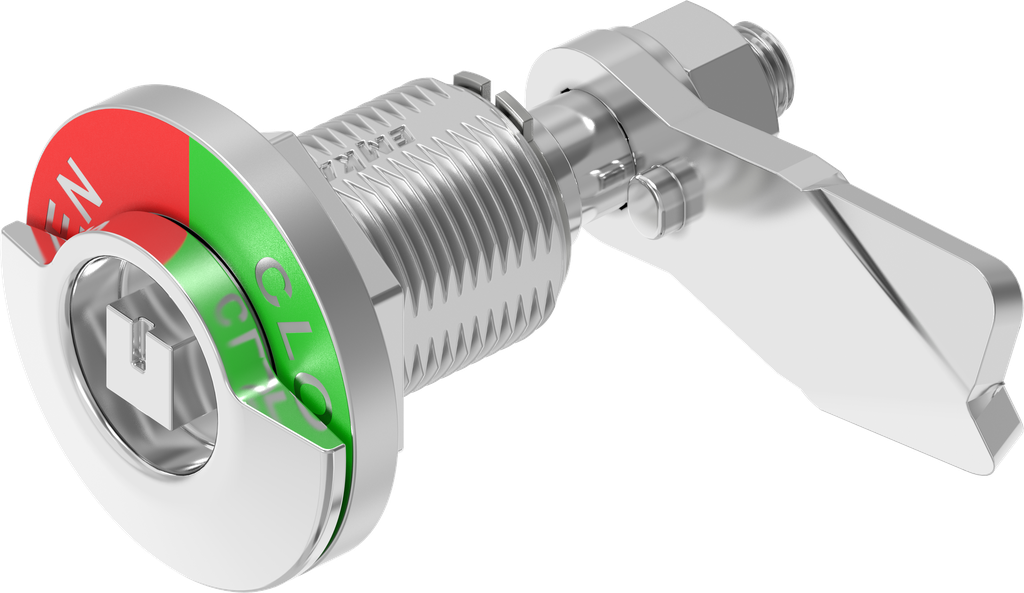

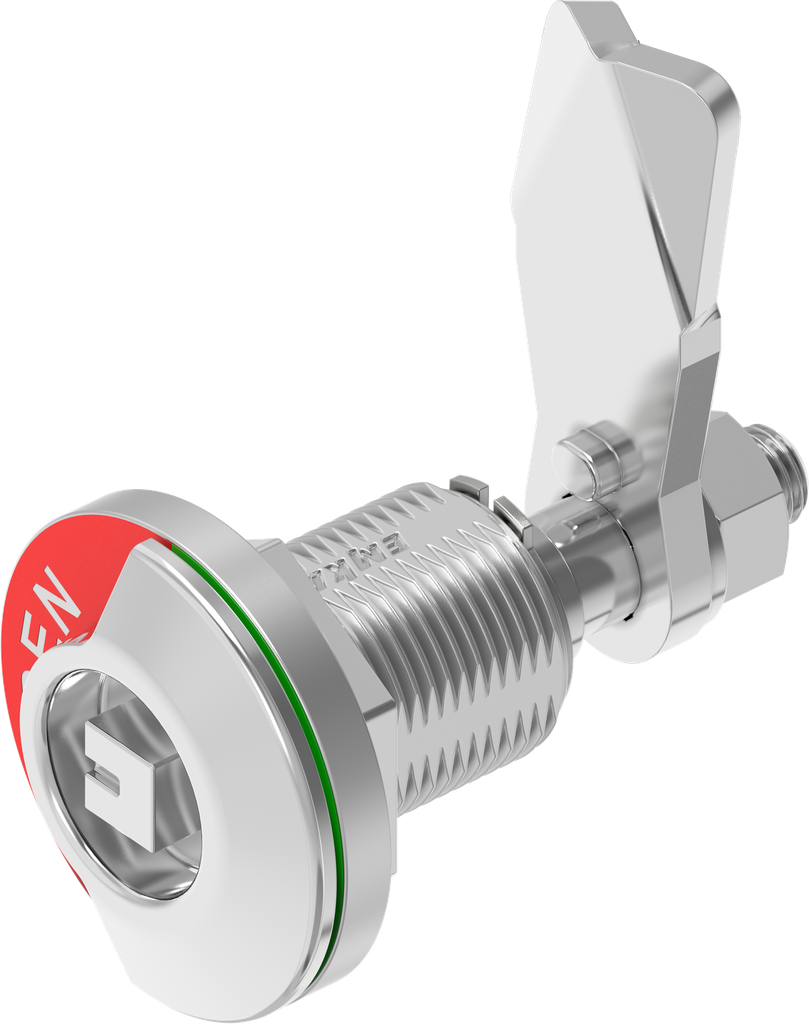

Compression latch square 8 with OPEN - CLOSED indicator, left version, Stainless steel AISI 316 pickled and passivated; 1000-SU1222
with stainless steel nut
Product Benefits:
The OPEN - CLOSED imprint is wipe-tested according to DIN EN 62208 chap. 9.3 and DIN EN 61439-1 chap. 10.2.7
Product information:
The compression latch is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-SU1222
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Surface of the module:
pickled and passivated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 8 with marking
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:

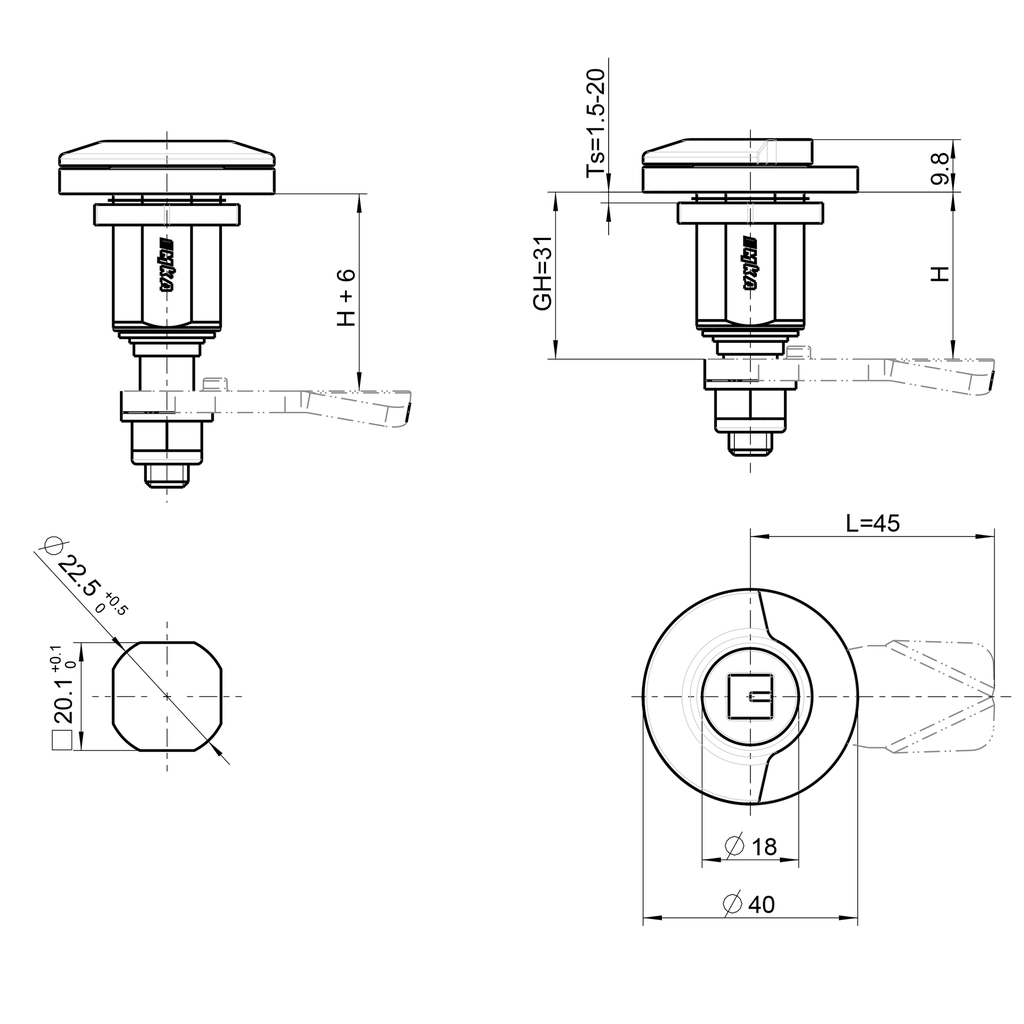

40 x 9,8 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
