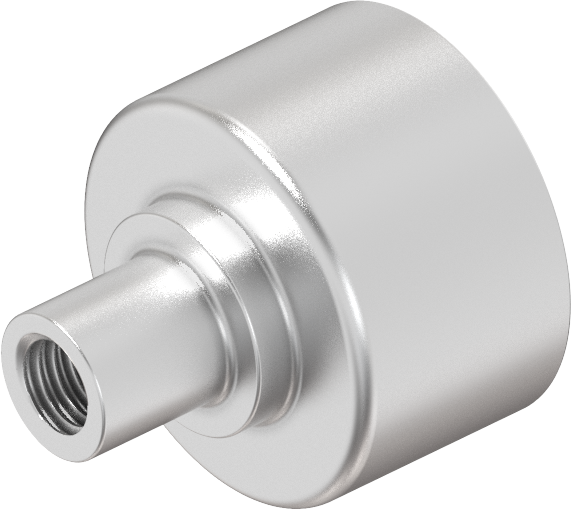

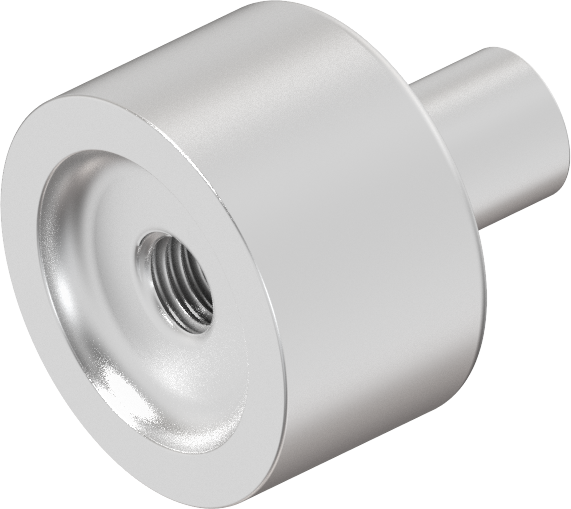

Connecting shaft, Stainless steel AISI 303
Connecting shaft, Stainless steel AISI 303
Connecting shaft, Stainless steel AISI 303
Connecting shaft, Stainless steel AISI 303

Connecting shaft, Stainless steel AISI 303; 1000-S1839-12

https://www.emka.com/products/1000-s1839-12 https://www.emka.com/web/image/product.template/203180/image_1920?unique=f86255a

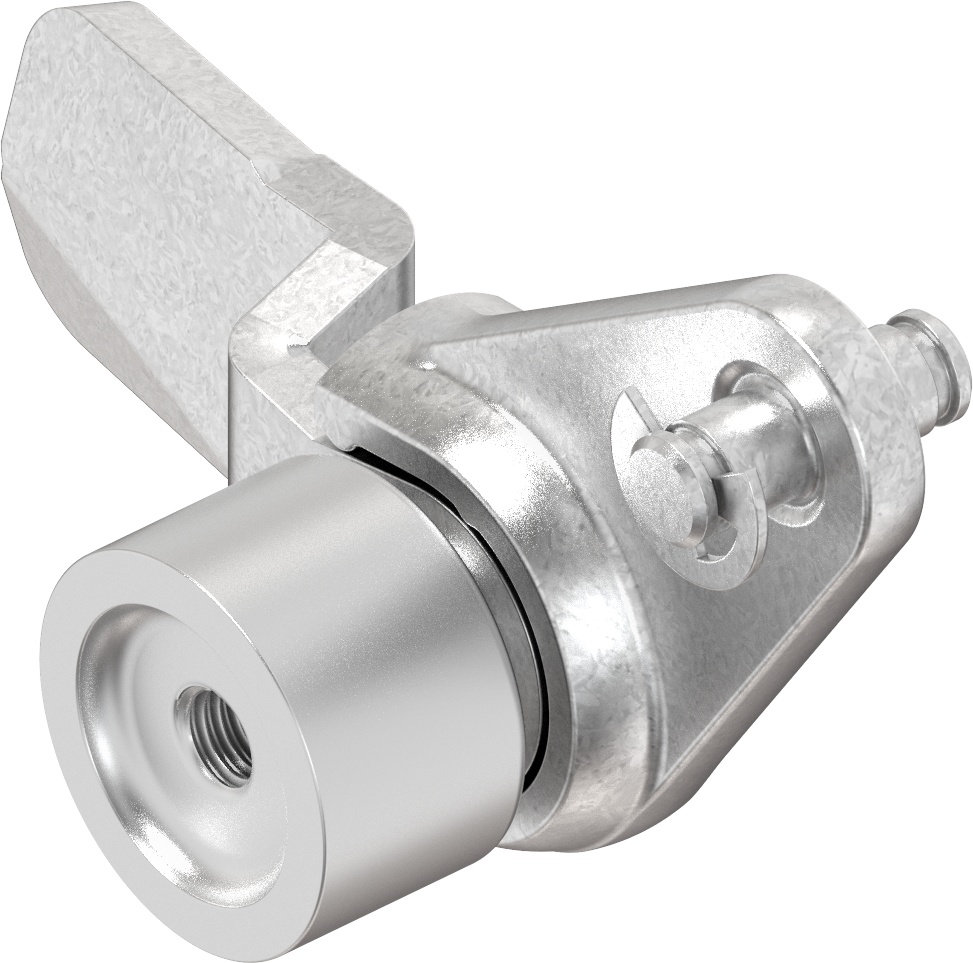

for rod control for multiple interlocking

    This combination does not exist.

    Inside the sealing DIN EN 45545-3 class E60 (fire protection)
    Contact Us
    Internal Reference: 1000-S1839-12
    Product Type: Adapter
    Material: Stainless steel AISI 303
    Program: 1000
    Adapter type: Adapter for rod drive for multi-point locking

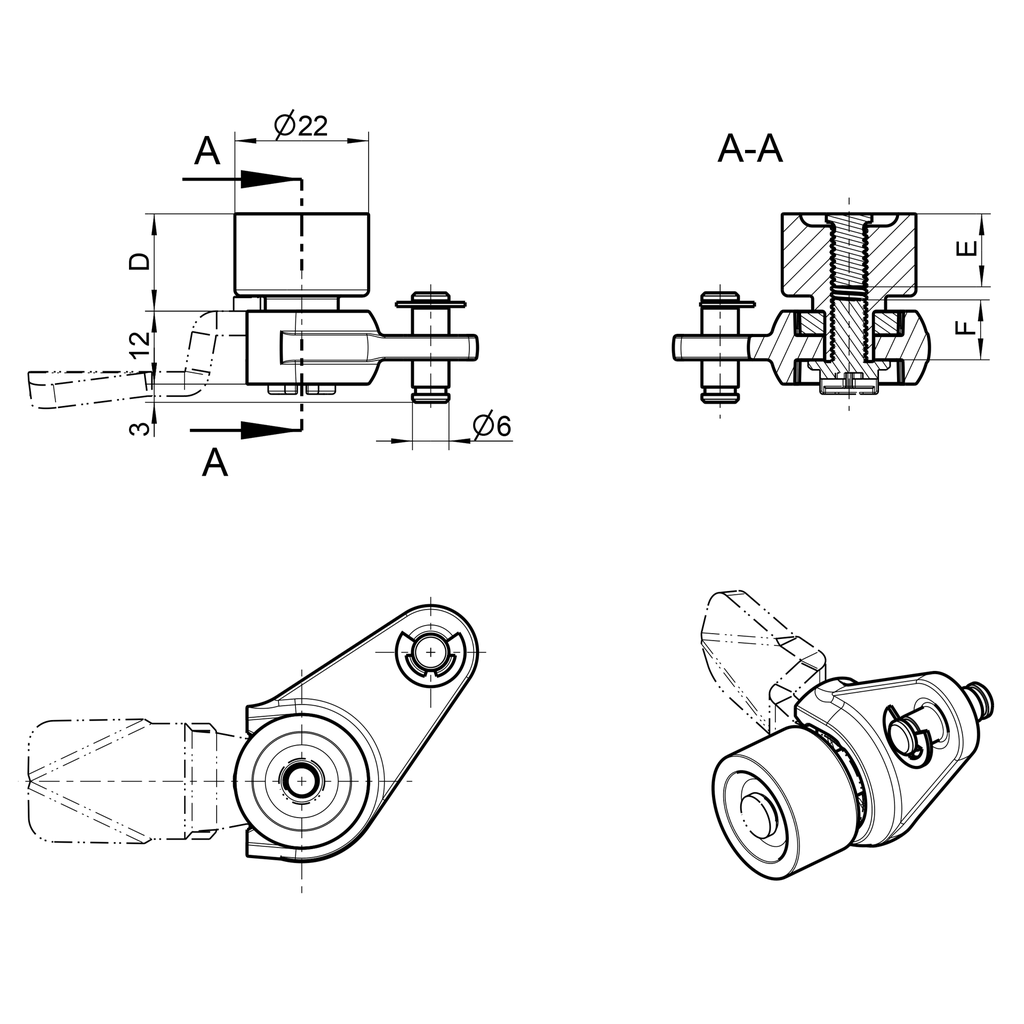

    Dimension D: 16 mm
    Mounting Positions : Inside the sealing
    F dimension: M6x10
    No Specifications
    View All Products
    Screw
    Rod control
    Here you can find the product data sheets and CAD files of this product
