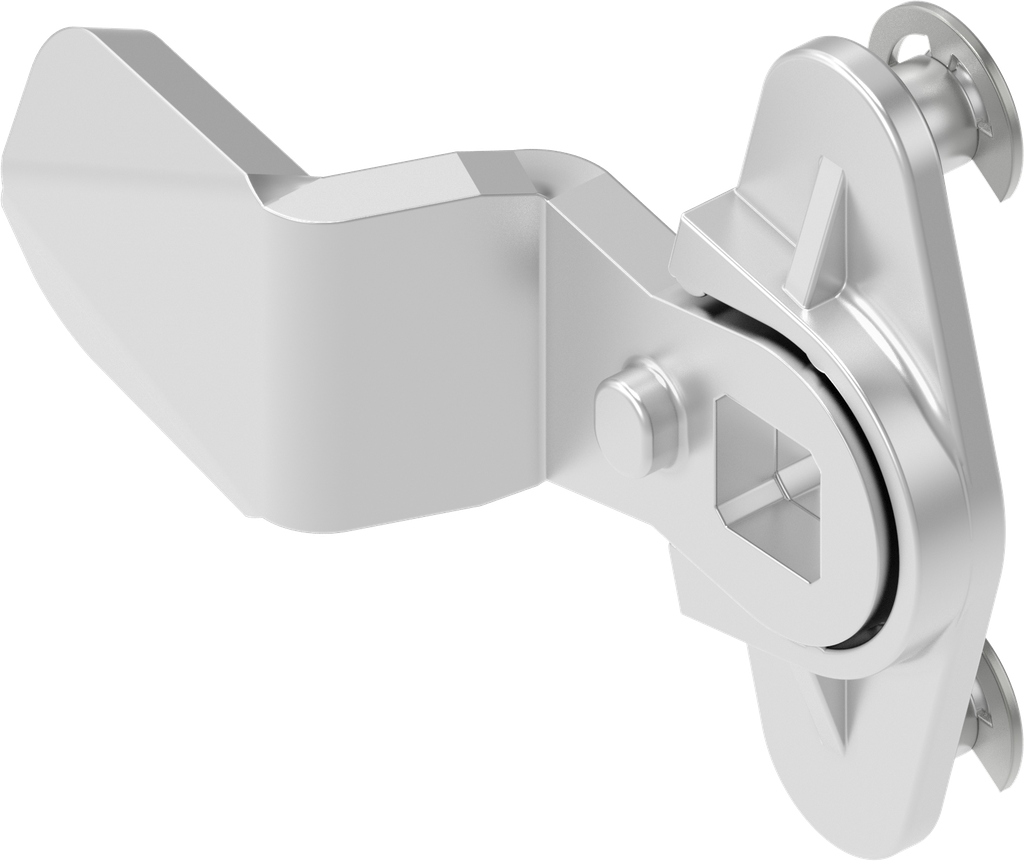

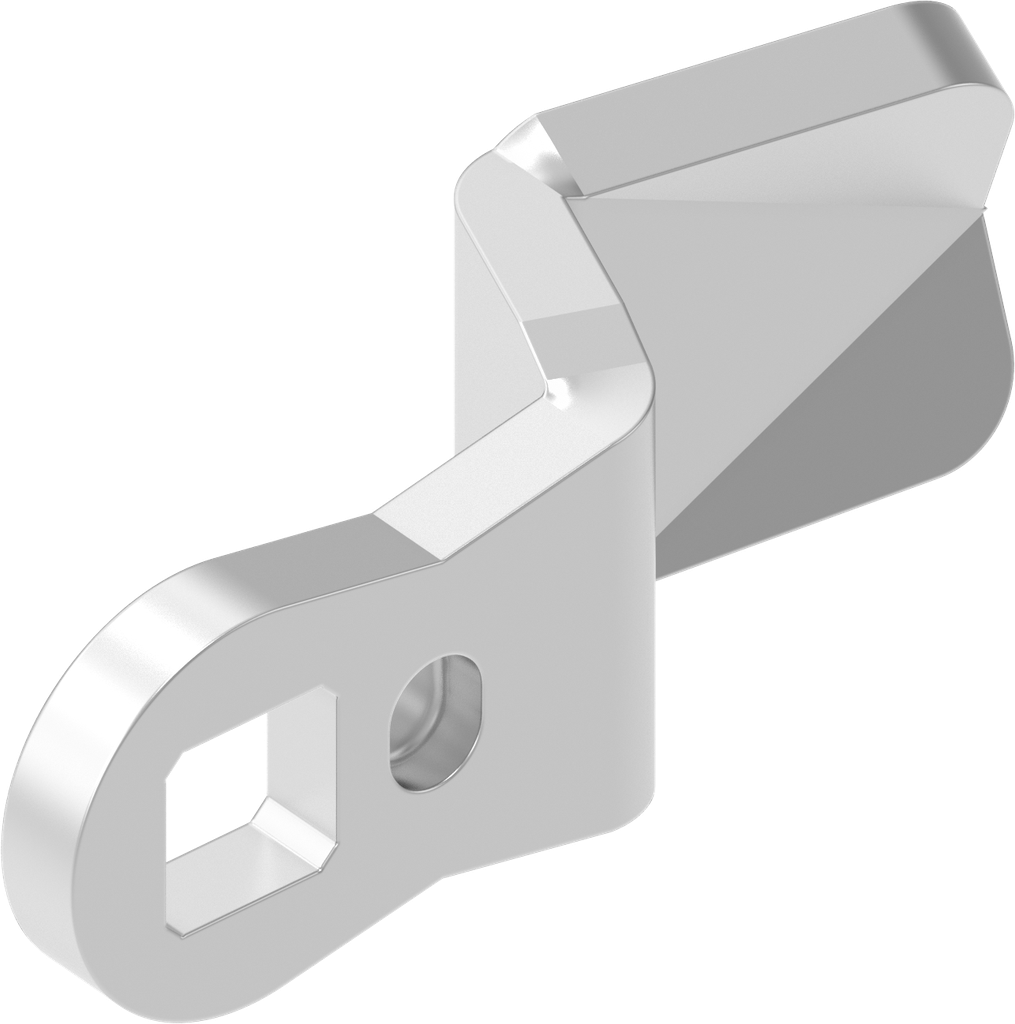

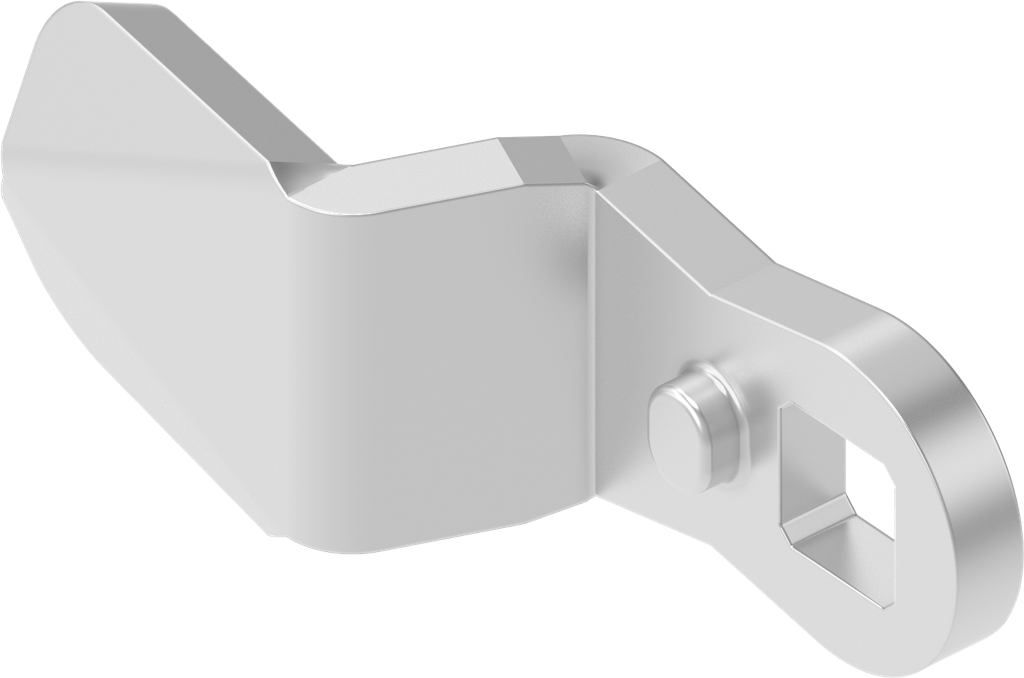

Cam, Stainless steel AISI 304; 1000-H6-L55PC

https://www.emka.com/products/1000-h6-l55pc https://www.emka.com/web/image/product.template/200849/image_1920?unique=d3b1aca

Offset h = -12 mm

    This combination does not exist.

    Inside the sealing
    No stock item, please ask for availability
    Internal Reference: 1000-H6-L55PC
    Barcode: 1000-H00006-00L55PC
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Dimension H: 6 mm
    Compression Value : 3 mm
    Offset: negative
    offset of cam: 12 mm
    Dimension L: 55 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products

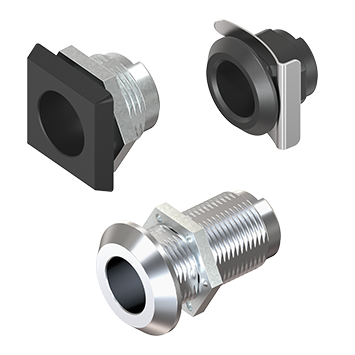

    Housing

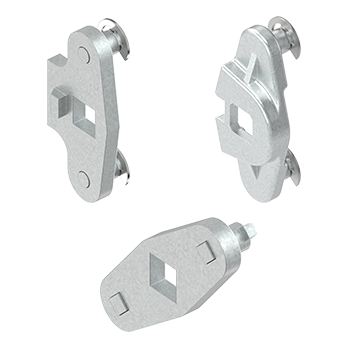

    Rod control
    Assembly
    Quarter turn

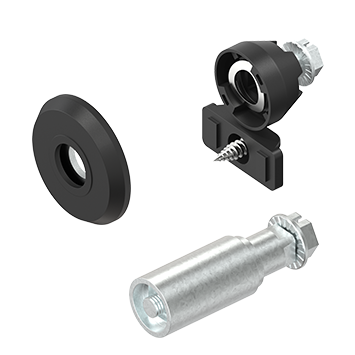

    Adapter
    Locking point
    Bearing bush

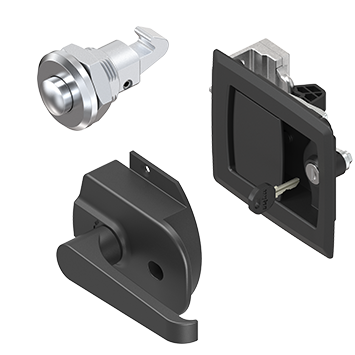

    Other latch
