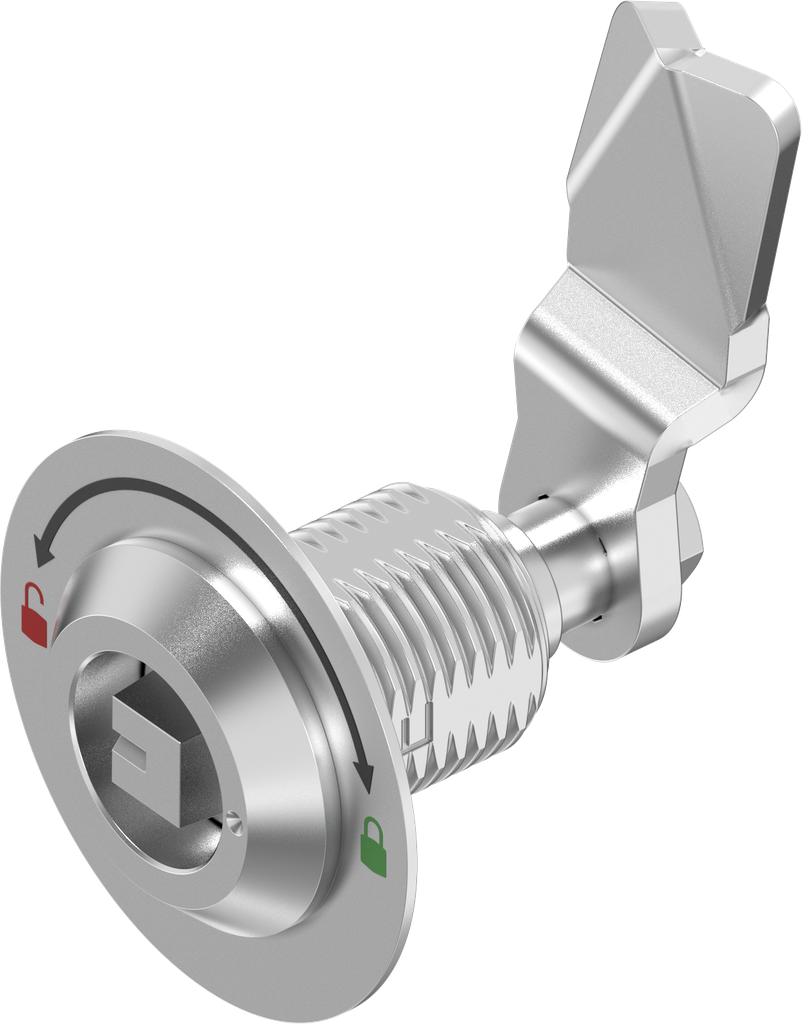

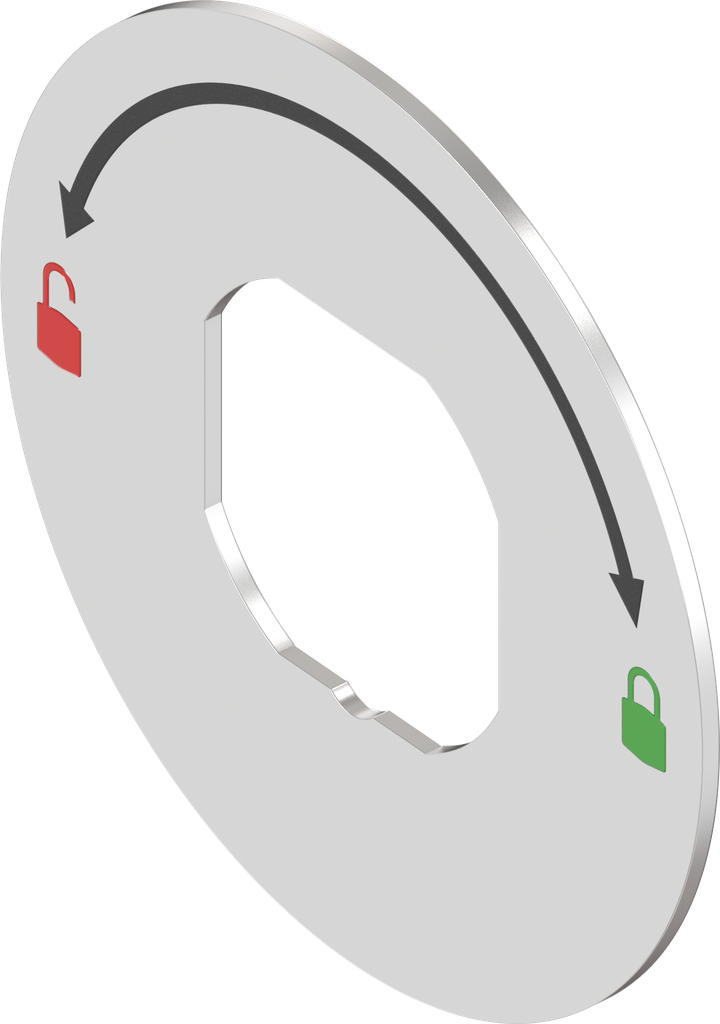

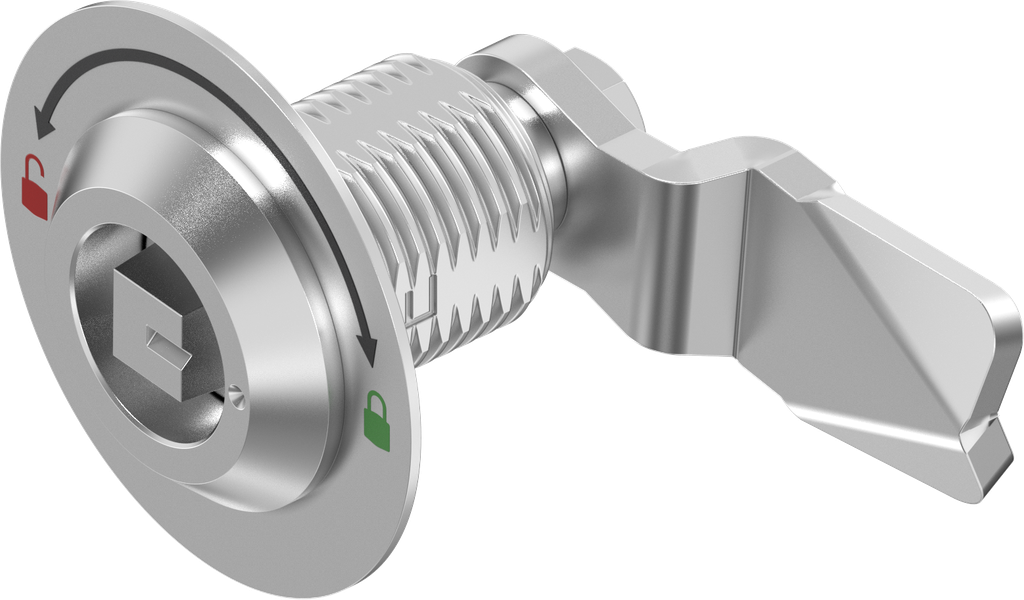

Opening indicator compression latch, opening direction left, Stainless steel AISI 304 tumbled and blasted; 1000-716-03

https://www.emka.com/products/1000-716-03 https://www.emka.com/web/image/product.template/449463/image_1920?unique=9dc6400

for compression latch

    This combination does not exist.

    Inside the sealing Left

    Product information:

    If IP 65 sealing is to be maintained, the flat seal 1000-23 must be inserted between the door and the plate. Please note that this reduces the H dimension by 2 mm.
    Internal Reference: 1000-716-03
    Barcode: 1000-000716-0000003
    Product Type: Quarter turn accessories
    Program: 1000
    Material of the module : Stainless steel AISI 304
    Surface of the module: tumbled and blasted
    Dimension D: 48 mm
    Mounting Positions : Inside the sealing
    Dimension t: 1 mm
    Door Version : Left
    No Specifications
