Rod with 3 eyes L = 1501 - 1600 mm, Steel zinc-plated
Connecting shaft, Stainless steel AISI 303
Rod with 3 eyes L = 1701 - 1800 mm, Steel zinc-plated; 1000-643-14JB
for rod control for multiple interlocking
This product has no valid combination.

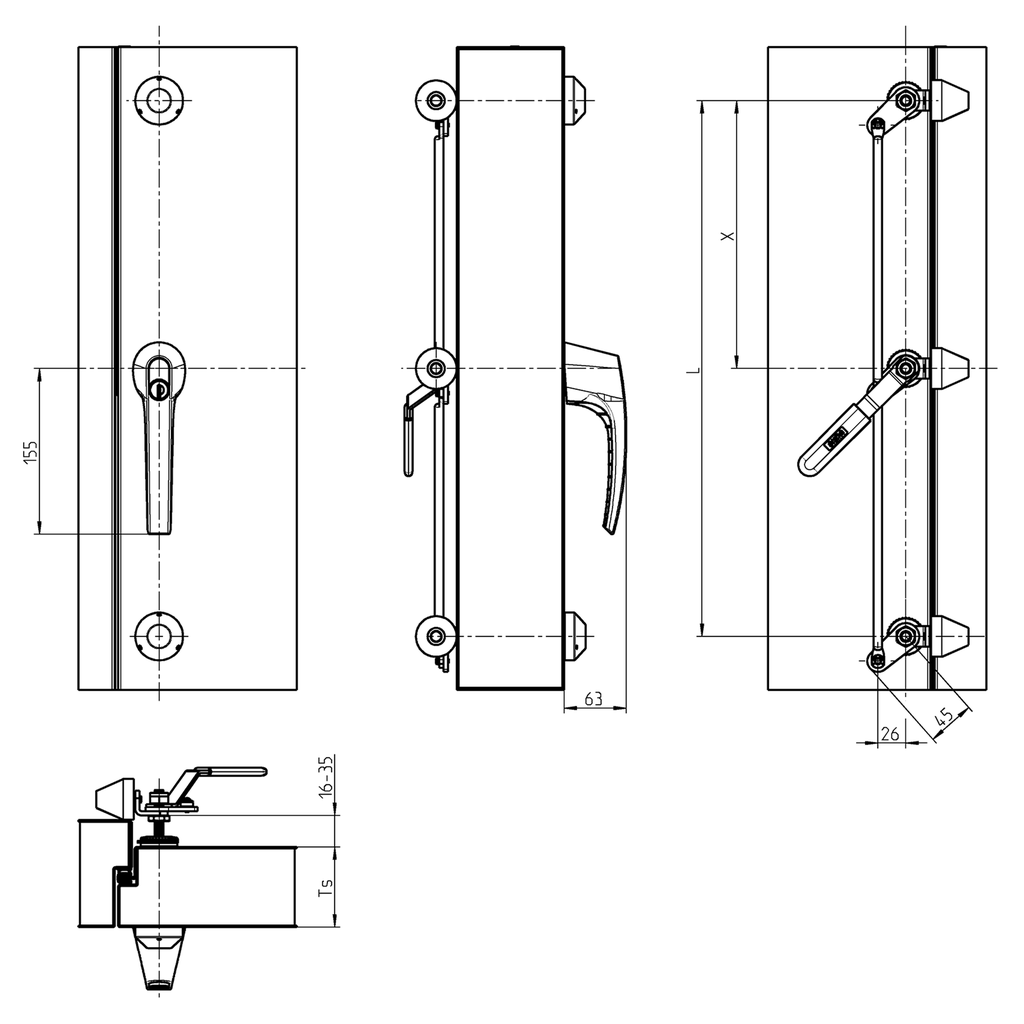

Order / Calculation example:
Order number for a round rod with a length L of 1050 mm
and a distance dimension X of 650 mm = 1000-U643-L 1050 / X 650
Internal Reference:
1000-643-14JB
Barcode:
1000-000643-00014JB
Product Type:
Rod
Material:
Steel
Program:
1000
Surface:
zinc-plated
Mounting Positions :
Inside the sealing
Dimension L up to:
1800 mm
Dimension L from:
1701 mm
Round bar inside the seal:
Round rod with 3 eyes for for multiple interlocking
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
