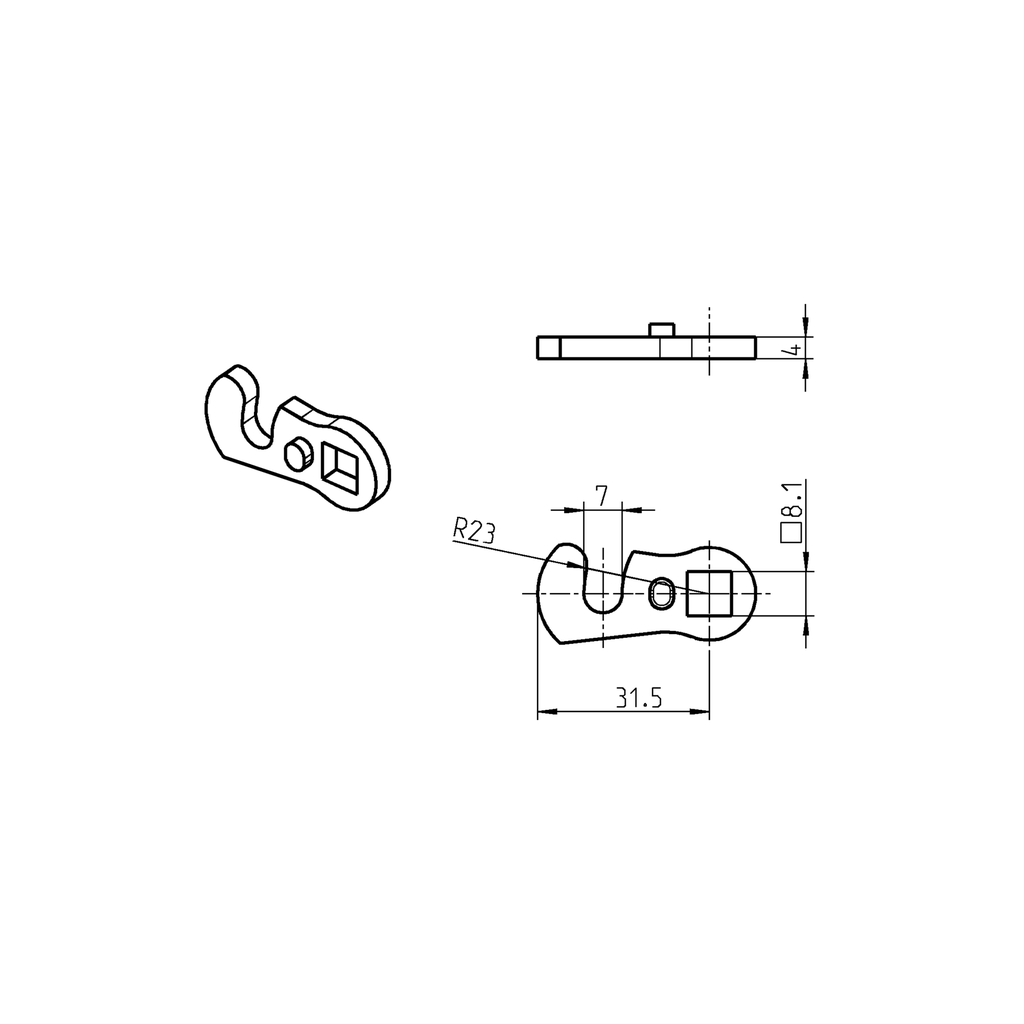

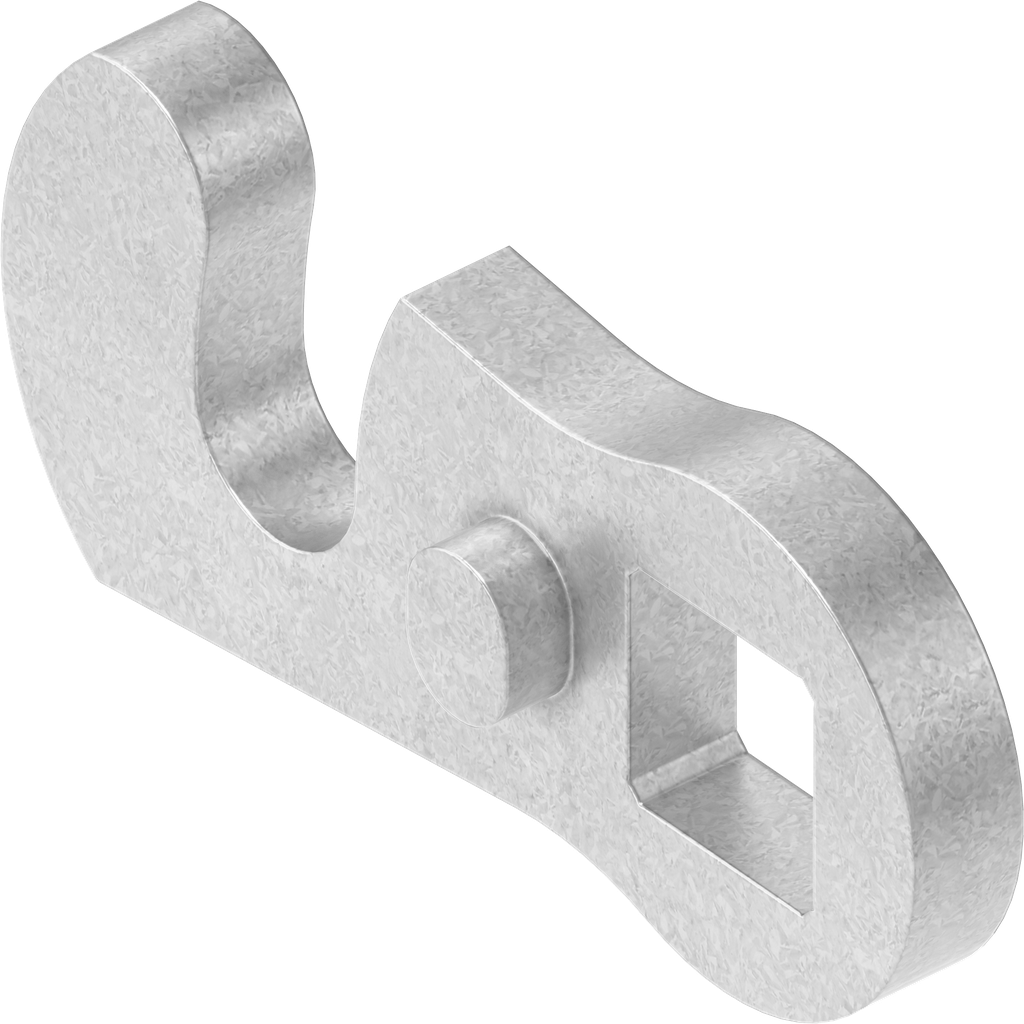

Hooked cam, Steel zinc-plated; 1000-61

https://www.emka.com/products/1000-61 https://www.emka.com/web/image/product.template/59122/image_1920?unique=e4a90d8

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-61
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 1C-160
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Hooked cam: Yes
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 23 mm
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing

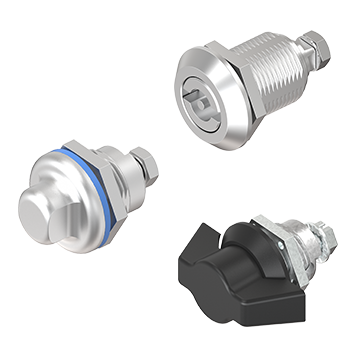

    Quarter turn
