Catch, Zinc die black powder-coated
Compression latch version railway with outer rack, left version, Stainless steel AISI 316
Product information:

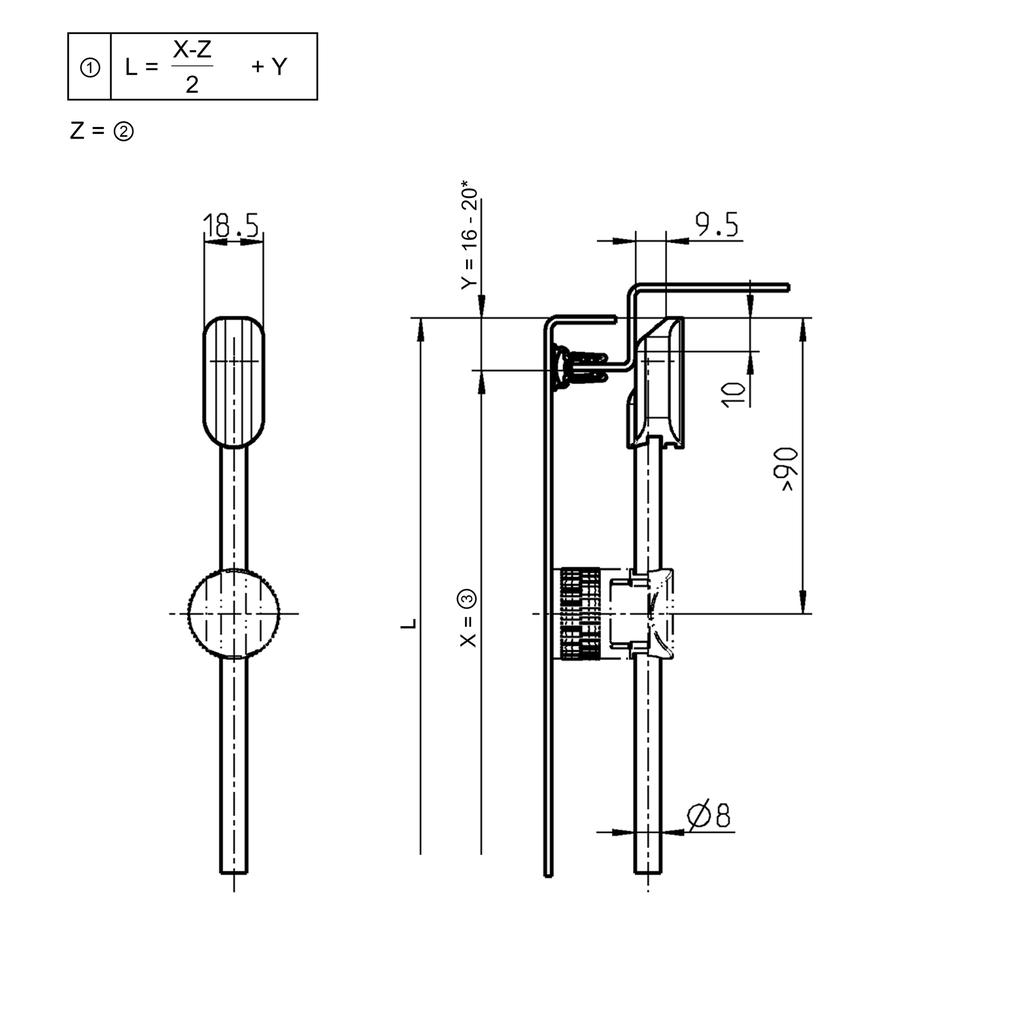

① = Calculation of the rod length L
② = Z = Rod control length ( e.g. dimension 400 on catalogue page 3YA-140 )
Z = Cam gauge for bore holes for rod control (e.g. dimension 18 for 1107 or dimension 26 for 1000 on catalogue page 3YC-120 )
③ = Clear height
* = Dimension Y depending on type of gasketing
Round rod according to customer requirements on request
Please indicate dimension L in the order
Internal Reference:
1000-526-AA
Product Type:

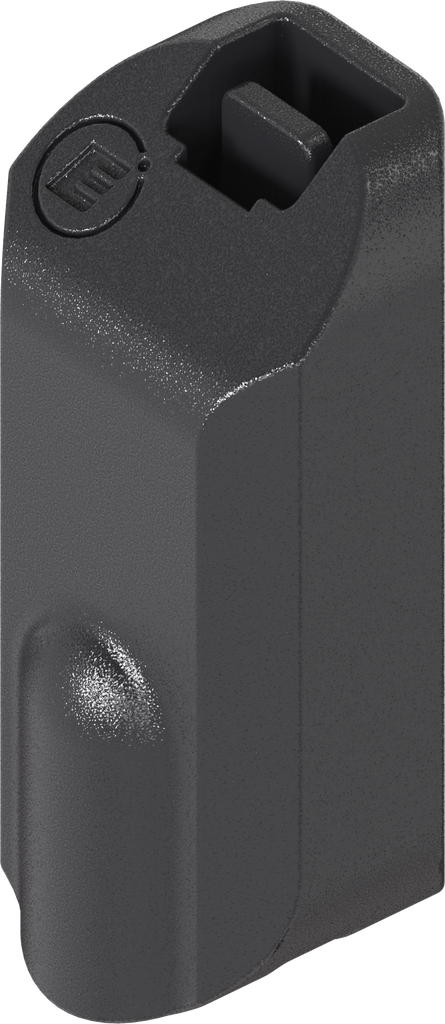

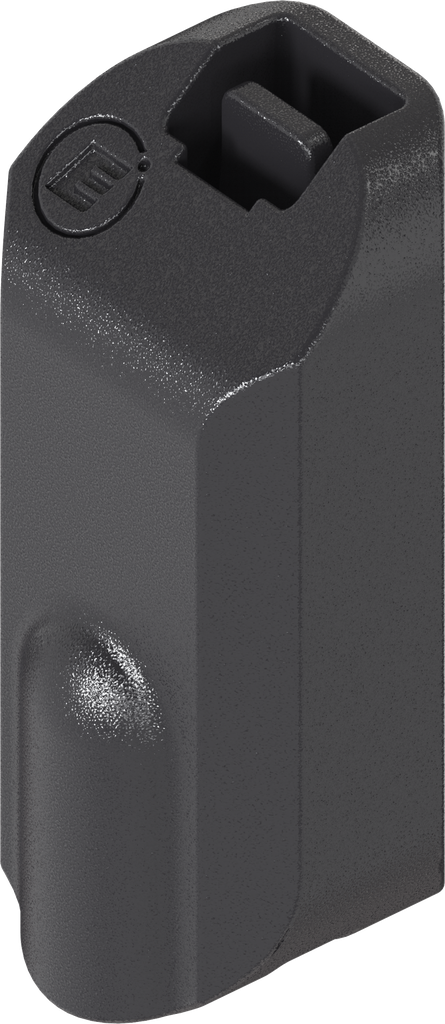

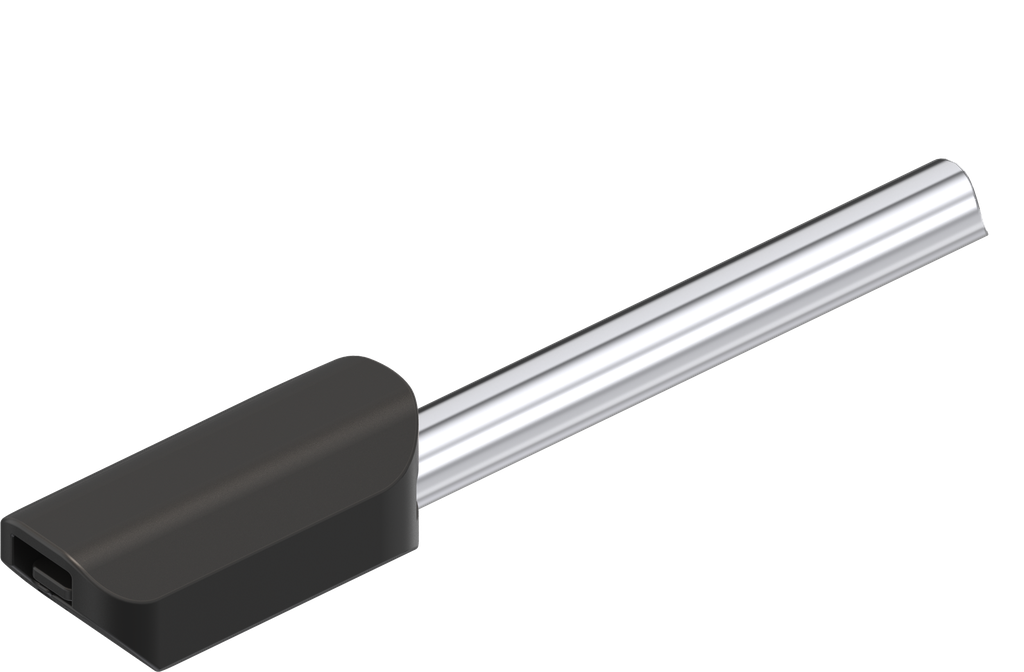

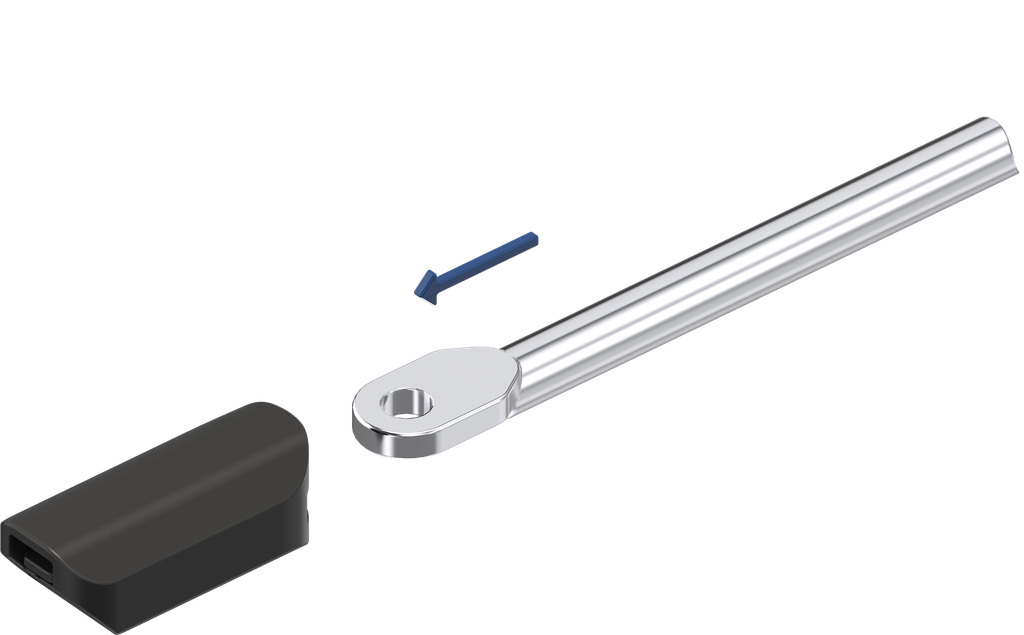

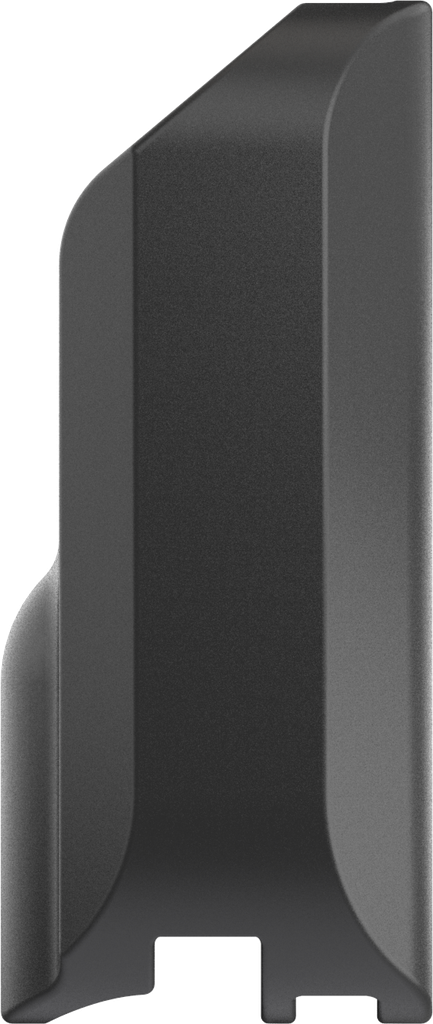

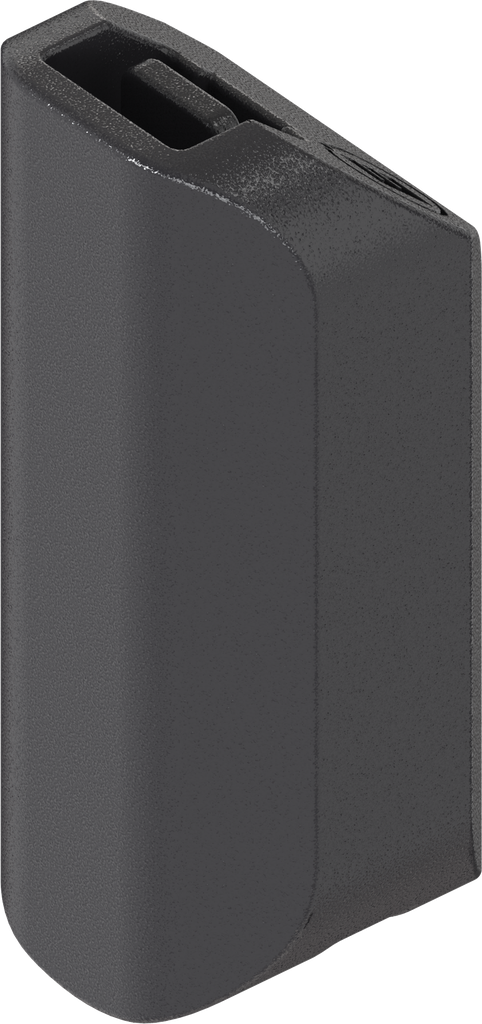

Shoe
Material:
Polyamide GF
Program:
1000
Surface:
black
Catalog sheet:
3ZB-180
Mounting Positions :
Inside the sealing
Dimension L, Variable:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
