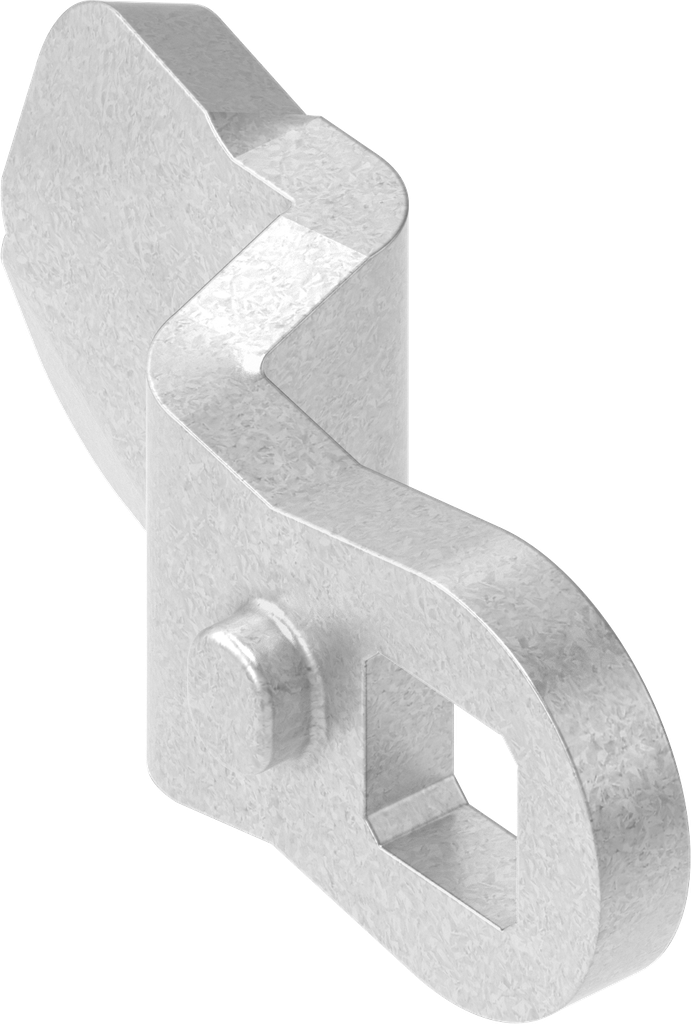

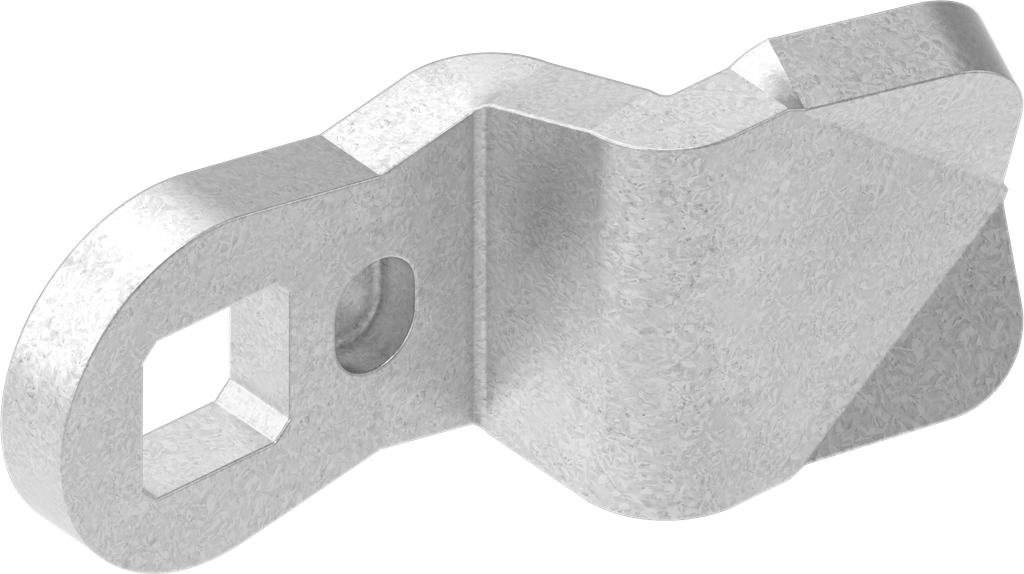

Cam, Steel zinc-plated; 1000-5164

https://www.emka.com/products/1000-5164 https://www.emka.com/web/image/product.template/59617/image_1920?unique=ffec9dd

Offset h = 10 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-5164
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3YA-840
    Dimension A: 33 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 10 mm
    Short spoon: Yes

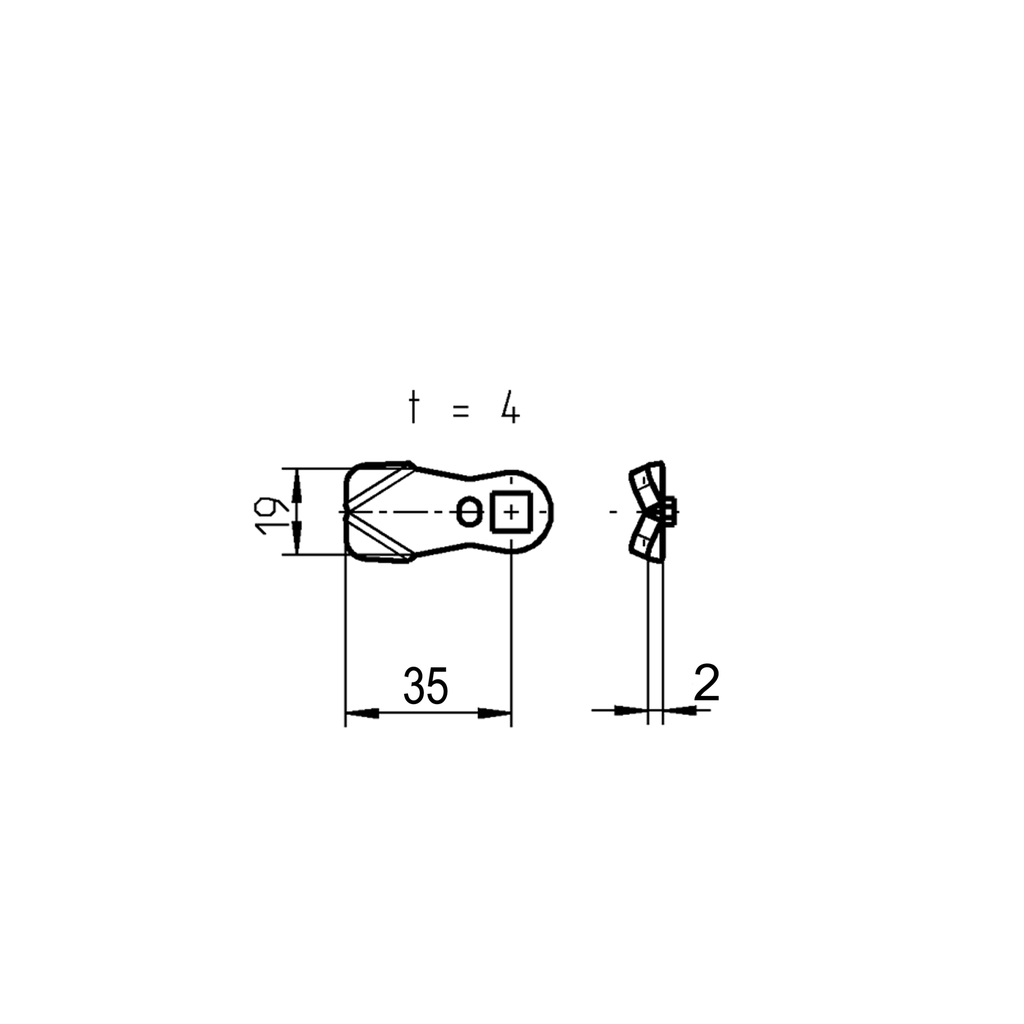

    Dimension L: 35 mm
    Dimension t: 4 mm
    No Specifications
    View All Products

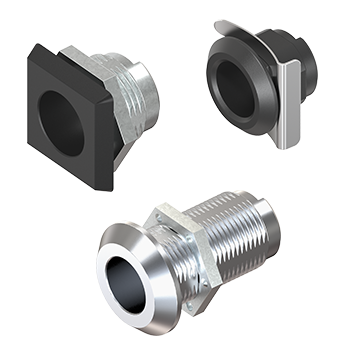

    Housing
    Ramp
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
