Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated

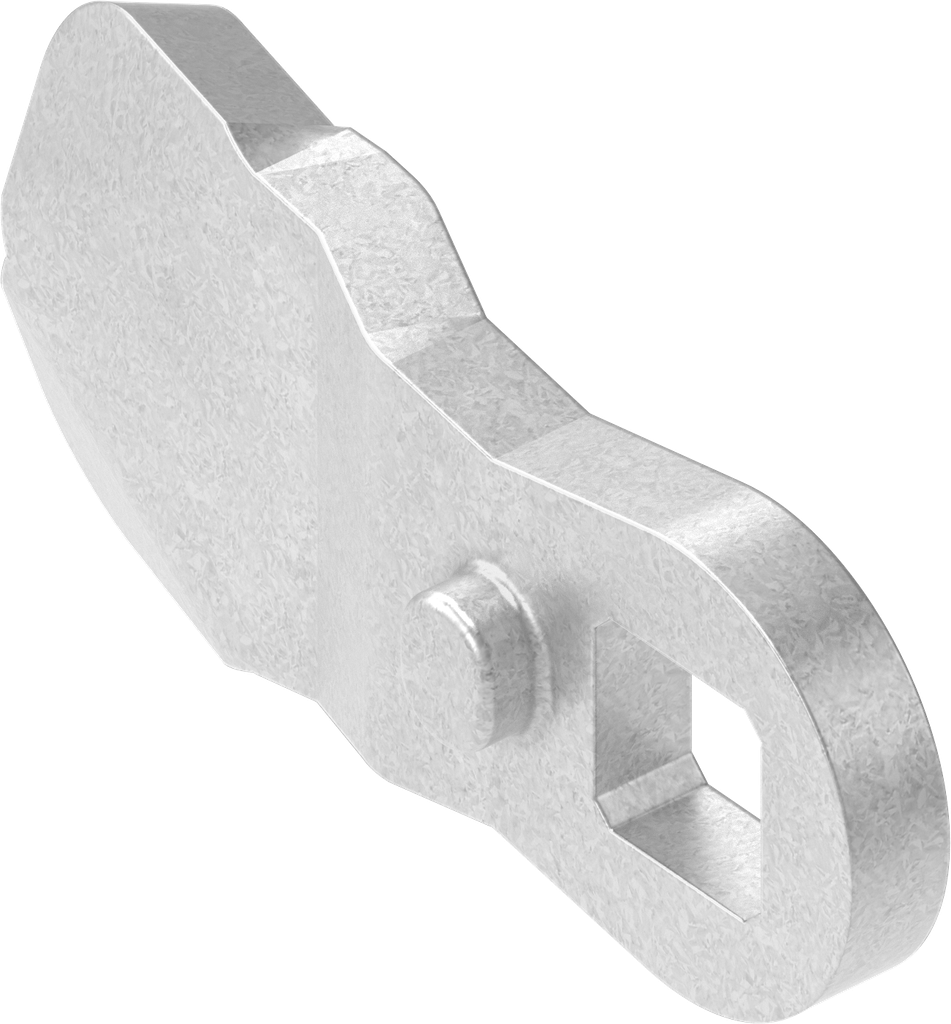

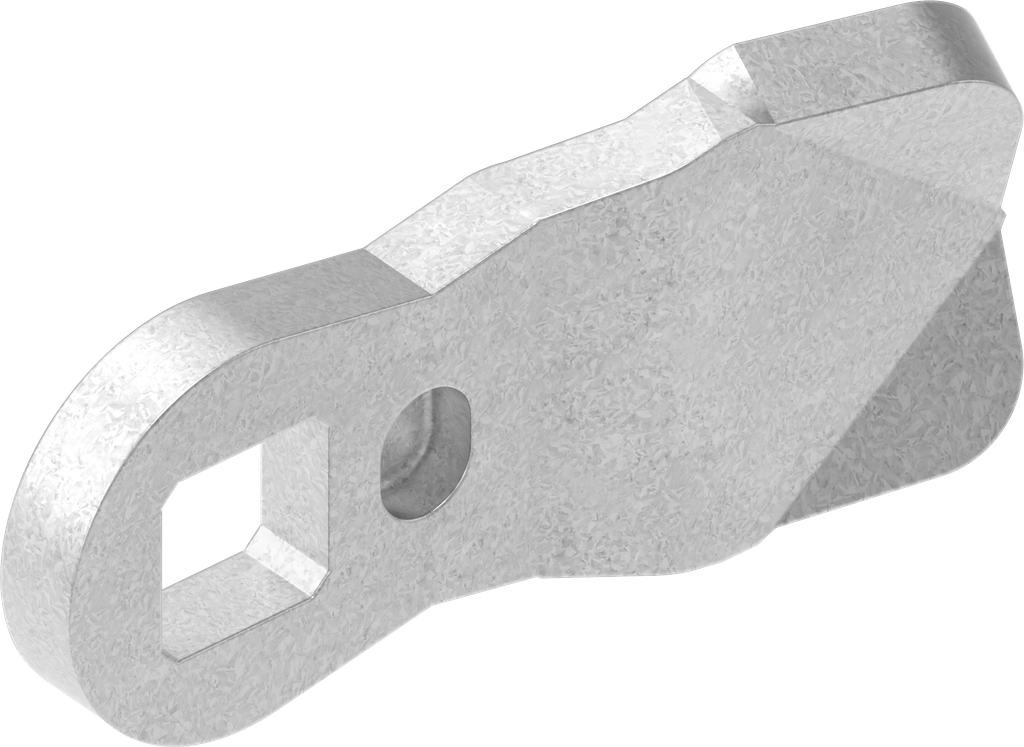

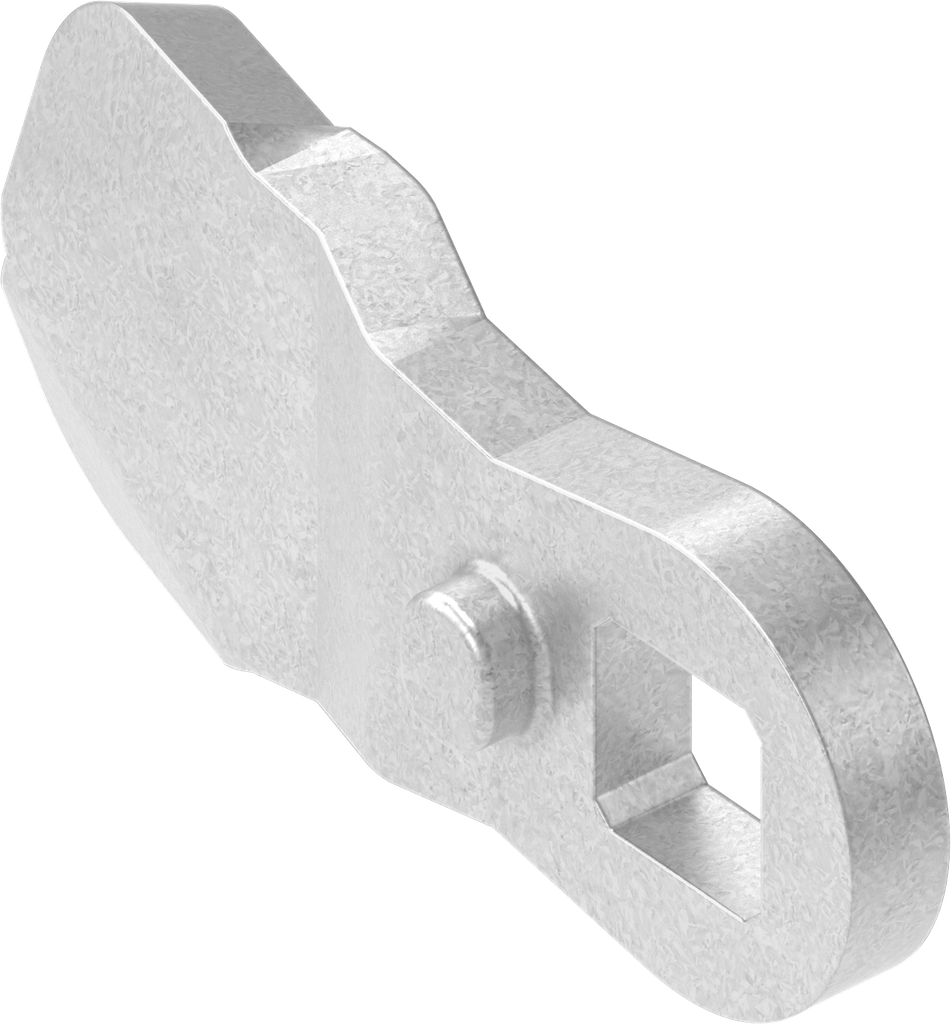

Cam, Steel zinc-plated; 1000-5161

https://www.emka.com/products/1000-5161 https://www.emka.com/web/image/product.template/59616/image_1920?unique=7833e0f

Offset h = 2 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-5161
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3YA-840
    Dimension A: 25 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 2 mm
    Short spoon: Yes

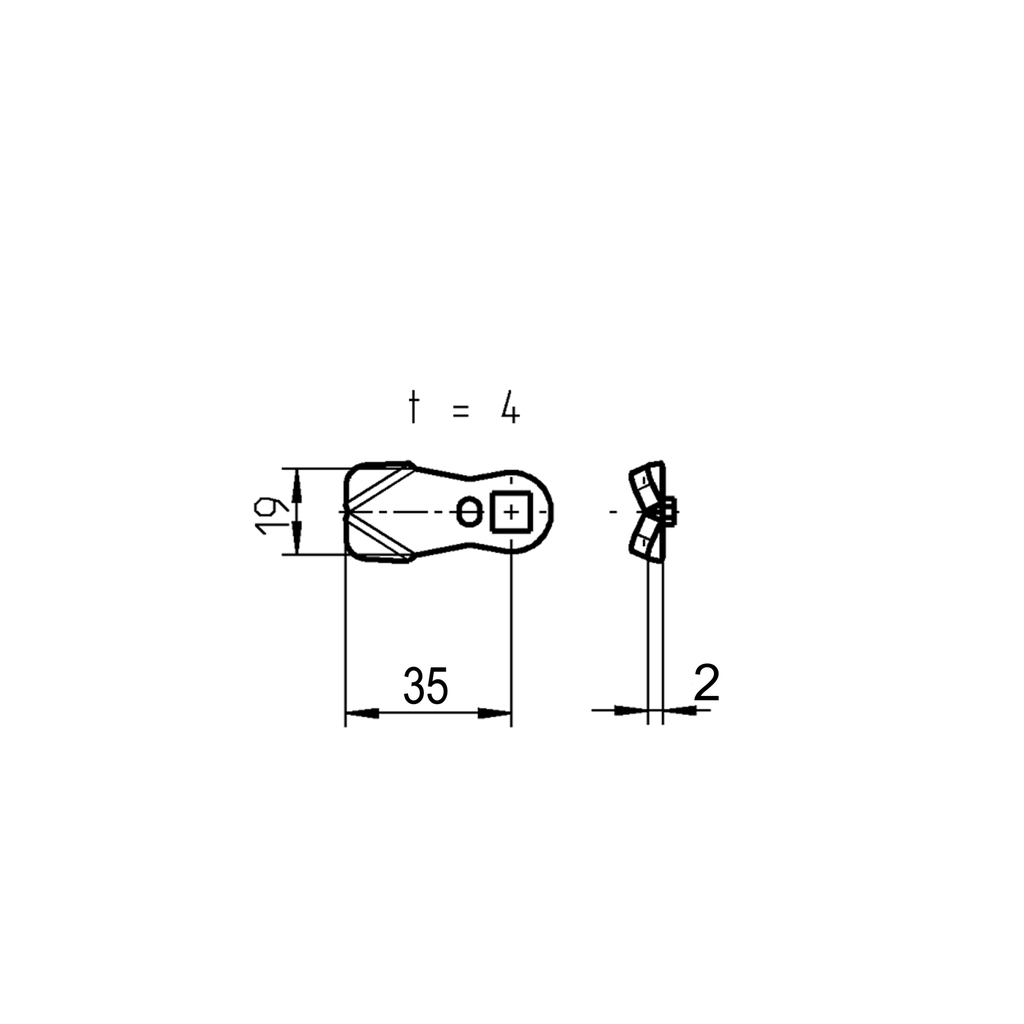

    Dimension L: 35 mm
    Dimension t: 4 mm
    No Specifications
