Cam, Polyamide GF black
Cam, Polyamide GF black
Cam, Steel zinc-plated
Cam, Steel zinc-plated

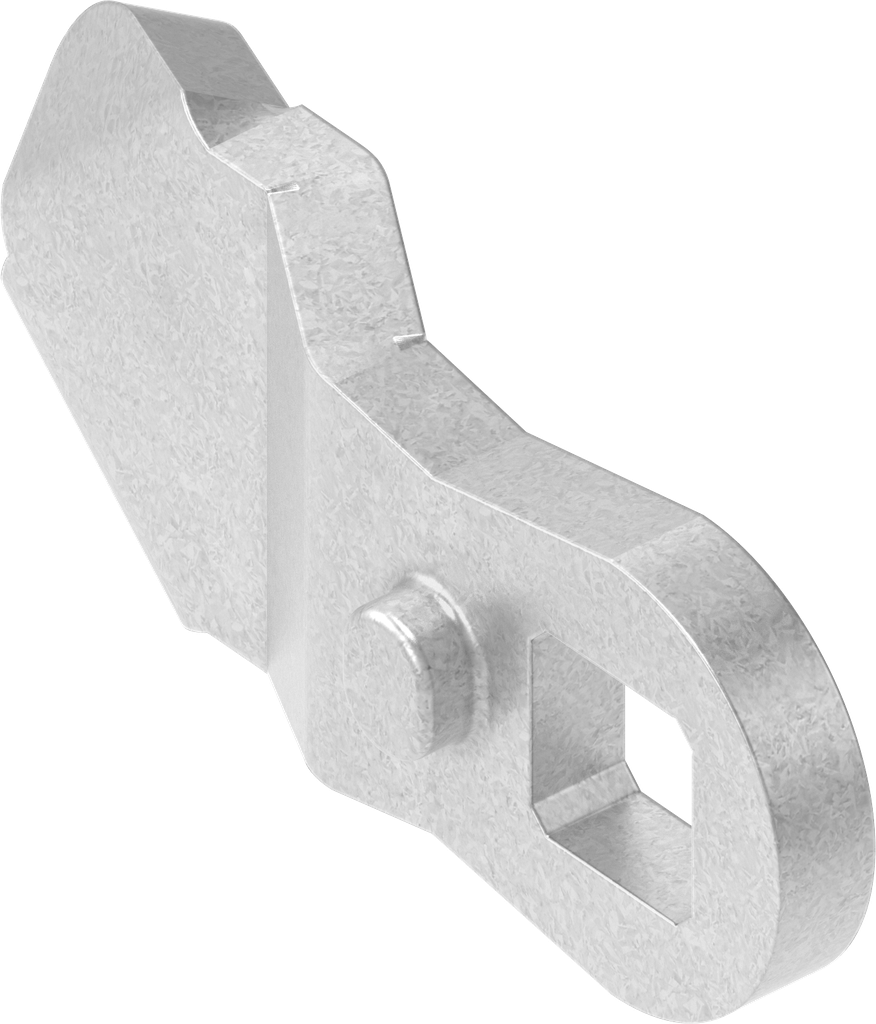

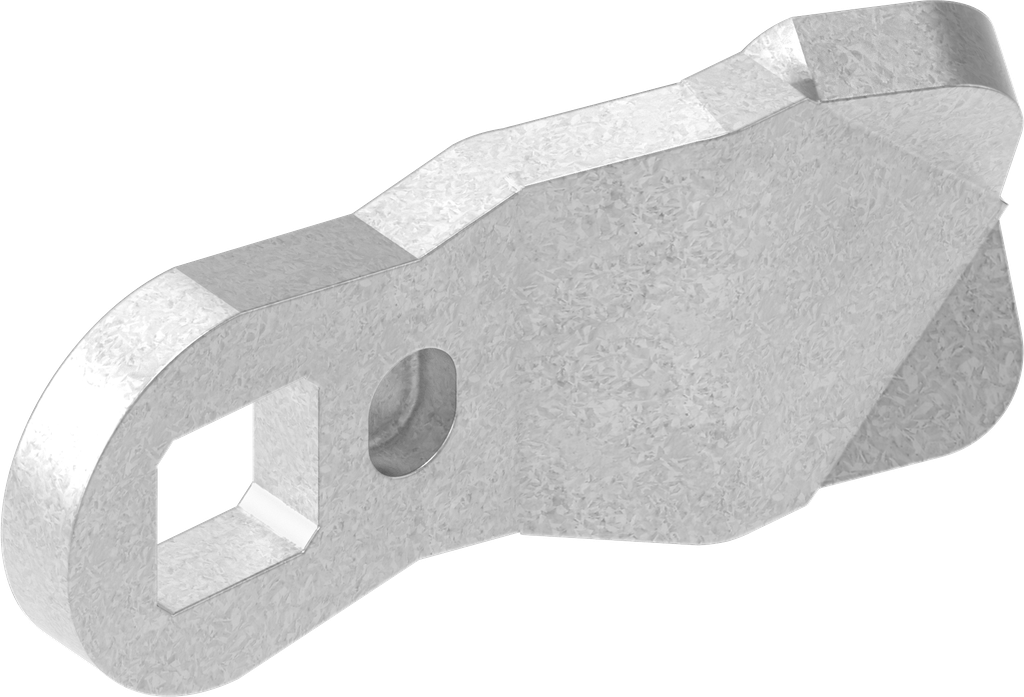

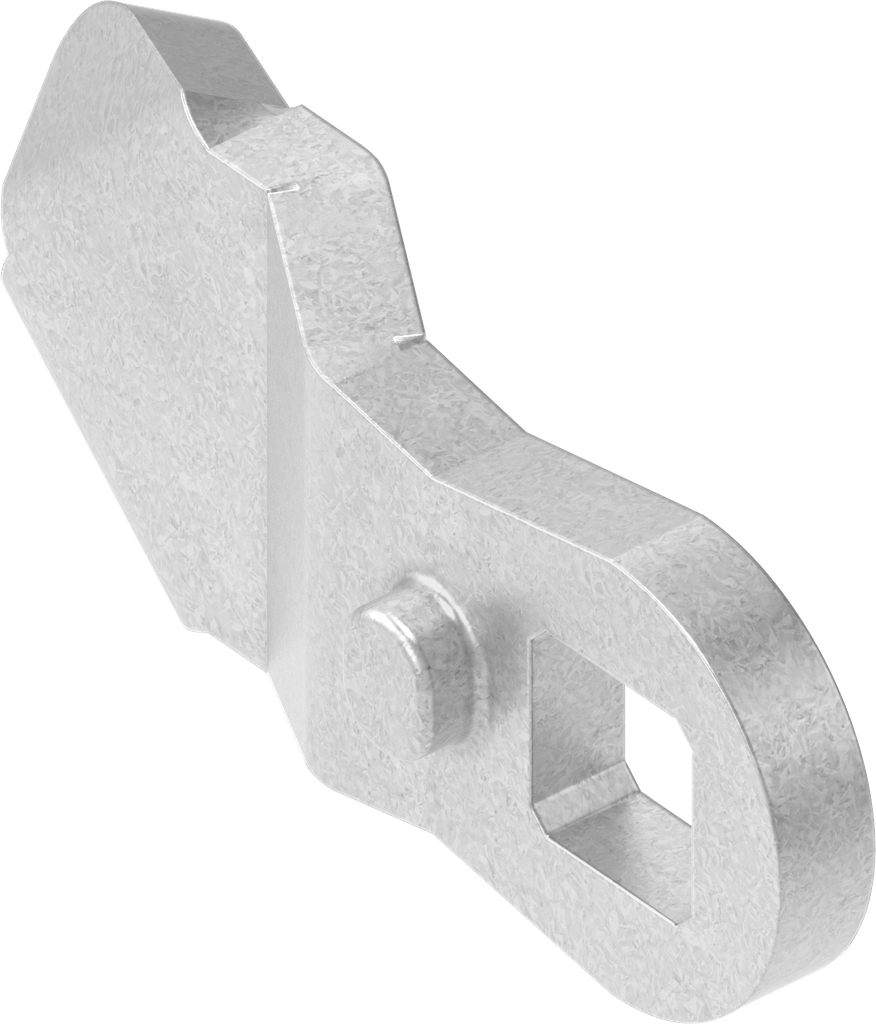

Cam, Steel zinc-plated; 1000-5119

https://www.emka.com/products/1000-5119 https://www.emka.com/web/image/product.template/59615/image_1920?unique=db7998b

Offset h = 4 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-5119
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3YA-840
    Dimension A: 27 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 4 mm
    Short spoon: Yes

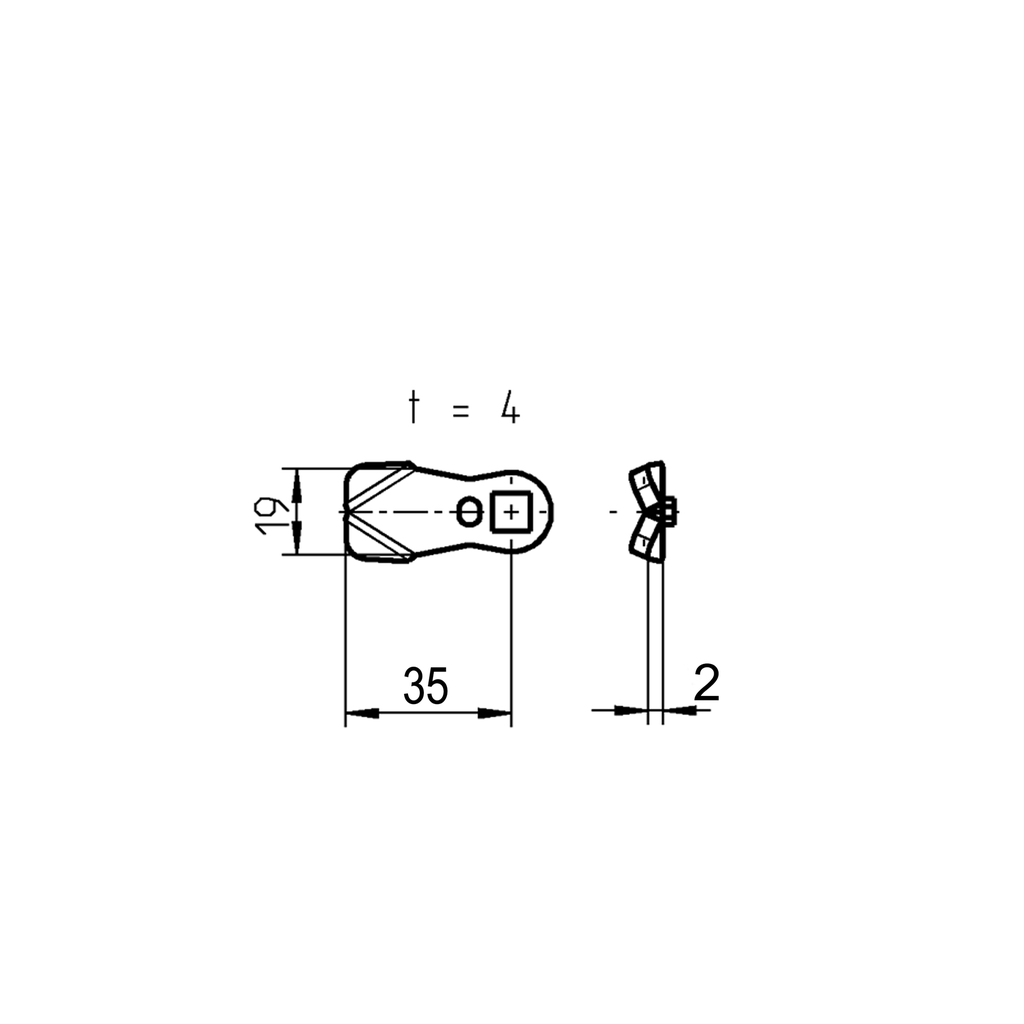

    Dimension L: 35 mm
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Adapter
    Bearing bush
    Other latch

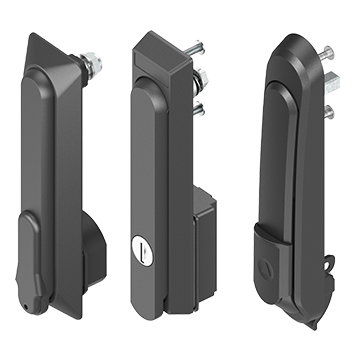

    Swinghandle, Lifthandle
    Fixing material for swinghandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-160
    Product data sheet
    CAD file | 1000-5119_igs
    CAD file | 1000-5119_stp
