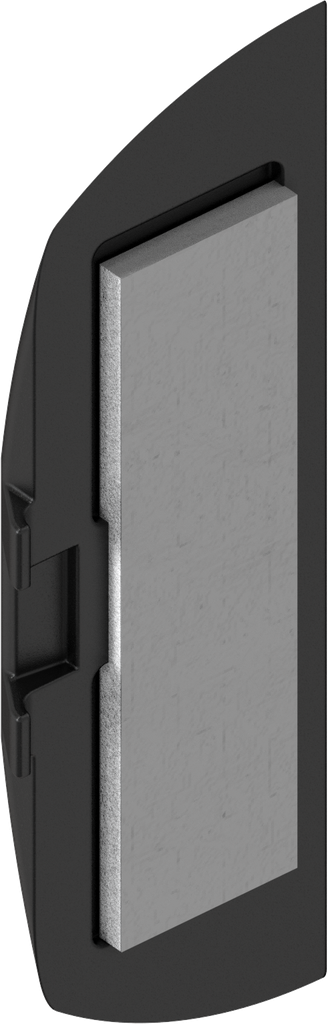

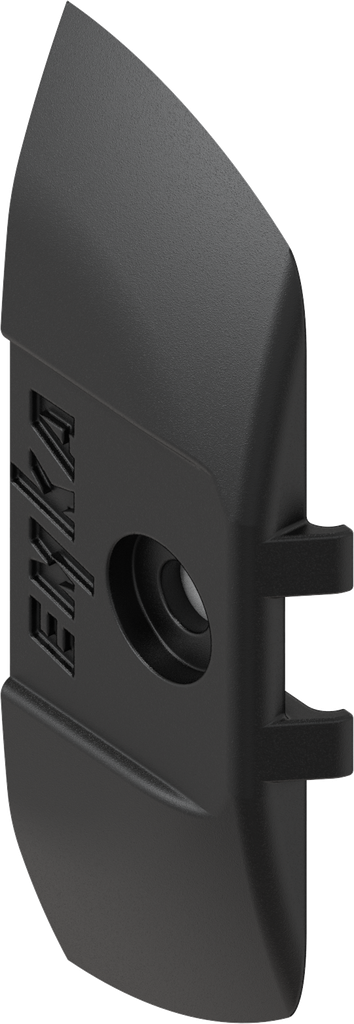

Ramp rivetable, Polyamide black; 1000-510-01AA

https://www.emka.com/products/1000-510-01aa https://www.emka.com/web/image/product.template/59535/image_1920?unique=e101600

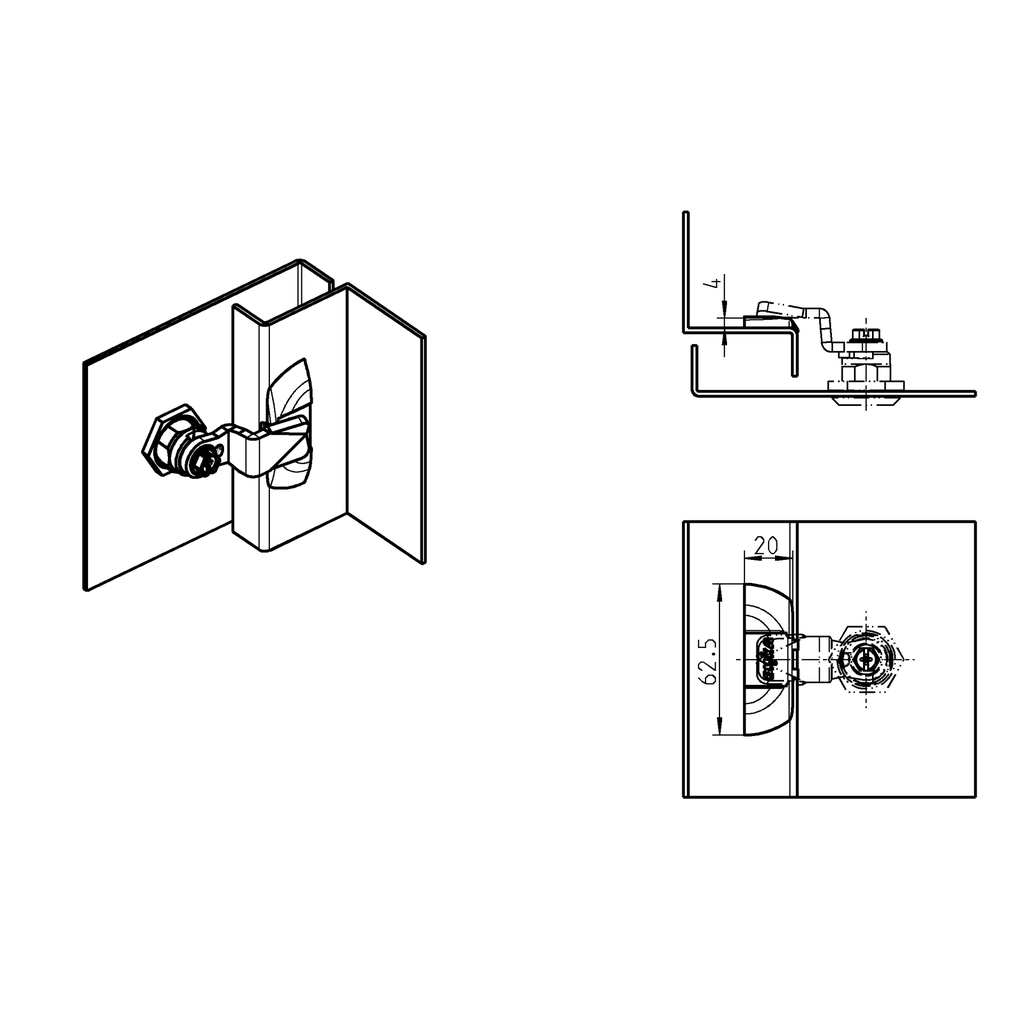

increases the compression distance of the lock by 4 mm

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Product information:

    Ramp rivetable via bore holeØ 4.1
    Blind bore Ø 8.6 x 1.8 deep

    Function:

    Attention:
    When using the Leading ramp the H-dimension resp. the A-dimension of the cam increases by 4 mm
    Internal Reference: 1000-510-01AA
    Product Type: Ramp
    Material: Polyamide
    Program: 1000
    Surface: black
    Catalog sheet: 1C-170
    Number of Possible Locking Points: 1 point, 3 point
    Guiding ramps for cams: Yes
    Mounting Positions : Inside the sealing
    Compression Value : 4 mm
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-170
    Product data sheet
    CAD file | 1000-510-01AA_igs
    CAD file | 1000-510-01AA_stp
