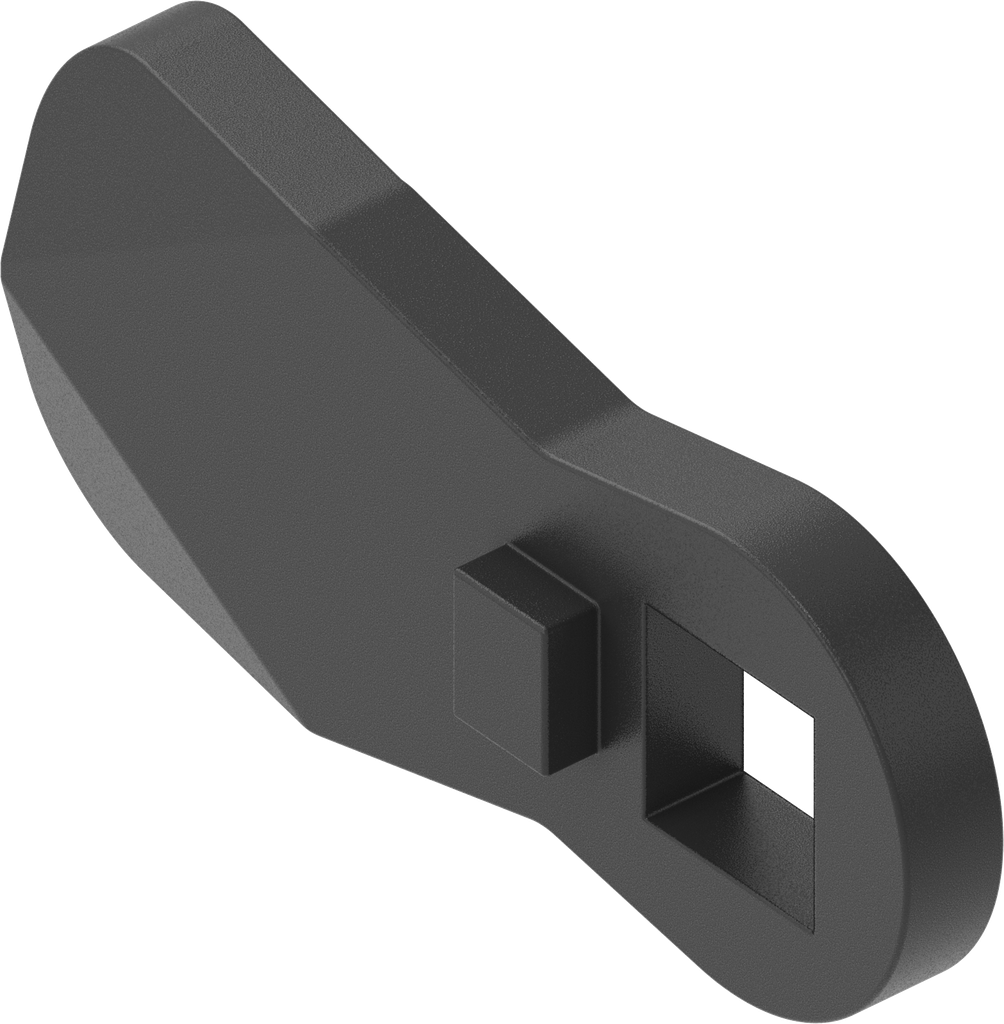

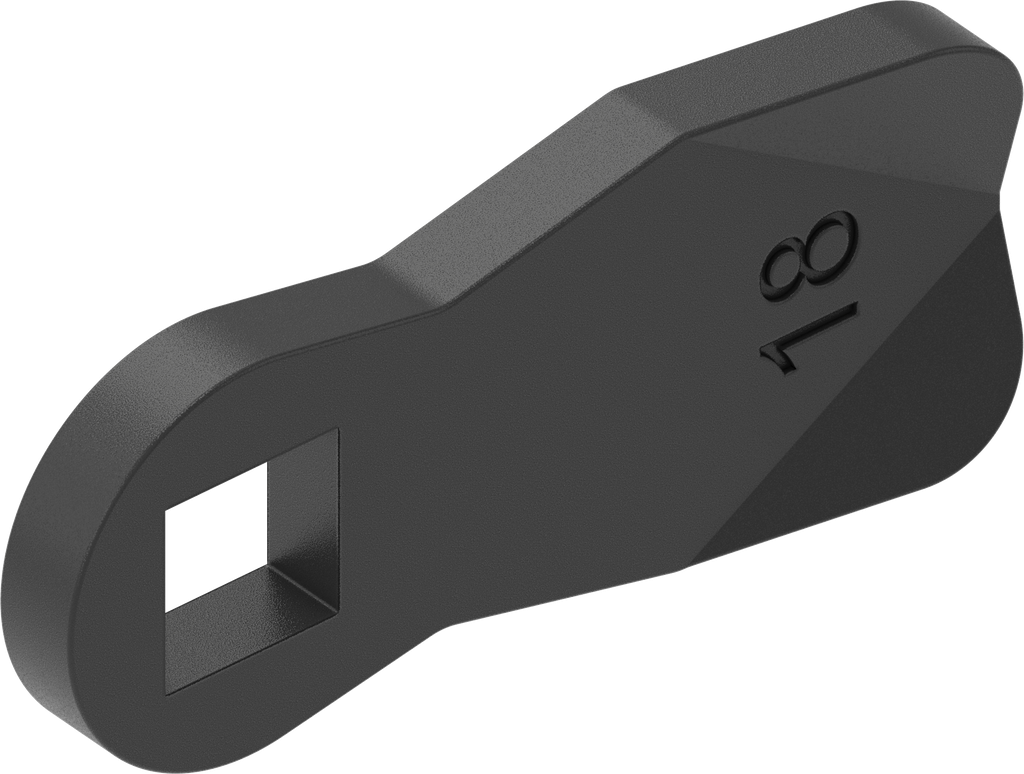

Cam, Polyamide GF black; 1000-5046-SI

https://www.emka.com/products/1000-5046-si https://www.emka.com/web/image/product.template/59614/image_1920?unique=f86255a

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-5046-SI
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1C-120
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: straight
    offset of cam: 0 mm
    Short spoon: Yes

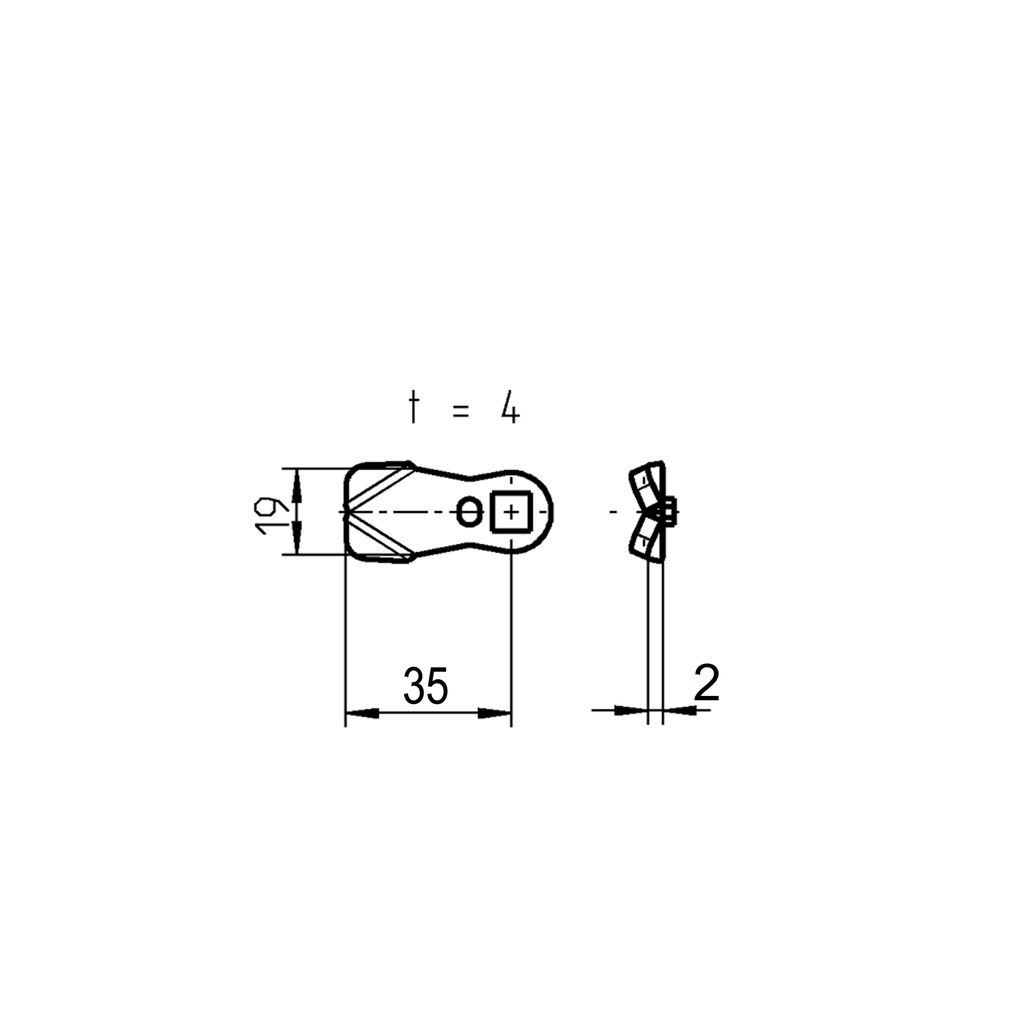

    Dimension L: 35 mm
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
