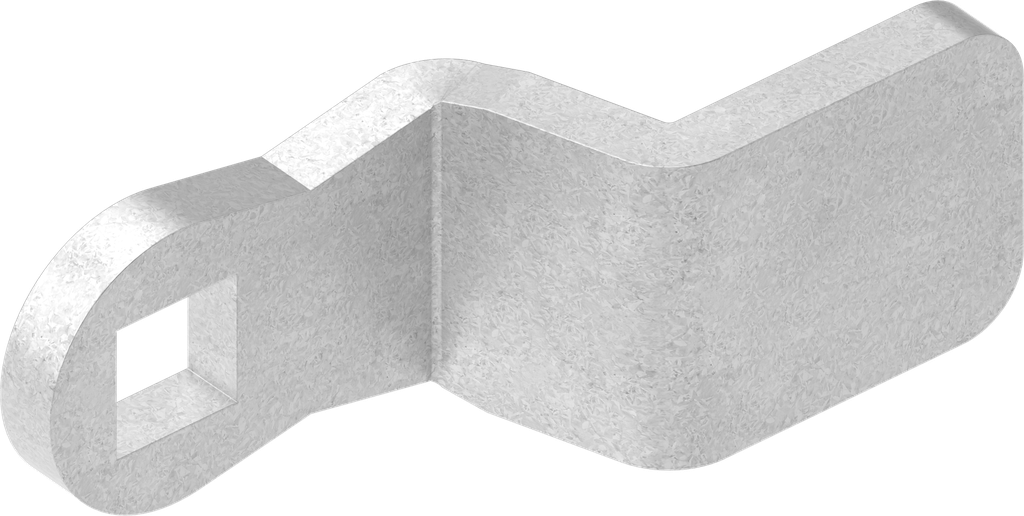

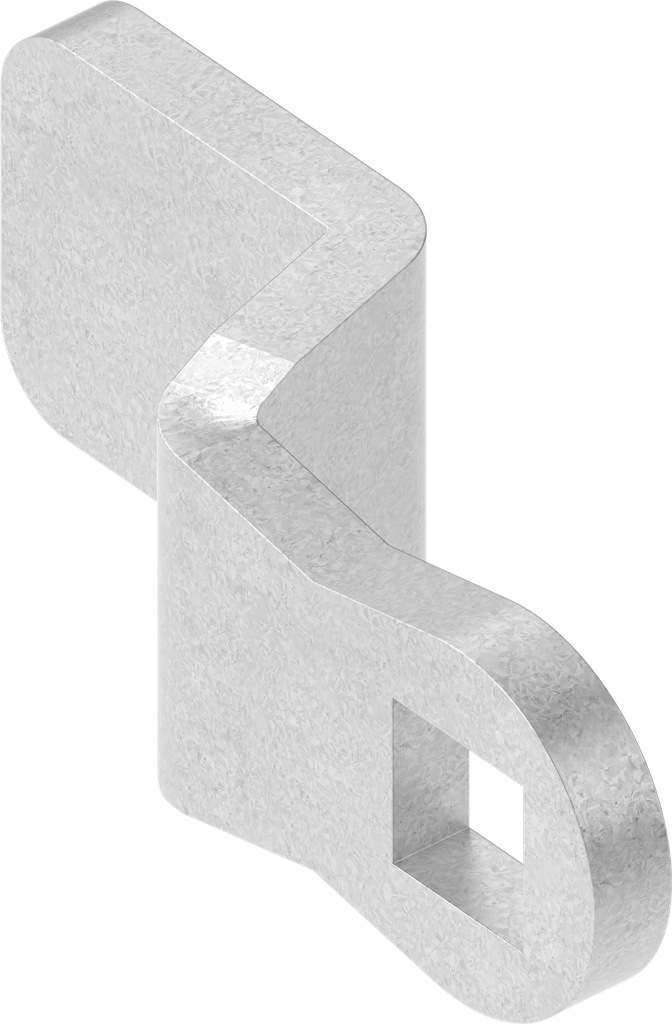

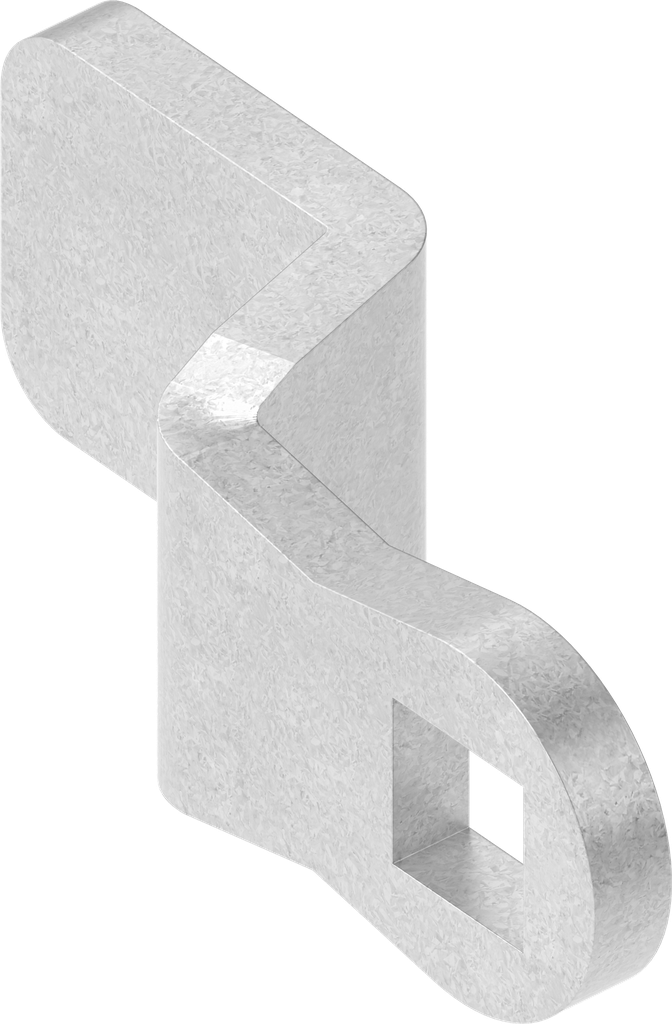

Cam without catch, Steel zinc-plated; 1000-478

https://www.emka.com/products/1000-478 https://www.emka.com/web/image/product.template/59508/image_1920?unique=ccbba55

Offset h = 14 mm


    This combination does not exist.

    Inside the sealing


    Akeneo Note:

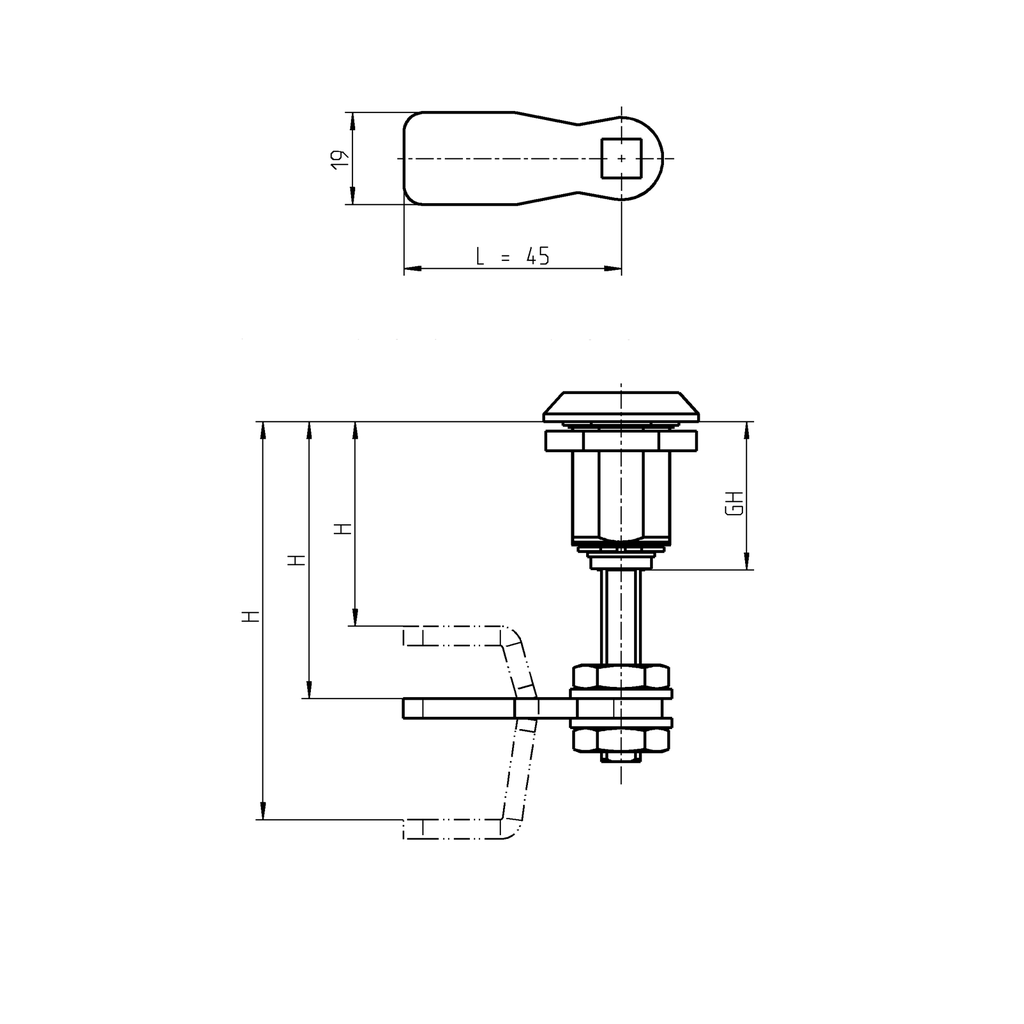

    Dimension H for GH 31 = 24 - 44 mm or 52 - 72 mm
    Dimension H for GH 45 = 38 - 58 mm or 66 - 86 mm
    Dimension H for GH 64 = 57 - 77 or 85 - 105 mm

    Internal Reference: 1000-478
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 1C-137
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Offset: positive and negative possible
    offset of cam: 14 mm
    Dimension L: 45 mm
    Dimension t: 4 mm
    No Specifications
    View All Products

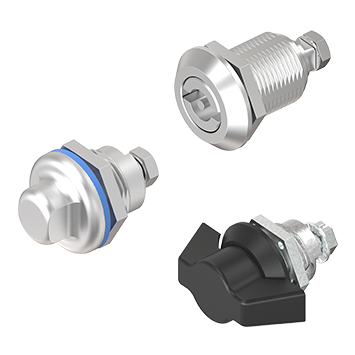

    Quarter turn
