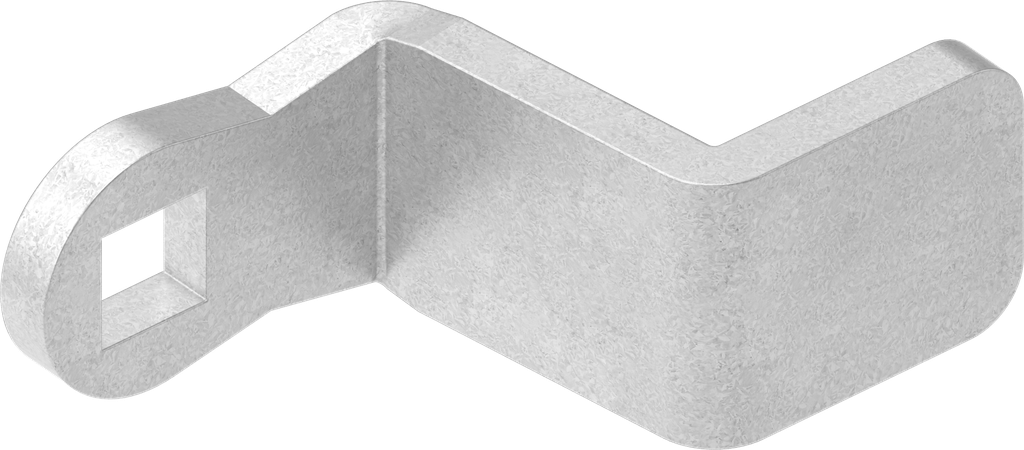

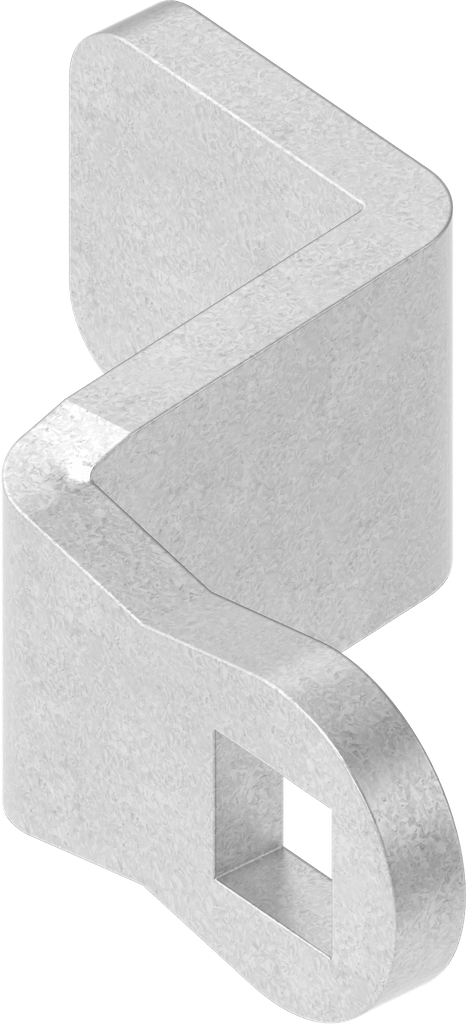

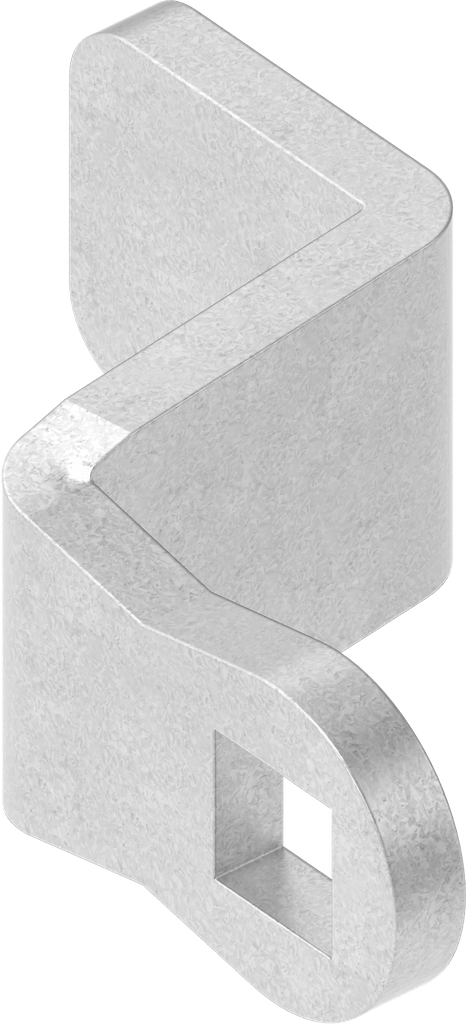

Cam without catch, Steel zinc-plated
Cam without catch, Steel zinc-plated
Cam without catch, Steel zinc-plated
Cam without catch, Steel zinc-plated

Cam without catch, Steel zinc-plated; 1000-477

https://www.emka.com/products/1000-477 https://www.emka.com/web/image/product.template/59507/image_1920?unique=e978b90

Offset h = 26 mm


    This combination does not exist.

    Inside the sealing


    Akeneo Note:

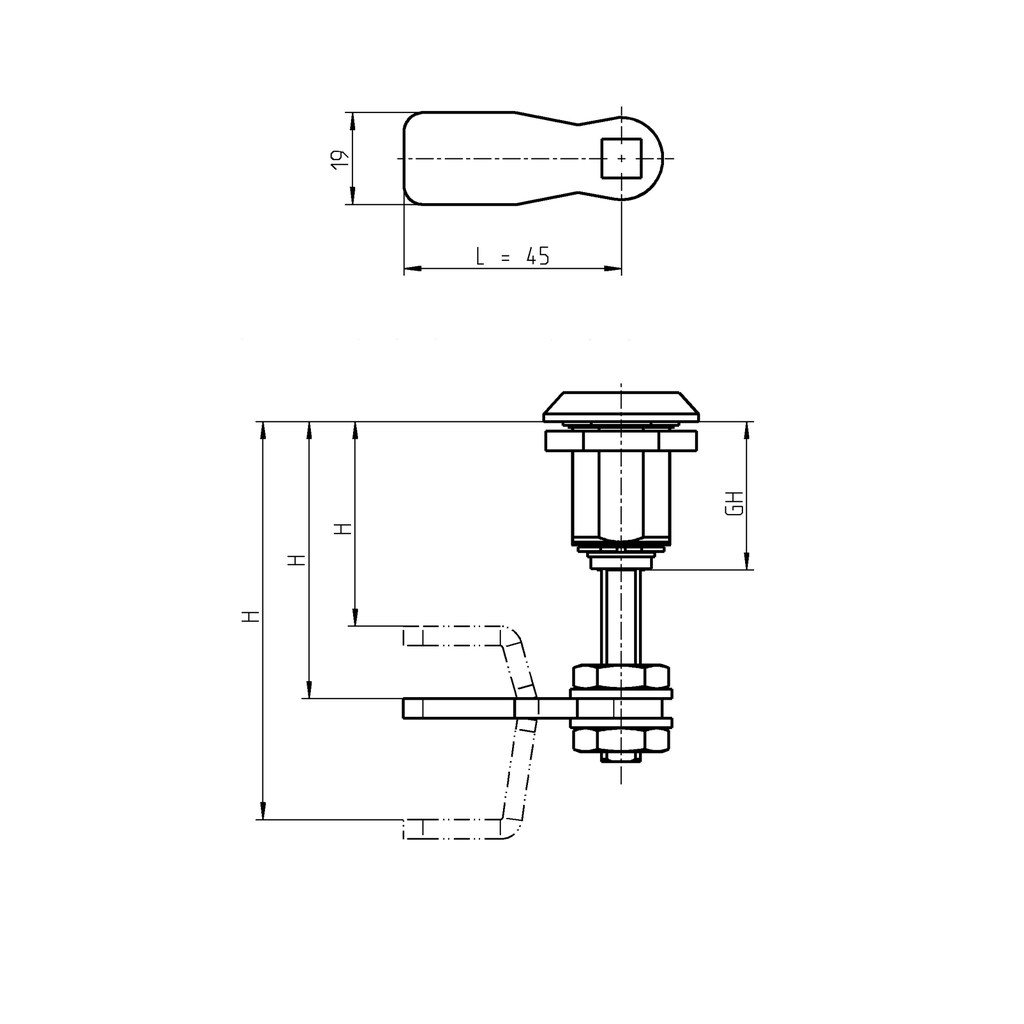

    Dimension H for GH 31 = 12 - 32 mm or 64 - 84 mm
    Dimension H for GH 45 = 26 - 46 mm or 78 - 98 mm
    Dimension H for GH 64 = 45 - 65 or 97 - 117 mm

    Internal Reference: 1000-477
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 1C-137
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Offset: positive and negative possible
    offset of cam: 26 mm
    Dimension L: 45 mm
    Dimension t: 4 mm
    No Specifications
    View All Products

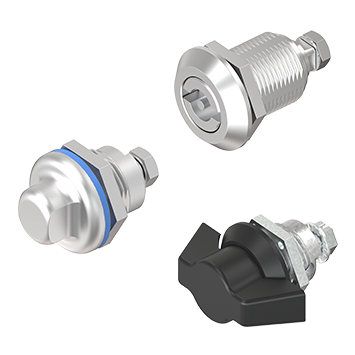

    Quarter turn
