Anti-rotation device, Zinc die zinc-plated

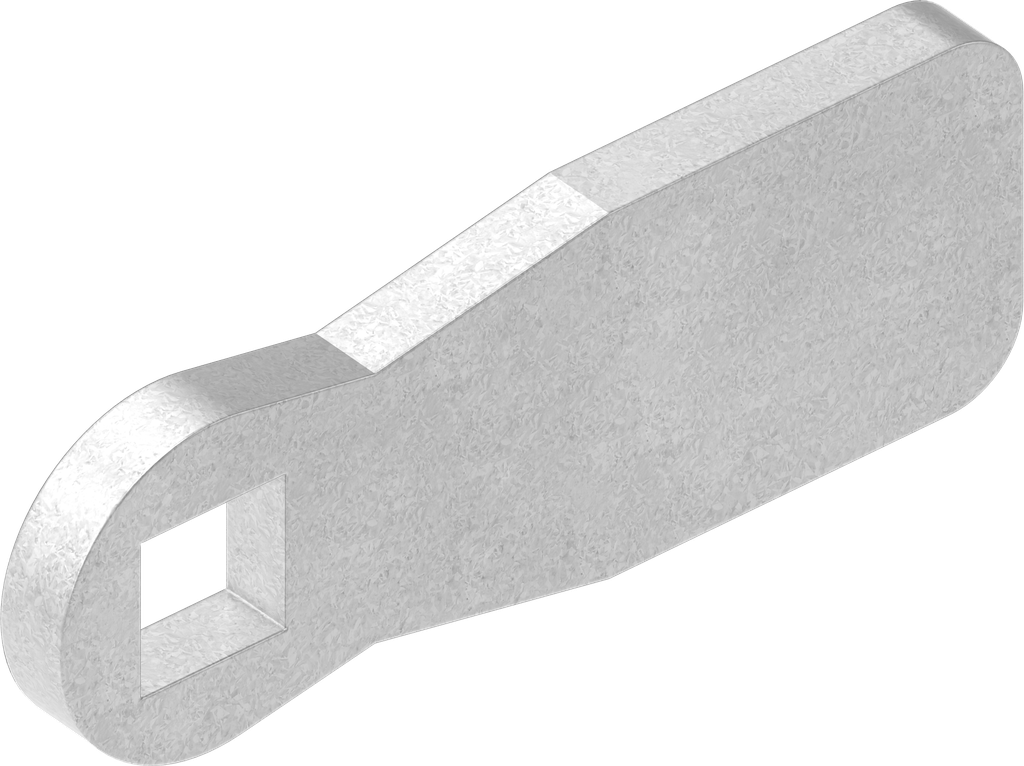

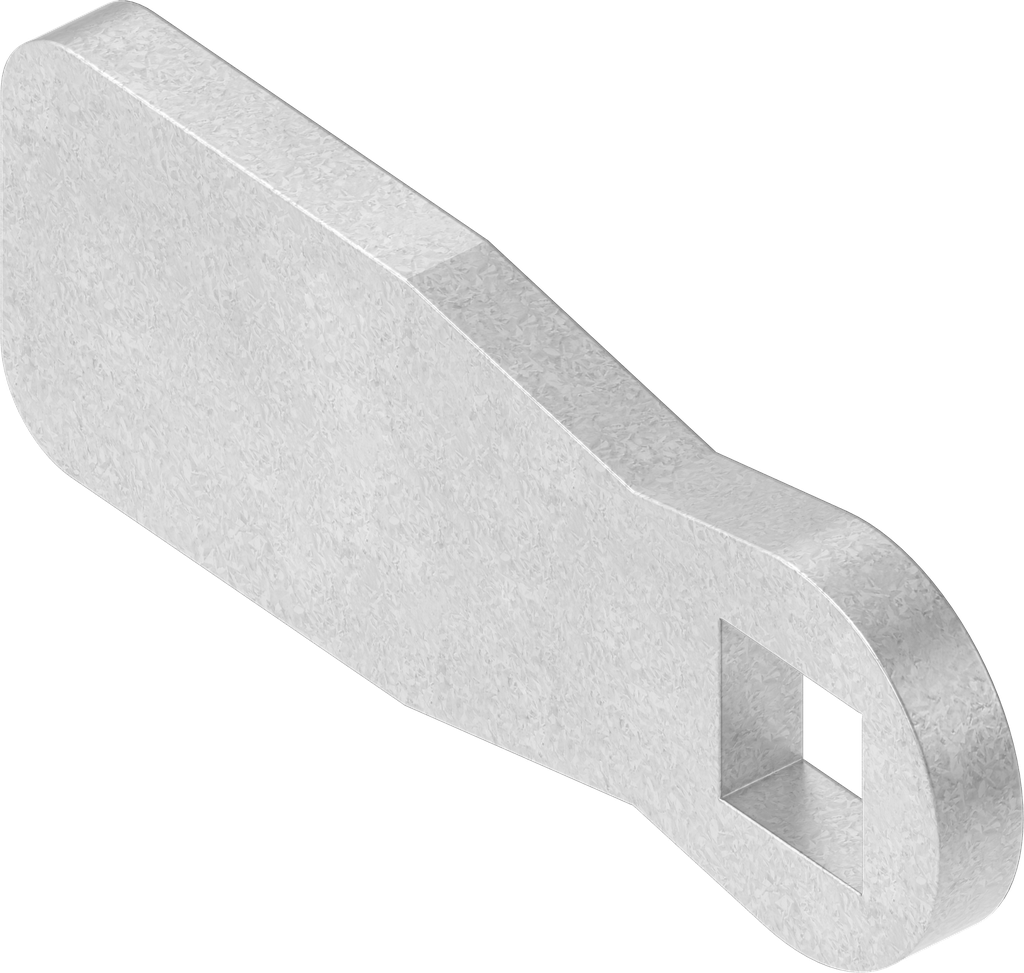

Cam without catch, Steel zinc-plated
Akeneo Note:

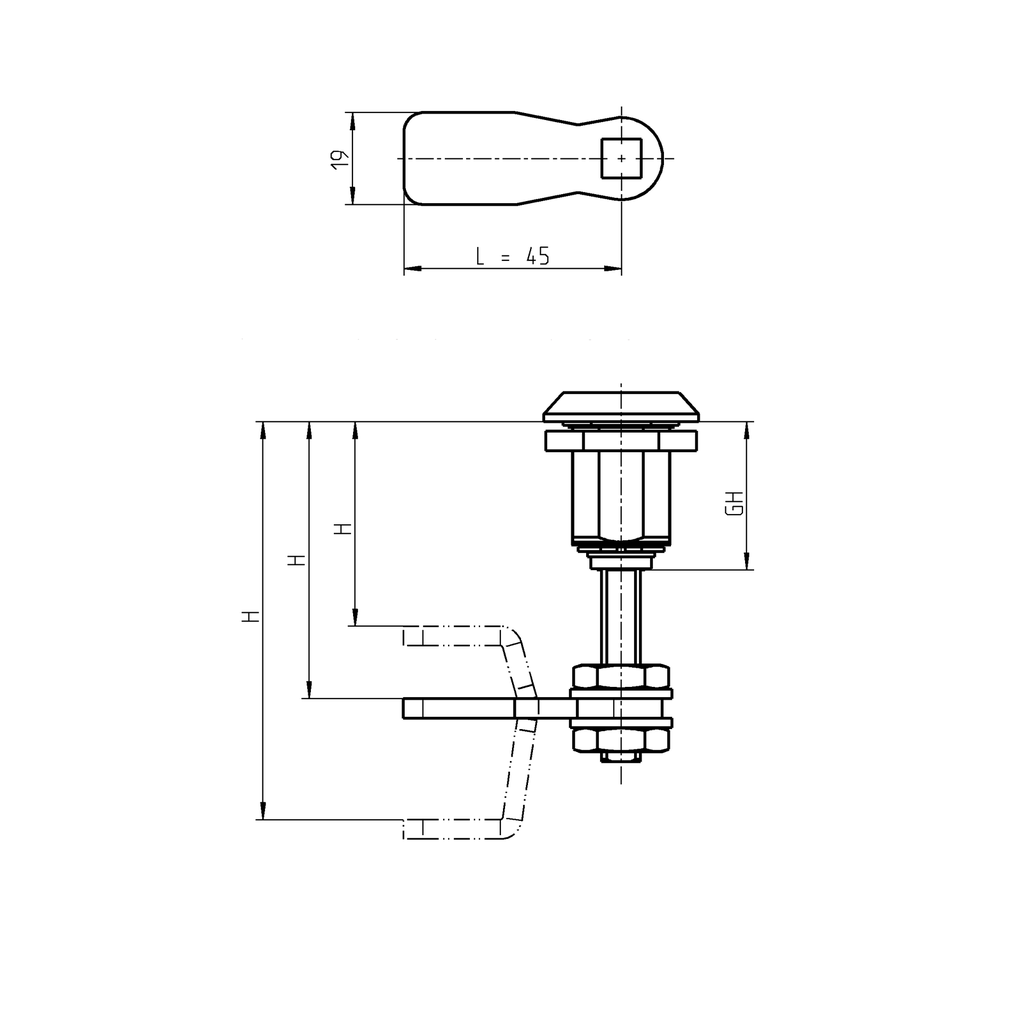

Dimension H for GH 31 = 38 - 58 mm
Dimension H for GH 45 = 52 - 72 mm
Dimension H for GH 64 = 71 - 91 mm
Internal Reference:
1000-476
Product Type:
Cam
Material:
Steel
Program:
1000
Surface:
zinc-plated
Catalog sheet:
1C-137
Number of Possible Locking Points:
1 point, 3 point
Mounting Positions :
Inside the sealing
Offset:
straight
offset of cam:
0 mm
Dimension L:
45 mm
Dimension t:
4 mm
No Specifications
