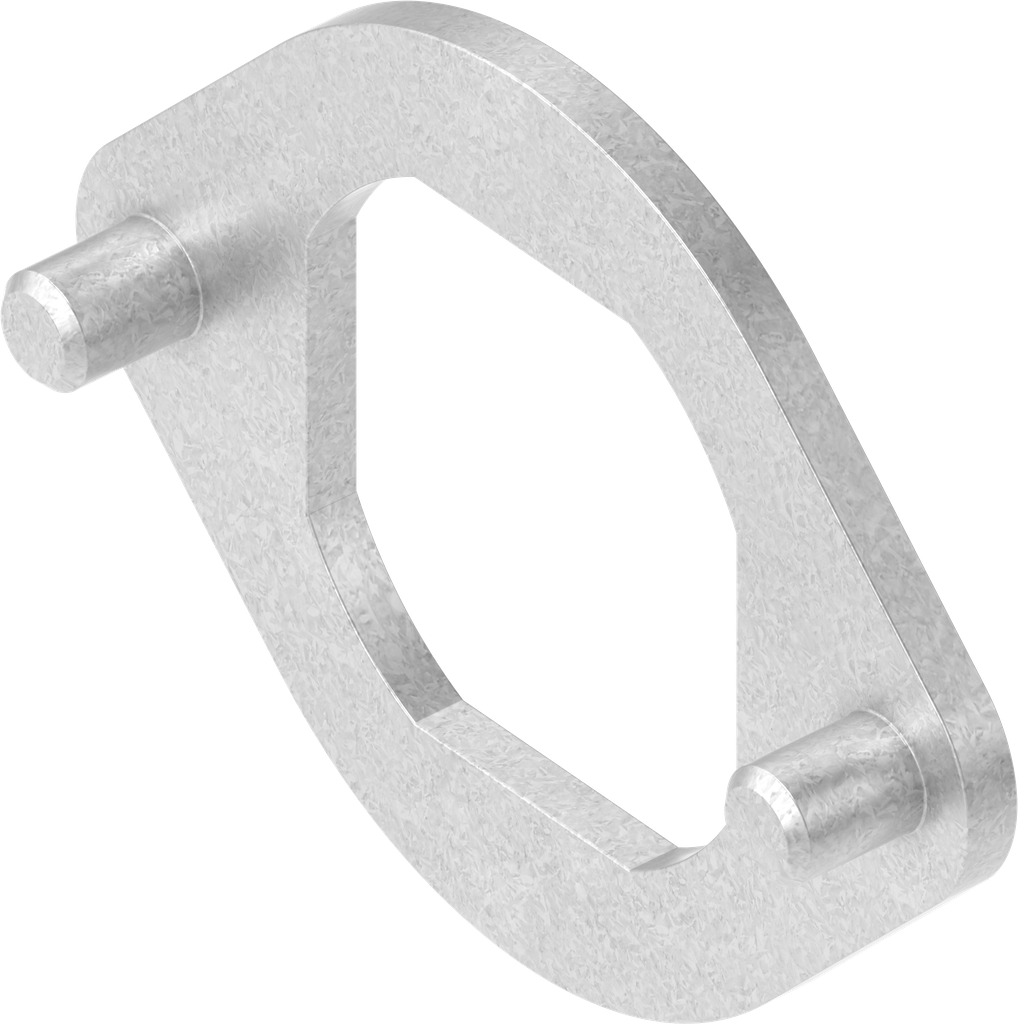

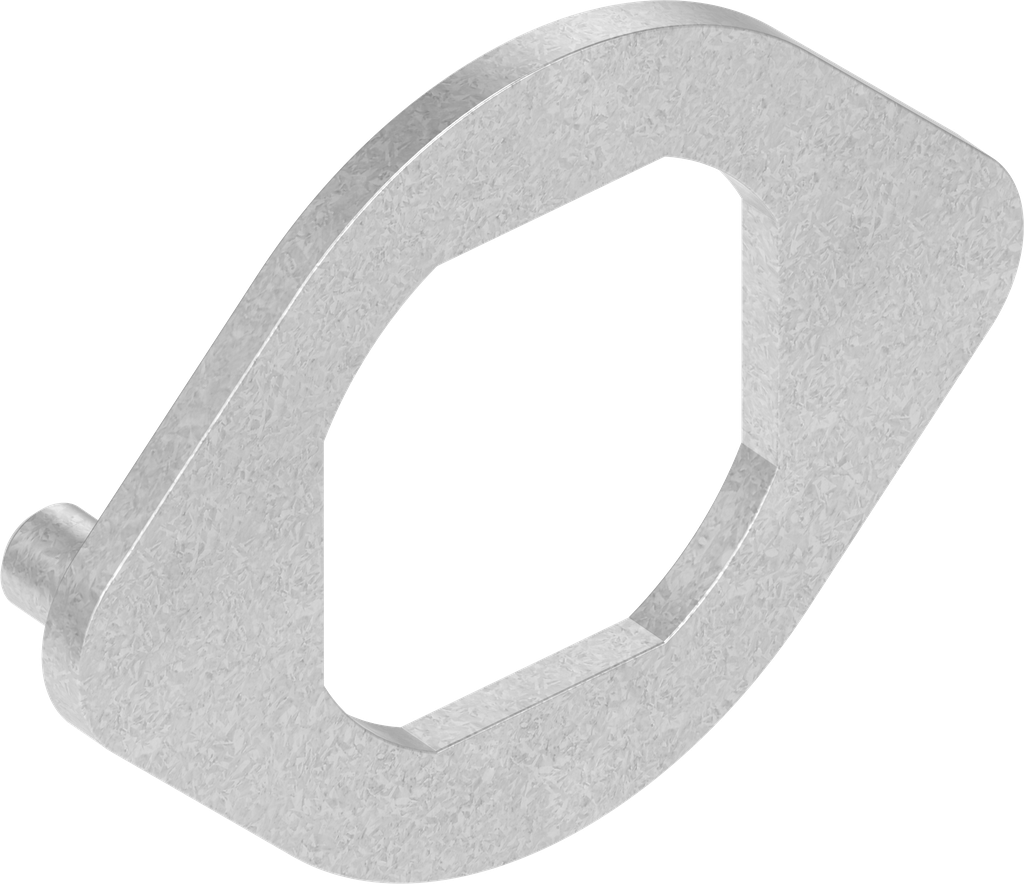

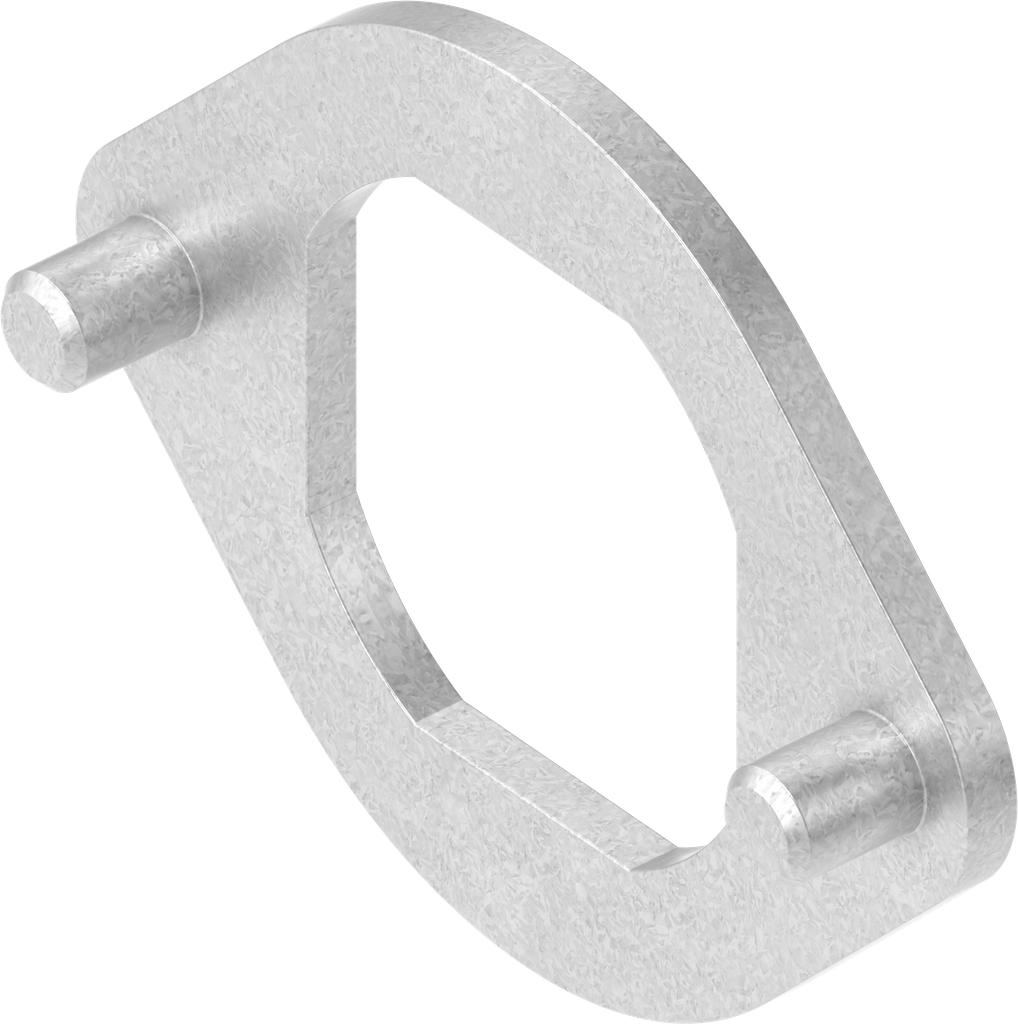

Anti-rotation device, Zinc die zinc-plated; 1000-456-JB

https://www.emka.com/products/1000-456-jb https://www.emka.com/web/image/product.template/59498/image_1920?unique=7f8957c


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right


    Product information:

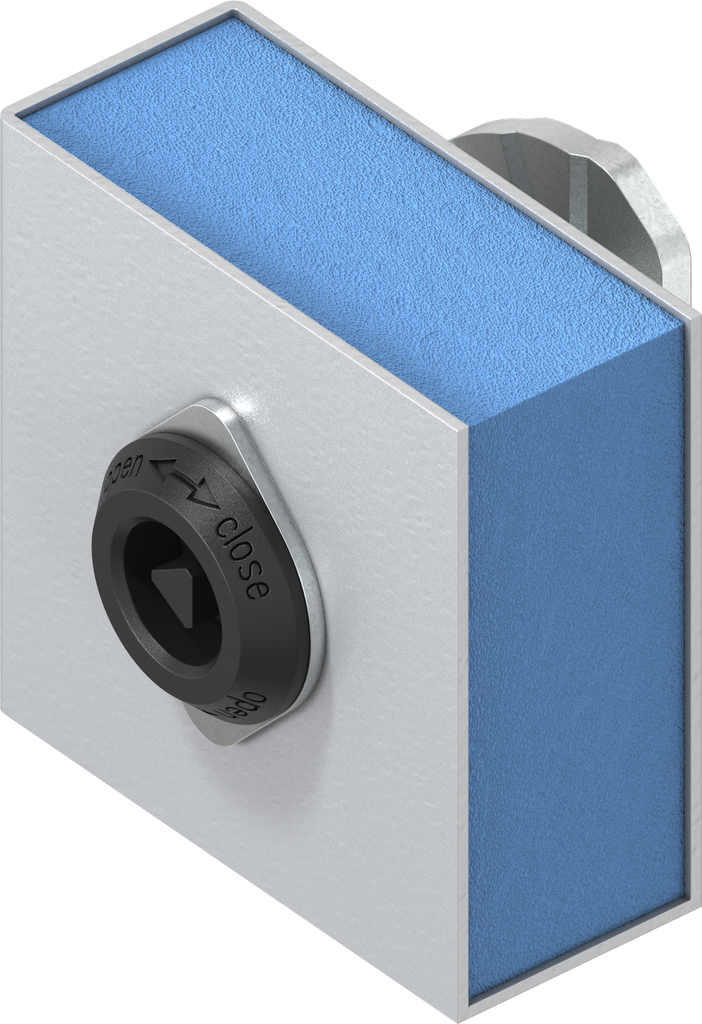

    1 = Front mounted anti-rotation device, under the housing head

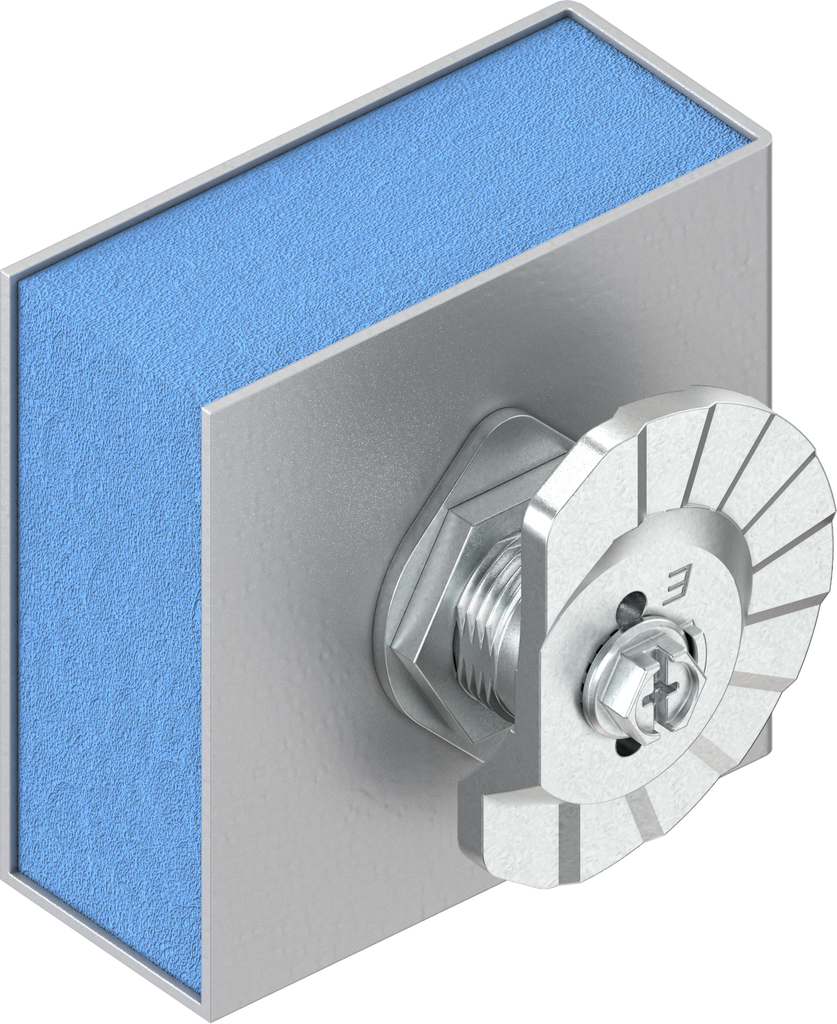

    2 = Back mounted anti-rotation device, under the nut

    Internal Reference: 1000-456-JB
    Product Type: Quarter turn accessories
    Material: Zinc die
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 1C-360
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing,Outside the sealing
    Position of the anti-rotation device: Anti-rotation device in front of the door, dimension H -2 mm,Anti-rotation device inside, door gauge -2 mm
    Door Version : Left,Right
    Anti-rotation device for quarter turn: Yes
    No Specifications
    View All Products
    Housing
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
