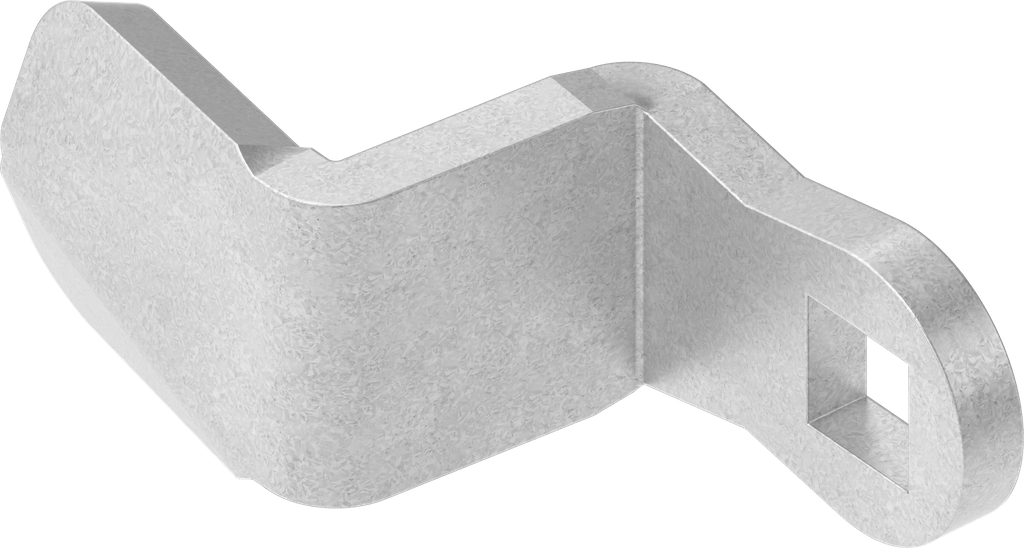

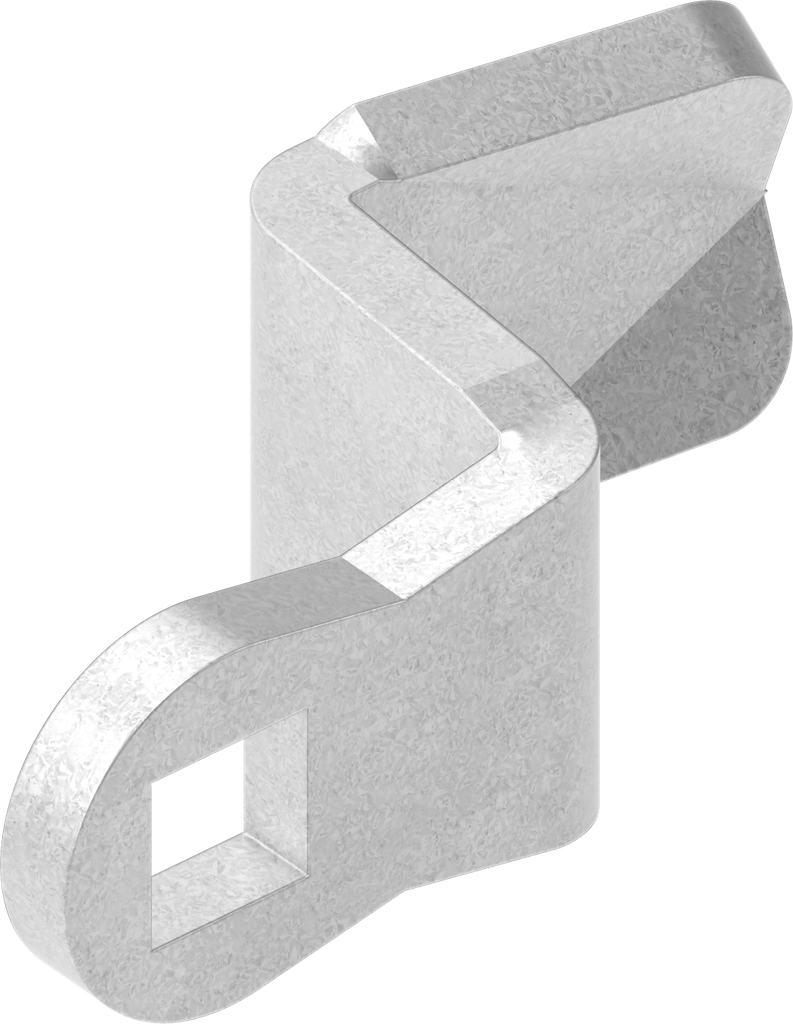

Cam without catch, Steel zinc-plated; 1000-391

https://www.emka.com/products/1000-391 https://www.emka.com/web/image/product.template/59433/image_1920?unique=b7aca65

Offset h = -20 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-391
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative

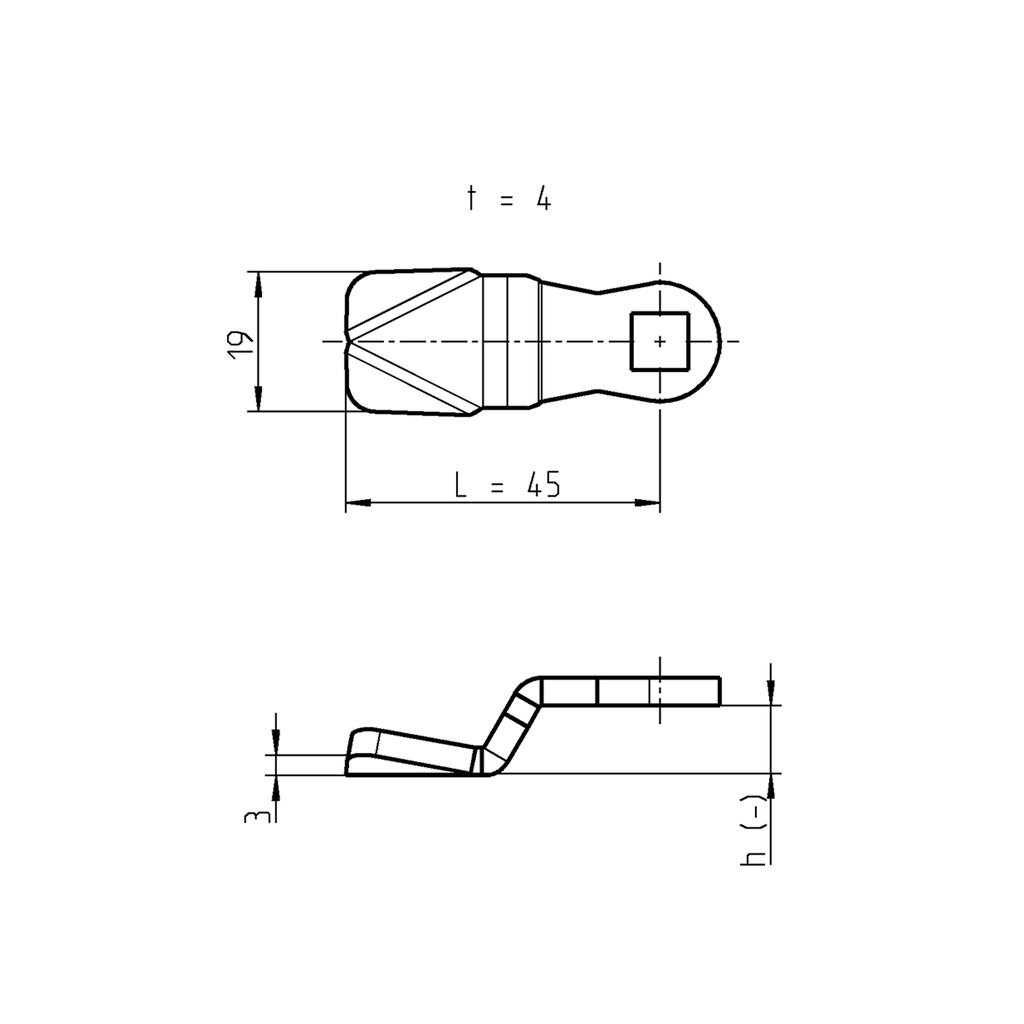

    offset of cam: -20 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    Closure Type: HVACR compression latch
    No Specifications
    View All Products

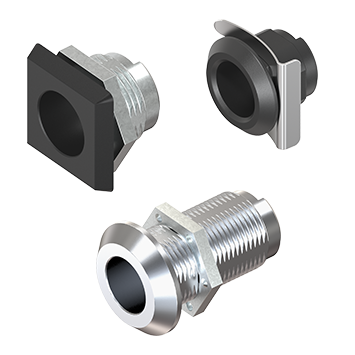

    Housing
    Ramp
    Assembly

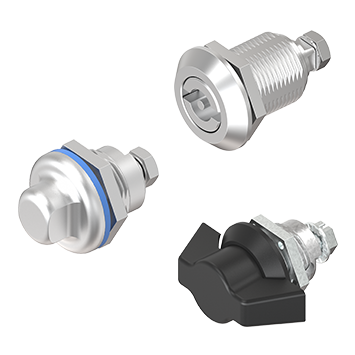

    Quarter turn
