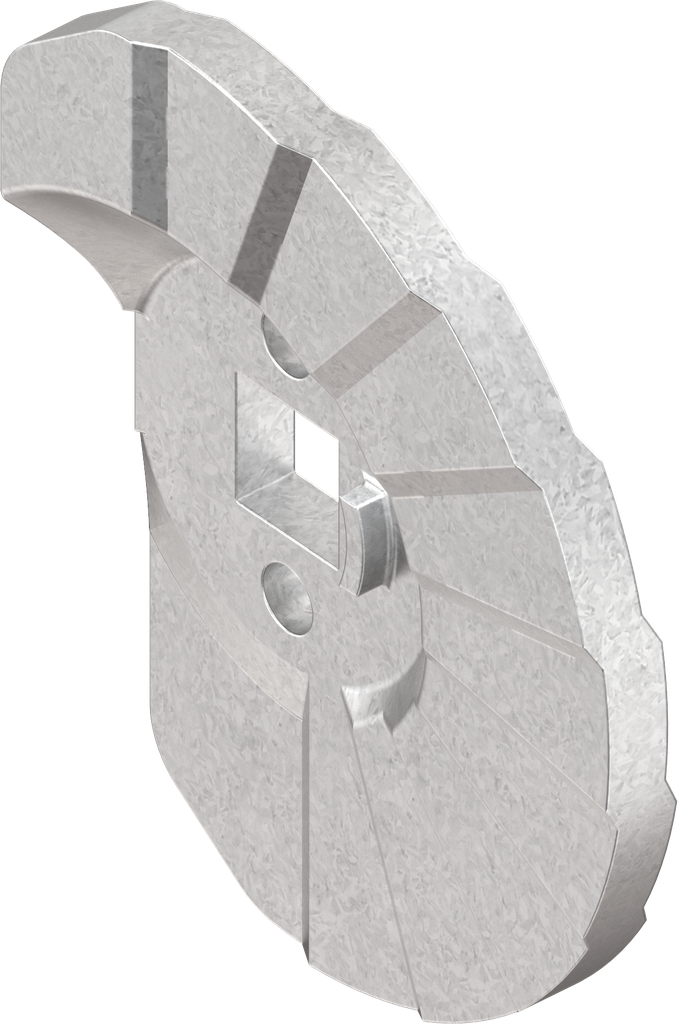

Stepped cam with catch, Zinc die raw; 1000-387

https://www.emka.com/products/1000-387 https://www.emka.com/web/image/product.template/59431/image_1920?unique=0558e2e

can be used on both sides

    This combination does not exist.

    Inside the sealing
    Contact Us

    Akeneo Note:

    • GH 18 = HA 19 or = HB 27
    • GH 18 = HA 31 or = HB 39
    • GH 36 = HA 37 or = HB 45
    • GH 40 = HA 41 or = HB 49
    • GH 50 = HA 51 or = HB 59
    Internal Reference: 1000-387
    Product Type: Cam
    Material: Zinc die
    Program: 1000
    Surface: raw
    Catalog sheet: 1B-240
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 10 mm
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Here you can find the product data sheets and CAD files of this product
