Cam, Polyamide GF black
Cam, Polyamide GF black
Cam, Polyamide GF black
Cam, Polyamide GF black

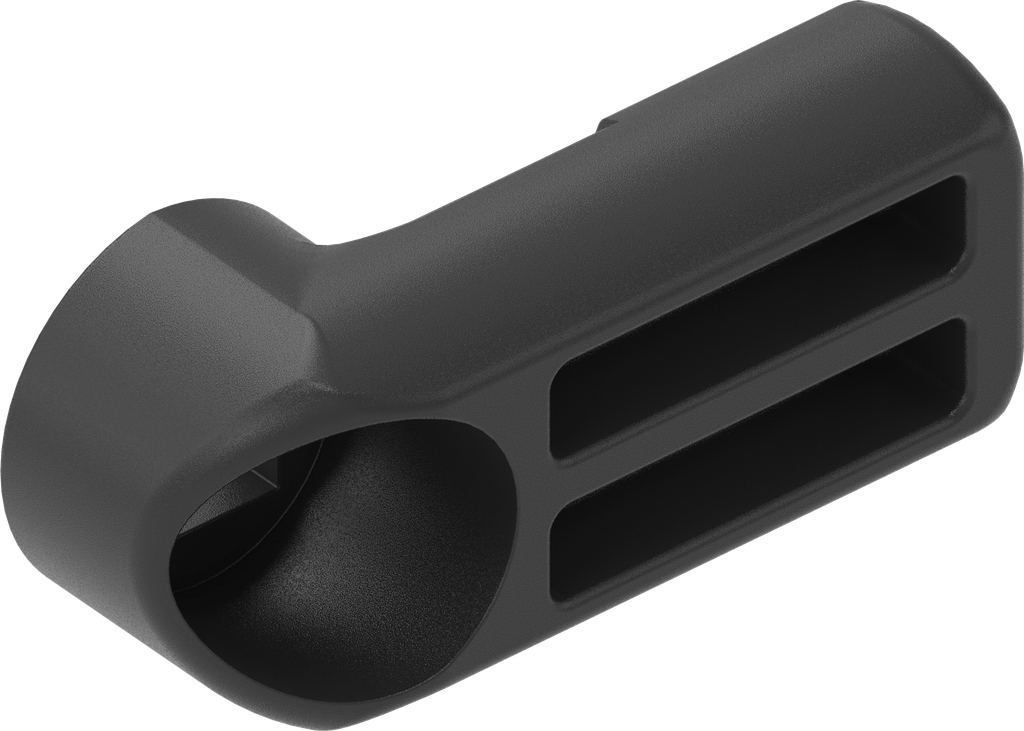

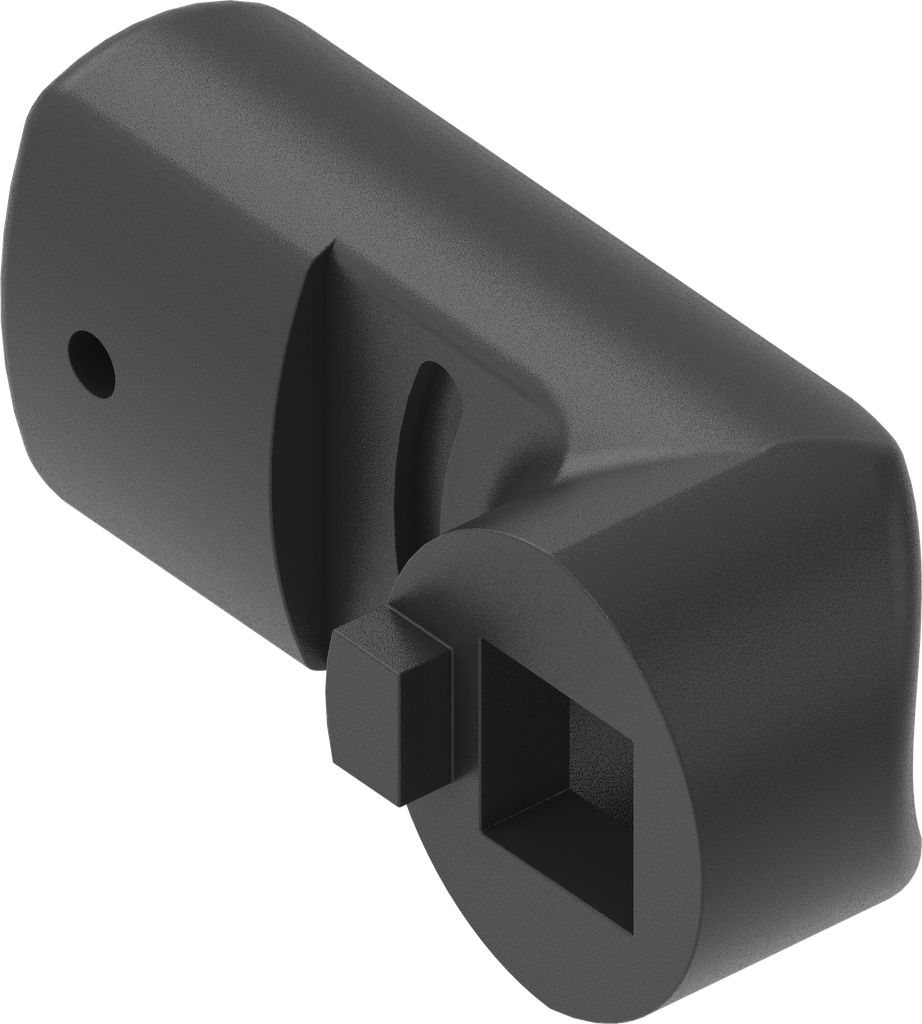

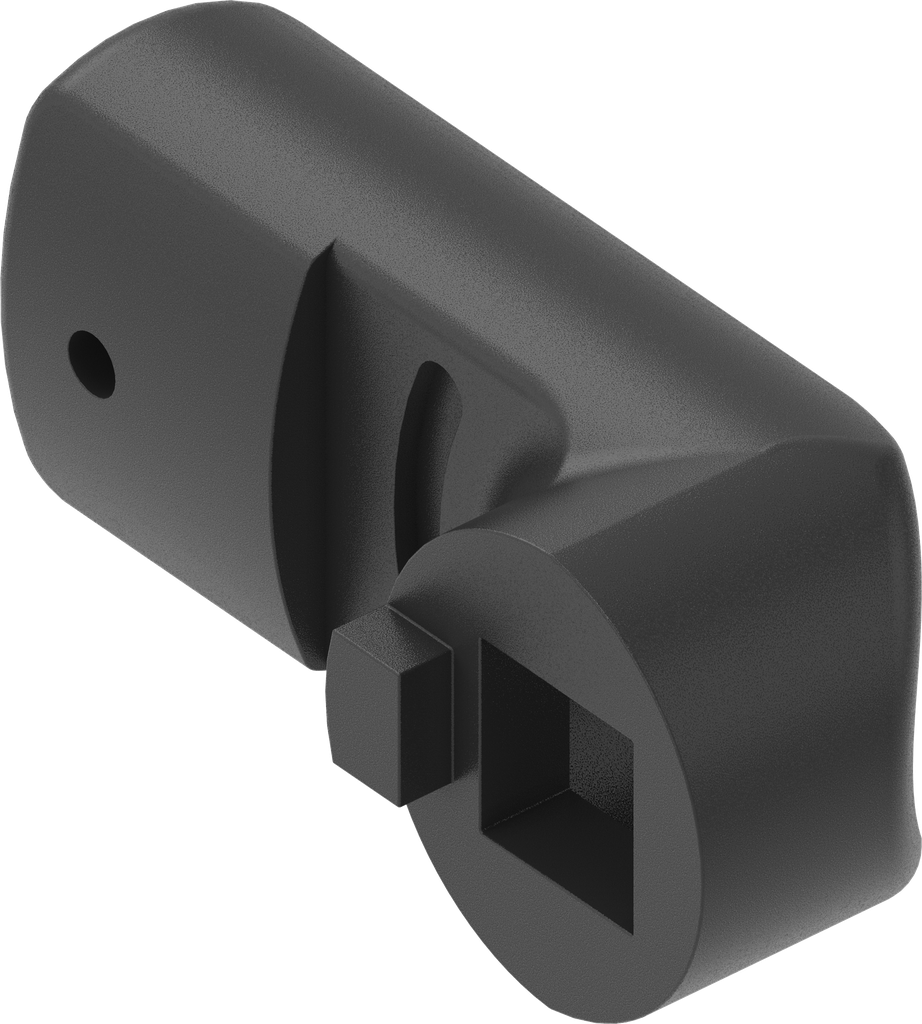

Cam, Polyamide GF black; 1000-386-22

https://www.emka.com/products/1000-386-22 https://www.emka.com/web/image/product.template/59428/image_1920?unique=2b61a42

Offset h = 4 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-386-22
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1C-120

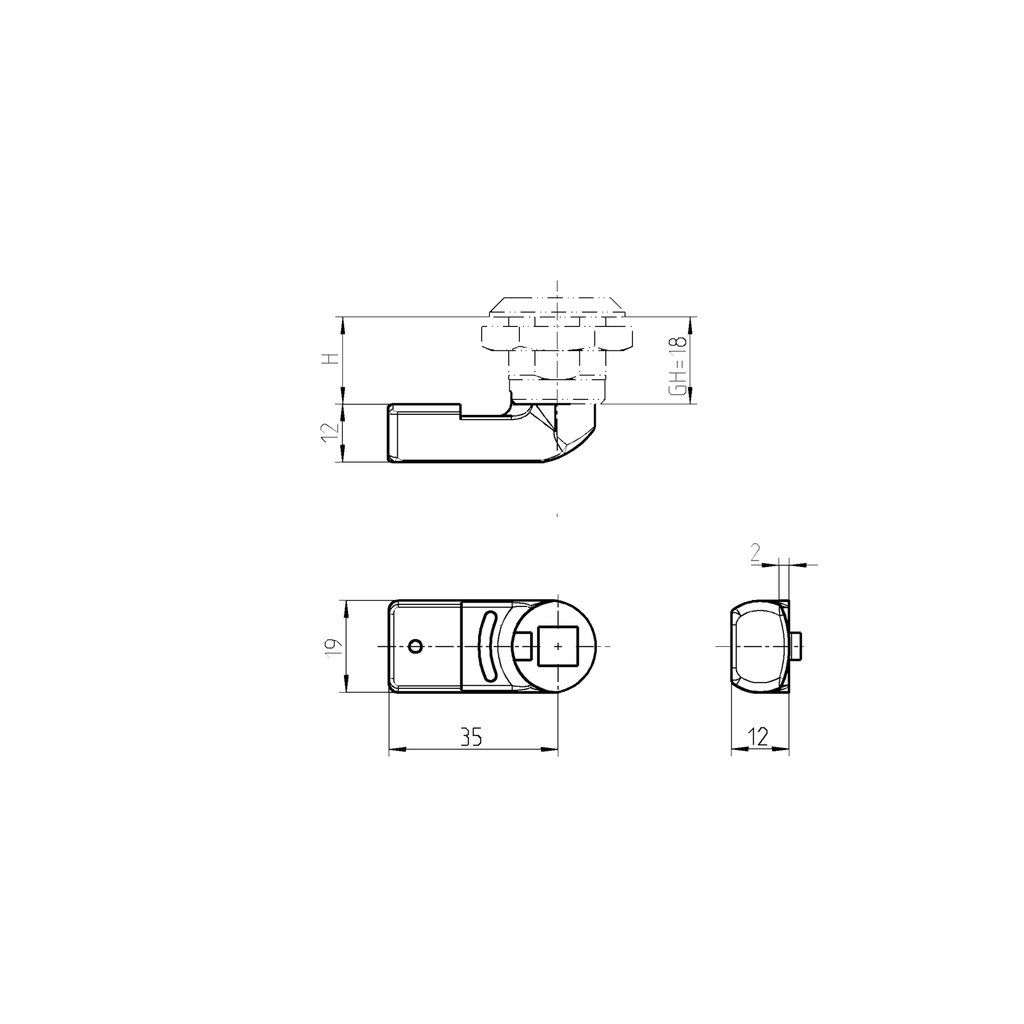

    Dimension A: 27 mm
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 4 mm
    Dimension L: 35 mm
    Spoon: Yes
    Dimension t: 16 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Adapter
    Bearing bush

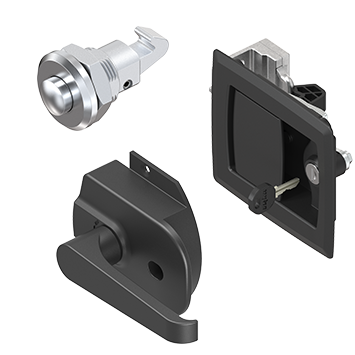

    Other latch

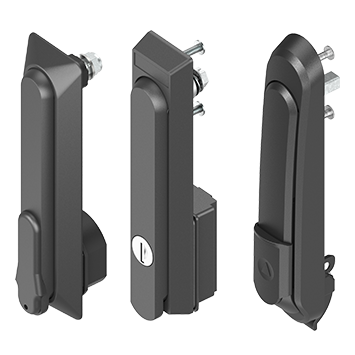

    Swinghandle, Lifthandle
