Cam, Polyamide GF black
Cam, Polyamide GF black
Cam, Polyamide GF black
Cam, Polyamide GF black

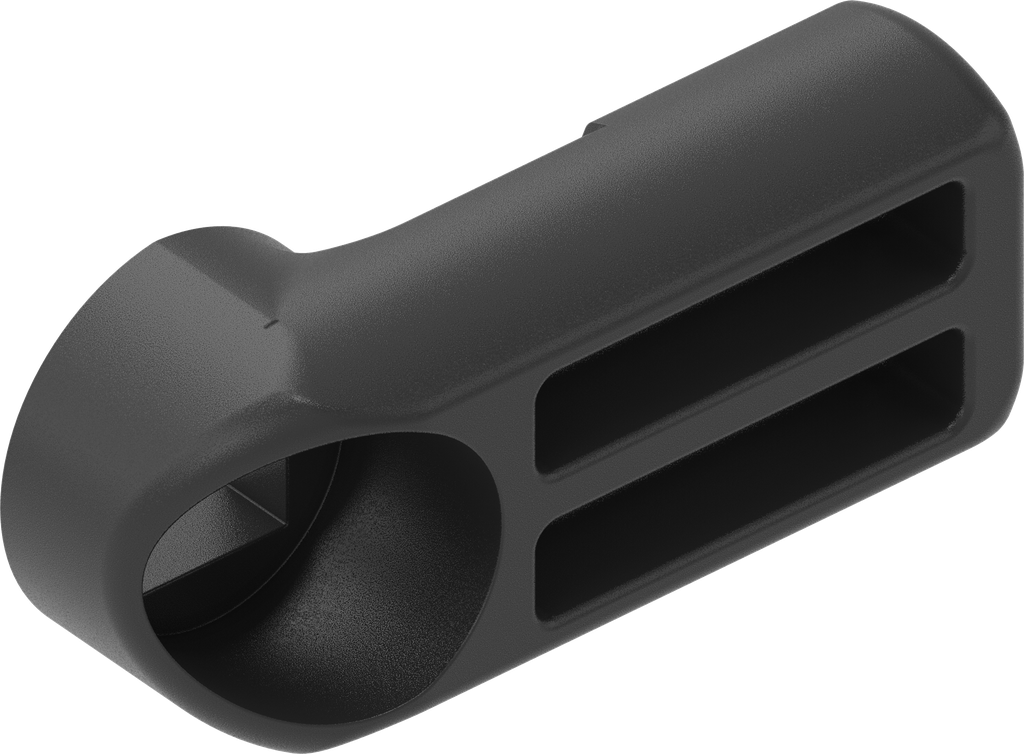

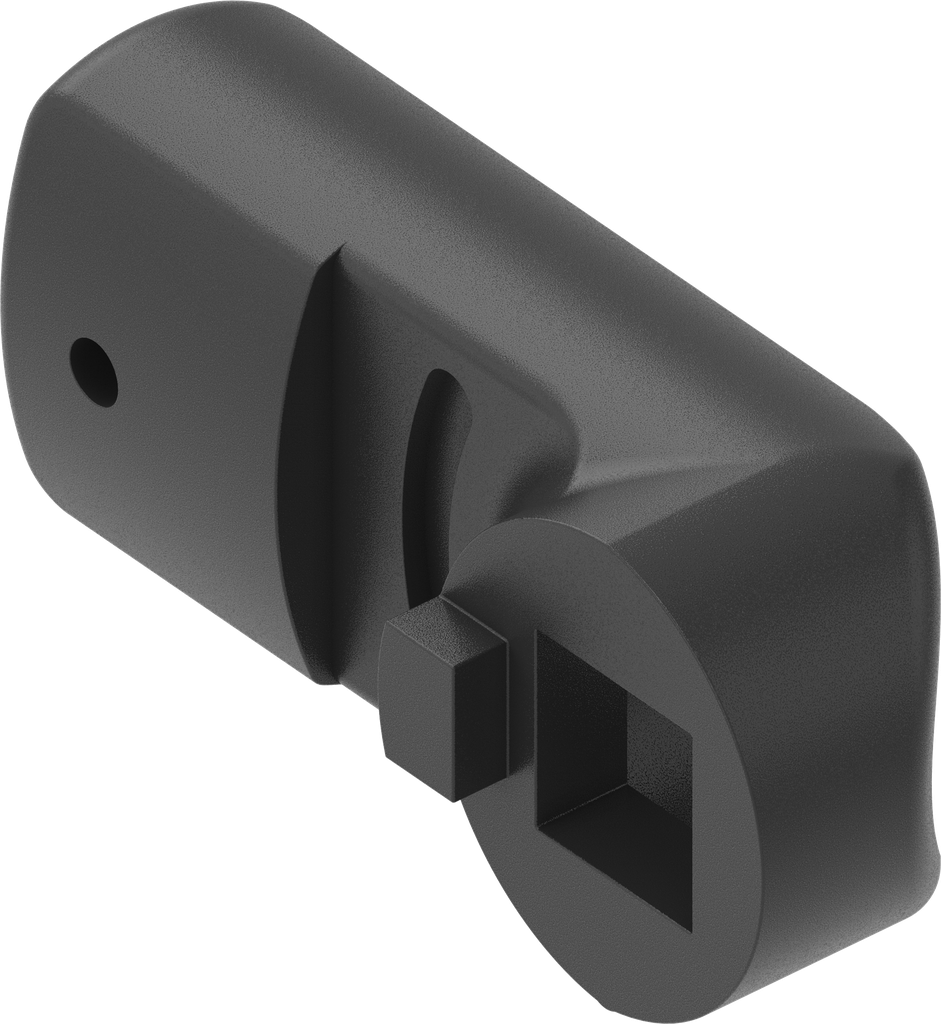

Cam, Polyamide GF black; 1000-386-20

https://www.emka.com/products/1000-386-20 https://www.emka.com/web/image/product.template/59427/image_1920?unique=2b2270f

Offset h = 2 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-386-20
    Product Type: Cam
    Material: Polyamide GF
    Program: 1000
    Surface: black
    Catalog sheet: 1C-120

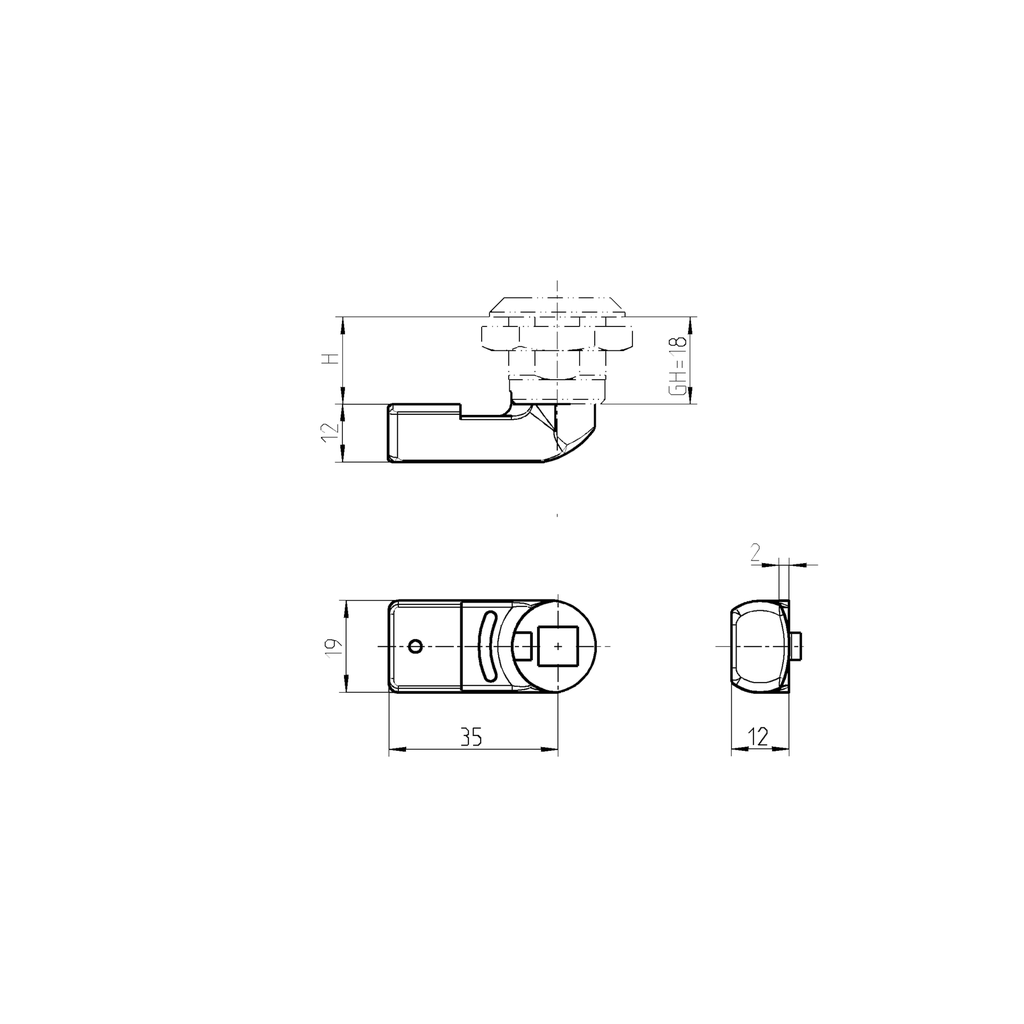

    Dimension A: 25 mm
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 2 mm
    Dimension L: 35 mm
    Spoon: Yes
