Round rod L = 700 mm, Steel zinc-plated
Round rod L = 700 mm, Steel zinc-plated
Round rod L = 900 mm, Steel zinc-plated
Round rod L = 900 mm, Steel zinc-plated

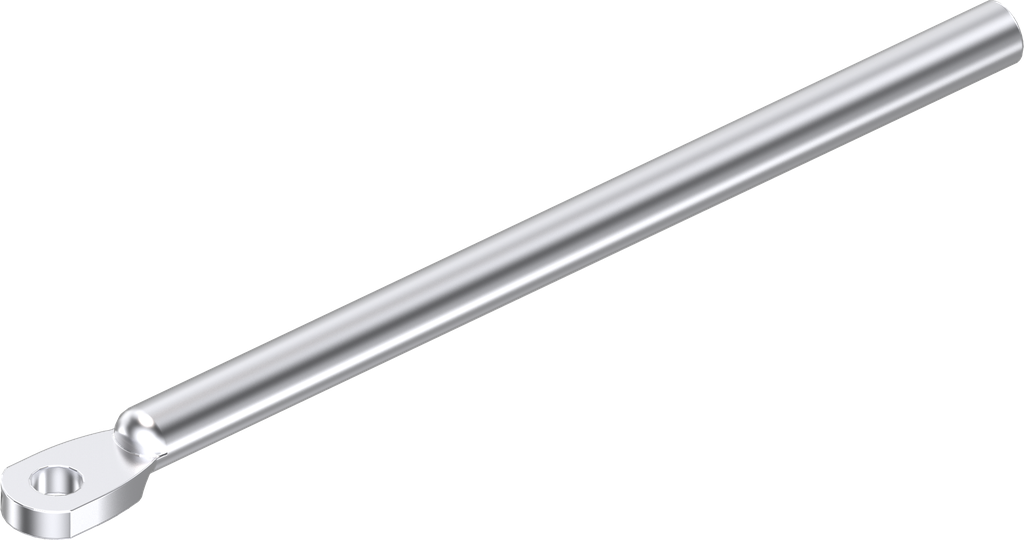

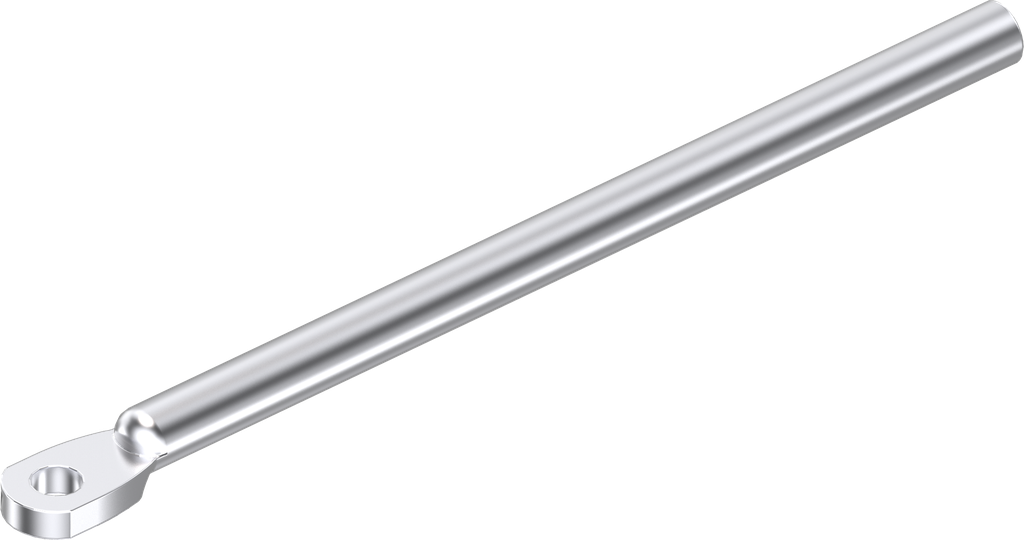

Round rod L = 800 mm, Steel zinc-plated; 1000-37

https://www.emka.com/products/1000-37 https://www.emka.com/web/image/product.template/199652/image_1920?unique=ec975c3

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-37
    Product Type: Rod
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3ZB-120
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing

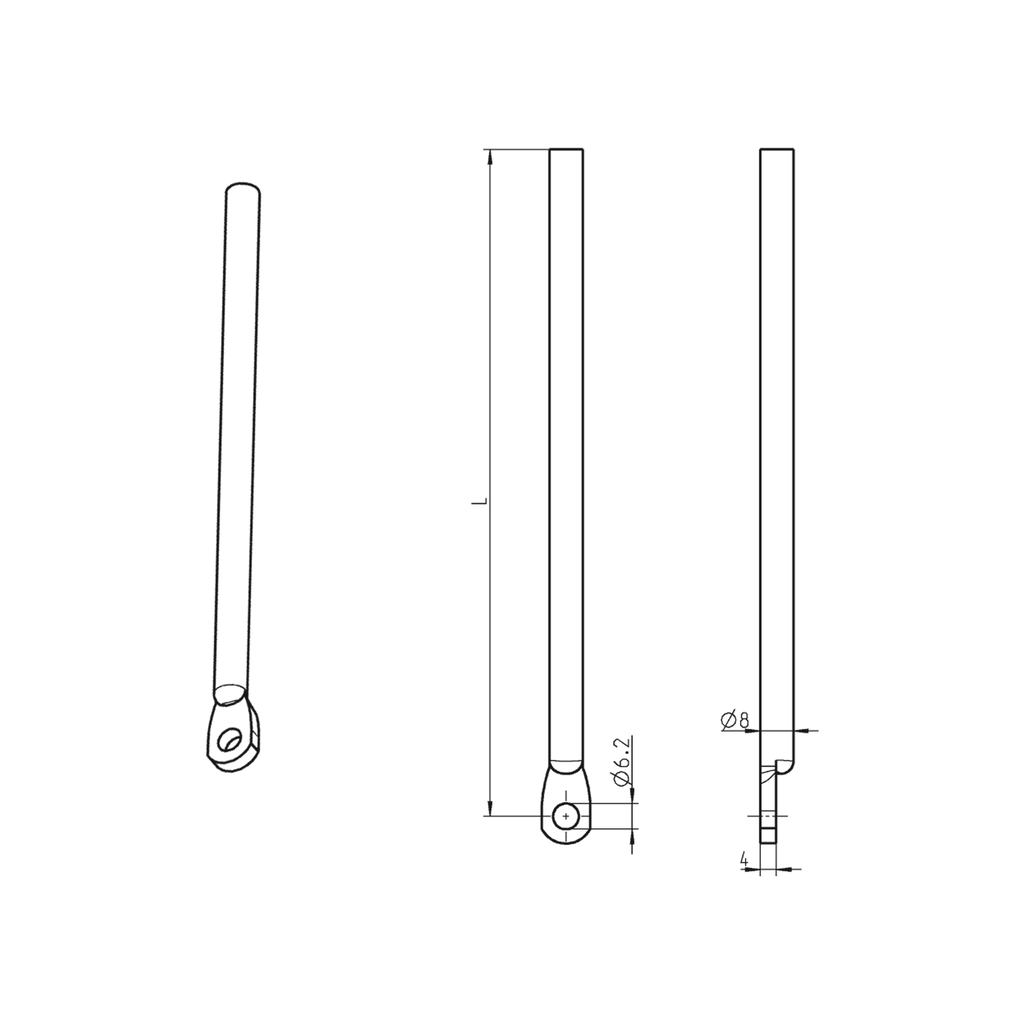

    Dimension L: 800 mm
    Length(L-dimension): 800 mm
    Round bar inside the seal: Round rod with butt and eye
    No Specifications
    View All Products
    Cam
    Rod control
    Rod guide
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-620
    Product data sheet
    CAD file | 1000-37_igs
    CAD file | 1000-37_stp
