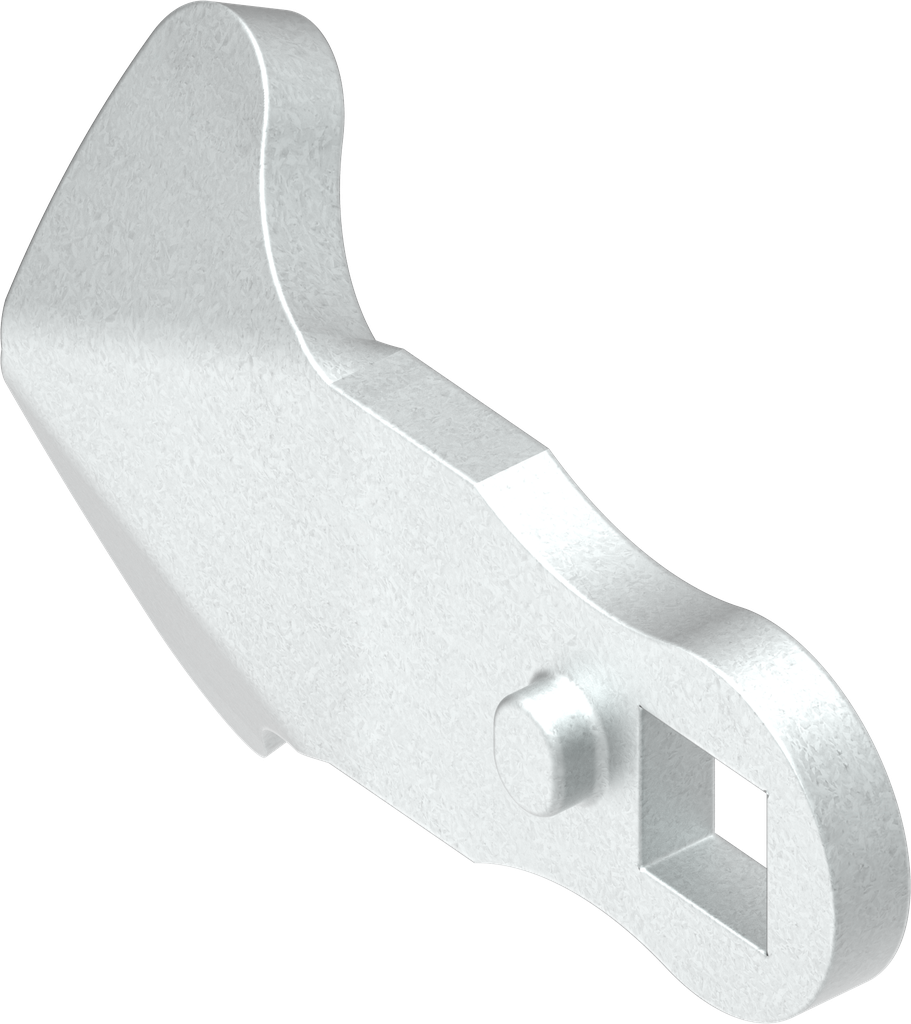

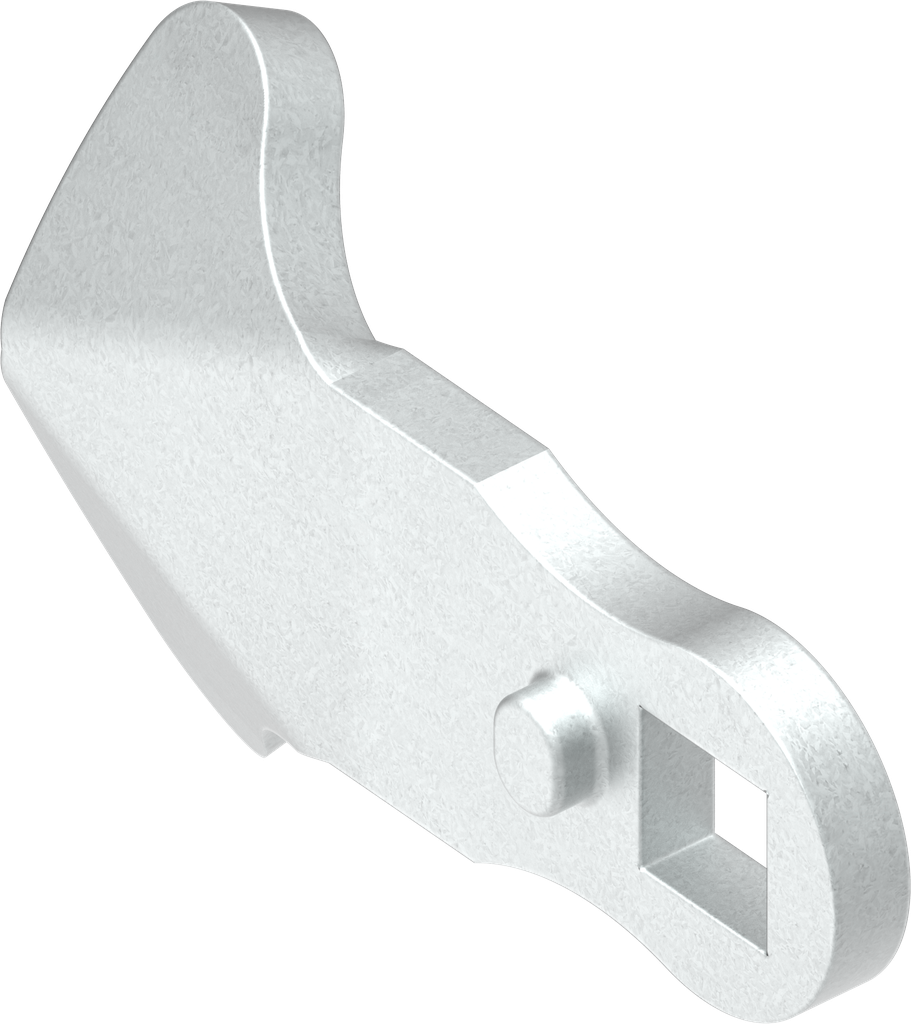

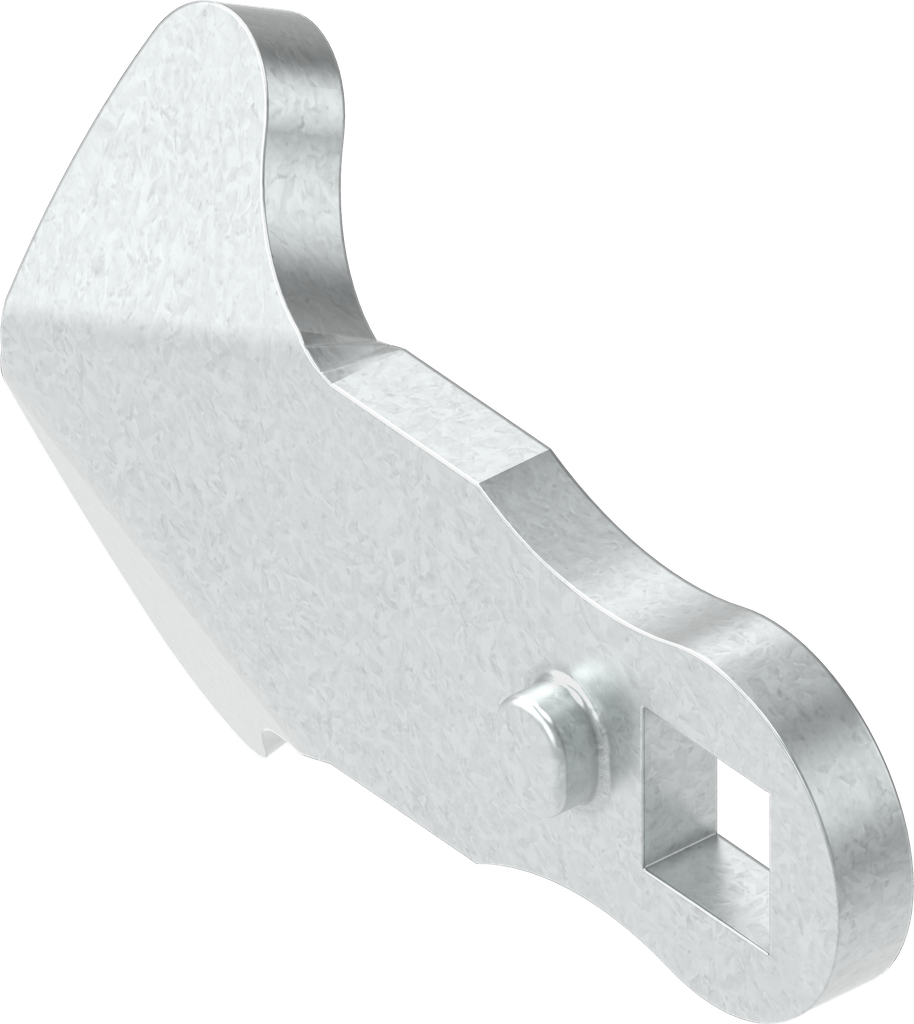

Guide cam, Steel zinc-plated; 1000-293

https://www.emka.com/products/1000-293 https://www.emka.com/web/image/product.template/59345/image_1920?unique=4564128

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-293
    Product Type: Cam
    Material: Steel
    Program: 1000
    Surface: zinc-plated
    Catalog sheet: 3YB-440
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 6 mm
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Quarter turn accessories
    Rod control
    Adapter
    Locking point

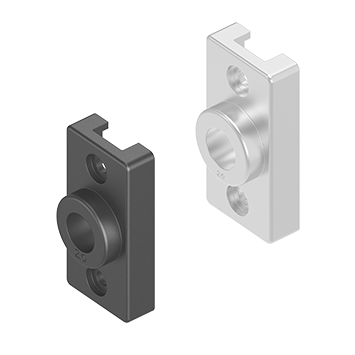

    Bearing bush

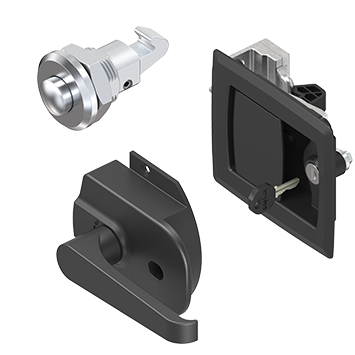

    Other latch

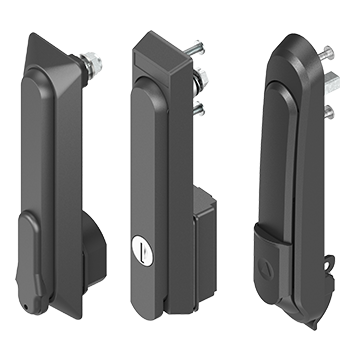

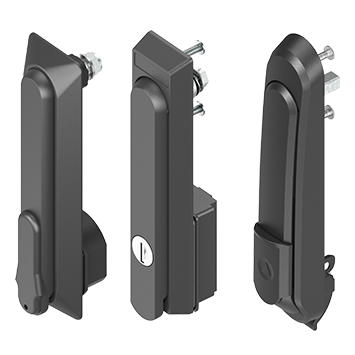

    Swinghandle, Lifthandle

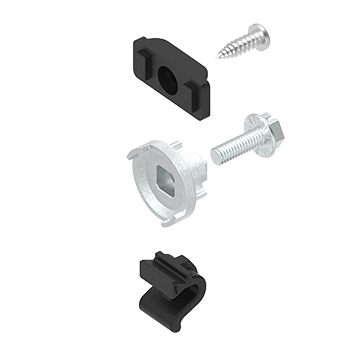

    Fixing material for swinghandle
