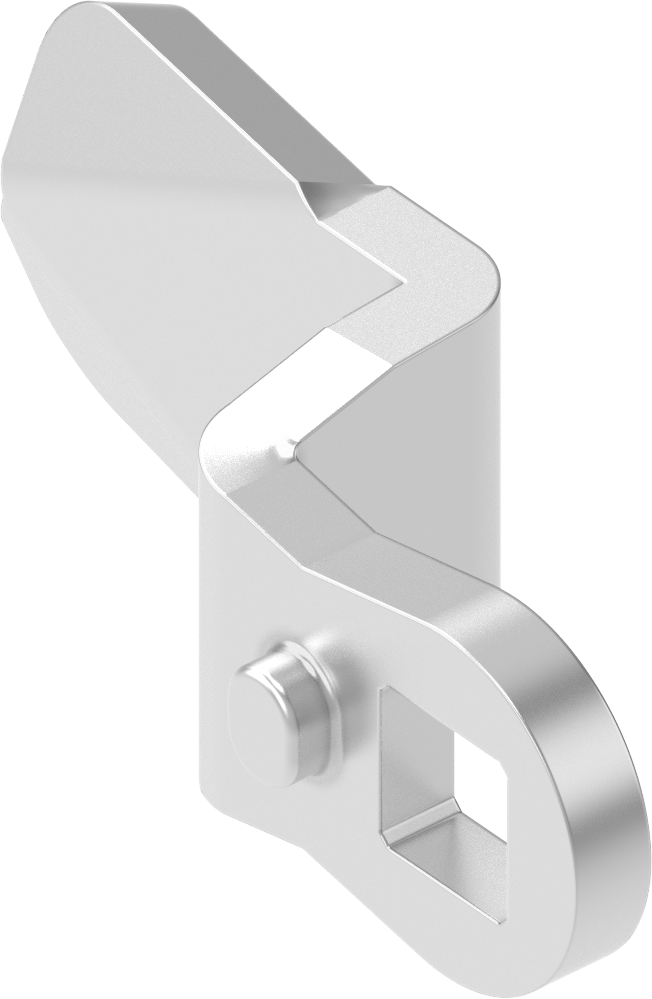

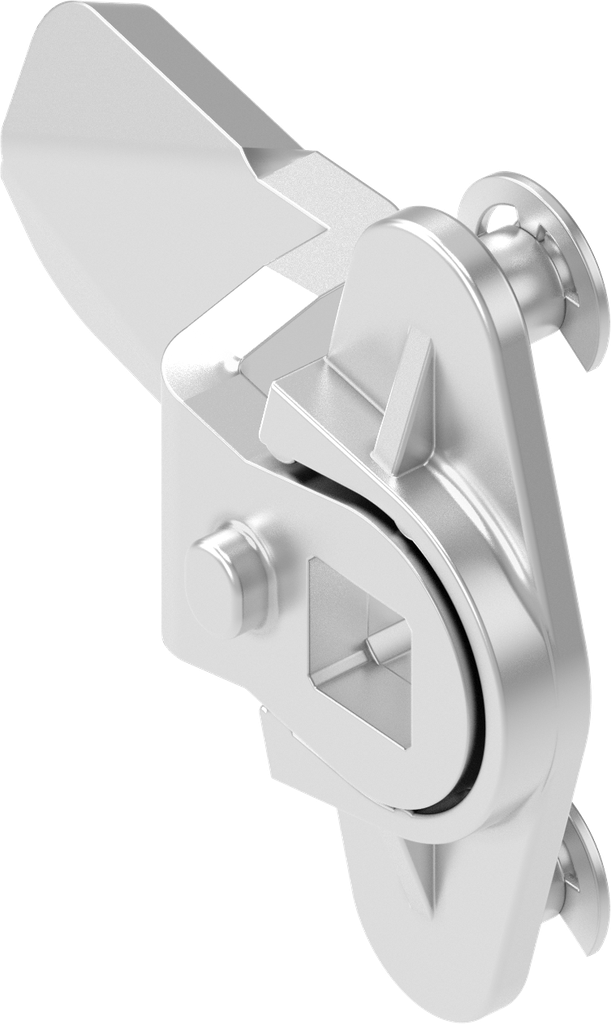

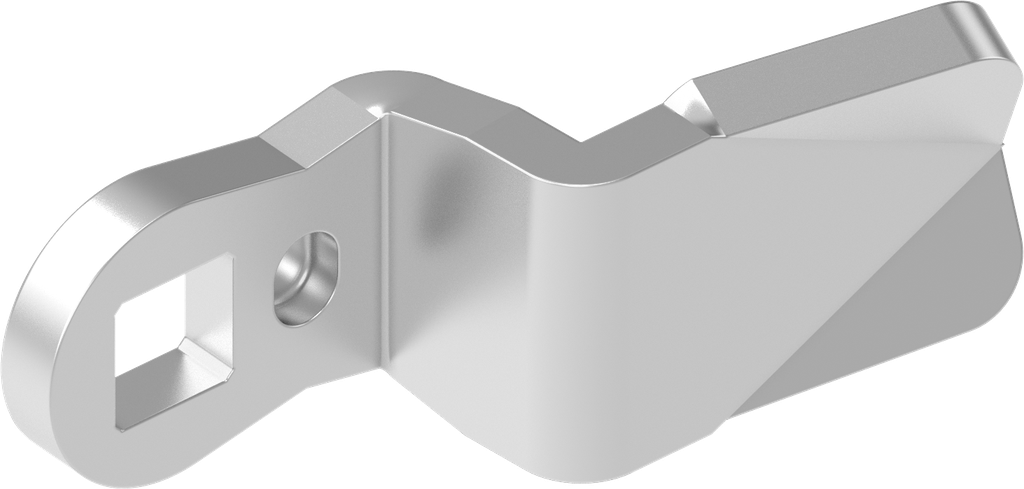

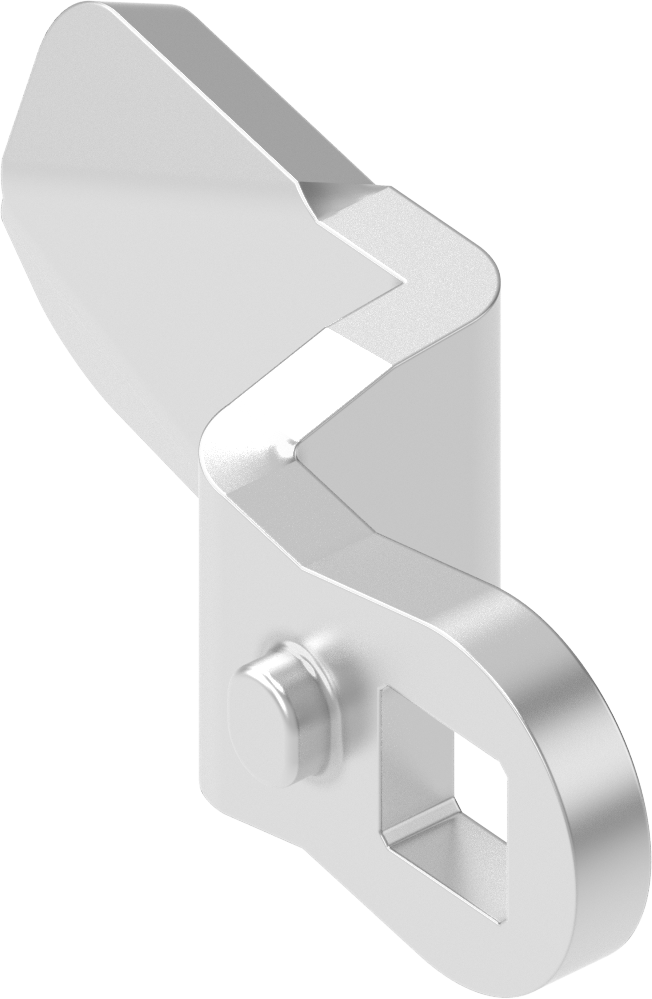

Cam, Stainless steel AISI 304; 1000-233

https://www.emka.com/products/1000-233 https://www.emka.com/web/image/product.template/200005/image_1920?unique=c02b97a

Offset h = 14 mm

    This combination does not exist.

    Inside the sealing
    Internal Reference: 1000-233
    Barcode: 1000-000233-0000000
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Dimension A: 37 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 14 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Locking shaft
    Rod control
    Ramp
    Assembly
    Quarter turn
    Adapter
    Locking point
    Bearing bush
    Other latch

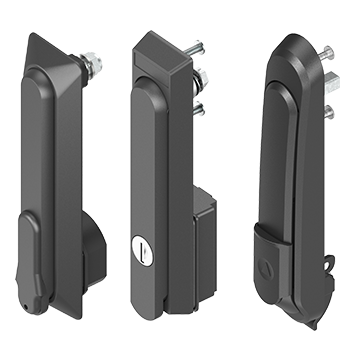

    Swinghandle, Lifthandle
