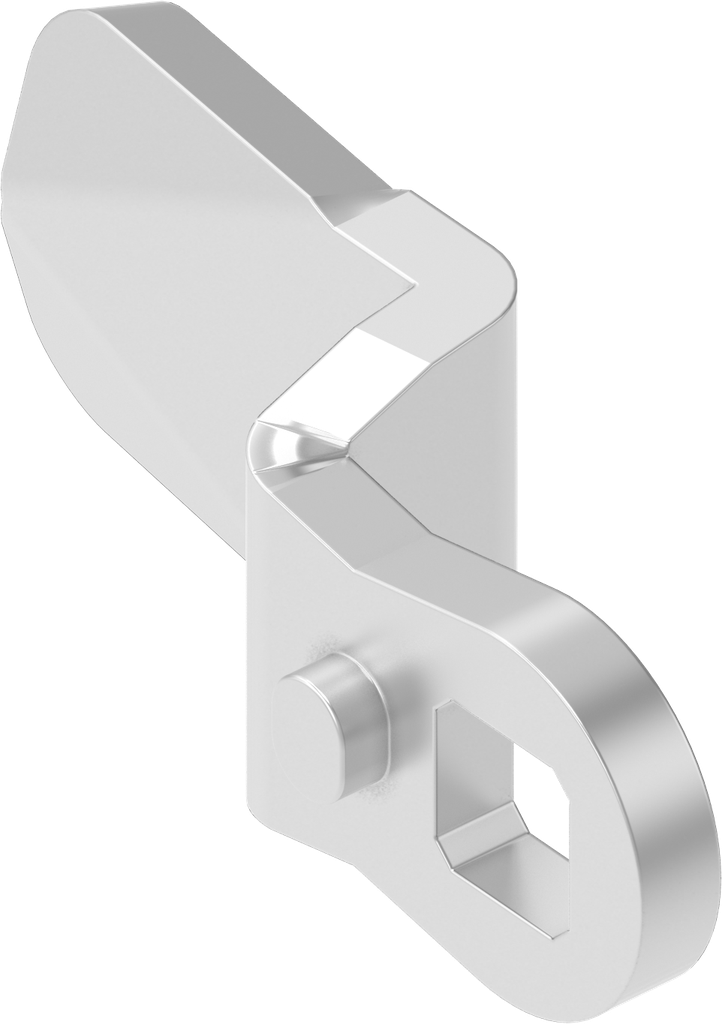

Cam, Stainless steel AISI 304; 1000-232

https://www.emka.com/products/1000-232 https://www.emka.com/web/image/product.template/200003/image_1920?unique=f93a280

Offset h = 12 mm


    This combination does not exist.

    Inside the sealing


    Internal Reference: 1000-232
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Catalog sheet: 1C-120
    Dimension A: 35 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 12 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products

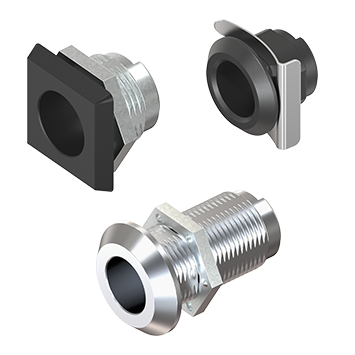

    Housing
    Ramp
    Assembly
    Quarter turn
    Rod control
    Adapter
    Locking point
    Bearing bush
    Other latch

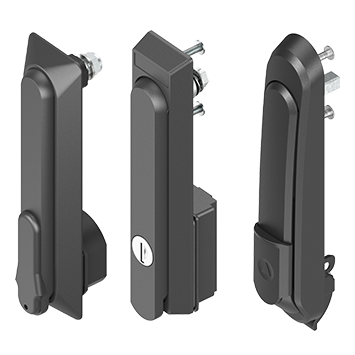

    Swinghandle, Lifthandle
