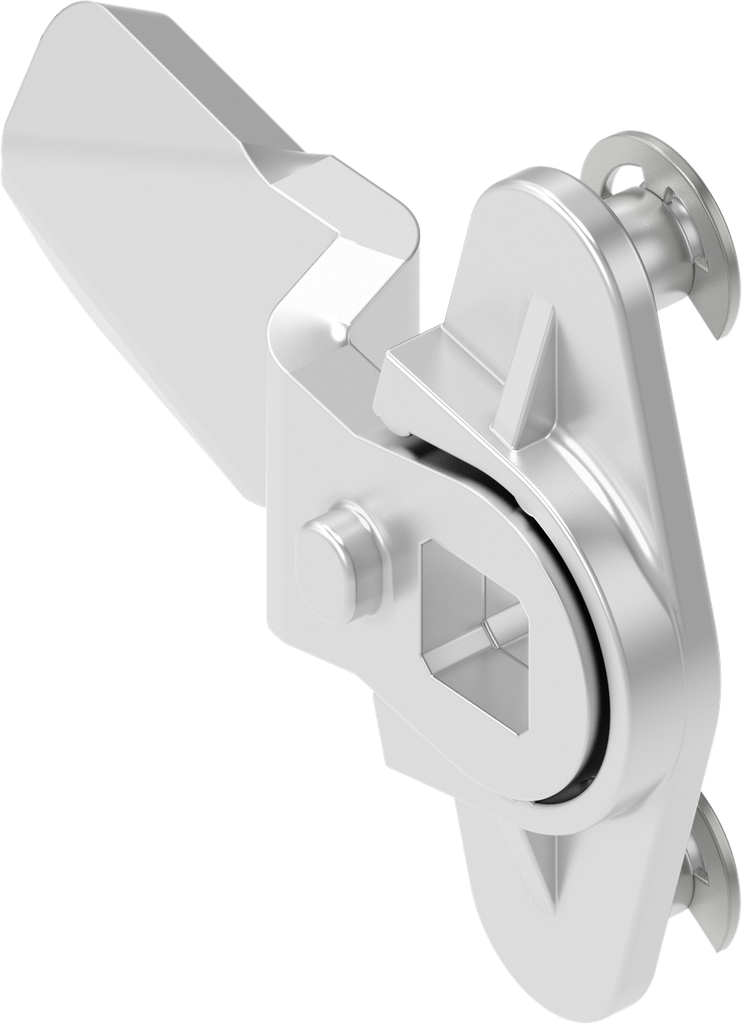

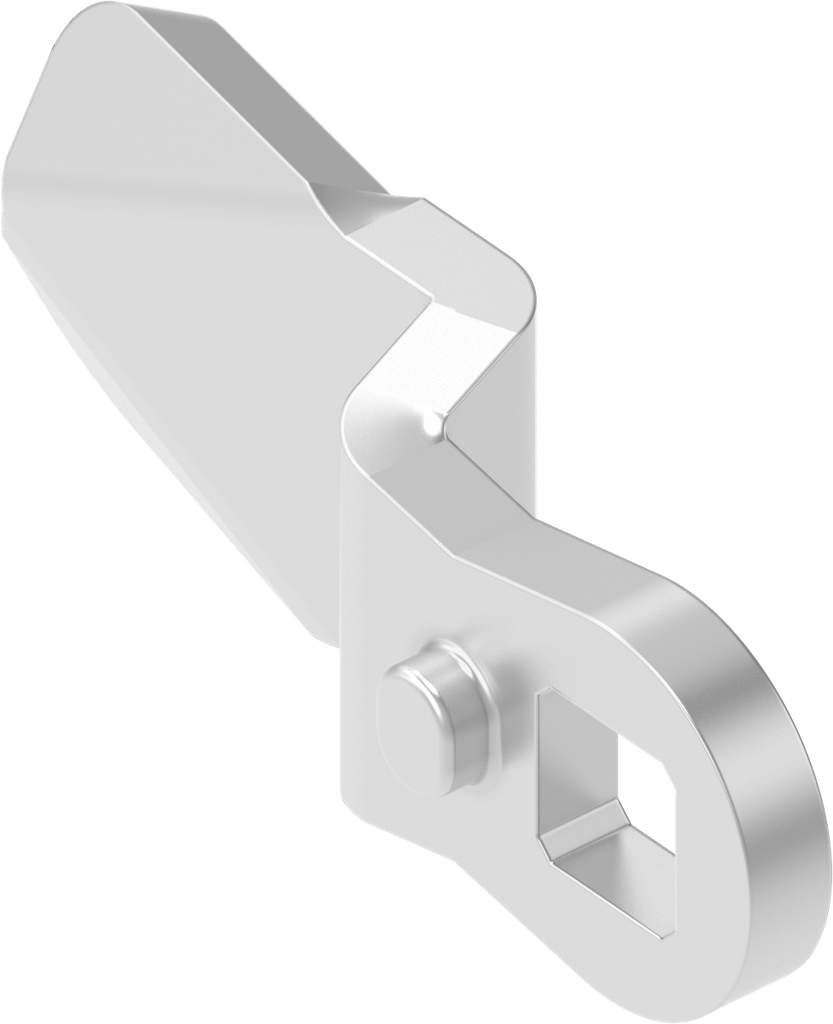

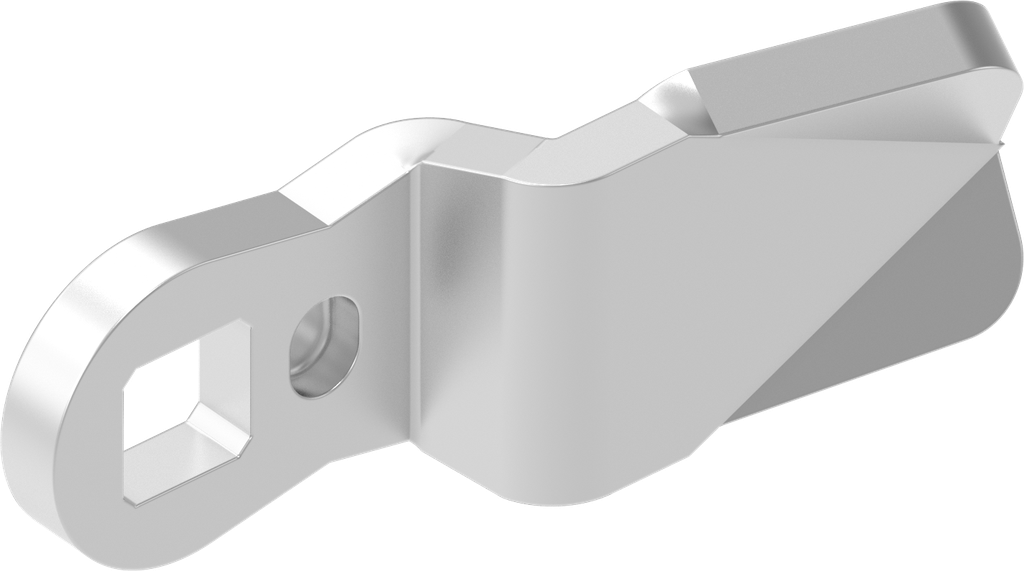

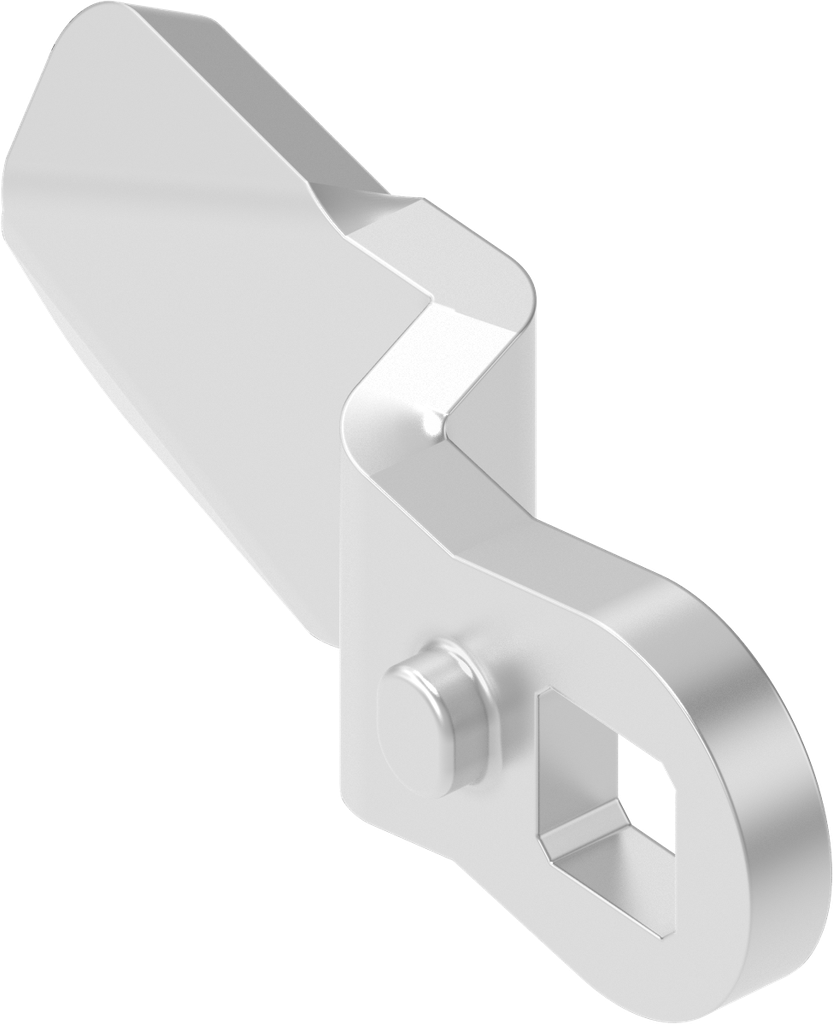

Cam, Stainless steel AISI 304; 1000-230

https://www.emka.com/products/1000-230 https://www.emka.com/web/image/product.template/59290/image_1920?unique=e87ad92

Offset h = 8 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-230
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Catalog sheet: 3ZD-240
    Dimension A: 31 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 8 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Ramp
    Assembly
    Quarter turn
    Rod control
    Adapter
    Locking point
    Bearing bush

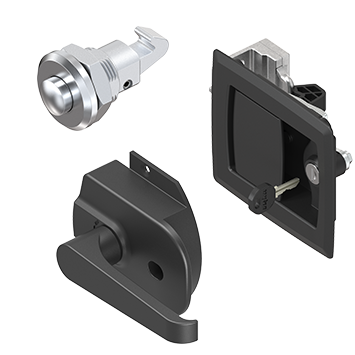

    Other latch

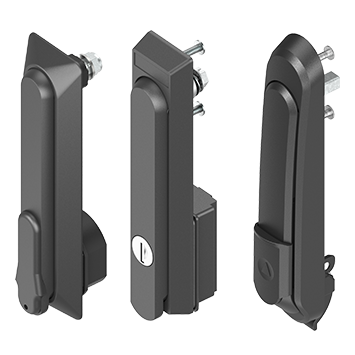

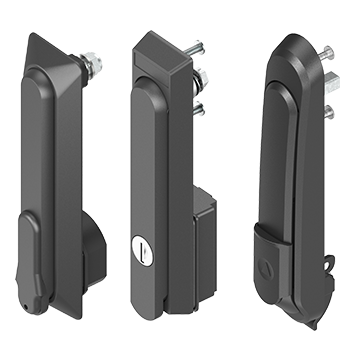

    Swinghandle, Lifthandle

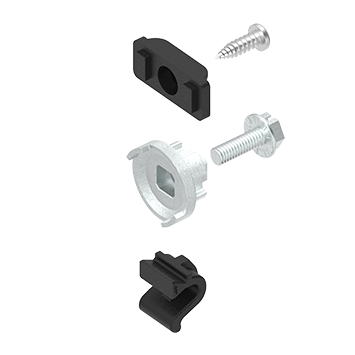

    Fixing material for swinghandle
