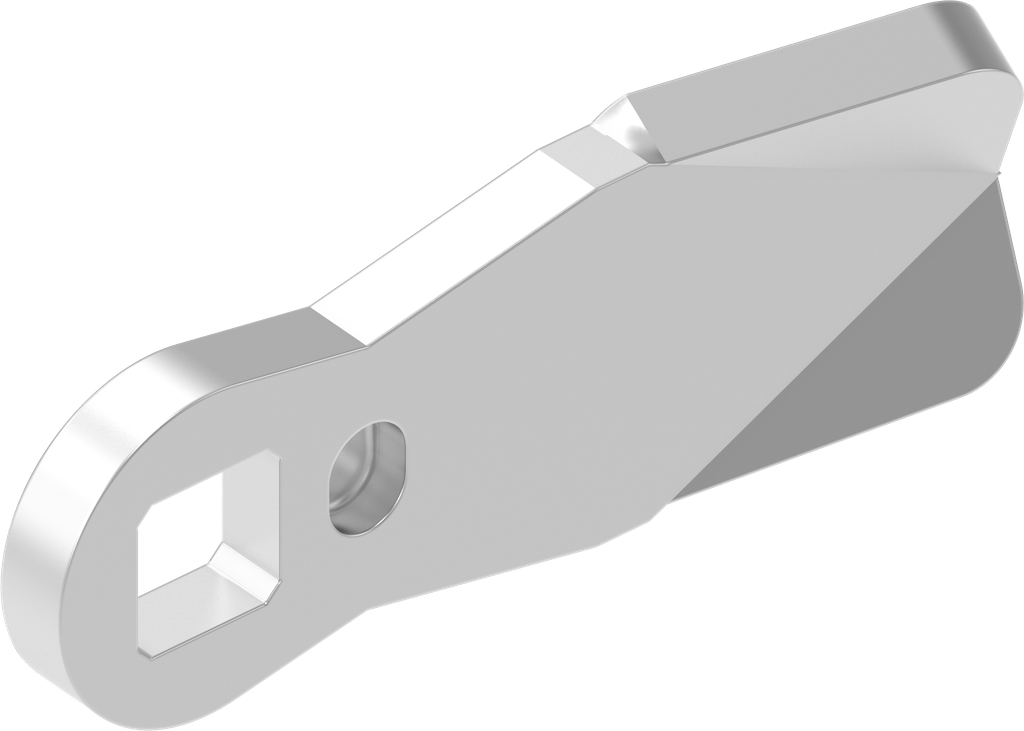

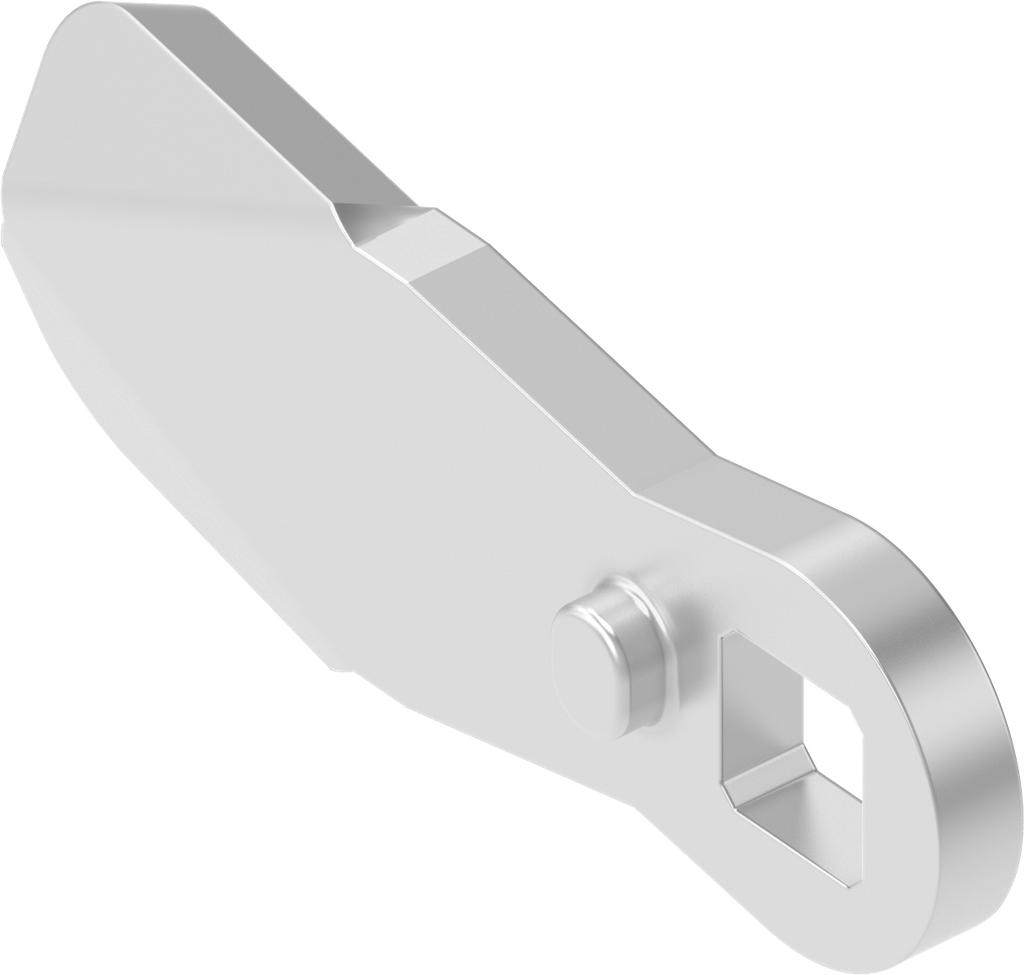

Cam, Stainless steel AISI 304; 1000-227

https://www.emka.com/products/1000-227 https://www.emka.com/web/image/product.template/59285/image_1920?unique=8327ea9

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-227
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Catalog sheet: 3ZD-240
    Dimension A: 23 mm
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
