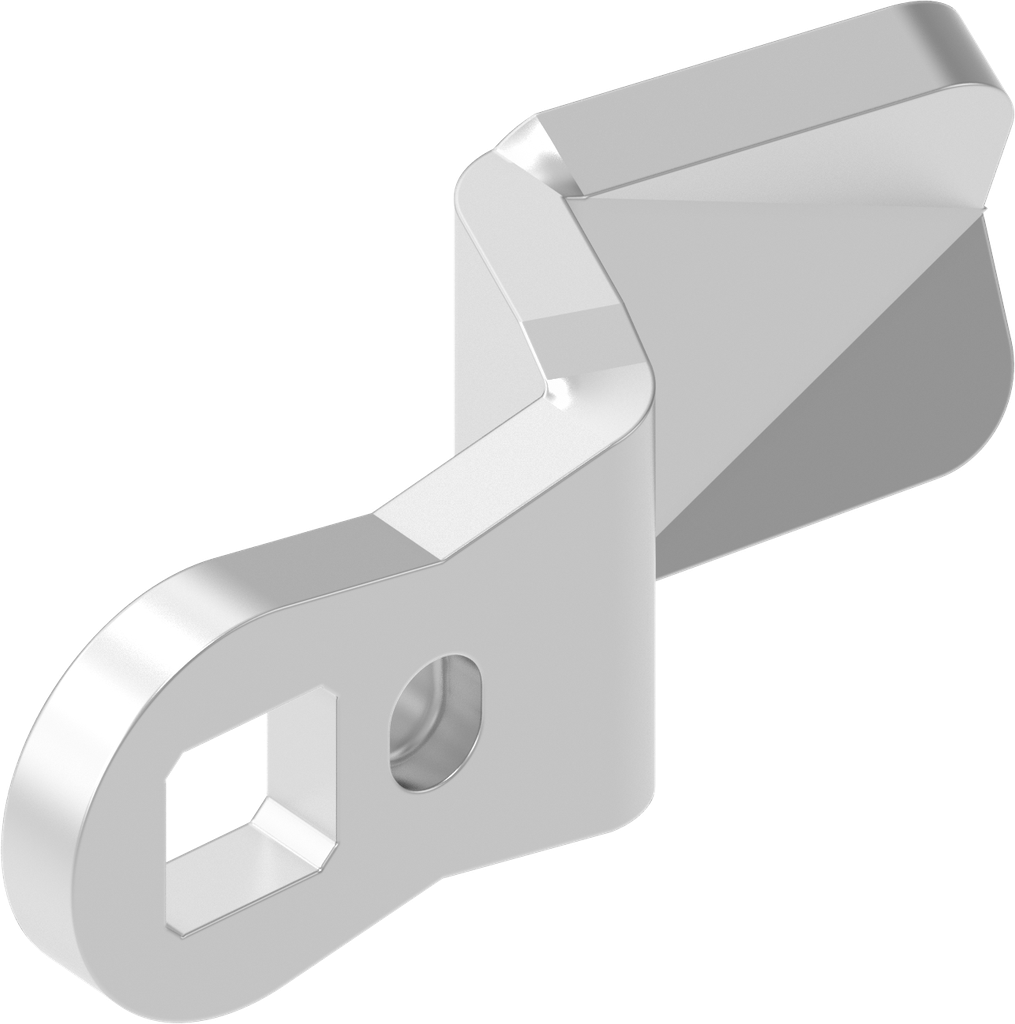

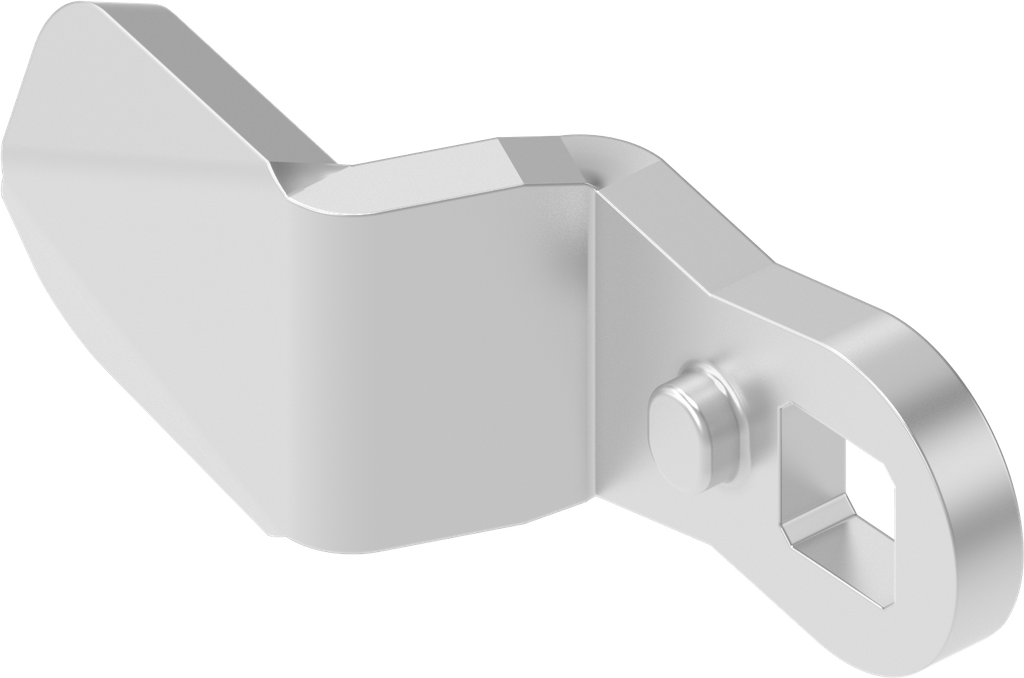

Cam, Stainless steel AISI 304; 1000-221

https://www.emka.com/products/1000-221 https://www.emka.com/web/image/product.template/59279/image_1920?unique=e0116a2

Offset h = -12 mm

    This combination does not exist.

    Inside the sealing
    Internal Reference: 1000-221
    Barcode: 1000-000221-0000000
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1000
    Catalog sheet: 3ZD-240
    Number of Possible Locking Points: 1 point, 3 point
    Mounting Positions : Inside the sealing
    Compression Value : 3 mm
    Offset: negative
    offset of cam: -12 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
